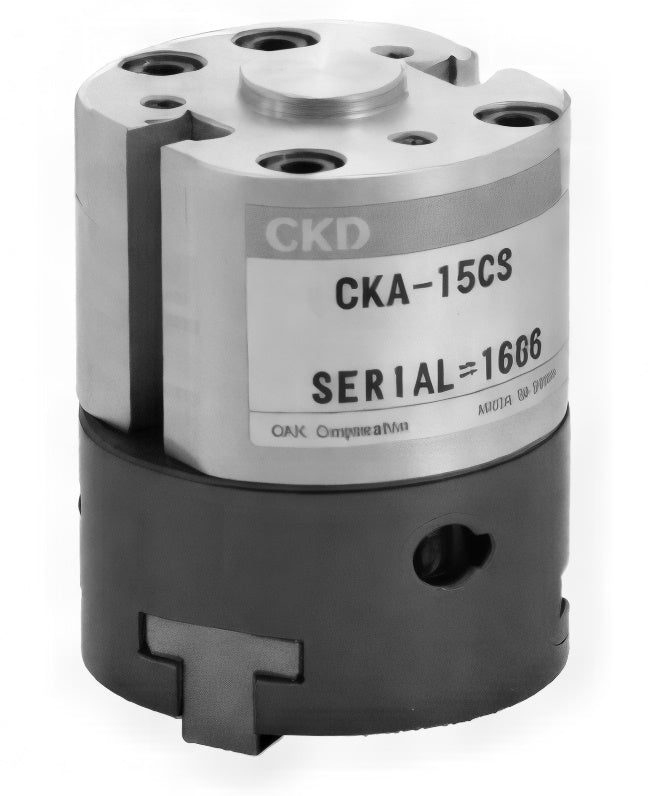

CKD Three-jaw Slim Chuck CKA Series (Double/Single Acting)

CKD Three-jaw Slim Chuck CKA Series (Double/Single Acting)

Slim three-jaw chuck; double acting or single acting.

Key features

  • Codes are the printed base models (standard type, without switch); options such as single acting, long stroke, finger and cylinder switch are added via the catalog ordering code

Specifications

Repeatability (mm) ±0.03
Fluid Compressed air
CKA-15CS Size: 15CS | Bore (mm): 16 | Stroke (mm): 6 | Repeatability (mm): ±0.03 | Mass (kg): 0.11 | Fluid: Compressed air
CKA-20CS Size: 20CS | Bore (mm): 25 | Stroke (mm): 5 | Repeatability (mm): ±0.03 | Mass (kg): 0.25 | Fluid: Compressed air
CKA-25CS Size: 25CS | Bore (mm): 32 | Stroke (mm): 7 | Repeatability (mm): ±0.03 | Mass (kg): 0.42 | Fluid: Compressed air
CKA-30CS Size: 30CS | Bore (mm): 40 | Stroke (mm): 9 | Repeatability (mm): ±0.03 | Mass (kg): 0.61 | Fluid: Compressed air
CKA-40CS Size: 40CS | Bore (mm): 50 | Stroke (mm): 20 | Repeatability (mm): ±0.03 | Mass (kg): 1.41 | Fluid: Compressed air
CKA-50CS Size: 50CS | Bore (mm): 63 | Stroke (mm): 25 | Repeatability (mm): ±0.03 | Mass (kg): 2.6 | Fluid: Compressed air
CKA-60CS Size: 60CS | Bore (mm): 80 | Stroke (mm): 30 | Repeatability (mm): ±0.03 | Mass (kg): 4.5 | Fluid: Compressed air
CKA-70CS Size: 70CS | Bore (mm): 100 | Stroke (mm): 38 | Repeatability (mm): ±0.03 | Mass (kg): 6.4 | Fluid: Compressed air
Pneumatic ChucksCKD
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Three-jaw Slim Chuck CKA Series (Double/Single Acting)

Brand CKD·Pneumatic Chucks

Available part numbers (8)

CKA-15CS, CKA-20CS, CKA-25CS, CKA-30CS, CKA-40CS, CKA-50CS, CKA-60CS, CKA-70CS

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CKA-15CSSize: 15CS | Bore (mm): 16 | Stroke (mm): 6 | Repeatability (mm): ±0.03 | Mass (kg): 0.11 | Fluid: Compressed air
CKA-20CSSize: 20CS | Bore (mm): 25 | Stroke (mm): 5 | Repeatability (mm): ±0.03 | Mass (kg): 0.25 | Fluid: Compressed air
CKA-25CSSize: 25CS | Bore (mm): 32 | Stroke (mm): 7 | Repeatability (mm): ±0.03 | Mass (kg): 0.42 | Fluid: Compressed air
CKA-30CSSize: 30CS | Bore (mm): 40 | Stroke (mm): 9 | Repeatability (mm): ±0.03 | Mass (kg): 0.61 | Fluid: Compressed air
CKA-40CSSize: 40CS | Bore (mm): 50 | Stroke (mm): 20 | Repeatability (mm): ±0.03 | Mass (kg): 1.41 | Fluid: Compressed air
CKA-50CSSize: 50CS | Bore (mm): 63 | Stroke (mm): 25 | Repeatability (mm): ±0.03 | Mass (kg): 2.6 | Fluid: Compressed air
CKA-60CSSize: 60CS | Bore (mm): 80 | Stroke (mm): 30 | Repeatability (mm): ±0.03 | Mass (kg): 4.5 | Fluid: Compressed air
CKA-70CSSize: 70CS | Bore (mm): 100 | Stroke (mm): 38 | Repeatability (mm): ±0.03 | Mass (kg): 6.4 | Fluid: Compressed air
