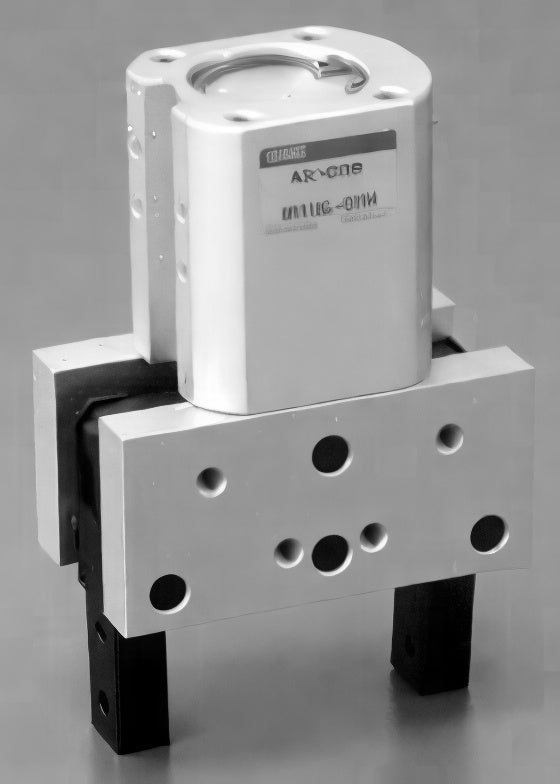

CKD Toggle Hand HJL Series

CKD Toggle Hand HJL Series

Toggle mechanism hand providing high gripping force and grip holding.

Key features

  • Codes are the printed base models (standard type, without switch); options such as single acting, long stroke, finger and cylinder switch are added via the catalog ordering code

Specifications

Opening -3~28
Repeatability (mm) ±0.1
Fluid Compressed air
HJL-32CS Size: 32CS | Bore (mm): 32 | Opening: -3~28 | Repeatability (mm): ±0.1 | Mass (kg): 0.88 | Fluid: Compressed air
HJL-40CS Size: 40CS | Bore (mm): 40 | Opening: -3~28 | Repeatability (mm): ±0.1 | Mass (kg): 1.24 | Fluid: Compressed air
HJL-50CS Size: 50CS | Bore (mm): 50 | Opening: -3~28 | Repeatability (mm): ±0.1 | Mass (kg): 2.11 | Fluid: Compressed air
HJL-63CS Size: 63CS | Bore (mm): 63 | Opening: -3~28 | Repeatability (mm): ±0.1 | Mass (kg): 3.00 | Fluid: Compressed air
Pneumatic GrippersCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Toggle Hand HJL Series

Brand CKD·Pneumatic Grippers

Available part numbers (4)

HJL-32CS, HJL-40CS, HJL-50CS, HJL-63CS

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HJL-32CSSize: 32CS | Bore (mm): 32 | Opening: -3~28 | Repeatability (mm): ±0.1 | Mass (kg): 0.88 | Fluid: Compressed air
HJL-40CSSize: 40CS | Bore (mm): 40 | Opening: -3~28 | Repeatability (mm): ±0.1 | Mass (kg): 1.24 | Fluid: Compressed air
HJL-50CSSize: 50CS | Bore (mm): 50 | Opening: -3~28 | Repeatability (mm): ±0.1 | Mass (kg): 2.11 | Fluid: Compressed air
HJL-63CSSize: 63CS | Bore (mm): 63 | Opening: -3~28 | Repeatability (mm): ±0.1 | Mass (kg): 3.00 | Fluid: Compressed air
