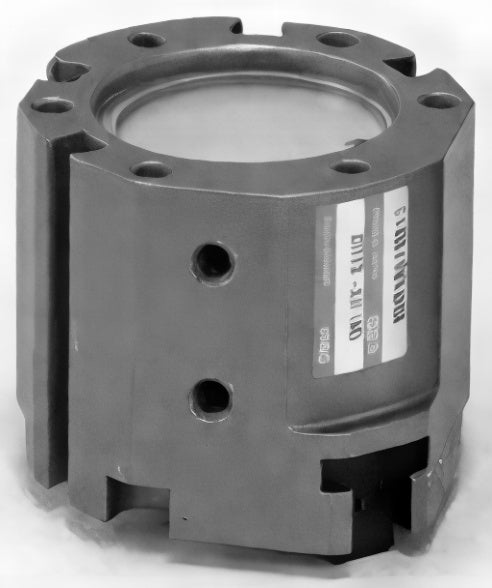

CKD Two-direction Powerful Chuck CKLB2 Series

CKD Two-direction Powerful Chuck CKLB2 Series

Powerful chuck gripping in two directions.

Key features

  • Codes are the printed base models (standard type, without switch); options such as single acting, long stroke, finger and cylinder switch are added via the catalog ordering code

Specifications

Fluid Compressed air
CKLB2-20CS Size: 20CS | Bore (mm): 20 | Stroke (mm): 5 | Mass (kg): 0.13 | Fluid: Compressed air
CKLB2-25CS Size: 25CS | Bore (mm): 25 | Stroke (mm): 6 | Mass (kg): 0.20 | Fluid: Compressed air
CKLB2-32CS Size: 32CS | Bore (mm): 32 | Stroke (mm): 8 | Mass (kg): 0.32 | Fluid: Compressed air
CKLB2-40CS Size: 40CS | Bore (mm): 40 | Stroke (mm): 10 | Mass (kg): 0.38 | Fluid: Compressed air
CKLB2-50CS Size: 50CS | Bore (mm): 50 | Stroke (mm): 12 | Mass (kg): 0.58 | Fluid: Compressed air
CKLB2-63CS Size: 63CS | Bore (mm): 63 | Stroke (mm): 16 | Mass (kg): 1.00 | Fluid: Compressed air
CKLB2-80CS Size: 80CS | Bore (mm): 80 | Stroke (mm): 20 | Mass (kg): 2.00 | Fluid: Compressed air
CKLB2-100CS Size: 100CS | Bore (mm): 100 | Stroke (mm): 23 | Mass (kg): 3.53 | Fluid: Compressed air
Pneumatic ChucksCKD
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Two-direction Powerful Chuck CKLB2 Series

Brand CKD·Pneumatic Chucks

Available part numbers (8)

CKLB2-20CS, CKLB2-25CS, CKLB2-32CS, CKLB2-40CS, CKLB2-50CS, CKLB2-63CS, CKLB2-80CS, CKLB2-100CS

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CKLB2-20CSSize: 20CS | Bore (mm): 20 | Stroke (mm): 5 | Mass (kg): 0.13 | Fluid: Compressed air
CKLB2-25CSSize: 25CS | Bore (mm): 25 | Stroke (mm): 6 | Mass (kg): 0.20 | Fluid: Compressed air
CKLB2-32CSSize: 32CS | Bore (mm): 32 | Stroke (mm): 8 | Mass (kg): 0.32 | Fluid: Compressed air
CKLB2-40CSSize: 40CS | Bore (mm): 40 | Stroke (mm): 10 | Mass (kg): 0.38 | Fluid: Compressed air
CKLB2-50CSSize: 50CS | Bore (mm): 50 | Stroke (mm): 12 | Mass (kg): 0.58 | Fluid: Compressed air
CKLB2-63CSSize: 63CS | Bore (mm): 63 | Stroke (mm): 16 | Mass (kg): 1.00 | Fluid: Compressed air
CKLB2-80CSSize: 80CS | Bore (mm): 80 | Stroke (mm): 20 | Mass (kg): 2.00 | Fluid: Compressed air
CKLB2-100CSSize: 100CS | Bore (mm): 100 | Stroke (mm): 23 | Mass (kg): 3.53 | Fluid: Compressed air
