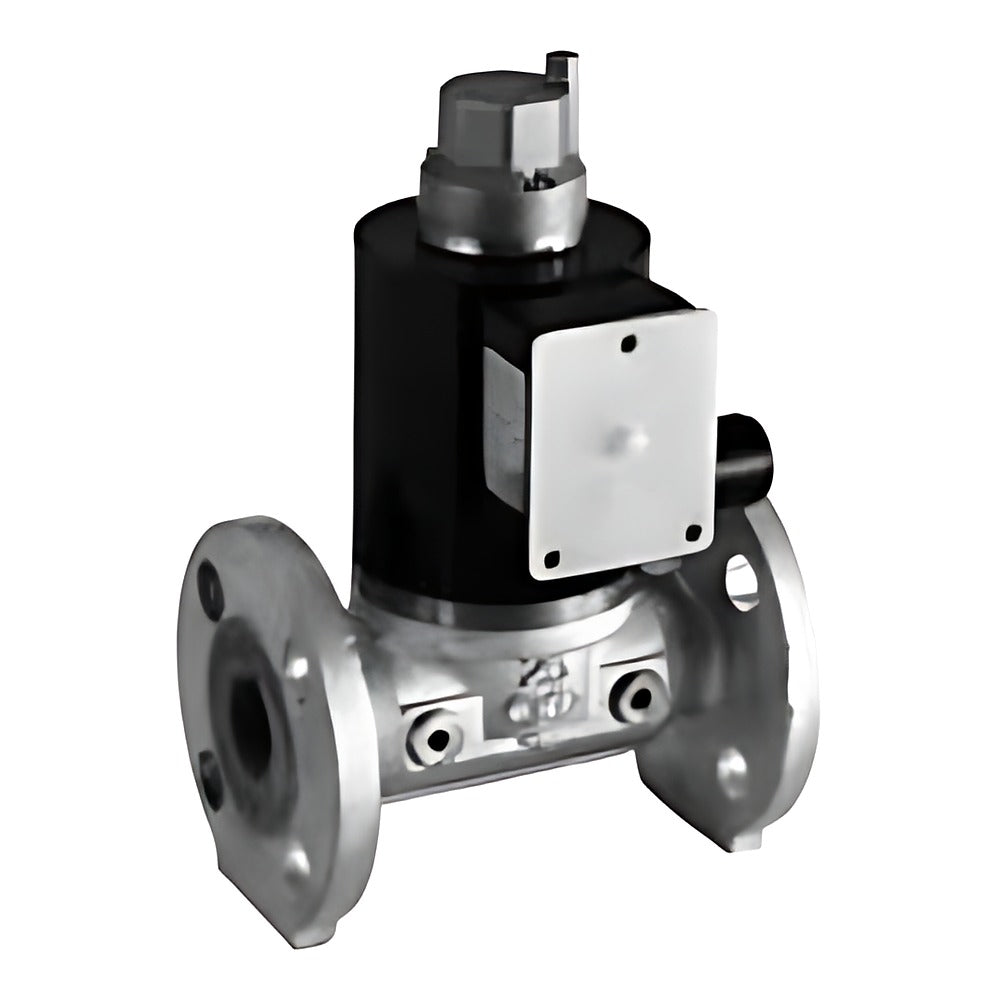

CKD VLM Medium Pressure Gas Shut-Off Valve (Slow Open, 25A Flange)

CKD VLM Medium Pressure Gas Shut-Off Valve (Slow Open, 25A Flange)

Solenoid-driven slow-open safety shut-off valve for medium-pressure gas up to 0.3 MPa.

Key features

  • Slow opening approx. 10 s with start-gas adjustment 0-70 %
  • JIS 10K RF 25A flange connection
  • Ports for pressure switch / gauge on the body
  • Energized indicator lamp
  • Rectifier-driven DC actuator; JIS conduit-thread terminal box

Specifications

Function NC
Media City gas, natural gas, LPG
Connection 25A JIS flange
Operating pressure 0 to 0.3 MPa
Flow 19 m3/h (ANR)
Cv 12.8
Mass 7.8 kg
Source CKD Korea catalog CB-03-1SK-9, p. 1084-1085
VLM-25-AC100V Voltage: AC100V
VLM-25-AC200V Voltage: AC200V
VLM-25-AC110V Voltage: AC110V
VLM-25-AC220V Voltage: AC220V
VLM-25-DC24V Voltage: DC24V
VLM-25 Legacy code: base model
Gas ValvesCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD VLM Medium Pressure Gas Shut-Off Valve (Slow Open, 25A Flange)

Brand CKD·Gas Valves

Available part numbers (6)

VLM-25-AC100V, VLM-25-AC200V, VLM-25-AC110V, VLM-25-AC220V, VLM-25-DC24V, VLM-25

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VLM-25-AC100VVoltage: AC100V
VLM-25-AC200VVoltage: AC200V
VLM-25-AC110VVoltage: AC110V
VLM-25-AC220VVoltage: AC220V
VLM-25-DC24VVoltage: DC24V
VLM-25Legacy code: base model
