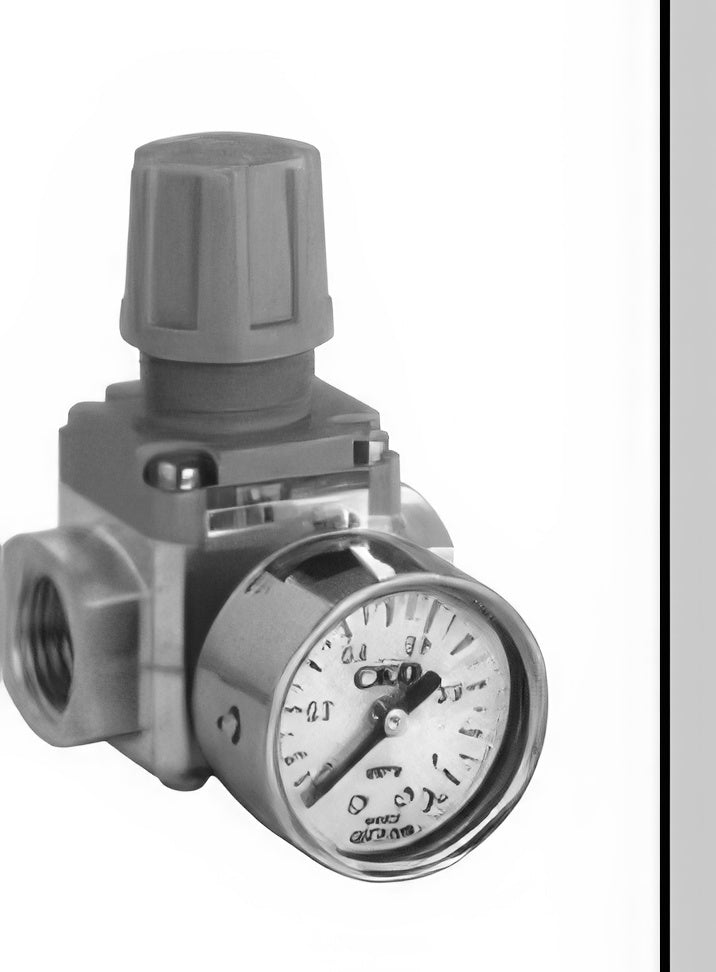

• CKD Water Regulator WR1, WR2 Series (Rc1/8 to Rc1/2)
1 1

CKD Water Regulator WR1, WR2 Series (Rc1/8 to Rc1/2)

CKD Water Regulator WR1, WR2 Series (Rc1/8 to Rc1/2)

Compact regulator for water, designed for convenience.

Key features

  • Includes a mesh filter as standard

Specifications

Max. working pressure (MPa) 1.0
Proof pressure (MPa) 1.75
Ambient/fluid temp. (℃) 5~60
Set pressure (MPa) Standard: 0.05~0.70
Gauge port Rc1/8
Fluid Water
WR1-6-N Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.75 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): Standard: 0.05~0.70 | Port size (IN/OUT): Rc1/8, Rc1/4 | Gauge port: Rc1/8 | Mass (kg): 0.22 | Fluid: Water
WR1-8-N Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.75 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): Standard: 0.05~0.70 | Port size (IN/OUT): Rc1/8, Rc1/4 | Gauge port: Rc1/8 | Mass (kg): 0.22 | Fluid: Water
WR2-10-N Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.75 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): Standard: 0.05~0.70 | Port size (IN/OUT): Rc3/8, Rc1/2 | Gauge port: Rc1/8 | Mass (kg): 0.41(Rc3/8), 0.44(Rc1/2) | Fluid: Water
WR2-15-N Max. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.75 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): Standard: 0.05~0.70 | Port size (IN/OUT): Rc3/8, Rc1/2 | Gauge port: Rc1/8 | Mass (kg): 0.41(Rc3/8), 0.44(Rc1/2) | Fluid: Water
RegulatorsCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Water Regulator WR1, WR2 Series (Rc1/8 to Rc1/2)

Brand CKD·Regulators

Available part numbers (4)

WR1-6-N, WR1-8-N, WR2-10-N, WR2-15-N

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WR1-6-NMax. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.75 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): Standard: 0.05~0.70 | Port size (IN/OUT): Rc1/8, Rc1/4 | Gauge port: Rc1/8 | Mass (kg): 0.22 | Fluid: Water
WR1-8-NMax. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.75 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): Standard: 0.05~0.70 | Port size (IN/OUT): Rc1/8, Rc1/4 | Gauge port: Rc1/8 | Mass (kg): 0.22 | Fluid: Water
WR2-10-NMax. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.75 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): Standard: 0.05~0.70 | Port size (IN/OUT): Rc3/8, Rc1/2 | Gauge port: Rc1/8 | Mass (kg): 0.41(Rc3/8), 0.44(Rc1/2) | Fluid: Water
WR2-15-NMax. working pressure (MPa): 1.0 | Proof pressure (MPa): 1.75 | Ambient/fluid temp. (℃): 5~60 | Set pressure (MPa): Standard: 0.05~0.70 | Port size (IN/OUT): Rc3/8, Rc1/2 | Gauge port: Rc1/8 | Mass (kg): 0.41(Rc3/8), 0.44(Rc1/2) | Fluid: Water
