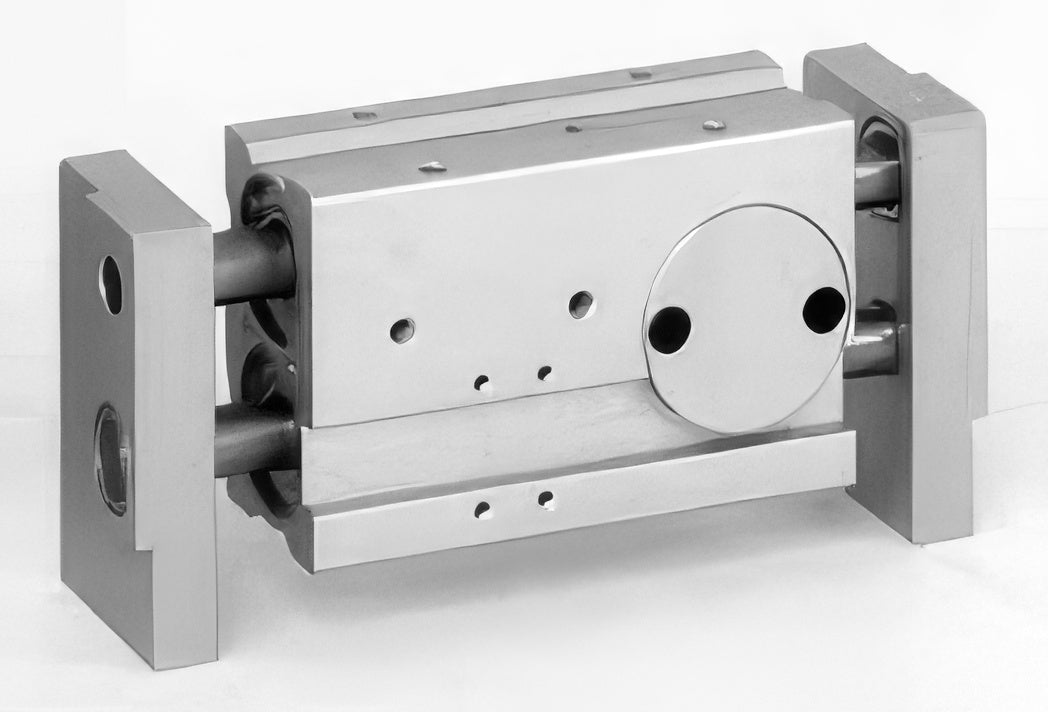

CKD Wide-opening Parallel Hand HFP Series (Double Acting)

CKD Wide-opening Parallel Hand HFP Series (Double Acting)

Wide-opening (gate type) parallel hand, double acting.

Key features

  • Codes are the printed base models (standard type, without switch); options such as single acting, long stroke, finger and cylinder switch are added via the catalog ordering code

Specifications

Operation Double acting
Repeatability (mm) ±0.03
Fluid Compressed air
HFP-2CS Size: 2CS | Bore (mm): 16x2 | Stroke (mm): 20 | Operation: Double acting | Repeatability (mm): ±0.03 | Mass (kg): 0.59 | Fluid: Compressed air
HFP-3CS Size: 3CS | Bore (mm): 25x2 | Stroke (mm): 30 | Operation: Double acting | Repeatability (mm): ±0.03 | Mass (kg): 1.10 | Fluid: Compressed air
HFP-4CS Size: 4CS | Bore (mm): 32x2 | Stroke (mm): 40 | Operation: Double acting | Repeatability (mm): ±0.03 | Mass (kg): 2.07 | Fluid: Compressed air
HFP-5CS Size: 5CS | Bore (mm): 40x2 | Stroke (mm): 60 | Operation: Double acting | Repeatability (mm): ±0.03 | Mass (kg): 3.90 | Fluid: Compressed air
Pneumatic GrippersCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Wide-opening Parallel Hand HFP Series (Double Acting)

Brand CKD·Pneumatic Grippers

Available part numbers (4)

HFP-2CS, HFP-3CS, HFP-4CS, HFP-5CS

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HFP-2CSSize: 2CS | Bore (mm): 16x2 | Stroke (mm): 20 | Operation: Double acting | Repeatability (mm): ±0.03 | Mass (kg): 0.59 | Fluid: Compressed air
HFP-3CSSize: 3CS | Bore (mm): 25x2 | Stroke (mm): 30 | Operation: Double acting | Repeatability (mm): ±0.03 | Mass (kg): 1.10 | Fluid: Compressed air
HFP-4CSSize: 4CS | Bore (mm): 32x2 | Stroke (mm): 40 | Operation: Double acting | Repeatability (mm): ±0.03 | Mass (kg): 2.07 | Fluid: Compressed air
HFP-5CSSize: 5CS | Bore (mm): 40x2 | Stroke (mm): 60 | Operation: Double acting | Repeatability (mm): ±0.03 | Mass (kg): 3.90 | Fluid: Compressed air
