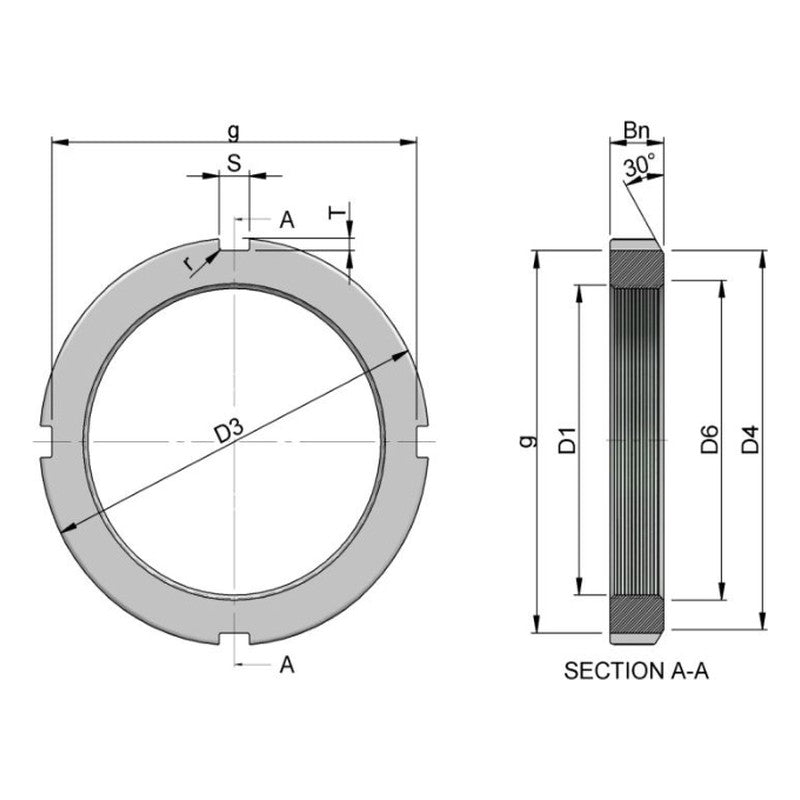

DAIHAN AN / ANL Bearing Lock Nuts (M10-Tr500)

DAIHAN AN / ANL Bearing Lock Nuts (M10-Tr500)

DAIHAN AN and ANL slotted lock nuts for locking bearings on adapter and withdrawal sleeves and shaft ends; thread and dimensions to JIS.

Key features

  • Slotted (hook-spanner) lock nut for AW / AWL lock washers
  • AN: standard series; ANL: narrow series for A30-type sleeves
  • Metric fine threads up to M200, trapezoidal (Tr) threads from 220 mm with locking clip tap holes
  • Dimensions, mass and matching washer listed per size

Specifications

Product Bearing lock nut
Series AN / ANL
Thread standard JIS
Locking AW / AWL tab washer (AN00-AN40), AL lock plate (AN44 and up)
Brand DAIHAN
Source DAIHAN Locknuts Series AN data sheet, p. 1-3
AN00 Thread: M10x0.75 | Outer dia: 18 mm | Width: 4 mm | Mass: 0.005 kg
AN01 Thread: M12x1 | Outer dia: 22 mm | Width: 4 mm | Mass: 0.007 kg
AN02 Thread: M15x1 | Outer dia: 25 mm | Width: 5 mm | Mass: 0.01 kg
AN03 Thread: M17x1 | Outer dia: 28 mm | Width: 5 mm | Mass: 0.013 kg
AN04 Thread: M20x1 | Outer dia: 32 mm | Width: 6 mm | Mass: 0.019 kg
AN05 Thread: M25x1.5 | Outer dia: 38 mm | Width: 7 mm | Mass: 0.025 kg
AN06 Thread: M30x1.5 | Outer dia: 45 mm | Width: 7 mm | Mass: 0.043 kg
AN07 Thread: M35x1.5 | Outer dia: 52 mm | Width: 8 mm | Mass: 0.053 kg
AN08 Thread: M40x1.5 | Outer dia: 58 mm | Width: 9 mm | Mass: 0.085 kg
AN09 Thread: M45x1.5 | Outer dia: 65 mm | Width: 10 mm | Mass: 0.119 kg
AN10 Thread: M50x1.5 | Outer dia: 70 mm | Width: 11 mm | Mass: 0.148 kg
AN11 Thread: M55x2 | Outer dia: 75 mm | Width: 11 mm | Mass: 0.158 kg
AN12 Thread: M60x2 | Outer dia: 80 mm | Width: 11 mm | Mass: 0.174 kg
AN13 Thread: M65x2 | Outer dia: 85 mm | Width: 12 mm | Mass: 0.203 kg
AN14 Thread: M70x2 | Outer dia: 92 mm | Width: 12 mm | Mass: 0.242 kg
AN15 Thread: M75x2 | Outer dia: 98 mm | Width: 13 mm | Mass: 0.287 kg
AN16 Thread: M80x2 | Outer dia: 105 mm | Width: 15 mm | Mass: 0.395 kg
AN17 Thread: M85x2 | Outer dia: 110 mm | Width: 16 mm | Mass: 0.45 kg
AN18 Thread: M90x2 | Outer dia: 120 mm | Width: 16 mm | Mass: 0.555 kg
AN19 Thread: M95x2 | Outer dia: 125 mm | Width: 17 mm | Mass: 0.66 kg
AN20 Thread: M100x2 | Outer dia: 130 mm | Width: 18 mm | Mass: 0.7 kg
AN21 Thread: M105x2 | Outer dia: 140 mm | Width: 18 mm | Mass: 0.845 kg
AN22 Thread: M110x2 | Outer dia: 145 mm | Width: 19 mm | Mass: 0.965 kg
AN23 Thread: M115x2 | Outer dia: 150 mm | Width: 19 mm | Mass: 1.01 kg
AN24 Thread: M120x2 | Outer dia: 155 mm | Width: 20 mm | Mass: 1.08 kg
AN25 Thread: M125x2 | Outer dia: 160 mm | Width: 21 mm | Mass: 1.19 kg
AN26 Thread: M130x2 | Outer dia: 165 mm | Width: 21 mm | Mass: 1.25 kg
AN27 Thread: M135x2 | Outer dia: 175 mm | Width: 22 mm | Mass: 1.55 kg
AN28 Thread: M140x2 | Outer dia: 180 mm | Width: 22 mm | Mass: 1.56 kg
AN29 Thread: M145x2 | Outer dia: 190 mm | Width: 24 mm | Mass: 2 kg
AN30 Thread: M150x2 | Outer dia: 195 mm | Width: 24 mm | Mass: 2.03 kg
AN31 Thread: M155x3 | Outer dia: 200 mm | Width: 25 mm | Mass: 2.21 kg
AN32 Thread: M160x3 | Outer dia: 210 mm | Width: 25 mm | Mass: 2.59 kg
AN33 Thread: M165x3 | Outer dia: 210 mm | Width: 26 mm | Mass: 2.43 kg
AN34 Thread: M170x3 | Outer dia: 220 mm | Width: 26 mm | Mass: 2.8 kg
AN36 Thread: M180x3 | Outer dia: 230 mm | Width: 27 mm | Mass: 3.05 kg
AN38 Thread: M190x3 | Outer dia: 240 mm | Width: 28 mm | Mass: 3.4 kg
AN40 Thread: M200x3 | Outer dia: 250 mm | Width: 29 mm | Mass: 3.7 kg
AN44 Thread: Tr220x4 | Outer dia: 280 mm | Width: 32 mm | Mass: 5.2 kg
AN48 Thread: Tr240x4 | Outer dia: 300 mm | Width: 34 mm | Mass: 5.95 kg
AN52 Thread: Tr260x4 | Outer dia: 330 mm | Width: 36 mm | Mass: 8.05 kg
AN56 Thread: Tr280x4 | Outer dia: 350 mm | Width: 38 mm | Mass: 9.05 kg
AN60 Thread: Tr300x4 | Outer dia: 380 mm | Width: 40 mm | Mass: 11.8 kg
AN64 Thread: Tr320x5 | Outer dia: 400 mm | Width: 42 mm | Mass: 13.1 kg
AN68 Thread: Tr340x5 | Outer dia: 440 mm | Width: 55 mm | Mass: 23.1 kg
AN72 Thread: Tr360x5 | Outer dia: 460 mm | Width: 58 mm | Mass: 25.1 kg
AN76 Thread: Tr380x5 | Outer dia: 490 mm | Width: 60 mm | Mass: 31 kg
AN80 Thread: Tr400x5 | Outer dia: 520 mm | Width: 62 mm | Mass: 37 kg
AN84 Thread: Tr420x5 | Outer dia: 540 mm | Width: 70 mm | Mass: 43.5 kg
AN88 Thread: Tr440x5 | Outer dia: 560 mm | Width: 70 mm | Mass: 45 kg
AN92 Thread: Tr460x5 | Outer dia: 580 mm | Width: 75 mm | Mass: 50.5 kg
AN96 Thread: Tr480x5 | Outer dia: 620 mm | Width: 75 mm | Mass: 62 kg
AN100 Thread: Tr500x5 | Outer dia: 630 mm | Width: 80 mm | Mass: 63.5 kg
ANL24 Thread: M120x2 | Outer dia: 145 mm | Width: 20 mm | Mass: 0.78 kg
ANL26 Thread: M130x2 | Outer dia: 155 mm | Width: 21 mm | Mass: 0.88 kg
ANL28 Thread: M140x2 | Outer dia: 165 mm | Width: 22 mm | Mass: 0.99 kg
ANL30 Thread: M150x2 | Outer dia: 180 mm | Width: 24 mm | Mass: 1.38 kg
ANL32 Thread: M160x3 | Outer dia: 190 mm | Width: 25 mm | Mass: 1.56 kg
ANL34 Thread: M170x3 | Outer dia: 200 mm | Width: 26 mm | Mass: 1.72 kg
ANL36 Thread: M180x3 | Outer dia: 210 mm | Width: 27 mm | Mass: 1.95 kg
ANL38 Thread: M190x3 | Outer dia: 220 mm | Width: 28 mm | Mass: 2.08 kg
ANL40 Thread: M200x3 | Outer dia: 240 mm | Width: 29 mm | Mass: 2.98 kg
ANL44 Thread: Tr220x4 | Outer dia: 260 mm | Width: 30 mm | Mass: 3.1 kg
ANL48 Thread: Tr240x4 | Outer dia: 290 mm | Width: 34 mm | Mass: 5.15 kg
ANL52 Thread: Tr260x4 | Outer dia: 310 mm | Width: 34 mm | Mass: 5.65 kg
ANL56 Thread: Tr280x4 | Outer dia: 330 mm | Width: 38 mm | Mass: 6.8 kg
ANL60 Thread: Tr300x4 | Outer dia: 360 mm | Width: 42 mm | Mass: 9.6 kg
ANL64 Thread: Tr320x5 | Outer dia: 380 mm | Width: 42 mm | Mass: 9.95 kg
ANL68 Thread: Tr340x5 | Outer dia: 400 mm | Width: 45 mm | Mass: 11.7 kg
ANL72 Thread: Tr360x5 | Outer dia: 420 mm | Width: 45 mm | Mass: 12 kg
