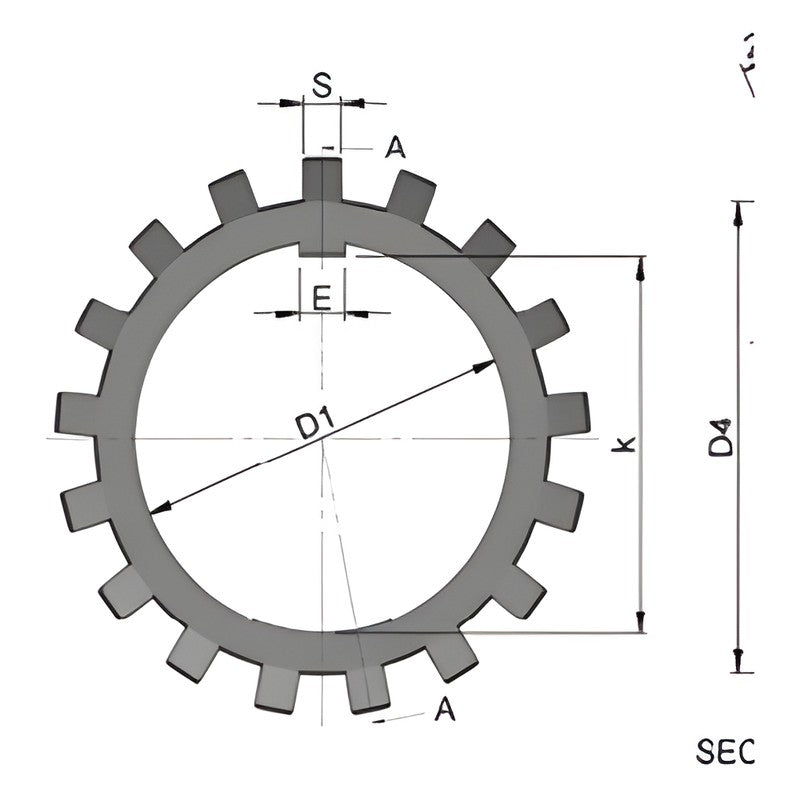

DAIHAN AW Bearing Lock Washers (AW00-AW23, Bent / Straight Tab)

DAIHAN AW Bearing Lock Washers (AW00-AW23, Bent / Straight Tab)

DAIHAN AW-series tab lock washers for AN lock nuts, supplied in bent-tab (AW) and straight-tab (AW..X) executions for 10-115 mm shafts.

Key features

  • AW..: bent tab; AW..X: straight tab
  • Internal tongue engages shaft or sleeve keyway
  • Matching AN00-AN23 lock nuts
  • Mass listed per 100 pieces

Specifications

Product Bearing lock washer
Series AW
Mass basis kg per 100 pcs
Brand DAIHAN
Product type Lock Nuts & Washers
Source DAIHAN Lockwashers Series AW data sheet, p. 1
AW00 Bore d1: 10 mm | Outer D5: 21 mm | Thickness: 1 mm | Tab: Bent tab | Lock nut: AN00
AW00X Bore d1: 10 mm | Outer D5: 21 mm | Thickness: 1 mm | Tab: Straight tab | Lock nut: AN00
AW01 Bore d1: 12 mm | Outer D5: 25 mm | Thickness: 1 mm | Tab: Bent tab | Lock nut: AN01
AW01X Bore d1: 12 mm | Outer D5: 25 mm | Thickness: 1 mm | Tab: Straight tab | Lock nut: AN01
AW02 Bore d1: 15 mm | Outer D5: 28 mm | Thickness: 1 mm | Tab: Bent tab | Lock nut: AN02
AW02X Bore d1: 15 mm | Outer D5: 28 mm | Thickness: 1 mm | Tab: Straight tab | Lock nut: AN02
AW03 Bore d1: 17 mm | Outer D5: 32 mm | Thickness: 1 mm | Tab: Bent tab | Lock nut: AN03
AW03X Bore d1: 17 mm | Outer D5: 32 mm | Thickness: 1 mm | Tab: Straight tab | Lock nut: AN03
AW04 Bore d1: 20 mm | Outer D5: 36 mm | Thickness: 1 mm | Tab: Bent tab | Lock nut: AN04
AW04X Bore d1: 20 mm | Outer D5: 36 mm | Thickness: 1 mm | Tab: Straight tab | Lock nut: AN04
AW05 Bore d1: 25 mm | Outer D5: 42 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN05
AW05X Bore d1: 25 mm | Outer D5: 42 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN05
AW06 Bore d1: 30 mm | Outer D5: 49 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN06
AW06X Bore d1: 30 mm | Outer D5: 49 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN06
AW07 Bore d1: 35 mm | Outer D5: 57 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN07
AW07X Bore d1: 35 mm | Outer D5: 57 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN07
AW08 Bore d1: 40 mm | Outer D5: 62 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN08
AW08X Bore d1: 40 mm | Outer D5: 62 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN08
AW09 Bore d1: 45 mm | Outer D5: 69 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN09
AW09X Bore d1: 45 mm | Outer D5: 69 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN09
AW10 Bore d1: 50 mm | Outer D5: 74 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN10
AW10X Bore d1: 50 mm | Outer D5: 74 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN10
AW11 Bore d1: 55 mm | Outer D5: 81 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN11
AW11X Bore d1: 55 mm | Outer D5: 81 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN11
AW12 Bore d1: 60 mm | Outer D5: 86 mm | Thickness: 1.5 mm | Tab: Bent tab | Lock nut: AN12
AW12X Bore d1: 60 mm | Outer D5: 86 mm | Thickness: 1.5 mm | Tab: Straight tab | Lock nut: AN12
AW13 Bore d1: 65 mm | Outer D5: 92 mm | Thickness: 1.5 mm | Tab: Bent tab | Lock nut: AN13
AW13X Bore d1: 65 mm | Outer D5: 92 mm | Thickness: 1.5 mm | Tab: Straight tab | Lock nut: AN13
AW14 Bore d1: 70 mm | Outer D5: 98 mm | Thickness: 1.5 mm | Tab: Bent tab | Lock nut: AN14
AW14X Bore d1: 70 mm | Outer D5: 98 mm | Thickness: 1.5 mm | Tab: Straight tab | Lock nut: AN14
AW15 Bore d1: 75 mm | Outer D5: 104 mm | Thickness: 1.5 mm | Tab: Bent tab | Lock nut: AN15
AW15X Bore d1: 75 mm | Outer D5: 104 mm | Thickness: 1.5 mm | Tab: Straight tab | Lock nut: AN15
AW16 Bore d1: 80 mm | Outer D5: 112 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN16
AW16X Bore d1: 80 mm | Outer D5: 112 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN16
AW17 Bore d1: 85 mm | Outer D5: 119 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN17
AW17X Bore d1: 85 mm | Outer D5: 119 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN17
AW18 Bore d1: 90 mm | Outer D5: 126 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN18
AW18X Bore d1: 90 mm | Outer D5: 126 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN18
AW19 Bore d1: 95 mm | Outer D5: 133 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN19
AW19X Bore d1: 95 mm | Outer D5: 133 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN19
AW20 Bore d1: 100 mm | Outer D5: 142 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN20
AW20X Bore d1: 100 mm | Outer D5: 142 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN20
AW21 Bore d1: 105 mm | Outer D5: 145 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN21
AW21X Bore d1: 105 mm | Outer D5: 145 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN21
AW22 Bore d1: 110 mm | Outer D5: 154 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN22
AW22X Bore d1: 110 mm | Outer D5: 154 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN22
AW23 Bore d1: 115 mm | Outer D5: 159 mm | Thickness: 2 mm | Tab: Bent tab | Lock nut: AN23
AW23X Bore d1: 115 mm | Outer D5: 159 mm | Thickness: 2 mm | Tab: Straight tab | Lock nut: AN23
