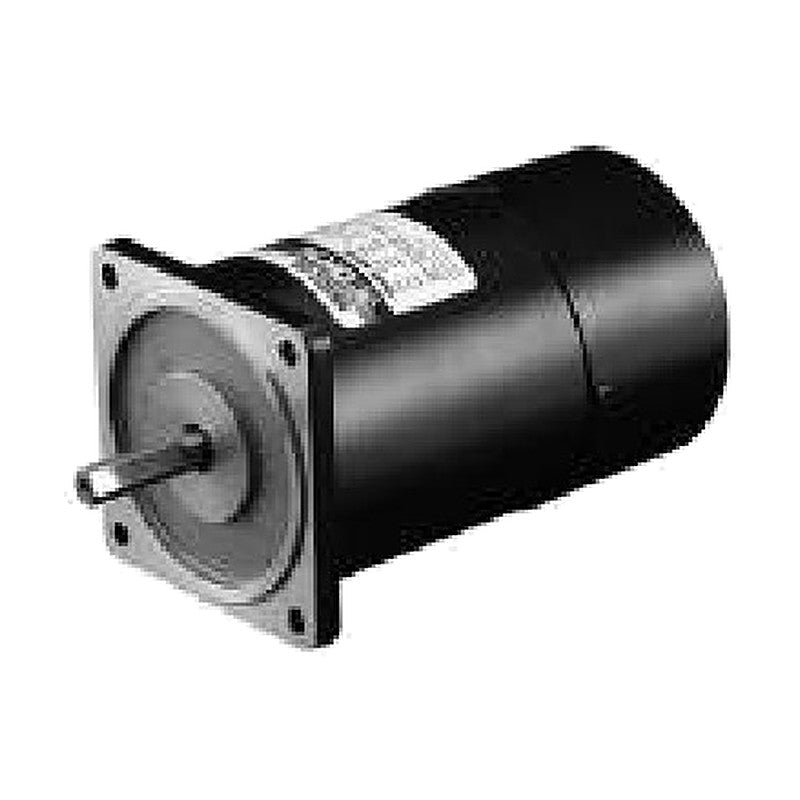

DKM 7BD-15 Electromagnetic Brake Motor 15W, 70 mm Frame
DKM 7BD-15 Electromagnetic Brake Motor 15W, 70 mm Frame
15 W single- and three-phase AC motor with built-in power-off activated electromagnetic brake and 70 mm square frame, for stopping and holding loads (e.g. vertical axes, emergency stop); D-cut or gear-type (pinion) output shaft for DKM gearboxes.
Key features
- Power-off activated electromagnetic brake stops the motor instantly and holds the load when power is removed
- Overrun approx. 2-3 revolutions (induction motor: 30-40, reversible motor: 5-6)
- Motor and brake use the same power supply
- Frequent start/stop and direction changes possible
- Gear-type shaft models combine with DKM gearboxes
Specifications
| Output | 15 W |
|---|---|
| Frame size | 70 mm square |
| Poles | 4 |
| Duty | 30 minutes (single-phase) / continuous (three-phase); see each model |
| Rated speed | 1200 / 1250 / 1300 / 1550 / 1600 r/min (depends on voltage/frequency) |
| Rated torque | 0.091-0.122 N·m |
| Starting torque | 0.107-0.36 N·m |
| Shaft options | D-cut, gear type (G) |
| Connection | Lead wire |
| Matching gearboxes | 7GBK□BMH (□ = gear ratio) |
| Brake static friction torque | 0.1 N·m |
| Brake type | Power-off activated electromagnetic brake |
| 7BDD1-15 | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.094 N·m | Rated current: 0.49 A | Capacitor: 6.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7BDDA-15 | |
| 7BDG1-15G | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.094 N·m | Rated current: 0.49 A | Capacitor: 6.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7BDGA-15G | |
| 7BDDB-15 | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.094-0.117 N·m | Rated current: 0.4-0.44 A | Capacitor: 6.0 µF / 250 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | |
| 7BDGB-15G | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.094-0.117 N·m | Rated current: 0.4-0.44 A | Capacitor: 6.0 µF / 250 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | |
| 7BDDC-15 | Power supply: 1ø AC 200 V 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.094-0.117 N·m | Rated current: 0.21-0.22 A | Capacitor: 1.5 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | |
| 7BDGC-15G | Power supply: 1ø AC 200 V 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.094-0.117 N·m | Rated current: 0.21-0.22 A | Capacitor: 1.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | |
| 7BDD2-15 | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.22 A | Capacitor: 1.5 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7BDDD-15 | |
| 7BDG2-15G | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.22 A | Capacitor: 1.5 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7BDGD-15G | |
| 7BDDE-15 | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.122 N·m | Rated current: 0.19-0.21 A | Capacitor: 1.2 µF / 450 VAC | Duty: 30 min | Output shaft: D-cut (motor only) | |
| 7BDGE-15G | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.122 N·m | Rated current: 0.19-0.21 A | Capacitor: 1.2 µF / 450 VAC | Duty: 30 min | Output shaft: Gear type (G) for general box-type gearbox | |
| 7BDD3-15 | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.094-0.113 N·m | Rated current: 0.22-0.28 A | Duty: Continuous | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7BDDG-15 | |
| 7BDG3-15G | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 0.094-0.113 N·m | Rated current: 0.22-0.28 A | Duty: Continuous | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7BDGG-15G |
