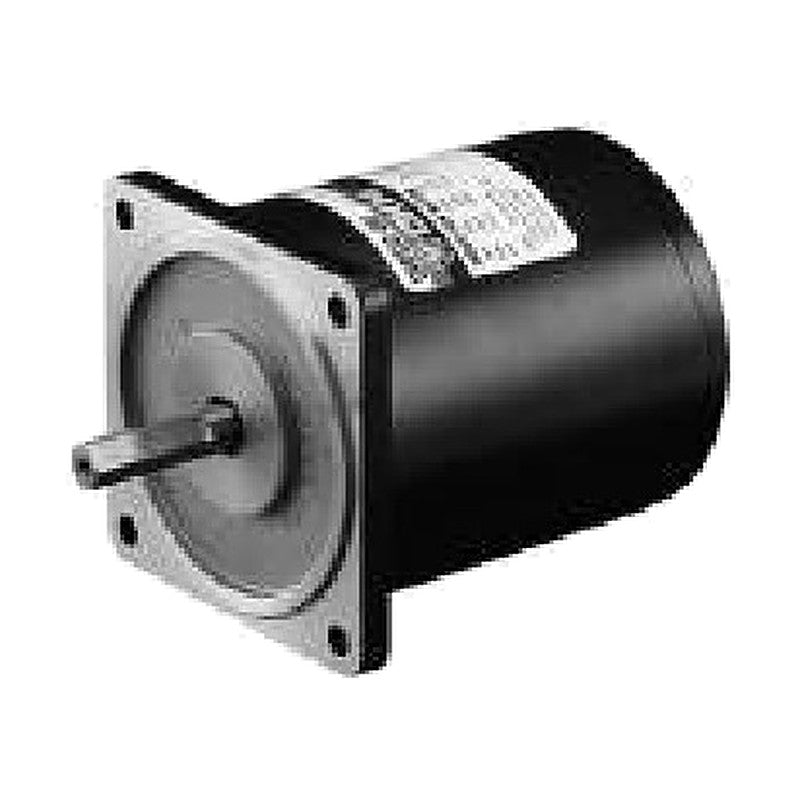

DKM 7RD-6 Reversible Motor 6W, 70 mm Frame

DKM 7RD-6 Reversible Motor 6W, 70 mm Frame

6 W single-phase reversible motor with 70 mm square frame, designed for frequent forward/reverse switching, with built-in friction brake; D-cut or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Designed for applications that require frequent changes of direction
  • Capacitor-run single-phase motor with higher starting torque than an induction motor
  • Built-in simple friction brake (approx. 10% of motor output) reduces overrun and improves instant reversing
  • Rated time 30 minutes; longer operation possible with intermittent duty
  • Gear-type shaft models combine with DKM gearboxes

Specifications

Output 6 W
Frame size 70 mm square
Poles 4
Duty 30 minutes (short-time rating)
Rated speed 1250 / 1300 / 1600 r/min (depends on voltage/frequency)
Rated torque 0.037-0.047 N·m
Starting torque 0.056-0.075 N·m
Shaft options D-cut, gear type (G)
Connection Lead wire or terminal box (-T)
Matching gearboxes 7GBK□BMH (□ = gear ratio)
Built-in brake Friction brake, approx. 10% of motor output
Insulation class Class B (130 °C)
DKM 7RD-6 Reversible Motor 6W, 70 mm Frame
7RDD1-6 Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.27 A | Starting torque: 0.056 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7RDDA-6; terminal-box version 7RDD1-6-T
7RDG1-6G Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.27 A | Starting torque: 0.056 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7RDGA-6G; terminal-box version 7RDG1-6G-T
7RDDB-6 Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.063-0.066 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7RDDB-6-T
7RDGB-6G Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.063-0.066 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7RDGB-6G-T
7RDDC-6 Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.064-0.067 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7RDDC-6-T
7RDGC-6G Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.064-0.067 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7RDGC-6G-T
7RDD2-6 Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.17 A | Starting torque: 0.075 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7RDDD-6; terminal-box version 7RDD2-6-T
7RDG2-6G Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.17 A | Starting torque: 0.075 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7RDGD-6G; terminal-box version 7RDG2-6G-T
7RDDE-6 Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.047 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.061-0.072 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7RDDE-6-T
7RDGE-6G Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.047 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.061-0.072 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7RDGE-6G-T
AC Reversible MotorsDKM
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 7RD-6 Reversible Motor 6W, 70 mm Frame

Brand DKM·AC Reversible Motors

Available part numbers (10)

7RDD1-6, 7RDG1-6G, 7RDDB-6, 7RDGB-6G, 7RDDC-6, 7RDGC-6G, 7RDD2-6, 7RDG2-6G, 7RDDE-6, 7RDGE-6G

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 7RD-6 Reversible Motor 6W, 70 mm Frame
0 selected
RFQ List (0)
Product codeSpec
7RDD1-6Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.27 A | Starting torque: 0.056 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7RDDA-6; terminal-box version 7RDD1-6-T
7RDG1-6GPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.27 A | Starting torque: 0.056 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7RDGA-6G; terminal-box version 7RDG1-6G-T
7RDDB-6Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.063-0.066 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7RDDB-6-T
7RDGB-6GPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.063-0.066 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7RDGB-6G-T
7RDDC-6Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.064-0.067 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7RDDC-6-T
7RDGC-6GPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.064-0.067 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7RDGC-6G-T
7RDD2-6Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.17 A | Starting torque: 0.075 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7RDDD-6; terminal-box version 7RDD2-6-T
7RDG2-6GPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.17 A | Starting torque: 0.075 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7RDGD-6G; terminal-box version 7RDG2-6G-T
7RDDE-6Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.047 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.061-0.072 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 7RDDE-6-T
7RDGE-6GPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.047 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.061-0.072 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 7RDGE-6G-T
