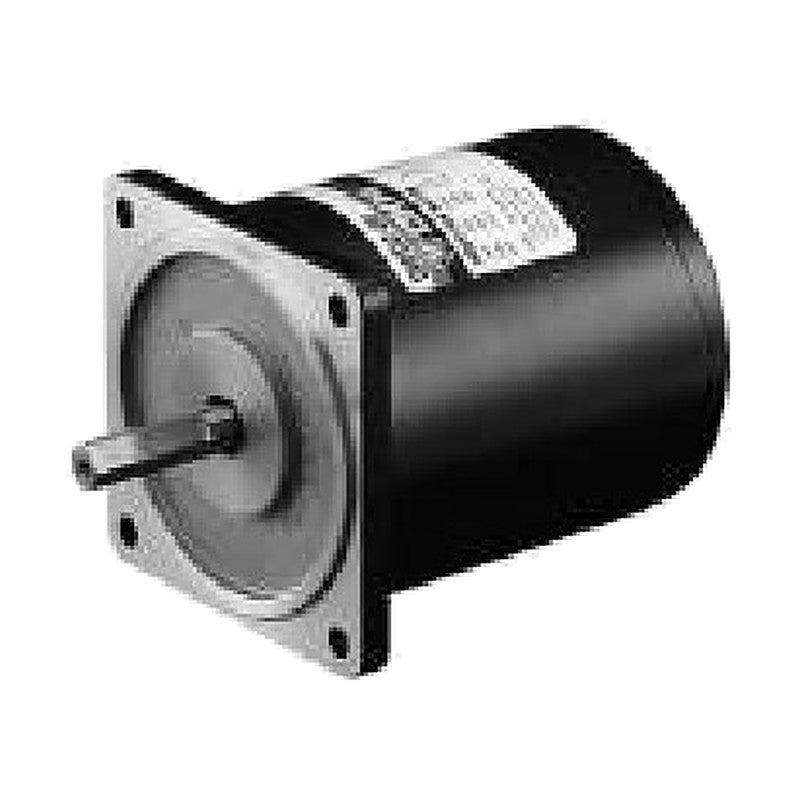

DKM 8ID-15 Induction Motor 15W, 80 mm Frame

DKM 8ID-15 Induction Motor 15W, 80 mm Frame

15 W single- and three-phase AC induction motor with 80 mm square frame for unidirectional continuous operation such as conveyors; D-cut or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Suitable for unidirectional continuous operation such as conveyor systems
  • Single-phase capacitor-run and three-phase versions
  • Three-phase versions offer higher starting torque and can run directly from a three-phase supply
  • Gear-type shaft models combine with DKM gearboxes; D-cut and key shaft models are for use as a motor only

Specifications

Output 15 W
Frame size 80 mm square
Poles 4
Duty Continuous
Rated speed 1300 / 1350 / 1600 r/min (depends on voltage/frequency)
Rated torque 0.091-0.112 N·m
Starting torque 0.095-0.825 N·m
Shaft options D-cut, gear type (G, W)
Connection Lead wire or terminal box (-T)
Matching gearboxes 8GBK□BMH, 8WD□BL/BR/BRL (□ = gear ratio)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
DKM 8ID-15 Induction Motor 15W, 80 mm Frame
8IDD1-15 Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.54 A | Starting torque: 0.095 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDA-15; terminal-box version 8IDD1-15-T
8IDG1-15G Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.54 A | Starting torque: 0.095 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGA-15G; terminal-box version 8IDG1-15G-T
8IDG1-15W Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.54 A | Starting torque: 0.095 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGA-15W; terminal-box version 8IDG1-15W-T
8IDDB-15 Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.47-0.52 A | Starting torque: 0.11-0.115 N·m | Capacitor: 5.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDB-15-T
8IDGB-15G Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.47-0.52 A | Starting torque: 0.11-0.115 N·m | Capacitor: 5.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGB-15G-T
8IDGB-15W Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.47-0.52 A | Starting torque: 0.11-0.115 N·m | Capacitor: 5.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGB-15W-T
8IDDC-15 Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.22-0.23 A | Starting torque: 0.115-0.12 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDC-15-T
8IDGC-15G Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.22-0.23 A | Starting torque: 0.115-0.12 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGC-15G-T
8IDGC-15W Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.22-0.23 A | Starting torque: 0.115-0.12 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGC-15W-T
8IDD2-15 Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.23 A | Starting torque: 0.125 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDD-15; terminal-box version 8IDD2-15-T
8IDG2-15G Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.23 A | Starting torque: 0.125 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGD-15G; terminal-box version 8IDG2-15G-T
8IDG2-15W Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.23 A | Starting torque: 0.125 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGD-15W; terminal-box version 8IDG2-15W-T
8IDDE-15 Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.112 N·m | Rated current: 0.23-0.25 A | Starting torque: 0.105-0.127 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDE-15-T
8IDGE-15G Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.112 N·m | Rated current: 0.23-0.25 A | Starting torque: 0.105-0.127 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGE-15G-T
8IDGE-15W Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.112 N·m | Rated current: 0.23-0.25 A | Starting torque: 0.105-0.127 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGE-15W-T
8IDD3-15 Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.26-0.32 A | Starting torque: 0.615-0.825 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDG-15; terminal-box version 8IDD3-15-T
8IDG3-15G Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.26-0.32 A | Starting torque: 0.615-0.825 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGG-15G; terminal-box version 8IDG3-15G-T
8IDG3-15W Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.26-0.32 A | Starting torque: 0.615-0.825 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGG-15W; terminal-box version 8IDG3-15W-T
8IDDJ-15 Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.595-0.761 N·m | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDJ-15-T
8IDGJ-15G Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.595-0.761 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGJ-15G-T
8IDGJ-15W Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.595-0.761 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGJ-15W-T
8IDD4-15 Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.11-0.13 A | Starting torque: 0.453-0.626 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDK-15; terminal-box version 8IDD4-15-T
8IDG4-15G Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.11-0.13 A | Starting torque: 0.453-0.626 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGK-15G; terminal-box version 8IDG4-15G-T
8IDG4-15W Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.11-0.13 A | Starting torque: 0.453-0.626 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGK-15W; terminal-box version 8IDG4-15W-T
8IDD5-15 Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.12-0.15 A | Starting torque: 0.54-0.739 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDL-15; terminal-box version 8IDD5-15-T
8IDG5-15G Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.12-0.15 A | Starting torque: 0.54-0.739 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGL-15G; terminal-box version 8IDG5-15G-T
8IDG5-15W Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.12-0.15 A | Starting torque: 0.54-0.739 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGL-15W; terminal-box version 8IDG5-15W-T
AC Induction MotorsDKM
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 8ID-15 Induction Motor 15W, 80 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (27)

8IDD1-15, 8IDG1-15G, 8IDG1-15W, 8IDDB-15, 8IDGB-15G, 8IDGB-15W, 8IDDC-15, 8IDGC-15G, 8IDGC-15W, 8IDD2-15 + 17 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 8ID-15 Induction Motor 15W, 80 mm Frame
0 selected
RFQ List (0)
Product codeSpec
8IDD1-15Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.54 A | Starting torque: 0.095 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDA-15; terminal-box version 8IDD1-15-T
8IDG1-15GPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.54 A | Starting torque: 0.095 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGA-15G; terminal-box version 8IDG1-15G-T
8IDG1-15WPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.54 A | Starting torque: 0.095 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGA-15W; terminal-box version 8IDG1-15W-T
8IDDB-15Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.47-0.52 A | Starting torque: 0.11-0.115 N·m | Capacitor: 5.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDB-15-T
8IDGB-15GPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.47-0.52 A | Starting torque: 0.11-0.115 N·m | Capacitor: 5.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGB-15G-T
8IDGB-15WPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.47-0.52 A | Starting torque: 0.11-0.115 N·m | Capacitor: 5.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGB-15W-T
8IDDC-15Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.22-0.23 A | Starting torque: 0.115-0.12 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDC-15-T
8IDGC-15GPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.22-0.23 A | Starting torque: 0.115-0.12 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGC-15G-T
8IDGC-15WPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.22-0.23 A | Starting torque: 0.115-0.12 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGC-15W-T
8IDD2-15Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.23 A | Starting torque: 0.125 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDD-15; terminal-box version 8IDD2-15-T
8IDG2-15GPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.23 A | Starting torque: 0.125 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGD-15G; terminal-box version 8IDG2-15G-T
8IDG2-15WPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.091 N·m | Rated current: 0.23 A | Starting torque: 0.125 N·m | Capacitor: 1.2 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGD-15W; terminal-box version 8IDG2-15W-T
8IDDE-15Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.112 N·m | Rated current: 0.23-0.25 A | Starting torque: 0.105-0.127 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDE-15-T
8IDGE-15GPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.112 N·m | Rated current: 0.23-0.25 A | Starting torque: 0.105-0.127 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGE-15G-T
8IDGE-15WPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.112 N·m | Rated current: 0.23-0.25 A | Starting torque: 0.105-0.127 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGE-15W-T
8IDD3-15Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.26-0.32 A | Starting torque: 0.615-0.825 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDG-15; terminal-box version 8IDD3-15-T
8IDG3-15GPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.26-0.32 A | Starting torque: 0.615-0.825 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGG-15G; terminal-box version 8IDG3-15G-T
8IDG3-15WPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.26-0.32 A | Starting torque: 0.615-0.825 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGG-15W; terminal-box version 8IDG3-15W-T
8IDDJ-15Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.595-0.761 N·m | Output shaft: D-cut (motor only) | Variants: terminal-box version 8IDDJ-15-T
8IDGJ-15GPower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.595-0.761 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 8IDGJ-15G-T
8IDGJ-15WPower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.595-0.761 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 8IDGJ-15W-T
8IDD4-15Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.11-0.13 A | Starting torque: 0.453-0.626 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDK-15; terminal-box version 8IDD4-15-T
8IDG4-15GPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.11-0.13 A | Starting torque: 0.453-0.626 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGK-15G; terminal-box version 8IDG4-15G-T
8IDG4-15WPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.11-0.13 A | Starting torque: 0.453-0.626 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGK-15W; terminal-box version 8IDG4-15W-T
8IDD5-15Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.12-0.15 A | Starting torque: 0.54-0.739 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 8IDDL-15; terminal-box version 8IDD5-15-T
8IDG5-15GPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.12-0.15 A | Starting torque: 0.54-0.739 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 8IDGL-15G; terminal-box version 8IDG5-15G-T
8IDG5-15WPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.091-0.108 N·m | Rated current: 0.12-0.15 A | Starting torque: 0.54-0.739 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 8IDGL-15W; terminal-box version 8IDG5-15W-T
