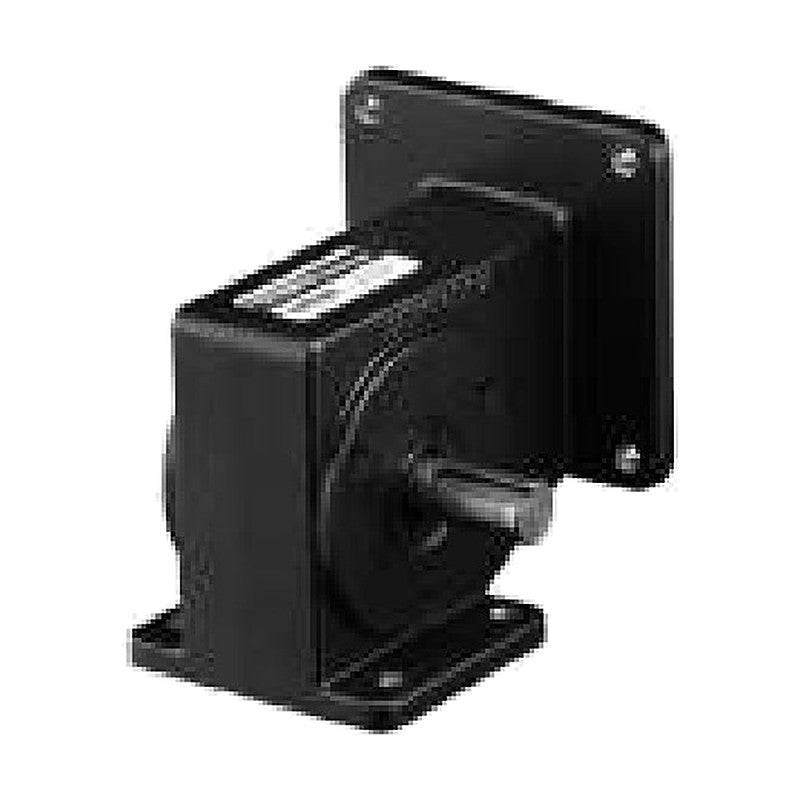

DKM 8WD / 9WD W-Type Worm Solid Right-Angle Gearbox

DKM 8WD / 9WD W-Type Worm Solid Right-Angle Gearbox

Worm gear right-angle gearbox with solid output shaft for □80 mm (15-40 W) and □90 mm (40-120 W) DKM motors with W-type gear shaft.

Key features

  • Right-angle worm gear reduction with solid output shaft
  • Output shaft on left (BL), right (BR) or both sides (BRL)
  • Gear ratios 10:1 to 60:1

Specifications

Gearbox type W type, worm solid (right angle)
Frame size 80 mm / 90 mm square
Gear ratio range 10:1 - 60:1
Typical motor output 15-40 W (8WD), 40-120 W (9WD)
8WD10BL Gear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD12BL Gear ratio: 12:1 | Output speed: 150 r/min (60 Hz) / 125 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD15BL Gear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD18BL Gear ratio: 18:1 | Output speed: 100 r/min (60 Hz) / 83 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD25BL Gear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD30BL Gear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD36BL Gear ratio: 36:1 | Output speed: 50 r/min (60 Hz) / 42 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD50BL Gear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD60BL Gear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD10BR Gear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD12BR Gear ratio: 12:1 | Output speed: 150 r/min (60 Hz) / 125 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD15BR Gear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD18BR Gear ratio: 18:1 | Output speed: 100 r/min (60 Hz) / 83 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD25BR Gear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD30BR Gear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD36BR Gear ratio: 36:1 | Output speed: 50 r/min (60 Hz) / 42 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD50BR Gear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD60BR Gear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD10BRL Gear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD12BRL Gear ratio: 12:1 | Output speed: 150 r/min (60 Hz) / 125 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD15BRL Gear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD18BRL Gear ratio: 18:1 | Output speed: 100 r/min (60 Hz) / 83 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD25BRL Gear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD30BRL Gear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD36BRL Gear ratio: 36:1 | Output speed: 50 r/min (60 Hz) / 42 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD50BRL Gear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD60BRL Gear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
9WD10BL Gear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD12BL Gear ratio: 12:1 | Output speed: 150 r/min (60 Hz) / 125 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD15BL Gear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD18BL Gear ratio: 18:1 | Output speed: 100 r/min (60 Hz) / 83 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD25BL Gear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD30BL Gear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD36BL Gear ratio: 36:1 | Output speed: 50 r/min (60 Hz) / 42 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD50BL Gear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD60BL Gear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD10BR Gear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD12BR Gear ratio: 12:1 | Output speed: 150 r/min (60 Hz) / 125 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD15BR Gear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD18BR Gear ratio: 18:1 | Output speed: 100 r/min (60 Hz) / 83 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD25BR Gear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD30BR Gear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD36BR Gear ratio: 36:1 | Output speed: 50 r/min (60 Hz) / 42 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD50BR Gear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD60BR Gear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD10BRL Gear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD12BRL Gear ratio: 12:1 | Output speed: 150 r/min (60 Hz) / 125 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD15BRL Gear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD18BRL Gear ratio: 18:1 | Output speed: 100 r/min (60 Hz) / 83 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD25BRL Gear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD30BRL Gear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD36BRL Gear ratio: 36:1 | Output speed: 50 r/min (60 Hz) / 42 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD50BRL Gear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD60BRL Gear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
GearboxesDKM
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 8WD / 9WD W-Type Worm Solid Right-Angle Gearbox

Brand DKM·Gearboxes

Available part numbers (54)

8WD10BL, 8WD12BL, 8WD15BL, 8WD18BL, 8WD25BL, 8WD30BL, 8WD36BL, 8WD50BL, 8WD60BL, 8WD10BR + 44 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8WD10BLGear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD12BLGear ratio: 12:1 | Output speed: 150 r/min (60 Hz) / 125 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD15BLGear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD18BLGear ratio: 18:1 | Output speed: 100 r/min (60 Hz) / 83 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD25BLGear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD30BLGear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD36BLGear ratio: 36:1 | Output speed: 50 r/min (60 Hz) / 42 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD50BLGear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD60BLGear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 80 mm | Output shaft: left
8WD10BRGear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD12BRGear ratio: 12:1 | Output speed: 150 r/min (60 Hz) / 125 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD15BRGear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD18BRGear ratio: 18:1 | Output speed: 100 r/min (60 Hz) / 83 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD25BRGear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD30BRGear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD36BRGear ratio: 36:1 | Output speed: 50 r/min (60 Hz) / 42 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD50BRGear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD60BRGear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 80 mm | Output shaft: right
8WD10BRLGear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD12BRLGear ratio: 12:1 | Output speed: 150 r/min (60 Hz) / 125 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD15BRLGear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD18BRLGear ratio: 18:1 | Output speed: 100 r/min (60 Hz) / 83 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD25BRLGear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD30BRLGear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD36BRLGear ratio: 36:1 | Output speed: 50 r/min (60 Hz) / 42 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD50BRLGear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
8WD60BRLGear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 80 mm | Output shaft: both sides
9WD10BLGear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD12BLGear ratio: 12:1 | Output speed: 150 r/min (60 Hz) / 125 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD15BLGear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD18BLGear ratio: 18:1 | Output speed: 100 r/min (60 Hz) / 83 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD25BLGear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD30BLGear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD36BLGear ratio: 36:1 | Output speed: 50 r/min (60 Hz) / 42 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD50BLGear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD60BLGear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 90 mm | Output shaft: left
9WD10BRGear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD12BRGear ratio: 12:1 | Output speed: 150 r/min (60 Hz) / 125 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD15BRGear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD18BRGear ratio: 18:1 | Output speed: 100 r/min (60 Hz) / 83 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD25BRGear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD30BRGear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD36BRGear ratio: 36:1 | Output speed: 50 r/min (60 Hz) / 42 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD50BRGear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD60BRGear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 90 mm | Output shaft: right
9WD10BRLGear ratio: 10:1 | Output speed: 180 r/min (60 Hz) / 150 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD12BRLGear ratio: 12:1 | Output speed: 150 r/min (60 Hz) / 125 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD15BRLGear ratio: 15:1 | Output speed: 120 r/min (60 Hz) / 100 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD18BRLGear ratio: 18:1 | Output speed: 100 r/min (60 Hz) / 83 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD25BRLGear ratio: 25:1 | Output speed: 72 r/min (60 Hz) / 60 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD30BRLGear ratio: 30:1 | Output speed: 60 r/min (60 Hz) / 50 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD36BRLGear ratio: 36:1 | Output speed: 50 r/min (60 Hz) / 42 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD50BRLGear ratio: 50:1 | Output speed: 36 r/min (60 Hz) / 30 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
9WD60BRLGear ratio: 60:1 | Output speed: 30 r/min (60 Hz) / 25 r/min (50 Hz) | Frame: 90 mm | Output shaft: both sides
