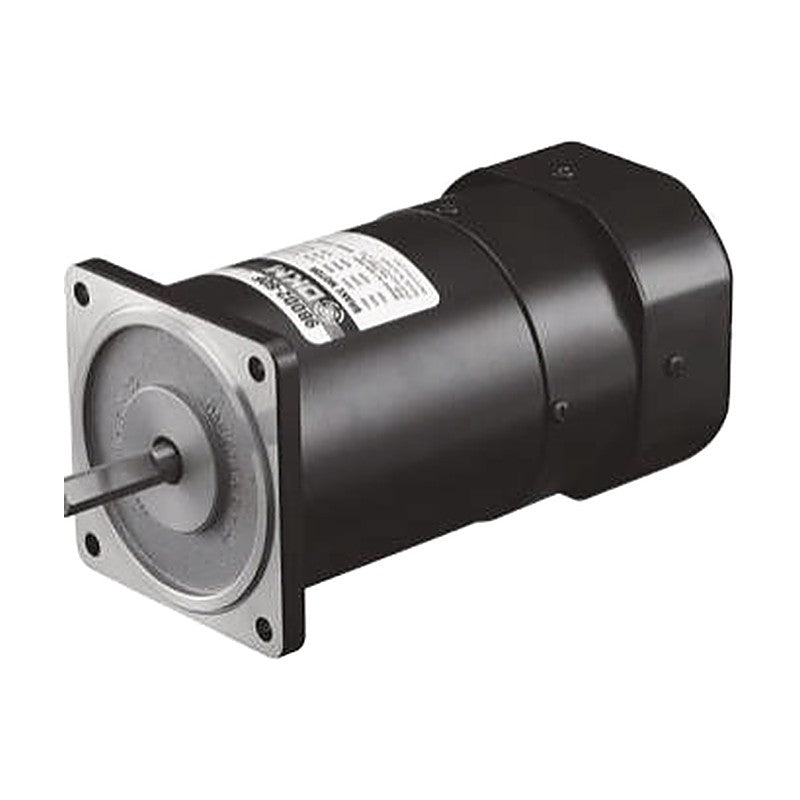

DKM 9BD-180F Electromagnetic Brake Motor 180W, 90 mm Frame
DKM 9BD-180F Electromagnetic Brake Motor 180W, 90 mm Frame
180 W single-phase AC motor with built-in power-off activated electromagnetic brake and 90 mm square frame, for stopping and holding loads (e.g. vertical axes, emergency stop); D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.
Key features
- Power-off activated electromagnetic brake stops the motor instantly and holds the load when power is removed
- Overrun approx. 2-3 revolutions (induction motor: 30-40, reversible motor: 5-6)
- Motor and brake use the same power supply
- Frequent start/stop and direction changes possible
- Gear-type shaft models combine with DKM gearboxes
Specifications
| Output | 180 W |
|---|---|
| Frame size | 90 mm square |
| Poles | 4 |
| Duty | 30 minutes (short-time rating) |
| Rated speed | 1250 / 1300 / 1600 r/min (depends on voltage/frequency) |
| Rated torque | 1.096-1.403 N·m |
| Starting torque | 0.7-0.78 N·m |
| Shaft options | D-cut, key, gear type (H, WH, HC) |
| Connection | Lead wire |
| Matching gearboxes | 9HBK□BH, 9HFK□BH, 9WHD□-030, 9WHD□-040, 9HC□ (Helicross) (□ = gear ratio) |
| Brake static friction torque | 1.0 N·m |
| Brake type | Power-off activated electromagnetic brake |
| 9BDD1-180F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 3 A | Starting torque: 0.74 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDA-180F | |
| 9BDK1-180F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 3 A | Starting torque: 0.74 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKA-180F | |
| 9BDG1-180FH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 3 A | Starting torque: 0.74 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGA-180FH | |
| 9BDG1-180FWH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 3 A | Starting torque: 0.74 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGA-180FWH | |
| 9BDG1-180FHC | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 3 A | Starting torque: 0.74 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGA-180FHC | |
| 9BDD2-180F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 1.5 A | Starting torque: 0.74 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDD-180F | |
| 9BDK2-180F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 1.5 A | Starting torque: 0.74 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKD-180F | |
| 9BDG2-180FH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 1.5 A | Starting torque: 0.74 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGD-180FH | |
| 9BDG2-180FWH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 1.5 A | Starting torque: 0.74 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGD-180FWH | |
| 9BDG2-180FHC | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 1.096 N·m | Rated current: 1.5 A | Starting torque: 0.74 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGD-180FHC | |
| 9BDDE-180F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.349-1.403 N·m | Rated current: 1.5-1.6 A | Starting torque: 0.7-0.78 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: D-cut (motor only) | |
| 9BDKE-180F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.349-1.403 N·m | Rated current: 1.5-1.6 A | Starting torque: 0.7-0.78 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Key (motor only) | |
| 9BDGE-180FH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.349-1.403 N·m | Rated current: 1.5-1.6 A | Starting torque: 0.7-0.78 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | |
| 9BDGE-180FWH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.349-1.403 N·m | Rated current: 1.5-1.6 A | Starting torque: 0.7-0.78 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | |
| 9BDGE-180FHC | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 / 1300 r/min | Rated torque: 1.349-1.403 N·m | Rated current: 1.5-1.6 A | Starting torque: 0.7-0.78 N·m | Capacitor: 8.0 µF / 450 VAC | Output shaft: Gear type (HC) for Helicross right-angle gearbox |
