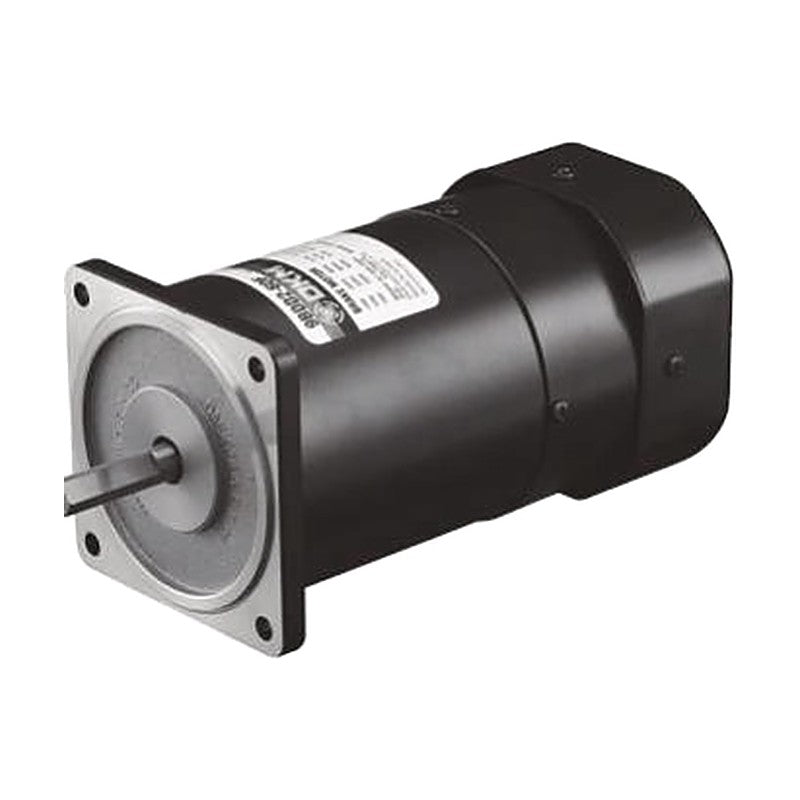

DKM 9BD-200F Electromagnetic Brake Motor 200W, 90 mm Frame
DKM 9BD-200F Electromagnetic Brake Motor 200W, 90 mm Frame
200 W three-phase AC motor with built-in power-off activated electromagnetic brake and 90 mm square frame, for stopping and holding loads (e.g. vertical axes, emergency stop); D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.
Key features
- Power-off activated electromagnetic brake stops the motor instantly and holds the load when power is removed
- Overrun approx. 2-3 revolutions (induction motor: 30-40, reversible motor: 5-6)
- Motor and brake use the same power supply
- Frequent start/stop and direction changes possible
- Gear-type shaft models combine with DKM gearboxes
Specifications
| Output | 200 W |
|---|---|
| Frame size | 90 mm square |
| Poles | 4 |
| Duty | Continuous |
| Rated speed | 1300 / 1550 r/min (depends on voltage/frequency) |
| Rated torque | 1.257-1.498 N·m |
| Starting torque | 3.01-4.2 N·m |
| Shaft options | D-cut, key, gear type (H, WH, HC) |
| Connection | Lead wire |
| Matching gearboxes | 9HBK□BH, 9HFK□BH, 9WHD□-030, 9WHD□-040, 9HC□ (Helicross) (□ = gear ratio) |
| Brake static friction torque | 1.0 N·m |
| Brake type | Power-off activated electromagnetic brake |
| 9BDD3-200F | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDG-200F | |
| 9BDK3-200F | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKG-200F | |
| 9BDG3-200FH | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGG-200FH | |
| 9BDG3-200FWH | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGG-200FWH | |
| 9BDG3-200FHC | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGG-200FHC | |
| 9BDD4-200F | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDK-200F | |
| 9BDK4-200F | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKK-200F | |
| 9BDG4-200FH | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGK-200FH | |
| 9BDG4-200FWH | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGK-200FWH | |
| 9BDG4-200FHC | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGK-200FHC | |
| 9BDD5-200F | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9BDDL-200F | |
| 9BDK5-200F | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9BDKL-200F | |
| 9BDG5-200FH | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9BDGL-200FH | |
| 9BDG5-200FWH | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9BDGL-200FWH | |
| 9BDG5-200FHC | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9BDGL-200FHC |
