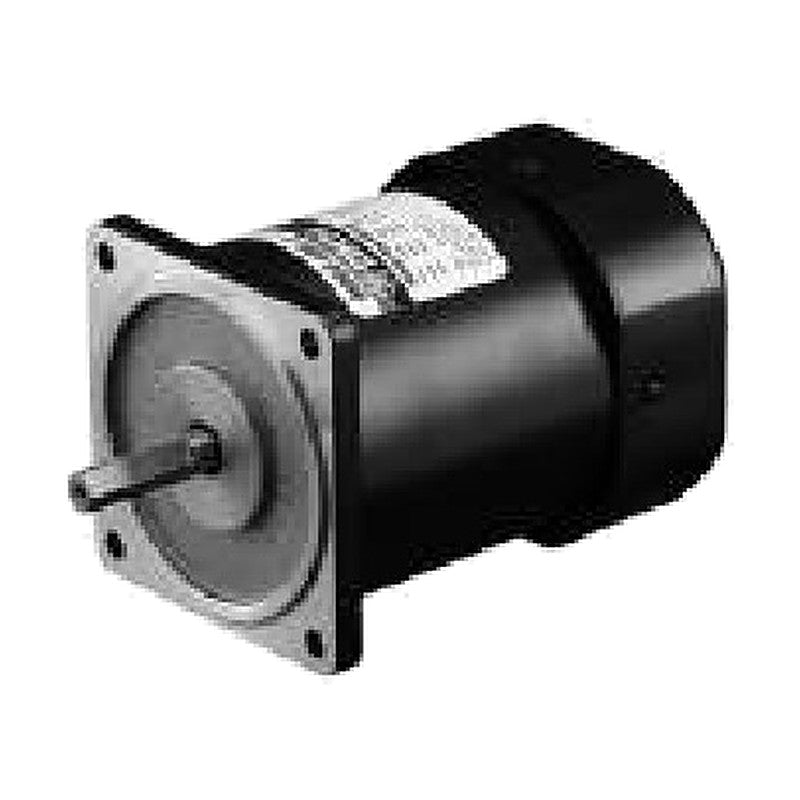

DKM 9ID-200F-A 2-Pole Induction Motor 200W, 90 mm Frame

DKM 9ID-200F-A 2-Pole Induction Motor 200W, 90 mm Frame

200 W three-phase 2-pole AC induction motor with 90 mm square frame for high-speed (approx. 2,700-3,300 r/min) unidirectional continuous operation; D-cut or key output shaft.

Key features

  • 2-pole design for high-speed continuous operation
  • Single-phase capacitor-run and three-phase versions
  • D-cut or key output shaft for direct drive (no gearbox)
  • Lead-wire or terminal-box connection

Specifications

Output 200 W
Frame size 90 mm square
Poles 2
Duty Continuous
Rated speed 2600 / 3200 r/min (depends on voltage/frequency)
Rated torque 0.609-0.749 N·m
Starting torque 1.345-1.937 N·m
Shaft options D-cut, key
Connection Lead wire or terminal box (-T)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
Dielectric strength 1.5 kV at 50/60 Hz for 1 minute
DKM 9ID-200F-A 2-Pole Induction Motor 200W, 90 mm Frame
9IDD3-200F-A Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2600 / 3200 r/min | Rated torque: 0.609-0.749 N·m | Rated current: 0.89-1.1 A | Starting torque: 1.412-1.937 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-200F-A; terminal-box version 9IDD3-200F-AT
9IDK3-200F-A Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2600 / 3200 r/min | Rated torque: 0.609-0.749 N·m | Rated current: 0.89-1.1 A | Starting torque: 1.412-1.937 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-200F-A; terminal-box version 9IDK3-200F-AT
9IDD4-200F-A Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2600 / 3200 r/min | Rated torque: 0.609-0.749 N·m | Rated current: 0.48-0.58 A | Starting torque: 1.391-1.915 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-200F-A; terminal-box version 9IDD4-200F-AT
9IDK4-200F-A Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2600 / 3200 r/min | Rated torque: 0.609-0.749 N·m | Rated current: 0.48-0.58 A | Starting torque: 1.391-1.915 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-200F-A; terminal-box version 9IDK4-200F-AT
9IDD5-200F-A Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2600 / 3200 r/min | Rated torque: 0.609-0.749 N·m | Rated current: 0.45-0.57 A | Starting torque: 1.345-1.887 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-200F-A; terminal-box version 9IDD5-200F-AT
9IDK5-200F-A Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2600 / 3200 r/min | Rated torque: 0.609-0.749 N·m | Rated current: 0.45-0.57 A | Starting torque: 1.345-1.887 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-200F-A; terminal-box version 9IDK5-200F-AT
AC Induction MotorsDKM
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9ID-200F-A 2-Pole Induction Motor 200W, 90 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (6)

9IDD3-200F-A, 9IDK3-200F-A, 9IDD4-200F-A, 9IDK4-200F-A, 9IDD5-200F-A, 9IDK5-200F-A

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 9ID-200F-A 2-Pole Induction Motor 200W, 90 mm Frame
0 selected
RFQ List (0)
Product codeSpec
9IDD3-200F-APower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2600 / 3200 r/min | Rated torque: 0.609-0.749 N·m | Rated current: 0.89-1.1 A | Starting torque: 1.412-1.937 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-200F-A; terminal-box version 9IDD3-200F-AT
9IDK3-200F-APower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2600 / 3200 r/min | Rated torque: 0.609-0.749 N·m | Rated current: 0.89-1.1 A | Starting torque: 1.412-1.937 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-200F-A; terminal-box version 9IDK3-200F-AT
9IDD4-200F-APower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2600 / 3200 r/min | Rated torque: 0.609-0.749 N·m | Rated current: 0.48-0.58 A | Starting torque: 1.391-1.915 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-200F-A; terminal-box version 9IDD4-200F-AT
9IDK4-200F-APower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2600 / 3200 r/min | Rated torque: 0.609-0.749 N·m | Rated current: 0.48-0.58 A | Starting torque: 1.391-1.915 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-200F-A; terminal-box version 9IDK4-200F-AT
9IDD5-200F-APower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2600 / 3200 r/min | Rated torque: 0.609-0.749 N·m | Rated current: 0.45-0.57 A | Starting torque: 1.345-1.887 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-200F-A; terminal-box version 9IDD5-200F-AT
9IDK5-200F-APower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2600 / 3200 r/min | Rated torque: 0.609-0.749 N·m | Rated current: 0.45-0.57 A | Starting torque: 1.345-1.887 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-200F-A; terminal-box version 9IDK5-200F-AT
