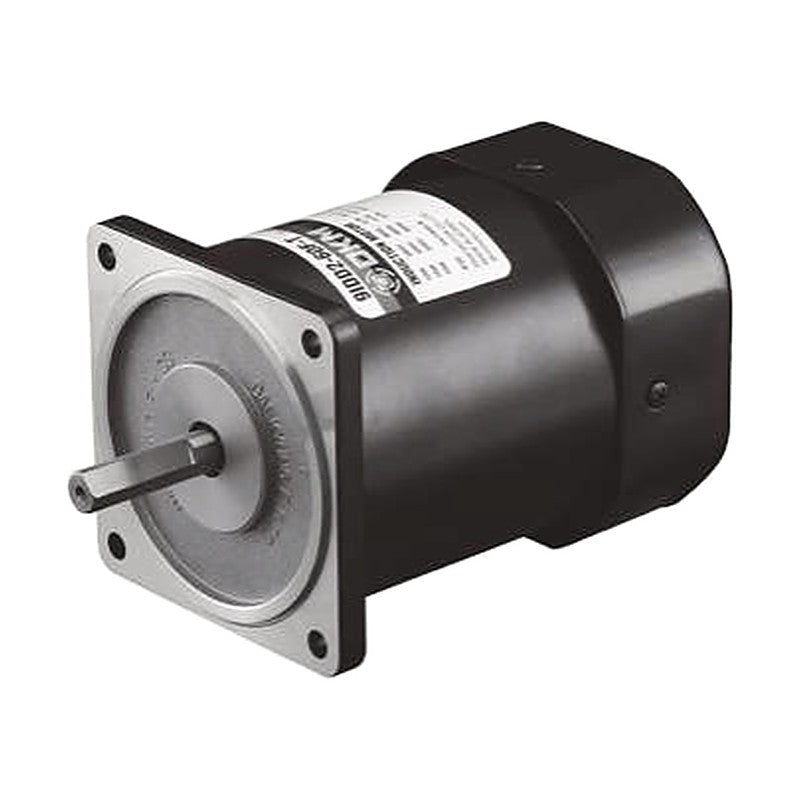

DKM 9ID-60F Induction Motor 60W, 90 mm Frame

DKM 9ID-60F Induction Motor 60W, 90 mm Frame

60 W single- and three-phase AC induction motor with 90 mm square frame for unidirectional continuous operation such as conveyors; D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Suitable for unidirectional continuous operation such as conveyor systems
  • Single-phase capacitor-run and three-phase versions
  • Three-phase versions offer higher starting torque and can run directly from a three-phase supply
  • Gear-type shaft models combine with DKM gearboxes; D-cut and key shaft models are for use as a motor only

Specifications

Output 60 W
Frame size 90 mm square
Poles 4
Duty Continuous
Rated speed 1300 / 1350 / 1550 / 1600 r/min (depends on voltage/frequency)
Rated torque 0.365-0.45 N·m
Starting torque 0.39-1.88 N·m
Shaft options D-cut, key, gear type (P, H, W, WH)
Connection Lead wire or terminal box (-T)
Matching gearboxes 9PBK□BH, 9PFK□BH, 9HBK□BH, 9HFK□BH, 9WD□BL/BR/BRL, 9WHD□-030 (□ = gear ratio)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
DKM 9ID-60F Induction Motor 60W, 90 mm Frame
9IDD1-60F Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.3 A | Starting torque: 0.43 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDA-60F; terminal-box version 9IDD1-60F-T
9IDK1-60F Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.3 A | Starting torque: 0.43 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKA-60F; terminal-box version 9IDK1-60F-T
9IDG1-60FP Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.3 A | Starting torque: 0.43 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGA-60FP; terminal-box version 9IDG1-60FP-T
9IDG1-60FH Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.3 A | Starting torque: 0.43 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGA-60FH; terminal-box version 9IDG1-60FH-T
9IDG1-60FW Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.3 A | Starting torque: 0.43 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGA-60FW; terminal-box version 9IDG1-60FW-T
9IDG1-60FWH Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.3 A | Starting torque: 0.43 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGA-60FWH; terminal-box version 9IDG1-60FWH-T
9IDDB-60F Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.4 A | Starting torque: 0.46-0.48 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDB-60F-T
9IDKB-60F Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.4 A | Starting torque: 0.46-0.48 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKB-60F-T
9IDGB-60FP Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.4 A | Starting torque: 0.46-0.48 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGB-60FP-T
9IDGB-60FH Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.4 A | Starting torque: 0.46-0.48 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9IDGB-60FH-T
9IDGB-60FW Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.4 A | Starting torque: 0.46-0.48 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGB-60FW-T
9IDGB-60FWH Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.4 A | Starting torque: 0.46-0.48 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9IDGB-60FWH-T
9IDDC-60F Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.69-0.71 A | Starting torque: 0.45-0.47 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDC-60F-T
9IDKC-60F Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.69-0.71 A | Starting torque: 0.45-0.47 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKC-60F-T
9IDGC-60FP Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.69-0.71 A | Starting torque: 0.45-0.47 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGC-60FP-T
9IDGC-60FH Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.69-0.71 A | Starting torque: 0.45-0.47 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9IDGC-60FH-T
9IDGC-60FW Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.69-0.71 A | Starting torque: 0.45-0.47 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGC-60FW-T
9IDGC-60FWH Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.69-0.71 A | Starting torque: 0.45-0.47 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9IDGC-60FWH-T
9IDD2-60F Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.68 A | Starting torque: 0.42 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDD-60F; terminal-box version 9IDD2-60F-T
9IDK2-60F Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.68 A | Starting torque: 0.42 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKD-60F; terminal-box version 9IDK2-60F-T
9IDG2-60FP Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.68 A | Starting torque: 0.42 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGD-60FP; terminal-box version 9IDG2-60FP-T
9IDG2-60FH Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.68 A | Starting torque: 0.42 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGD-60FH; terminal-box version 9IDG2-60FH-T
9IDG2-60FW Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.68 A | Starting torque: 0.42 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGD-60FW; terminal-box version 9IDG2-60FW-T
9IDG2-60FWH Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.68 A | Starting torque: 0.42 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGD-60FWH; terminal-box version 9IDG2-60FWH-T
9IDDE-60F Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.48-0.54 A | Starting torque: 0.39-0.48 N·m | Capacitor: 3.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDE-60F-T
9IDKE-60F Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.48-0.54 A | Starting torque: 0.39-0.48 N·m | Capacitor: 3.5 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKE-60F-T
9IDGE-60FP Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.48-0.54 A | Starting torque: 0.39-0.48 N·m | Capacitor: 3.5 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGE-60FP-T
9IDGE-60FH Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.48-0.54 A | Starting torque: 0.39-0.48 N·m | Capacitor: 3.5 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9IDGE-60FH-T
9IDGE-60FW Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.48-0.54 A | Starting torque: 0.39-0.48 N·m | Capacitor: 3.5 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGE-60FW-T
9IDGE-60FWH Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.48-0.54 A | Starting torque: 0.39-0.48 N·m | Capacitor: 3.5 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9IDGE-60FWH-T
9IDD3-60F Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Starting torque: 1.38-1.88 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-60F; terminal-box version 9IDD3-60F-T
9IDK3-60F Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Starting torque: 1.38-1.88 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-60F; terminal-box version 9IDK3-60F-T
9IDG3-60FP Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Starting torque: 1.38-1.88 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGG-60FP; terminal-box version 9IDG3-60FP-T
9IDG3-60FH Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Starting torque: 1.38-1.88 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGG-60FH; terminal-box version 9IDG3-60FH-T
9IDG3-60FW Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Starting torque: 1.38-1.88 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGG-60FW; terminal-box version 9IDG3-60FW-T
9IDG3-60FWH Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Starting torque: 1.38-1.88 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGG-60FWH; terminal-box version 9IDG3-60FWH-T
9IDDJ-60F Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Starting torque: 1.3-1.72 N·m | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDJ-60F-T
9IDKJ-60F Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Starting torque: 1.3-1.72 N·m | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKJ-60F-T
9IDGJ-60FP Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Starting torque: 1.3-1.72 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGJ-60FP-T
9IDGJ-60FH Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Starting torque: 1.3-1.72 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9IDGJ-60FH-T
9IDGJ-60FW Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Starting torque: 1.3-1.72 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGJ-60FW-T
9IDGJ-60FWH Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Starting torque: 1.3-1.72 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9IDGJ-60FWH-T
9IDD4-60F Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Starting torque: 1.34-1.83 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-60F; terminal-box version 9IDD4-60F-T
9IDK4-60F Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Starting torque: 1.34-1.83 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-60F; terminal-box version 9IDK4-60F-T
9IDG4-60FP Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Starting torque: 1.34-1.83 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGK-60FP; terminal-box version 9IDG4-60FP-T
9IDG4-60FH Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Starting torque: 1.34-1.83 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGK-60FH; terminal-box version 9IDG4-60FH-T
9IDG4-60FW Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Starting torque: 1.34-1.83 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGK-60FW; terminal-box version 9IDG4-60FW-T
9IDG4-60FWH Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Starting torque: 1.34-1.83 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGK-60FWH; terminal-box version 9IDG4-60FWH-T
9IDD5-60F Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Starting torque: 1.34-1.85 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-60F; terminal-box version 9IDD5-60F-T
9IDK5-60F Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Starting torque: 1.34-1.85 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-60F; terminal-box version 9IDK5-60F-T
9IDG5-60FP Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Starting torque: 1.34-1.85 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGL-60FP; terminal-box version 9IDG5-60FP-T
9IDG5-60FH Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Starting torque: 1.34-1.85 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGL-60FH; terminal-box version 9IDG5-60FH-T
9IDG5-60FW Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Starting torque: 1.34-1.85 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGL-60FW; terminal-box version 9IDG5-60FW-T
9IDG5-60FWH Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Starting torque: 1.34-1.85 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGL-60FWH; terminal-box version 9IDG5-60FWH-T
AC Induction MotorsDKM
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9ID-60F Induction Motor 60W, 90 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (54)

9IDD1-60F, 9IDK1-60F, 9IDG1-60FP, 9IDG1-60FH, 9IDG1-60FW, 9IDG1-60FWH, 9IDDB-60F, 9IDKB-60F, 9IDGB-60FP, 9IDGB-60FH + 44 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 9ID-60F Induction Motor 60W, 90 mm Frame
0 selected
RFQ List (0)
Product codeSpec
9IDD1-60FPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.3 A | Starting torque: 0.43 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDA-60F; terminal-box version 9IDD1-60F-T
9IDK1-60FPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.3 A | Starting torque: 0.43 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKA-60F; terminal-box version 9IDK1-60F-T
9IDG1-60FPPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.3 A | Starting torque: 0.43 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGA-60FP; terminal-box version 9IDG1-60FP-T
9IDG1-60FHPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.3 A | Starting torque: 0.43 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGA-60FH; terminal-box version 9IDG1-60FH-T
9IDG1-60FWPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.3 A | Starting torque: 0.43 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGA-60FW; terminal-box version 9IDG1-60FW-T
9IDG1-60FWHPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.3 A | Starting torque: 0.43 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGA-60FWH; terminal-box version 9IDG1-60FWH-T
9IDDB-60FPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.4 A | Starting torque: 0.46-0.48 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDB-60F-T
9IDKB-60FPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.4 A | Starting torque: 0.46-0.48 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKB-60F-T
9IDGB-60FPPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.4 A | Starting torque: 0.46-0.48 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGB-60FP-T
9IDGB-60FHPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.4 A | Starting torque: 0.46-0.48 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9IDGB-60FH-T
9IDGB-60FWPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.4 A | Starting torque: 0.46-0.48 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGB-60FW-T
9IDGB-60FWHPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.4 A | Starting torque: 0.46-0.48 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9IDGB-60FWH-T
9IDDC-60FPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.69-0.71 A | Starting torque: 0.45-0.47 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDC-60F-T
9IDKC-60FPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.69-0.71 A | Starting torque: 0.45-0.47 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKC-60F-T
9IDGC-60FPPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.69-0.71 A | Starting torque: 0.45-0.47 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGC-60FP-T
9IDGC-60FHPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.69-0.71 A | Starting torque: 0.45-0.47 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9IDGC-60FH-T
9IDGC-60FWPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.69-0.71 A | Starting torque: 0.45-0.47 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGC-60FW-T
9IDGC-60FWHPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.69-0.71 A | Starting torque: 0.45-0.47 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9IDGC-60FWH-T
9IDD2-60FPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.68 A | Starting torque: 0.42 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDD-60F; terminal-box version 9IDD2-60F-T
9IDK2-60FPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.68 A | Starting torque: 0.42 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKD-60F; terminal-box version 9IDK2-60F-T
9IDG2-60FPPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.68 A | Starting torque: 0.42 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGD-60FP; terminal-box version 9IDG2-60FP-T
9IDG2-60FHPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.68 A | Starting torque: 0.42 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGD-60FH; terminal-box version 9IDG2-60FH-T
9IDG2-60FWPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.68 A | Starting torque: 0.42 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGD-60FW; terminal-box version 9IDG2-60FW-T
9IDG2-60FWHPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.68 A | Starting torque: 0.42 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGD-60FWH; terminal-box version 9IDG2-60FWH-T
9IDDE-60FPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.48-0.54 A | Starting torque: 0.39-0.48 N·m | Capacitor: 3.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDE-60F-T
9IDKE-60FPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.48-0.54 A | Starting torque: 0.39-0.48 N·m | Capacitor: 3.5 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKE-60F-T
9IDGE-60FPPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.48-0.54 A | Starting torque: 0.39-0.48 N·m | Capacitor: 3.5 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGE-60FP-T
9IDGE-60FHPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.48-0.54 A | Starting torque: 0.39-0.48 N·m | Capacitor: 3.5 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9IDGE-60FH-T
9IDGE-60FWPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.48-0.54 A | Starting torque: 0.39-0.48 N·m | Capacitor: 3.5 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGE-60FW-T
9IDGE-60FWHPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.48-0.54 A | Starting torque: 0.39-0.48 N·m | Capacitor: 3.5 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9IDGE-60FWH-T
9IDD3-60FPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Starting torque: 1.38-1.88 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-60F; terminal-box version 9IDD3-60F-T
9IDK3-60FPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Starting torque: 1.38-1.88 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-60F; terminal-box version 9IDK3-60F-T
9IDG3-60FPPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Starting torque: 1.38-1.88 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGG-60FP; terminal-box version 9IDG3-60FP-T
9IDG3-60FHPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Starting torque: 1.38-1.88 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGG-60FH; terminal-box version 9IDG3-60FH-T
9IDG3-60FWPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Starting torque: 1.38-1.88 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGG-60FW; terminal-box version 9IDG3-60FW-T
9IDG3-60FWHPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.53-0.62 A | Starting torque: 1.38-1.88 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGG-60FWH; terminal-box version 9IDG3-60FWH-T
9IDDJ-60FPower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Starting torque: 1.3-1.72 N·m | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDJ-60F-T
9IDKJ-60FPower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Starting torque: 1.3-1.72 N·m | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKJ-60F-T
9IDGJ-60FPPower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Starting torque: 1.3-1.72 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGJ-60FP-T
9IDGJ-60FHPower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Starting torque: 1.3-1.72 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9IDGJ-60FH-T
9IDGJ-60FWPower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Starting torque: 1.3-1.72 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGJ-60FW-T
9IDGJ-60FWHPower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.52-0.59 A | Starting torque: 1.3-1.72 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9IDGJ-60FWH-T
9IDD4-60FPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Starting torque: 1.34-1.83 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-60F; terminal-box version 9IDD4-60F-T
9IDK4-60FPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Starting torque: 1.34-1.83 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-60F; terminal-box version 9IDK4-60F-T
9IDG4-60FPPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Starting torque: 1.34-1.83 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGK-60FP; terminal-box version 9IDG4-60FP-T
9IDG4-60FHPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Starting torque: 1.34-1.83 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGK-60FH; terminal-box version 9IDG4-60FH-T
9IDG4-60FWPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Starting torque: 1.34-1.83 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGK-60FW; terminal-box version 9IDG4-60FW-T
9IDG4-60FWHPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.28-0.34 A | Starting torque: 1.34-1.83 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGK-60FWH; terminal-box version 9IDG4-60FWH-T
9IDD5-60FPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Starting torque: 1.34-1.85 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-60F; terminal-box version 9IDD5-60F-T
9IDK5-60FPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Starting torque: 1.34-1.85 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-60F; terminal-box version 9IDK5-60F-T
9IDG5-60FPPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Starting torque: 1.34-1.85 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGL-60FP; terminal-box version 9IDG5-60FP-T
9IDG5-60FHPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Starting torque: 1.34-1.85 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGL-60FH; terminal-box version 9IDG5-60FH-T
9IDG5-60FWPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Starting torque: 1.34-1.85 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGL-60FW; terminal-box version 9IDG5-60FW-T
9IDG5-60FWHPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.365-0.433 N·m | Rated current: 0.26-0.31 A | Starting torque: 1.34-1.85 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGL-60FWH; terminal-box version 9IDG5-60FWH-T
