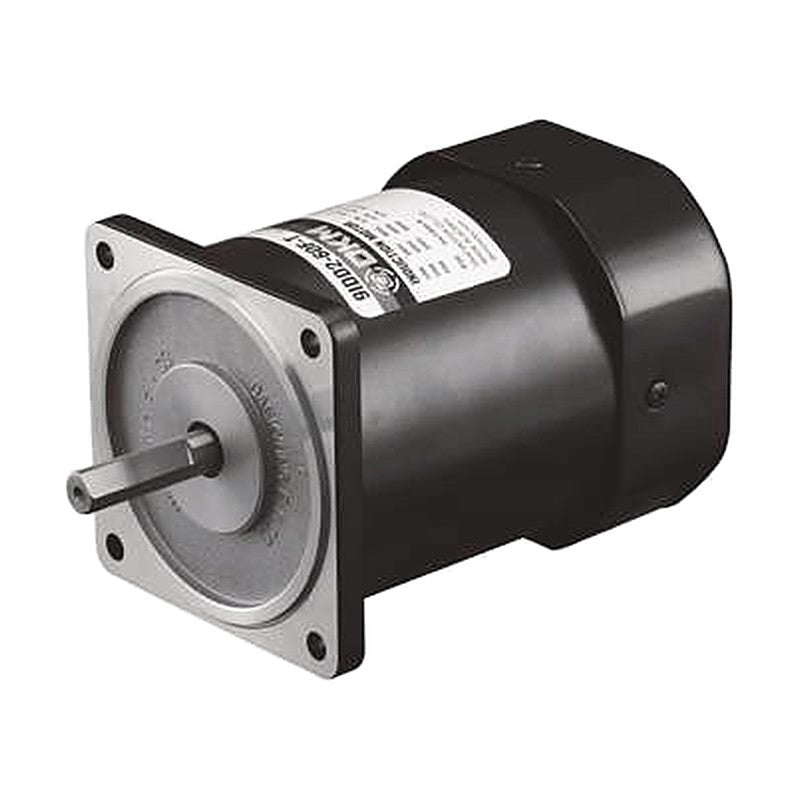

DKM 9RD-60F Reversible Motor 60W, 90 mm Frame
DKM 9RD-60F Reversible Motor 60W, 90 mm Frame
60 W single-phase reversible motor with 90 mm square frame, designed for frequent forward/reverse switching, with built-in friction brake; D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.
Key features
- Designed for applications that require frequent changes of direction
- Capacitor-run single-phase motor with higher starting torque than an induction motor
- Built-in simple friction brake (approx. 10% of motor output) reduces overrun and improves instant reversing
- Rated time 30 minutes; longer operation possible with intermittent duty
- Gear-type shaft models combine with DKM gearboxes
Specifications
| Output | 60 W |
|---|---|
| Frame size | 90 mm square |
| Poles | 4 |
| Duty | 30 minutes (short-time rating) |
| Rated speed | 1300 / 1600 r/min (depends on voltage/frequency) |
| Rated torque | 0.365-0.45 N·m |
| Starting torque | 0.519-0.652 N·m |
| Shaft options | D-cut, key, gear type (P, H, W, WH) |
| Connection | Lead wire or terminal box (-T) |
| Matching gearboxes | 9PBK□BH, 9PFK□BH, 9HBK□BH, 9HFK□BH, 9WD□BL/BR/BRL, 9WHD□-030 (□ = gear ratio) |
| Built-in brake | Friction brake, approx. 10% of motor output |
| Insulation class | Class B (130 °C) |
| 9RDD1-60F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Starting torque: 0.52 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDA-60F; terminal-box version 9RDD1-60F-T | |
| 9RDK1-60F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Starting torque: 0.52 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKA-60F; terminal-box version 9RDK1-60F-T | |
| 9RDG1-60FP | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Starting torque: 0.52 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9RDGA-60FP; terminal-box version 9RDG1-60FP-T | |
| 9RDG1-60FH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Starting torque: 0.52 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9RDGA-60FH; terminal-box version 9RDG1-60FH-T | |
| 9RDG1-60FW | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Starting torque: 0.52 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9RDGA-60FW; terminal-box version 9RDG1-60FW-T | |
| 9RDG1-60FWH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Starting torque: 0.52 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9RDGA-60FWH; terminal-box version 9RDG1-60FWH-T | |
| 9RDDB-60F | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Starting torque: 0.6-0.62 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDB-60F-T | |
| 9RDKB-60F | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Starting torque: 0.6-0.62 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKB-60F-T | |
| 9RDGB-60FP | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Starting torque: 0.6-0.62 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGB-60FP-T | |
| 9RDGB-60FH | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Starting torque: 0.6-0.62 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGB-60FH-T | |
| 9RDGB-60FW | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Starting torque: 0.6-0.62 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGB-60FW-T | |
| 9RDGB-60FWH | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Starting torque: 0.6-0.62 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGB-60FWH-T | |
| 9RDDC-60F | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Starting torque: 0.55-0.57 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDC-60F-T | |
| 9RDKC-60F | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Starting torque: 0.55-0.57 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKC-60F-T | |
| 9RDGC-60FP | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Starting torque: 0.55-0.57 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGC-60FP-T | |
| 9RDGC-60FH | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Starting torque: 0.55-0.57 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGC-60FH-T | |
| 9RDGC-60FW | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Starting torque: 0.55-0.57 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGC-60FW-T | |
| 9RDGC-60FWH | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Starting torque: 0.55-0.57 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGC-60FWH-T | |
| 9RDD2-60F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Starting torque: 0.519 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDD-60F; terminal-box version 9RDD2-60F-T | |
| 9RDK2-60F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Starting torque: 0.519 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKD-60F; terminal-box version 9RDK2-60F-T | |
| 9RDG2-60FP | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Starting torque: 0.519 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9RDGD-60FP; terminal-box version 9RDG2-60FP-T | |
| 9RDG2-60FH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Starting torque: 0.519 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9RDGD-60FH; terminal-box version 9RDG2-60FH-T | |
| 9RDG2-60FW | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Starting torque: 0.519 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9RDGD-60FW; terminal-box version 9RDG2-60FW-T | |
| 9RDG2-60FWH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Starting torque: 0.519 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9RDGD-60FWH; terminal-box version 9RDG2-60FWH-T | |
| 9RDDE-60F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Starting torque: 0.552-0.652 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDE-60F-T | |
| 9RDKE-60F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Starting torque: 0.552-0.652 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKE-60F-T | |
| 9RDGE-60FP | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Starting torque: 0.552-0.652 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGE-60FP-T | |
| 9RDGE-60FH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Starting torque: 0.552-0.652 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGE-60FH-T | |
| 9RDGE-60FW | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Starting torque: 0.552-0.652 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGE-60FW-T | |
| 9RDGE-60FWH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Starting torque: 0.552-0.652 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGE-60FWH-T |
AC Reversible MotorsDKM
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
DKM 9RD-60F Reversible Motor 60W, 90 mm Frame
Available part numbers (30)
9RDD1-60F, 9RDK1-60F, 9RDG1-60FP, 9RDG1-60FH, 9RDG1-60FW, 9RDG1-60FWH, 9RDDB-60F, 9RDKB-60F, 9RDGB-60FP, 9RDGB-60FH + 20 more — see full table ↓
How to order
Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
DKM
AC Reversible Motors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 9RDD1-60F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Starting torque: 0.52 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDA-60F; terminal-box version 9RDD1-60F-T | ||
| 9RDK1-60F | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Starting torque: 0.52 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKA-60F; terminal-box version 9RDK1-60F-T | ||
| 9RDG1-60FP | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Starting torque: 0.52 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9RDGA-60FP; terminal-box version 9RDG1-60FP-T | ||
| 9RDG1-60FH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Starting torque: 0.52 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9RDGA-60FH; terminal-box version 9RDG1-60FH-T | ||
| 9RDG1-60FW | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Starting torque: 0.52 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9RDGA-60FW; terminal-box version 9RDG1-60FW-T | ||
| 9RDG1-60FWH | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 1.6 A | Starting torque: 0.52 N·m | Capacitor: 20.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9RDGA-60FWH; terminal-box version 9RDG1-60FWH-T | ||
| 9RDDB-60F | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Starting torque: 0.6-0.62 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDB-60F-T | ||
| 9RDKB-60F | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Starting torque: 0.6-0.62 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKB-60F-T | ||
| 9RDGB-60FP | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Starting torque: 0.6-0.62 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGB-60FP-T | ||
| 9RDGB-60FH | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Starting torque: 0.6-0.62 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGB-60FH-T | ||
| 9RDGB-60FW | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Starting torque: 0.6-0.62 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGB-60FW-T | ||
| 9RDGB-60FWH | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 1.6-1.7 A | Starting torque: 0.6-0.62 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGB-60FWH-T | ||
| 9RDDC-60F | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Starting torque: 0.55-0.57 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDC-60F-T | ||
| 9RDKC-60F | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Starting torque: 0.55-0.57 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKC-60F-T | ||
| 9RDGC-60FP | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Starting torque: 0.55-0.57 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGC-60FP-T | ||
| 9RDGC-60FH | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Starting torque: 0.55-0.57 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGC-60FH-T | ||
| 9RDGC-60FW | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Starting torque: 0.55-0.57 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGC-60FW-T | ||
| 9RDGC-60FWH | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.365-0.45 N·m | Rated current: 0.76-0.79 A | Starting torque: 0.55-0.57 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGC-60FWH-T | ||
| 9RDD2-60F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Starting torque: 0.519 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDD-60F; terminal-box version 9RDD2-60F-T | ||
| 9RDK2-60F | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Starting torque: 0.519 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKD-60F; terminal-box version 9RDK2-60F-T | ||
| 9RDG2-60FP | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Starting torque: 0.519 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9RDGD-60FP; terminal-box version 9RDG2-60FP-T | ||
| 9RDG2-60FH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Starting torque: 0.519 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9RDGD-60FH; terminal-box version 9RDG2-60FH-T | ||
| 9RDG2-60FW | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Starting torque: 0.519 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9RDGD-60FW; terminal-box version 9RDG2-60FW-T | ||
| 9RDG2-60FWH | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.365 N·m | Rated current: 0.75 A | Starting torque: 0.519 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9RDGD-60FWH; terminal-box version 9RDG2-60FWH-T | ||
| 9RDDE-60F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Starting torque: 0.552-0.652 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDE-60F-T | ||
| 9RDKE-60F | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Starting torque: 0.552-0.652 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKE-60F-T | ||
| 9RDGE-60FP | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Starting torque: 0.552-0.652 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGE-60FP-T | ||
| 9RDGE-60FH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Starting torque: 0.552-0.652 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGE-60FH-T | ||
| 9RDGE-60FW | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Starting torque: 0.552-0.652 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGE-60FW-T | ||
| 9RDGE-60FWH | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.45 N·m | Rated current: 0.59-0.64 A | Starting torque: 0.552-0.652 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGE-60FWH-T |
Need a different model, or a part not listed here? Send us your parts list →
