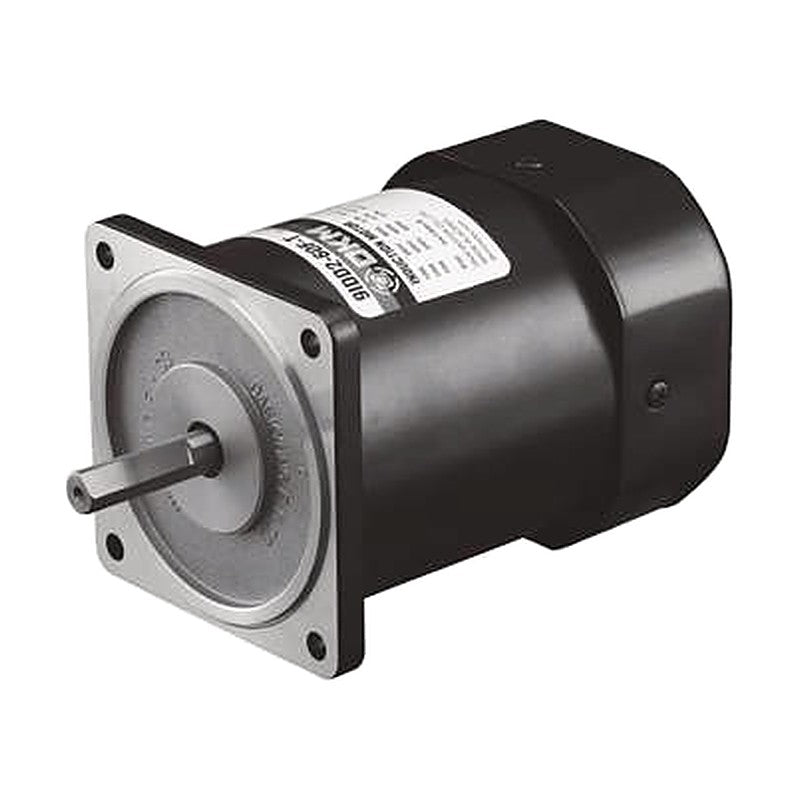

DKM 9RD-90F Reversible Motor 90W, 90 mm Frame

DKM 9RD-90F Reversible Motor 90W, 90 mm Frame

90 W single-phase reversible motor with 90 mm square frame, designed for frequent forward/reverse switching, with built-in friction brake; D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Designed for applications that require frequent changes of direction
  • Capacitor-run single-phase motor with higher starting torque than an induction motor
  • Built-in simple friction brake (approx. 10% of motor output) reduces overrun and improves instant reversing
  • Rated time 30 minutes; longer operation possible with intermittent duty
  • Gear-type shaft models combine with DKM gearboxes

Specifications

Output 90 W
Frame size 90 mm square
Poles 4
Duty 30 minutes (short-time rating)
Rated speed 1250 / 1300 / 1600 r/min (depends on voltage/frequency)
Rated torque 0.548-0.701 N·m
Starting torque 0.607-0.715 N·m
Shaft options D-cut, key, gear type (P, H, W, WH)
Connection Lead wire or terminal box (-T)
Matching gearboxes 9PBK□BH, 9PFK□BH, 9HBK□BH, 9HFK□BH, 9WD□BL/BR/BRL, 9WHD□-030 (□ = gear ratio)
Built-in brake Friction brake, approx. 10% of motor output
Insulation class Class B (130 °C)
DKM 9RD-90F Reversible Motor 90W, 90 mm Frame
9RDD1-90F Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 2 A | Starting torque: 0.649 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDA-90F; terminal-box version 9RDD1-90F-T
9RDK1-90F Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 2 A | Starting torque: 0.649 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKA-90F; terminal-box version 9RDK1-90F-T
9RDG1-90FP Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 2 A | Starting torque: 0.649 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9RDGA-90FP; terminal-box version 9RDG1-90FP-T
9RDG1-90FH Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 2 A | Starting torque: 0.649 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9RDGA-90FH; terminal-box version 9RDG1-90FH-T
9RDG1-90FW Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 2 A | Starting torque: 0.649 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9RDGA-90FW; terminal-box version 9RDG1-90FW-T
9RDG1-90FWH Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 2 A | Starting torque: 0.649 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9RDGA-90FWH; terminal-box version 9RDG1-90FWH-T
9RDDB-90F Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1.95-2.1 A | Starting torque: 0.65-0.68 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDB-90F-T
9RDKB-90F Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1.95-2.1 A | Starting torque: 0.65-0.68 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKB-90F-T
9RDGB-90FP Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1.95-2.1 A | Starting torque: 0.65-0.68 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGB-90FP-T
9RDGB-90FH Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1.95-2.1 A | Starting torque: 0.65-0.68 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGB-90FH-T
9RDGB-90FW Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1.95-2.1 A | Starting torque: 0.65-0.68 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGB-90FW-T
9RDGB-90FWH Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1.95-2.1 A | Starting torque: 0.65-0.68 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGB-90FWH-T
9RDDC-90F Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1-1.15 A | Starting torque: 0.62-0.65 N·m | Capacitor: 7.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDC-90F-T
9RDKC-90F Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1-1.15 A | Starting torque: 0.62-0.65 N·m | Capacitor: 7.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKC-90F-T
9RDGC-90FP Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1-1.15 A | Starting torque: 0.62-0.65 N·m | Capacitor: 7.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGC-90FP-T
9RDGC-90FH Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1-1.15 A | Starting torque: 0.62-0.65 N·m | Capacitor: 7.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGC-90FH-T
9RDGC-90FW Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1-1.15 A | Starting torque: 0.62-0.65 N·m | Capacitor: 7.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGC-90FW-T
9RDGC-90FWH Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1-1.15 A | Starting torque: 0.62-0.65 N·m | Capacitor: 7.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGC-90FWH-T
9RDD2-90F Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1.04 A | Starting torque: 0.611 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDD-90F; terminal-box version 9RDD2-90F-T
9RDK2-90F Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1.04 A | Starting torque: 0.611 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKD-90F; terminal-box version 9RDK2-90F-T
9RDG2-90FP Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1.04 A | Starting torque: 0.611 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9RDGD-90FP; terminal-box version 9RDG2-90FP-T
9RDG2-90FH Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1.04 A | Starting torque: 0.611 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9RDGD-90FH; terminal-box version 9RDG2-90FH-T
9RDG2-90FW Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1.04 A | Starting torque: 0.611 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9RDGD-90FW; terminal-box version 9RDG2-90FW-T
9RDG2-90FWH Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1.04 A | Starting torque: 0.611 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9RDGD-90FWH; terminal-box version 9RDG2-90FWH-T
9RDDE-90F Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.701 N·m | Rated current: 0.92-1 A | Starting torque: 0.607-0.715 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDE-90F-T
9RDKE-90F Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.701 N·m | Rated current: 0.92-1 A | Starting torque: 0.607-0.715 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKE-90F-T
9RDGE-90FP Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.701 N·m | Rated current: 0.92-1 A | Starting torque: 0.607-0.715 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGE-90FP-T
9RDGE-90FH Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.701 N·m | Rated current: 0.92-1 A | Starting torque: 0.607-0.715 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGE-90FH-T
9RDGE-90FW Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.701 N·m | Rated current: 0.92-1 A | Starting torque: 0.607-0.715 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGE-90FW-T
9RDGE-90FWH Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.701 N·m | Rated current: 0.92-1 A | Starting torque: 0.607-0.715 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGE-90FWH-T
AC Reversible MotorsDKM
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9RD-90F Reversible Motor 90W, 90 mm Frame

Brand DKM·AC Reversible Motors

Available part numbers (30)

9RDD1-90F, 9RDK1-90F, 9RDG1-90FP, 9RDG1-90FH, 9RDG1-90FW, 9RDG1-90FWH, 9RDDB-90F, 9RDKB-90F, 9RDGB-90FP, 9RDGB-90FH + 20 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 9RD-90F Reversible Motor 90W, 90 mm Frame
0 selected
RFQ List (0)
Product codeSpec
9RDD1-90FPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 2 A | Starting torque: 0.649 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDA-90F; terminal-box version 9RDD1-90F-T
9RDK1-90FPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 2 A | Starting torque: 0.649 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKA-90F; terminal-box version 9RDK1-90F-T
9RDG1-90FPPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 2 A | Starting torque: 0.649 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9RDGA-90FP; terminal-box version 9RDG1-90FP-T
9RDG1-90FHPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 2 A | Starting torque: 0.649 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9RDGA-90FH; terminal-box version 9RDG1-90FH-T
9RDG1-90FWPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 2 A | Starting torque: 0.649 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9RDGA-90FW; terminal-box version 9RDG1-90FW-T
9RDG1-90FWHPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 2 A | Starting torque: 0.649 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9RDGA-90FWH; terminal-box version 9RDG1-90FWH-T
9RDDB-90FPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1.95-2.1 A | Starting torque: 0.65-0.68 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDB-90F-T
9RDKB-90FPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1.95-2.1 A | Starting torque: 0.65-0.68 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKB-90F-T
9RDGB-90FPPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1.95-2.1 A | Starting torque: 0.65-0.68 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGB-90FP-T
9RDGB-90FHPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1.95-2.1 A | Starting torque: 0.65-0.68 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGB-90FH-T
9RDGB-90FWPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1.95-2.1 A | Starting torque: 0.65-0.68 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGB-90FW-T
9RDGB-90FWHPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1.95-2.1 A | Starting torque: 0.65-0.68 N·m | Capacitor: 30.0 µF / 250 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGB-90FWH-T
9RDDC-90FPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1-1.15 A | Starting torque: 0.62-0.65 N·m | Capacitor: 7.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDC-90F-T
9RDKC-90FPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1-1.15 A | Starting torque: 0.62-0.65 N·m | Capacitor: 7.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKC-90F-T
9RDGC-90FPPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1-1.15 A | Starting torque: 0.62-0.65 N·m | Capacitor: 7.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGC-90FP-T
9RDGC-90FHPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1-1.15 A | Starting torque: 0.62-0.65 N·m | Capacitor: 7.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGC-90FH-T
9RDGC-90FWPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1-1.15 A | Starting torque: 0.62-0.65 N·m | Capacitor: 7.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGC-90FW-T
9RDGC-90FWHPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.548-0.674 N·m | Rated current: 1-1.15 A | Starting torque: 0.62-0.65 N·m | Capacitor: 7.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGC-90FWH-T
9RDD2-90FPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1.04 A | Starting torque: 0.611 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9RDDD-90F; terminal-box version 9RDD2-90F-T
9RDK2-90FPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1.04 A | Starting torque: 0.611 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9RDKD-90F; terminal-box version 9RDK2-90F-T
9RDG2-90FPPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1.04 A | Starting torque: 0.611 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9RDGD-90FP; terminal-box version 9RDG2-90FP-T
9RDG2-90FHPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1.04 A | Starting torque: 0.611 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9RDGD-90FH; terminal-box version 9RDG2-90FH-T
9RDG2-90FWPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1.04 A | Starting torque: 0.611 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9RDGD-90FW; terminal-box version 9RDG2-90FW-T
9RDG2-90FWHPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.548 N·m | Rated current: 1.04 A | Starting torque: 0.611 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9RDGD-90FWH; terminal-box version 9RDG2-90FWH-T
9RDDE-90FPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.701 N·m | Rated current: 0.92-1 A | Starting torque: 0.607-0.715 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9RDDE-90F-T
9RDKE-90FPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.701 N·m | Rated current: 0.92-1 A | Starting torque: 0.607-0.715 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9RDKE-90F-T
9RDGE-90FPPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.701 N·m | Rated current: 0.92-1 A | Starting torque: 0.607-0.715 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9RDGE-90FP-T
9RDGE-90FHPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.701 N·m | Rated current: 0.92-1 A | Starting torque: 0.607-0.715 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: terminal-box version 9RDGE-90FH-T
9RDGE-90FWPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.701 N·m | Rated current: 0.92-1 A | Starting torque: 0.607-0.715 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9RDGE-90FW-T
9RDGE-90FWHPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.701 N·m | Rated current: 0.92-1 A | Starting torque: 0.607-0.715 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: terminal-box version 9RDGE-90FWH-T

Need a different model, or a part not listed here? Send us your parts list →
