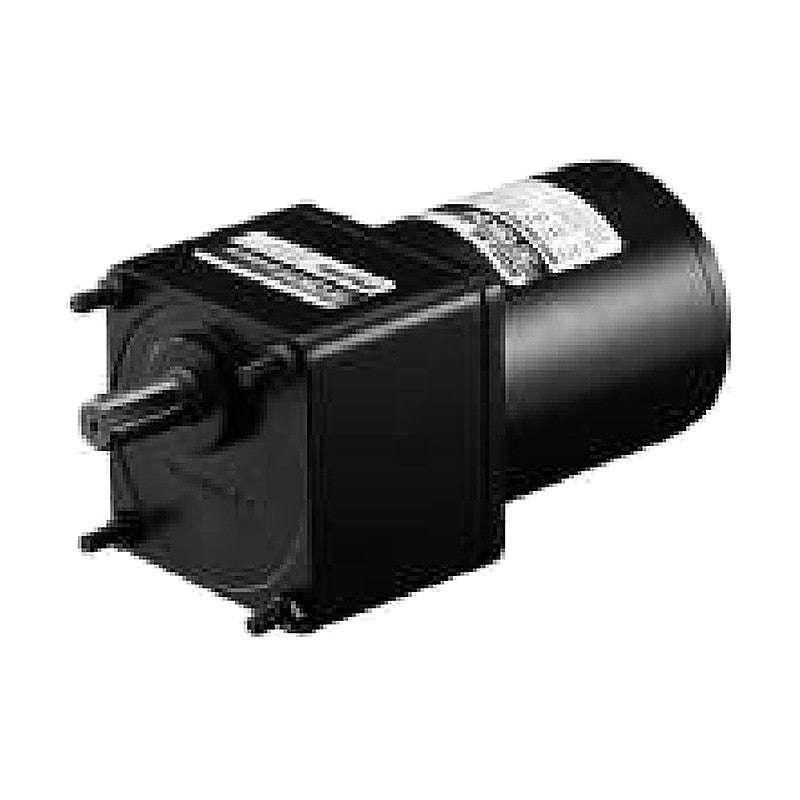

DKM 9SRD Speed Control Reversible Motor, 40 W, □90 mm Frame

DKM 9SRD Speed Control Reversible Motor, 40 W, □90 mm Frame

Single-phase AC speed control reversible motor with built-in tachogenerator and simple brake mechanism, for variable-speed operation with frequent direction changes.

Key features

  • Built-in simple brake mechanism keeps overrun small; suited to frequent direction changes
  • Built-in tachogenerator (T.G) for speed feedback with DKM speed controllers
  • Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz)
  • Available in connector type (-C) and lead wire type (-L)

Specifications

Output 40 W
Frame size 90 mm square
Poles 4
Phase Single-phase AC
Voltage codes 1 = 1-phase 110 V 60 Hz; A = 1-phase 110 V 60 Hz, thermal protector; B = 1-phase 100 V 50/60 Hz, thermal protector; C = 1-phase 200 V 50/60 Hz, thermal protector; 2 = 1-phase 220 V 60 Hz; D = 1-phase 220 V 60 Hz, thermal protector; E = 1-phase 220-240 V 50 Hz, thermal protector
Rating Continuous
Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz)
Starting torque 0.3-0.34 N·m
Permissible torque at 1200 r/min 0.26-0.32 N·m
Permissible torque at 90 r/min 0.08-0.09 N·m
Capacitor 1/A: 16.0 µF/250 VAC; B: 16.0 µF/250 VAC; C: 4.0 µF/450 VAC; 2/D: 4.0 µF/450 VAC; E: 4.0 µF/450 VAC
Motor weight 2.55 kg
9SRDG-40G Shaft: gear type pinion | For gearbox: 9GBK□BMH (general box) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-40G + -C (connector) or -L (lead wire)
9SRDG-40P Shaft: gear type pinion | For gearbox: powerful box/flange gearbox 9PBK□BH / 9PFK□BH | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-40P + -C (connector) or -L (lead wire)
9SRDG-40W Shaft: gear type pinion | For gearbox: worm solid right-angle gearbox (WD□BL/BR/BRL) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-40W + -C (connector) or -L (lead wire)
9SRDD-40 Shaft: D-cut shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDD[voltage code]-40 + -C (connector) or -L (lead wire)
9SRDK-40 Shaft: Key shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDK[voltage code]-40 + -C (connector) or -L (lead wire)
Speed Control MotorsDKM
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9SRD Speed Control Reversible Motor, 40 W, □90 mm Frame

Brand DKM·Speed Control Motors

Available part numbers (5)

9SRDG-40G, 9SRDG-40P, 9SRDG-40W, 9SRDD-40, 9SRDK-40

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9SRDG-40GShaft: gear type pinion | For gearbox: 9GBK□BMH (general box) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-40G + -C (connector) or -L (lead wire)
9SRDG-40PShaft: gear type pinion | For gearbox: powerful box/flange gearbox 9PBK□BH / 9PFK□BH | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-40P + -C (connector) or -L (lead wire)
9SRDG-40WShaft: gear type pinion | For gearbox: worm solid right-angle gearbox (WD□BL/BR/BRL) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDG[voltage code]-40W + -C (connector) or -L (lead wire)
9SRDD-40Shaft: D-cut shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDD[voltage code]-40 + -C (connector) or -L (lead wire)
9SRDK-40Shaft: Key shaft (motor only) | Voltage codes: 1/A/B/C/2/D/E | Order as: 9SRDK[voltage code]-40 + -C (connector) or -L (lead wire)
