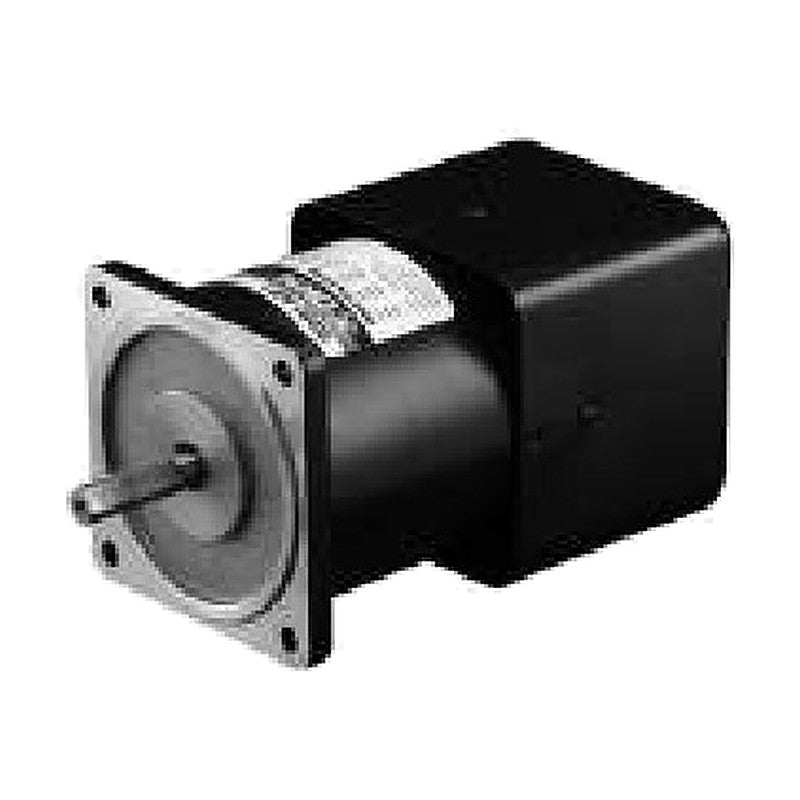

DKM 9TD-40F2 Torque Motor 40W, 90 mm Frame

DKM 9TD-40F2 Torque Motor 40W, 90 mm Frame

40 W single-phase AC torque motor with 90 mm square frame and sloping speed-torque characteristic, for winding/tension, pushing and locked-rotor applications; D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Torque is highest at zero speed and decreases steadily as speed increases
  • Speed and torque can be varied easily by changing the supply voltage (e.g. with a torque controller)
  • Stable torque even under stall (locked-rotor) or very low-speed conditions
  • Suitable for constant-tension winding applications and as a brake
  • Gear-type shaft models combine with DKM gearboxes

Specifications

Output 40 W
Frame size 90 mm square
Poles 4
Duty 5 minutes at locked rotor (rated voltage); continuous at reduced voltage
Speed at max. output 750 / 900 r/min (depends on voltage/frequency)
Starting torque 0.242-0.8 N·m
Shaft options D-cut, key, gear type (P, H)
Connection Connector type (-C) or lead wire (-L)
Matching gearboxes 9PBK□BH, 9PFK□BH, 9HBK□BH, 9HFK□BH (□ = gear ratio)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
Dielectric strength 1.5 kV at 50/60 Hz for 1 minute
DKM 9TD-40F2 Torque Motor 40W, 90 mm Frame
9TDD1-40F2-C Power supply: 1ø AC 110 V 60 Hz (continuous rating at 60 V) | Speed at max. output: 900 r/min | Torque at max. output: 0.141-0.433 N·m | Current at max. output: 1.2-2 A | Starting torque: 0.242-0.8 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9TDDA-40F2-C; lead-wire version 9TDD1-40F2-L
9TDK1-40F2-C Power supply: 1ø AC 110 V 60 Hz (continuous rating at 60 V) | Speed at max. output: 900 r/min | Torque at max. output: 0.141-0.433 N·m | Current at max. output: 1.2-2 A | Starting torque: 0.242-0.8 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9TDKA-40F2-C; lead-wire version 9TDK1-40F2-L
9TDG1-40F2P-C Power supply: 1ø AC 110 V 60 Hz (continuous rating at 60 V) | Speed at max. output: 900 r/min | Torque at max. output: 0.141-0.433 N·m | Current at max. output: 1.2-2 A | Starting torque: 0.242-0.8 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9TDGA-40F2P-C; lead-wire version 9TDG1-40F2P-L
9TDG1-40F2H-C Power supply: 1ø AC 110 V 60 Hz (continuous rating at 60 V) | Speed at max. output: 900 r/min | Torque at max. output: 0.141-0.433 N·m | Current at max. output: 1.2-2 A | Starting torque: 0.242-0.8 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9TDGA-40F2H-C; lead-wire version 9TDG1-40F2H-L
9TDD2-40F2-C Power supply: 1ø AC 220 V 60 Hz (continuous rating at 140 V) | Speed at max. output: 900 r/min | Torque at max. output: 0.141-0.433 N·m | Current at max. output: 0.66-1.01 A | Starting torque: 0.335-0.772 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9TDDD-40F2-C; lead-wire version 9TDD2-40F2-L
9TDK2-40F2-C Power supply: 1ø AC 220 V 60 Hz (continuous rating at 140 V) | Speed at max. output: 900 r/min | Torque at max. output: 0.141-0.433 N·m | Current at max. output: 0.66-1.01 A | Starting torque: 0.335-0.772 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9TDKD-40F2-C; lead-wire version 9TDK2-40F2-L
9TDG2-40F2P-C Power supply: 1ø AC 220 V 60 Hz (continuous rating at 140 V) | Speed at max. output: 900 r/min | Torque at max. output: 0.141-0.433 N·m | Current at max. output: 0.66-1.01 A | Starting torque: 0.335-0.772 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9TDGD-40F2P-C; lead-wire version 9TDG2-40F2P-L
9TDG2-40F2H-C Power supply: 1ø AC 220 V 60 Hz (continuous rating at 140 V) | Speed at max. output: 900 r/min | Torque at max. output: 0.141-0.433 N·m | Current at max. output: 0.66-1.01 A | Starting torque: 0.335-0.772 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9TDGD-40F2H-C; lead-wire version 9TDG2-40F2H-L
9TDDE-40F2-C Power supply: 1ø AC 220-240 V 50 Hz (continuous rating at 140 V) | Speed at max. output: 750 r/min | Torque at max. output: 0.169-0.519 N·m | Current at max. output: 0.55-0.88 A | Starting torque: 0.329-0.727 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: lead-wire version 9TDDE-40F2-L
9TDKE-40F2-C Power supply: 1ø AC 220-240 V 50 Hz (continuous rating at 140 V) | Speed at max. output: 750 r/min | Torque at max. output: 0.169-0.519 N·m | Current at max. output: 0.55-0.88 A | Starting torque: 0.329-0.727 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: Key (motor only) | Variants: lead-wire version 9TDKE-40F2-L
9TDGE-40F2P-C Power supply: 1ø AC 220-240 V 50 Hz (continuous rating at 140 V) | Speed at max. output: 750 r/min | Torque at max. output: 0.169-0.519 N·m | Current at max. output: 0.55-0.88 A | Starting torque: 0.329-0.727 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: lead-wire version 9TDGE-40F2P-L
9TDGE-40F2H-C Power supply: 1ø AC 220-240 V 50 Hz (continuous rating at 140 V) | Speed at max. output: 750 r/min | Torque at max. output: 0.169-0.519 N·m | Current at max. output: 0.55-0.88 A | Starting torque: 0.329-0.727 N·m | Capacitor: 6.5 µF / 450 VAC | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: lead-wire version 9TDGE-40F2H-L
