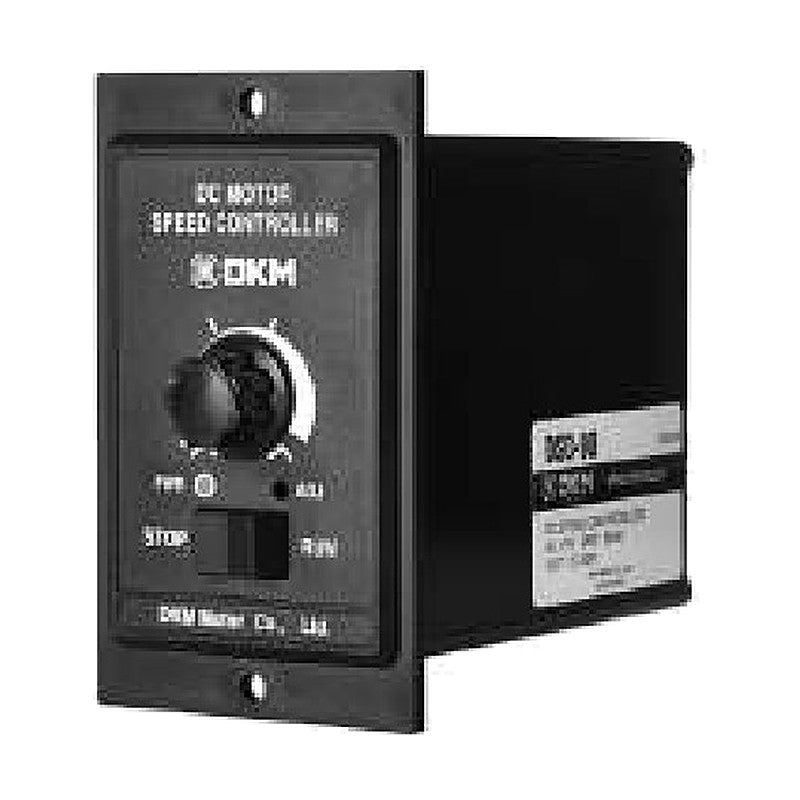

DKM DSD-90 DC Motor Speed Controller

Speed controller for DKM DC 90 V motors (15-200 W), powered from AC 220 V and adjusted with a front-panel potentiometer.

Key features

For speed adjustment of DKM DC 90 V motors
Easy speed adjustment with the front-panel potentiometer
Outputs DC 90 V at AC 220 V 60 Hz input

Specifications

Rated voltage	AC 220 V 50/60 Hz
Voltage regulation	±10%
Allowable current	Below 4 A
Control system	Phase control
Speed control	Front dial
Applicable motor	DC 90 V motor, 15-200 W
Ambient temperature	-10 to 40 °C
Ambient humidity	35-85% RH
Insulation resistance	Over 100 MΩ at DC 500 V
Dielectric strength	AC 1500 V 50/60 Hz for 1 min

DSD-90

Input: AC 220 V 50/60 Hz | Output: DC 90 V | Motor output: 15-200 W
