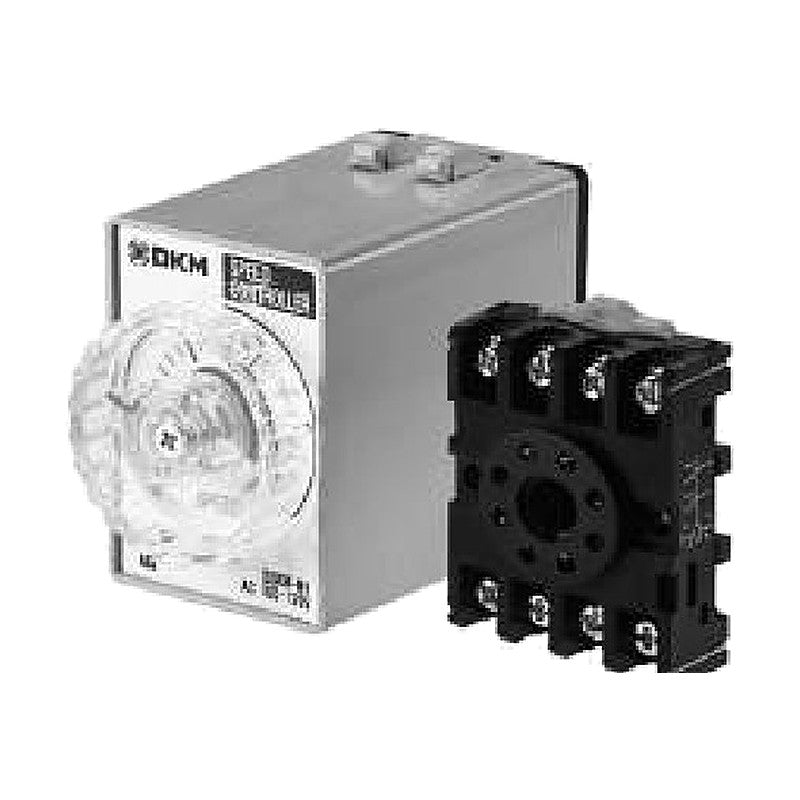

DKM DSKM Compact Speed Control Pack, 8-Pin Socket Type

Compact plug-in (8-pin socket) speed control pack for DKM speed control motors, with front dial and optional external potentiometer.

Key features

Compact 8-pin plug-in speed control pack
Speed set with the front dial or a separate external potentiometer
Bi-directional operation, variable speed, electric brake and multi-stage speed setting
Electric brake (resistor installed separately) stops the motor in approx. 0.5 s

Specifications

Control system	Phase control
Voltage regulation	±10%
Allowable current	Below 4 A
Speed range	90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz)
Speed control	Internal volume (external volume usable)
Electric braking time	0.5 s (standard value)
Ambient temperature	-10 to 55 °C
Ambient humidity	35-85% RH
Insulation resistance	Over 100 MΩ at DC 500 V
Dielectric strength	AC 1500 V for 1 min

DSKM-M1		Rated voltage: AC 100-120 V 50/60 Hz
DSKM-M2		Rated voltage: AC 220-240 V 50/60 Hz

Speed ControllersDKM

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM DSKM Compact Speed Control Pack, 8-Pin Socket Type

Brand DKM·Speed Controllers

Available part numbers (2)

DSKM-M1, DSKM-M2
