• DODGE E-Z Kleen GTEZ Polymer Wide Slot Take-Up
1 1

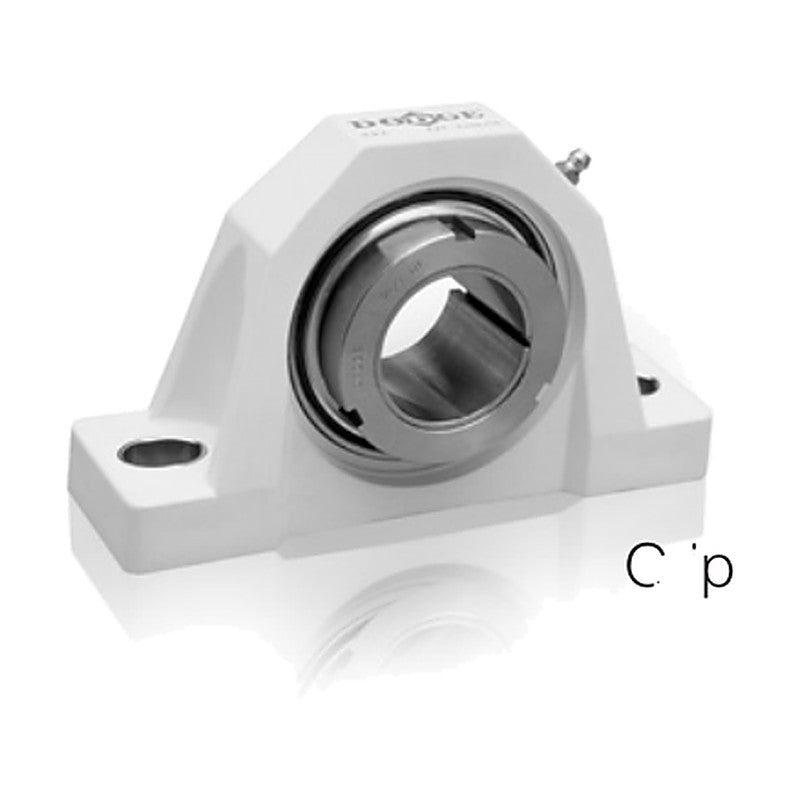

DODGE E-Z Kleen GTEZ Polymer Wide Slot Take-Up

DODGE E-Z Kleen GTEZ Polymer Wide Slot Take-Up

DODGE E-Z Kleen GTEZ mounted ball bearings use the Grip Tight push/pull adapter mount in polymer housings for food and beverage processing.

Key features

  • Grip Tight adapter: full 360° concentric shaft contact, easy on / easy off
  • Stainless steel adapter sleeve and nut
  • Corrosion-resistant insert with nickel alloy Teflon composite coating
  • QuadGuard triple-lip seal with rubberized flinger and Maxlife cage
  • Anti-microbial polymer housing with no cavities to trap bacteria
  • Unit, unit without adapter and adapter assembly listed separately

Specifications

Brand DODGE
Product line E-Z Kleen
Housing style Wide slot take-up
Housing material polymer
Locking Grip Tight adapter mount
Shaft range 20-35 mm, 3/4-1-7/16 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 2-54
WSTU-GTEZ-20M-PCR Series: 204 | Shaft: 20 mm | Variant: Complete unit | Part no.: 136323
WSTU-GTEZ-04-PCR Series: 204 | Shaft: 20 mm, 3/4 in | Variant: Unit without adapter & nut | Part no.: 136327
WSTU-GTEZ-012-PCR Series: 204 | Shaft: 3/4 in | Variant: Complete unit | Part no.: 136315
WSTU-GTEZ-25M-PCR Series: 205 | Shaft: 25 mm | Variant: Complete unit | Part no.: 136324
WSTU-GTEZ-05-PCR Series: 205 | Shaft: 25 mm, 1 in | Variant: Unit without adapter & nut | Part no.: 136328
WSTU-GTEZ-100-PCR Series: 205 | Shaft: 1 in | Variant: Complete unit | Part no.: 136316
WSTU-GTEZ-30M-PCR Series: 206 | Shaft: 30 mm | Variant: Complete unit | Part no.: 136325
WSTU-GTEZ-06-PCR Series: 206 | Shaft: 30 mm (multi) | Variant: Unit without adapter & nut | Part no.: 136329
WSTU-GTEZ-102-PCR Series: 206 | Shaft: 1-1/8 in | Variant: Complete unit | Part no.: 136317
WSTU-GTEZ-103-PCR Series: 206 | Shaft: 1-3/16 in | Variant: Complete unit | Part no.: 136318
WSTU-GTEZ-104S-PCR Series: 206 | Shaft: 1-1/4 in | Variant: Complete unit | Part no.: 136319
WSTU-GTEZ-35M-PCR Series: 207 | Shaft: 35 mm | Variant: Complete unit | Part no.: 136326
WSTU-GTEZ-07-PCR Series: 207 | Shaft: 35 mm (multi) | Variant: Unit without adapter & nut | Part no.: 136330
WSTU-GTEZ-104-PCR Series: 207 | Shaft: 1-1/4 in | Variant: Complete unit | Part no.: 136320
WSTU-GTEZ-106-PCR Series: 207 | Shaft: 1-3/8 in | Variant: Complete unit | Part no.: 136321
WSTU-GTEZ-107-PCR Series: 207 | Shaft: 1-7/16 in | Variant: Complete unit | Part no.: 136322
Mounted Bearing UnitsDODGE
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE E-Z Kleen GTEZ Polymer Wide Slot Take-Up

Brand DODGE·Mounted Bearing Units

Available part numbers (16)

WSTU-GTEZ-20M-PCR, WSTU-GTEZ-04-PCR, WSTU-GTEZ-012-PCR, WSTU-GTEZ-25M-PCR, WSTU-GTEZ-05-PCR, WSTU-GTEZ-100-PCR, WSTU-GTEZ-30M-PCR, WSTU-GTEZ-06-PCR, WSTU-GTEZ-102-PCR, WSTU-GTEZ-103-PCR + 6 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WSTU-GTEZ-20M-PCRSeries: 204 | Shaft: 20 mm | Variant: Complete unit | Part no.: 136323
WSTU-GTEZ-04-PCRSeries: 204 | Shaft: 20 mm, 3/4 in | Variant: Unit without adapter & nut | Part no.: 136327
WSTU-GTEZ-012-PCRSeries: 204 | Shaft: 3/4 in | Variant: Complete unit | Part no.: 136315
WSTU-GTEZ-25M-PCRSeries: 205 | Shaft: 25 mm | Variant: Complete unit | Part no.: 136324
WSTU-GTEZ-05-PCRSeries: 205 | Shaft: 25 mm, 1 in | Variant: Unit without adapter & nut | Part no.: 136328
WSTU-GTEZ-100-PCRSeries: 205 | Shaft: 1 in | Variant: Complete unit | Part no.: 136316
WSTU-GTEZ-30M-PCRSeries: 206 | Shaft: 30 mm | Variant: Complete unit | Part no.: 136325
WSTU-GTEZ-06-PCRSeries: 206 | Shaft: 30 mm (multi) | Variant: Unit without adapter & nut | Part no.: 136329
WSTU-GTEZ-102-PCRSeries: 206 | Shaft: 1-1/8 in | Variant: Complete unit | Part no.: 136317
WSTU-GTEZ-103-PCRSeries: 206 | Shaft: 1-3/16 in | Variant: Complete unit | Part no.: 136318
WSTU-GTEZ-104S-PCRSeries: 206 | Shaft: 1-1/4 in | Variant: Complete unit | Part no.: 136319
WSTU-GTEZ-35M-PCRSeries: 207 | Shaft: 35 mm | Variant: Complete unit | Part no.: 136326
WSTU-GTEZ-07-PCRSeries: 207 | Shaft: 35 mm (multi) | Variant: Unit without adapter & nut | Part no.: 136330
WSTU-GTEZ-104-PCRSeries: 207 | Shaft: 1-1/4 in | Variant: Complete unit | Part no.: 136320
WSTU-GTEZ-106-PCRSeries: 207 | Shaft: 1-3/8 in | Variant: Complete unit | Part no.: 136321
WSTU-GTEZ-107-PCRSeries: 207 | Shaft: 1-7/16 in | Variant: Complete unit | Part no.: 136322
