• DODGE E-Z Kleen PSEZ Polymer Sleeve 2-Bolt Flange
1 1

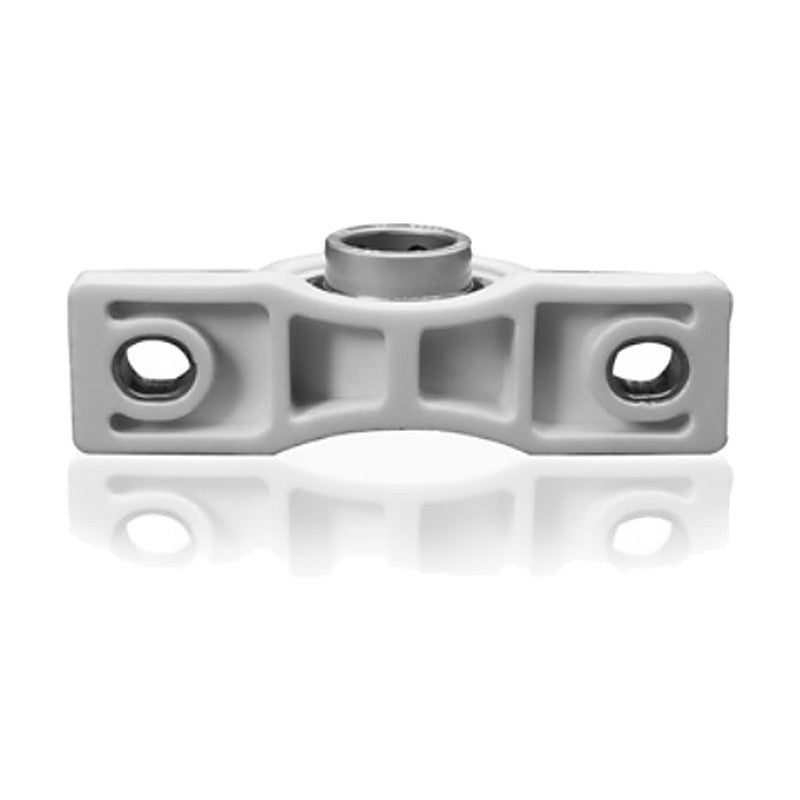

DODGE E-Z Kleen PSEZ Polymer Sleeve 2-Bolt Flange

DODGE E-Z Kleen PSEZ Polymer Sleeve 2-Bolt Flange

DODGE E-Z Kleen PSEZ mounted bearings combine a polymer sleeve bearing with an engineered polymer housing for washdown areas.

Key features

  • Polymer sleeve bearing insert
  • Engineered polymer housing with anti-microbial agent
  • Solid-base housing design with no cavities to trap bacteria
  • Designed for food and beverage processing environments

Specifications

Brand DODGE
Product line E-Z Kleen
Housing style 2-bolt flange
Housing material polymer
Locking Polymer sleeve bearing
Shaft range 20-50 mm, 3/4-1-15/16 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 2-60
F2B-PSEZ-20M-P Series: 204 | Shaft: 20 mm | Part no.: 034766
F2B-PSEZ-012-P Series: 204 | Shaft: 3/4 in | Part no.: 034726
F2B-PSEZ-25M-P Series: 205 | Shaft: 25 mm | Part no.: 034767
F2B-PSEZ-100-P Series: 205 | Shaft: 1 in | Part no.: 034727
F2B-PSEZ-30M-P Series: 206 | Shaft: 30 mm | Part no.: 034768
F2B-PSEZ-103-P Series: 206 | Shaft: 1-3/6 in | Part no.: 034728
F2B-PSEZ-104S-P Series: 206 | Shaft: 1-1/4 in | Part no.: 034729
F2B-PSEZ-35M-P Series: 207 | Shaft: 35 mm | Part no.: 034769
F2B-PSEZ-104-P Series: 207 | Shaft: 1-1/4 in | Part no.: 034730
F2B-PSEZ-107-P Series: 207 | Shaft: 1-7/16 in | Part no.: 034731
F2B-PSEZ-40M-P Series: 208 | Shaft: 40 mm | Part no.: 034770
F2B-PSEZ-108-P Series: 208 | Shaft: 1-1/2 in | Part no.: 034732
F28-PSEZ-50M-P Series: 210 | Shaft: 50 mm | Part no.: 034772
F2B-PSEZ-115-P Series: 210 | Shaft: 1-15/16 in | Part no.: 034735
Mounted Bearing UnitsDODGE
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE E-Z Kleen PSEZ Polymer Sleeve 2-Bolt Flange

Brand DODGE·Mounted Bearing Units

Available part numbers (14)

F2B-PSEZ-20M-P, F2B-PSEZ-012-P, F2B-PSEZ-25M-P, F2B-PSEZ-100-P, F2B-PSEZ-30M-P, F2B-PSEZ-103-P, F2B-PSEZ-104S-P, F2B-PSEZ-35M-P, F2B-PSEZ-104-P, F2B-PSEZ-107-P + 4 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F2B-PSEZ-20M-PSeries: 204 | Shaft: 20 mm | Part no.: 034766
F2B-PSEZ-012-PSeries: 204 | Shaft: 3/4 in | Part no.: 034726
F2B-PSEZ-25M-PSeries: 205 | Shaft: 25 mm | Part no.: 034767
F2B-PSEZ-100-PSeries: 205 | Shaft: 1 in | Part no.: 034727
F2B-PSEZ-30M-PSeries: 206 | Shaft: 30 mm | Part no.: 034768
F2B-PSEZ-103-PSeries: 206 | Shaft: 1-3/6 in | Part no.: 034728
F2B-PSEZ-104S-PSeries: 206 | Shaft: 1-1/4 in | Part no.: 034729
F2B-PSEZ-35M-PSeries: 207 | Shaft: 35 mm | Part no.: 034769
F2B-PSEZ-104-PSeries: 207 | Shaft: 1-1/4 in | Part no.: 034730
F2B-PSEZ-107-PSeries: 207 | Shaft: 1-7/16 in | Part no.: 034731
F2B-PSEZ-40M-PSeries: 208 | Shaft: 40 mm | Part no.: 034770
F2B-PSEZ-108-PSeries: 208 | Shaft: 1-1/2 in | Part no.: 034732
F28-PSEZ-50M-PSeries: 210 | Shaft: 50 mm | Part no.: 034772
F2B-PSEZ-115-PSeries: 210 | Shaft: 1-15/16 in | Part no.: 034735
