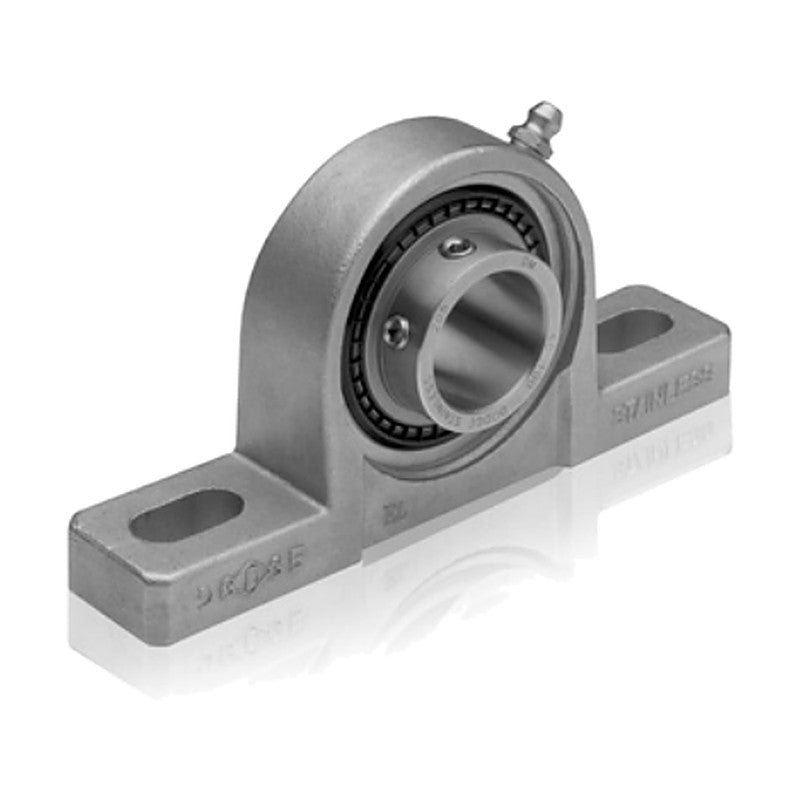

DODGE E-Z Kleen SCEZ SHCR Stainless Narrow Slot Take-Up

DODGE E-Z Kleen SCEZ SHCR Stainless Narrow Slot Take-Up

DODGE E-Z Kleen SCEZ mounted ball bearings pair stainless steel housings with corrosion-resistant set screw inserts for food and beverage processing.

Key features

  • Corrosion-resistant insert with patented nickel alloy Teflon composite coating
  • 65° stainless set screws and stainless anti-rotation pin
  • QuadGuard triple-lip seal with rubberized flinger
  • Maxlife cage; 100% filled with H1 food-grade grease
  • 300 series stainless steel housing
  • Temperature range -29 °C to +108 °C

Specifications

Brand DODGE
Product line E-Z Kleen
Housing style Narrow slot take-up
Housing material stainless steel
Locking Set screw (65°), stainless steel
Shaft range 20-50 mm, 3/4-2 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 2-35
NSTU-SCEZ-20M-SHCR Series: 204 | Shaft: 20 mm | Part no.: 136974
NSTU-SCEZ-012-SHCR Series: 204 | Shaft: 3/4 in | Part no.: 136939
NSTU-SCEZ-25M-SHCR Series: 205 | Shaft: 25 mm | Part no.: 136975
NSTU-SCEZ-100-SHCR Series: 205 | Shaft: 1 in | Part no.: 136940
NSTU-SCEZ-30M-SHCR Series: 206 | Shaft: 30 mm | Part no.: 136976
NSTU-SCEZ-103-SHCR Series: 206 | Shaft: 1-3/16 in | Part no.: 136941
NSTU-SCEZ-104S-SHCR Series: 206 | Shaft: 1-1/4 in | Part no.: 136942
NSTU-SCEZ-35M-SHCR Series: 207 | Shaft: 35 mm | Part no.: 136977
NSTU-SCEZ-104-SHCR Series: 207 | Shaft: 1-1/4 in | Part no.: 136943
NSTU-SCEZ-107-SHCR Series: 207 | Shaft: 1-7/16 in | Part no.: 136944
NSTU-SCEZ-40M-SHCR Series: 208 | Shaft: 40 mm | Part no.: 136978
NSTU-SCEZ-108-SHCR Series: 208 | Shaft: 1-1/2 in | Part no.: 136945
NSTU-SCEZ-50M-SHCR Series: 210 | Shaft: 50 mm | Part no.: 136979
NSTU-SCEZ-115-SHCR Series: 210 | Shaft: 1-15/16 in | Part no.: 136946
NSTU-SCEZ-200-SHCR Series: 210 | Shaft: 2 in | Part no.: 136997
Mounted Bearing UnitsDODGE
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE E-Z Kleen SCEZ SHCR Stainless Narrow Slot Take-Up

Brand DODGE·Mounted Bearing Units

Available part numbers (15)

NSTU-SCEZ-20M-SHCR, NSTU-SCEZ-012-SHCR, NSTU-SCEZ-25M-SHCR, NSTU-SCEZ-100-SHCR, NSTU-SCEZ-30M-SHCR, NSTU-SCEZ-103-SHCR, NSTU-SCEZ-104S-SHCR, NSTU-SCEZ-35M-SHCR, NSTU-SCEZ-104-SHCR, NSTU-SCEZ-107-SHCR + 5 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NSTU-SCEZ-20M-SHCRSeries: 204 | Shaft: 20 mm | Part no.: 136974
NSTU-SCEZ-012-SHCRSeries: 204 | Shaft: 3/4 in | Part no.: 136939
NSTU-SCEZ-25M-SHCRSeries: 205 | Shaft: 25 mm | Part no.: 136975
NSTU-SCEZ-100-SHCRSeries: 205 | Shaft: 1 in | Part no.: 136940
NSTU-SCEZ-30M-SHCRSeries: 206 | Shaft: 30 mm | Part no.: 136976
NSTU-SCEZ-103-SHCRSeries: 206 | Shaft: 1-3/16 in | Part no.: 136941
NSTU-SCEZ-104S-SHCRSeries: 206 | Shaft: 1-1/4 in | Part no.: 136942
NSTU-SCEZ-35M-SHCRSeries: 207 | Shaft: 35 mm | Part no.: 136977
NSTU-SCEZ-104-SHCRSeries: 207 | Shaft: 1-1/4 in | Part no.: 136943
NSTU-SCEZ-107-SHCRSeries: 207 | Shaft: 1-7/16 in | Part no.: 136944
NSTU-SCEZ-40M-SHCRSeries: 208 | Shaft: 40 mm | Part no.: 136978
NSTU-SCEZ-108-SHCRSeries: 208 | Shaft: 1-1/2 in | Part no.: 136945
NSTU-SCEZ-50M-SHCRSeries: 210 | Shaft: 50 mm | Part no.: 136979
NSTU-SCEZ-115-SHCRSeries: 210 | Shaft: 1-15/16 in | Part no.: 136946
NSTU-SCEZ-200-SHCRSeries: 210 | Shaft: 2 in | Part no.: 136997
