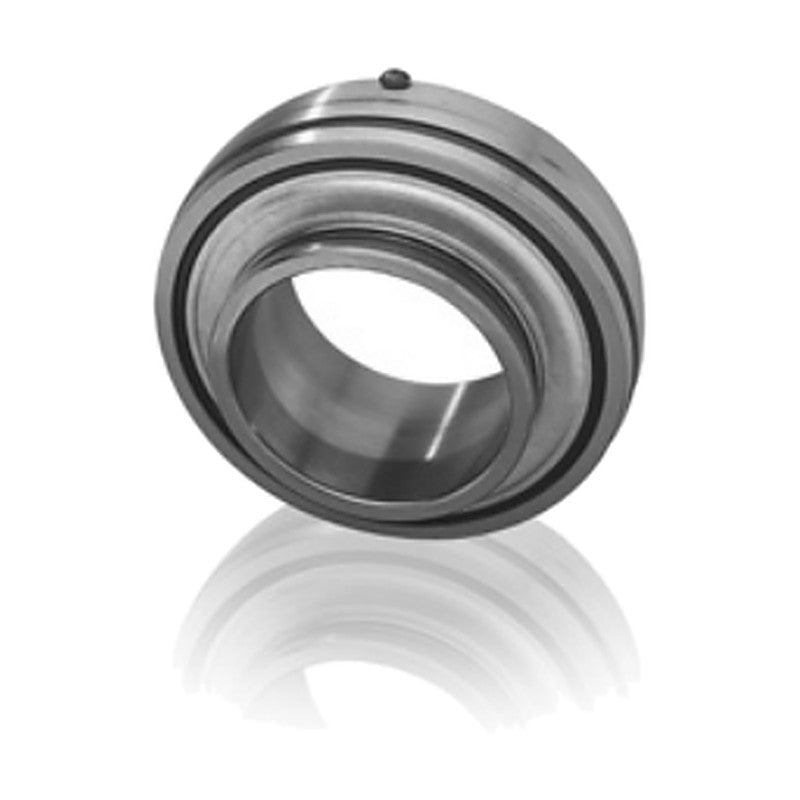

DODGE Extreme Duty SCED Bearing Insert (20-90 mm, 1/2-2-15/16 in)

DODGE Extreme Duty SCED Bearing Insert (20-90 mm, 1/2-2-15/16 in)

DODGE Extreme Duty SCED/SCMED set screw mounted ball bearings are built for demanding industrial service where equipment uptime is critical.

Key features

  • 65° set screws give maximum locking force without weakening the inner ring
  • Anti-rotation pin prevents insert rotation in the housing
  • QuadGuard sealing system: triple-lip seal with rubberized flinger
  • Maxlife ball cage for extended grease life
  • Suited to agriculture, aggregate, cement, paper, wood products and metals

Specifications

Brand DODGE
Product line Extreme Duty
Housing style Bearing insert
Locking Set screw (65°)
Shaft range 20-90 mm, 1/2-2-15/16 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 3-41 to 3-42
INS-SCED-20M Series: 204 | Shaft: 20 mm | Part no.: Assembled to order
INS-SCED-008L Series: 204 | Shaft: 1/2 in | Part no.: Assembled to order
INS-SCED-010L Series: 204 | Shaft: 5/8 in | Part no.: Assembled to order
INS-SCED-012 Series: 204 | Shaft: 3/4 in | Part no.: 076108
INS-SCED-25M Series: 205 | Shaft: 25 mm | Part no.: 076286
INS-SCED-014 Series: 205 | Shaft: 7/8 in | Part no.: Assembled to order
INS-SCED-015 Series: 205 | Shaft: 15/16 in | Part no.: Assembled to order
INS-SCED-100 Series: 205 | Shaft: 1 in | Part no.: 076109
INS-SCED-30M Series: 206 | Shaft: 30 mm | Part no.: 076287
INS-SCED-101 Series: 206 | Shaft: 1-1/16 in | Part no.: Assembled to order
INS-SCED-102 Series: 206 | Shaft: 1-1/8 in | Part no.: 076110
INS-SCED-103 Series: 206 | Shaft: 1-3/16 in | Part no.: 076111
INS-SCED-104S Series: 206 | Shaft: 1-1/4 in | Part no.: 076112
INS-SCED-35M Series: 207 | Shaft: 35 mm | Part no.: 076288
INS-SCED-104 Series: 207 | Shaft: 1-1/4 in | Part no.: 076113
INS-SCED-105 Series: 207 | Shaft: 1-5/16 in | Part no.: Assembled to order
INS-SCED-106 Series: 207 | Shaft: 1-3/8 in | Part no.: 076114
INS-SCED-107 Series: 207 | Shaft: 1-7/16 in | Part no.: 076115
INS-SCED-40M Series: 208 | Shaft: 40 mm | Part no.: 076289
INS-SCED-108 Series: 208 | Shaft: 1-1/2 in | Part no.: 076116
INS-SCED-110 Series: 208 | Shaft: 1-5/8 in | Part no.: Assembled to order
INS-SCED-45M Series: 209 | Shaft: 45 mm | Part no.: 076290
INS-SCED-110L Series: 209 | Shaft: 1-5/8 in | Part no.: Assembled to order
INS-SCED-111 Series: 209 | Shaft: 1-11/16 in | Part no.: 076117
INS-SCED-112 Series: 209 | Shaft: 1-3/4 in | Part no.: 076118
INS-SCED-113 Series: 209 | Shaft: 1-13/16 in | Part no.: Assembled to order
INS-SCED-50M Series: 210 | Shaft: 50 mm | Part no.: 076291
INS-SCED-115 Series: 210 | Shaft: 1-15/16 in | Part no.: 076119
INS-SCED-200 Series: 210 | Shaft: 2 in | Part no.: 076120
INS-SCED-55M Series: 211 | Shaft: 55 mm | Part no.: 076292
INS-SCMED-200 Series: 211 | Shaft: 2 in | Part no.: 076211
INS-SCED-203 Series: 211 | Shaft: 2-3/16 in | Part no.: 076121
INS-SCED-204 Series: 211 | Shaft: 2-1/4 in | Part no.: Assembled to order
INS-SCED-60M Series: 212 | Shaft: 60 mm | Part no.: 076293
INS-SCMED-204 Series: 212 | Shaft: 2-1/4 in | Part no.: Assembled to order
INS-SCED-207 Series: 212 | Shaft: 2-7/16 in | Part no.: 076122
INS-SCED-70M Series: 214 | Shaft: 70 mm | Part no.: 076294
INS-SCMED-208 Series: 214 | Shaft: 2-1/2 in | Part no.: 076214
INS-SCED-211 Series: 214 | Shaft: 2-11/16 in | Part no.: 076123
INS-SCED-75M Series: 215 | Shaft: 75 mm | Part no.: 076295
INS-SCED-215 Series: 215 | Shaft: 2-15/16 in | Part no.: 076124
INS-SCED-90M Series: 218 | Shaft: 90 mm | Part no.: Assembled to order
Insert BearingsDODGE
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE Extreme Duty SCED Bearing Insert (20-90 mm, 1/2-2-15/16 in)

Brand DODGE·Insert Bearings

Available part numbers (42)

INS-SCED-20M, INS-SCED-008L, INS-SCED-010L, INS-SCED-012, INS-SCED-25M, INS-SCED-014, INS-SCED-015, INS-SCED-100, INS-SCED-30M, INS-SCED-101 + 32 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
INS-SCED-20MSeries: 204 | Shaft: 20 mm | Part no.: Assembled to order
INS-SCED-008LSeries: 204 | Shaft: 1/2 in | Part no.: Assembled to order
INS-SCED-010LSeries: 204 | Shaft: 5/8 in | Part no.: Assembled to order
INS-SCED-012Series: 204 | Shaft: 3/4 in | Part no.: 076108
INS-SCED-25MSeries: 205 | Shaft: 25 mm | Part no.: 076286
INS-SCED-014Series: 205 | Shaft: 7/8 in | Part no.: Assembled to order
INS-SCED-015Series: 205 | Shaft: 15/16 in | Part no.: Assembled to order
INS-SCED-100Series: 205 | Shaft: 1 in | Part no.: 076109
INS-SCED-30MSeries: 206 | Shaft: 30 mm | Part no.: 076287
INS-SCED-101Series: 206 | Shaft: 1-1/16 in | Part no.: Assembled to order
INS-SCED-102Series: 206 | Shaft: 1-1/8 in | Part no.: 076110
INS-SCED-103Series: 206 | Shaft: 1-3/16 in | Part no.: 076111
INS-SCED-104SSeries: 206 | Shaft: 1-1/4 in | Part no.: 076112
INS-SCED-35MSeries: 207 | Shaft: 35 mm | Part no.: 076288
INS-SCED-104Series: 207 | Shaft: 1-1/4 in | Part no.: 076113
INS-SCED-105Series: 207 | Shaft: 1-5/16 in | Part no.: Assembled to order
INS-SCED-106Series: 207 | Shaft: 1-3/8 in | Part no.: 076114
INS-SCED-107Series: 207 | Shaft: 1-7/16 in | Part no.: 076115
INS-SCED-40MSeries: 208 | Shaft: 40 mm | Part no.: 076289
INS-SCED-108Series: 208 | Shaft: 1-1/2 in | Part no.: 076116
INS-SCED-110Series: 208 | Shaft: 1-5/8 in | Part no.: Assembled to order
INS-SCED-45MSeries: 209 | Shaft: 45 mm | Part no.: 076290
INS-SCED-110LSeries: 209 | Shaft: 1-5/8 in | Part no.: Assembled to order
INS-SCED-111Series: 209 | Shaft: 1-11/16 in | Part no.: 076117
INS-SCED-112Series: 209 | Shaft: 1-3/4 in | Part no.: 076118
INS-SCED-113Series: 209 | Shaft: 1-13/16 in | Part no.: Assembled to order
INS-SCED-50MSeries: 210 | Shaft: 50 mm | Part no.: 076291
INS-SCED-115Series: 210 | Shaft: 1-15/16 in | Part no.: 076119
INS-SCED-200Series: 210 | Shaft: 2 in | Part no.: 076120
INS-SCED-55MSeries: 211 | Shaft: 55 mm | Part no.: 076292
INS-SCMED-200Series: 211 | Shaft: 2 in | Part no.: 076211
INS-SCED-203Series: 211 | Shaft: 2-3/16 in | Part no.: 076121
INS-SCED-204Series: 211 | Shaft: 2-1/4 in | Part no.: Assembled to order
INS-SCED-60MSeries: 212 | Shaft: 60 mm | Part no.: 076293
INS-SCMED-204Series: 212 | Shaft: 2-1/4 in | Part no.: Assembled to order
INS-SCED-207Series: 212 | Shaft: 2-7/16 in | Part no.: 076122
INS-SCED-70MSeries: 214 | Shaft: 70 mm | Part no.: 076294
INS-SCMED-208Series: 214 | Shaft: 2-1/2 in | Part no.: 076214
INS-SCED-211Series: 214 | Shaft: 2-11/16 in | Part no.: 076123
INS-SCED-75MSeries: 215 | Shaft: 75 mm | Part no.: 076295
INS-SCED-215Series: 215 | Shaft: 2-15/16 in | Part no.: 076124
INS-SCED-90MSeries: 218 | Shaft: 90 mm | Part no.: Assembled to order
