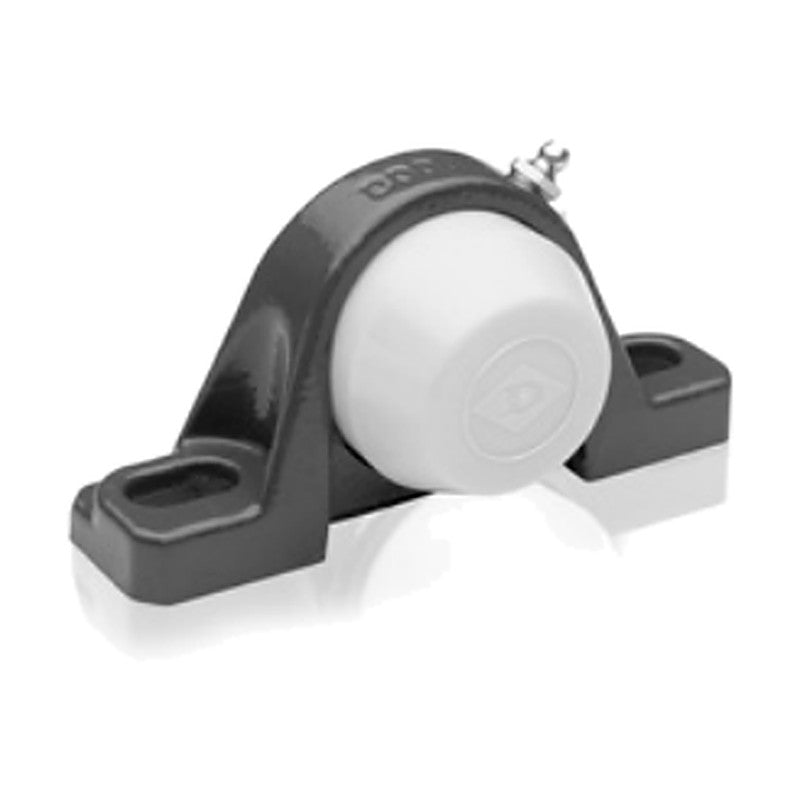

DODGE Extreme Duty SCED/SCUED Pillow Block (20-90 mm, 1/2-2-15/16 in)

DODGE Extreme Duty SCED/SCUED Pillow Block (20-90 mm, 1/2-2-15/16 in)

DODGE Extreme Duty SCED/SCMED set screw mounted ball bearings are built for demanding industrial service where equipment uptime is critical.

Key features

  • 65° set screws give maximum locking force without weakening the inner ring
  • Anti-rotation pin prevents insert rotation in the housing
  • QuadGuard sealing system: triple-lip seal with rubberized flinger
  • Maxlife ball cage for extended grease life
  • Suited to agriculture, aggregate, cement, paper, wood products and metals

Specifications

Brand DODGE
Product line Extreme Duty
Housing style Pillow block
Housing material cast iron
Locking Set screw (65°)
Shaft range 20-90 mm, 1/2-2-15/16 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 3-11 to 3-13
P2B-SCED-20M Series: 204 | Shaft: 20 mm | Part no.: 076220
P2B-SCED-008L Series: 204 | Shaft: 1/2 in | Part no.: Assembled to order
P2B-SCED-010L Series: 204 | Shaft: 5/8 in | Part no.: 075546
P2B-SCED-012 Series: 204 | Shaft: 3/4 in | Part no.: 076000
P2B-SCED-25M Series: 205 | Shaft: 25 mm | Part no.: 076221
P2B-SCED-014 Series: 205 | Shaft: 7/8 in | Part no.: Assembled to order
P2B-SCED-015 Series: 205 | Shaft: 15/16 in | Part no.: Assembled to order
P2B-SCED-100 Series: 205 | Shaft: 1 in | Part no.: 076001
P2B-SCED-30M Series: 206 | Shaft: 30 mm | Part no.: 076222
P2B-SCED-101 Series: 206 | Shaft: 1-1/16 in | Part no.: Assembled to order
P2B-SCED-102 Series: 206 | Shaft: 1-1/8 in | Part no.: 076002
P2B-SCED-103 Series: 206 | Shaft: 1-3/16 in | Part no.: 076003
P2B-SCED-104S Series: 206 | Shaft: 1-1/4 in | Part no.: 076004
P2B-SCUED-30M Series: 206 SCU | Shaft: 30 mm | Part no.: Assembled to order
P2B-SCUED-101 Series: 206 SCU | Shaft: 1-1/16 in | Part no.: Assembled to order
P2B-SCUED-102 Series: 206 SCU | Shaft: 1-1/8 in | Part no.: Assembled to order
P2B-SCUED-103 Series: 206 SCU | Shaft: 1-3/16 in | Part no.: Assembled to order
P2B-SCUED-104S Series: 206 SCU | Shaft: 1-1/4 in | Part no.: Assembled to order
P2B-SCED-35M Series: 207 | Shaft: 35 mm | Part no.: 076223
P2B-SCED-104 Series: 207 | Shaft: 1-1/4 in | Part no.: 076005
P2B-SCED-105 Series: 207 | Shaft: 1-5/16 in | Part no.: Assembled to order
P2B-SCED-106 Series: 207 | Shaft: 1-3/8 in | Part no.: 076006
P2B-SCED-107 Series: 207 | Shaft: 1-7/16 in | Part no.: 076007
P2B-SCED-40M Series: 208 | Shaft: 40 mm | Part no.: 076224
P2B-SCED-108 Series: 208 | Shaft: 1-1/2 in | Part no.: 076008
P2B-SCED-110 Series: 208 | Shaft: 1-5/8 in | Part no.: Assembled to order
P2B-SCED-45M Series: 209 | Shaft: 45 mm | Part no.: 076225
P2B-SCED-110L Series: 209 | Shaft: 1-5/8 in | Part no.: Assembled to order
P2B-SCED-111 Series: 209 | Shaft: 1-11/16 in | Part no.: 076009
P2B-SCED-112 Series: 209 | Shaft: 1-3/4 in | Part no.: 076010
P2B-SCED-50M Series: 210 | Shaft: 50 mm | Part no.: 076226
P2B-SCED-115 Series: 210 | Shaft: 1-15/16 in | Part no.: 076011
P2B-SCED-200 Series: 210 | Shaft: 2 in | Part no.: 076012
P2B-SCED-55M Series: 211 | Shaft: 55 mm | Part no.: 076227
P2B-SCMED-200 Series: 211 | Shaft: 2 in | Part no.: 076132
P2B-SCMED-203 Series: 211 | Shaft: 2-3/16 in | Part no.: 076133
P2B-SCED-204 Series: 211 | Shaft: 2-1/4 in | Part no.: Assembled to order
P2B-SCED-60M Series: 212 | Shaft: 60 mm | Part no.: 076228
P2B-SCMED-204 Series: 212 | Shaft: 2-1/4 in | Part no.: Assembled to order
P2B-SCED-207 Series: 212 | Shaft: 2-7/16 in | Part no.: 076014
P2B-SCED-70M Series: 214 | Shaft: 70 mm | Part no.: 076229
P2B-SCMED-208 Series: 214 | Shaft: 2-1/2 in | Part no.: 076135
P2B-SCED-211 Series: 214 | Shaft: 2-11/16 in | Part no.: 076015
P2B-SCED-75M Series: 215 | Shaft: 75 mm | Part no.: 076230
P2B-SCED-215 Series: 215 | Shaft: 2-15/16 in | Part no.: 076016
P2B-SCUED-75M Series: 215 SCU | Shaft: 75 mm | Part no.: Assembled to order
P2B-SCUED-215 Series: 215 SCU | Shaft: 2-15/16 in | Part no.: Assembled to order
P2B-SCED-90M Series: 218 | Shaft: 90 mm | Part no.: Assembled to order
