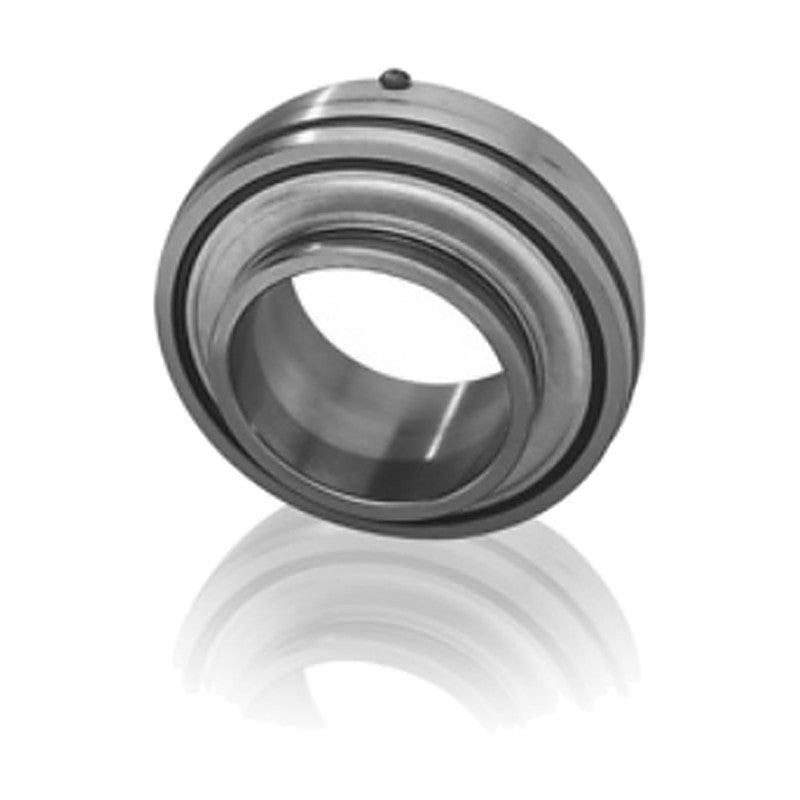

DODGE Extreme Duty SCMED Medium Duty Bearing Insert

DODGE Extreme Duty SCMED Medium Duty Bearing Insert

DODGE Extreme Duty SCED/SCMED set screw mounted ball bearings are built for demanding industrial service where equipment uptime is critical.

Key features

  • 65° set screws give maximum locking force without weakening the inner ring
  • Anti-rotation pin prevents insert rotation in the housing
  • QuadGuard sealing system: triple-lip seal with rubberized flinger
  • Maxlife ball cage for extended grease life
  • Suited to agriculture, aggregate, cement, paper, wood products and metals

Specifications

Brand DODGE
Product line Extreme Duty
Housing style Bearing insert
Locking Set screw (65°)
Shaft range 25-85 mm, 1-3-1/2 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 3-43
INS-SCMED-25M Series: 206 | Shaft: 25 mm | Part no.: 076344
INS-SCMED-100 Series: 206 | Shaft: 1 in | Part no.: 076204
INS-SCMED-103 Series: 207 | Shaft: 1-3/16 in | Part no.: 076205
INS-SCMED-35M Series: 208 | Shaft: 35 mm | Part no.: 076346
INS-SCMED-107 Series: 208 | Shaft: 1-7/16 in | Part no.: 076206
INS-SCMED-40M Series: 209 | Shaft: 40 mm | Part no.: 076347
INS-SCMED-108 Series: 209 | Shaft: 1-1/2 in | Part no.: 076207
INS-SCMED-45M Series: 210 | Shaft: 45 mm | Part no.: 076348
INS-SCMED-111 Series: 210 | Shaft: 1-11/16 in | Part no.: 076208
INS-SCMED-112 Series: 210 | Shaft: 1-3/4 in | Part no.: 076209
INS-SCMED-50M Series: 211 | Shaft: 50 mm | Part no.: 076349
INS-SCMED-115 Series: 211 | Shaft: 1-15/16 in | Part no.: 076210
INS-SCMED-55M Series: 212 | Shaft: 55 mm | Part no.: 076350
INS-SCMED-203 Series: 212 | Shaft: 2-3/16 in | Part no.: 076212
INS-SCMED-65M Series: 214 | Shaft: 60 mm | Part no.: 076351
INS-SCMED-207 Series: 214 | Shaft: 2-7/16 in | Part no.: 076213
INS-SCMED-70M Series: 215 | Shaft: 70 mm | Part no.: 076352
INS-SCMED-211 Series: 215 | Shaft: 2-11/16 in | Part no.: 076215
INS-SCMED-75M Series: 216 | Shaft: 75 mm | Part no.: 076353
INS-SCMED-215 Series: 216 | Shaft: 2-15/16 in | Part no.: 076216
INS-SCMED-300 Series: 216 | Shaft: 3 in | Part no.: 076217
INS-SCMED-85M Series: 218 | Shaft: 85 mm | Part no.: 076354
INS-SCMED-307 Series: 218 | Shaft: 3-7/16 in | Part no.: 076218
INS-SCMED-308 Series: 218 | Shaft: 3-1/2 in | Part no.: 076219
Insert BearingsDODGE
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE Extreme Duty SCMED Medium Duty Bearing Insert

Brand DODGE·Insert Bearings

Available part numbers (24)

INS-SCMED-25M, INS-SCMED-100, INS-SCMED-103, INS-SCMED-35M, INS-SCMED-107, INS-SCMED-40M, INS-SCMED-108, INS-SCMED-45M, INS-SCMED-111, INS-SCMED-112 + 14 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
INS-SCMED-25MSeries: 206 | Shaft: 25 mm | Part no.: 076344
INS-SCMED-100Series: 206 | Shaft: 1 in | Part no.: 076204
INS-SCMED-103Series: 207 | Shaft: 1-3/16 in | Part no.: 076205
INS-SCMED-35MSeries: 208 | Shaft: 35 mm | Part no.: 076346
INS-SCMED-107Series: 208 | Shaft: 1-7/16 in | Part no.: 076206
INS-SCMED-40MSeries: 209 | Shaft: 40 mm | Part no.: 076347
INS-SCMED-108Series: 209 | Shaft: 1-1/2 in | Part no.: 076207
INS-SCMED-45MSeries: 210 | Shaft: 45 mm | Part no.: 076348
INS-SCMED-111Series: 210 | Shaft: 1-11/16 in | Part no.: 076208
INS-SCMED-112Series: 210 | Shaft: 1-3/4 in | Part no.: 076209
INS-SCMED-50MSeries: 211 | Shaft: 50 mm | Part no.: 076349
INS-SCMED-115Series: 211 | Shaft: 1-15/16 in | Part no.: 076210
INS-SCMED-55MSeries: 212 | Shaft: 55 mm | Part no.: 076350
INS-SCMED-203Series: 212 | Shaft: 2-3/16 in | Part no.: 076212
INS-SCMED-65MSeries: 214 | Shaft: 60 mm | Part no.: 076351
INS-SCMED-207Series: 214 | Shaft: 2-7/16 in | Part no.: 076213
INS-SCMED-70MSeries: 215 | Shaft: 70 mm | Part no.: 076352
INS-SCMED-211Series: 215 | Shaft: 2-11/16 in | Part no.: 076215
INS-SCMED-75MSeries: 216 | Shaft: 75 mm | Part no.: 076353
INS-SCMED-215Series: 216 | Shaft: 2-15/16 in | Part no.: 076216
INS-SCMED-300Series: 216 | Shaft: 3 in | Part no.: 076217
INS-SCMED-85MSeries: 218 | Shaft: 85 mm | Part no.: 076354
INS-SCMED-307Series: 218 | Shaft: 3-7/16 in | Part no.: 076218
INS-SCMED-308Series: 218 | Shaft: 3-1/2 in | Part no.: 076219
