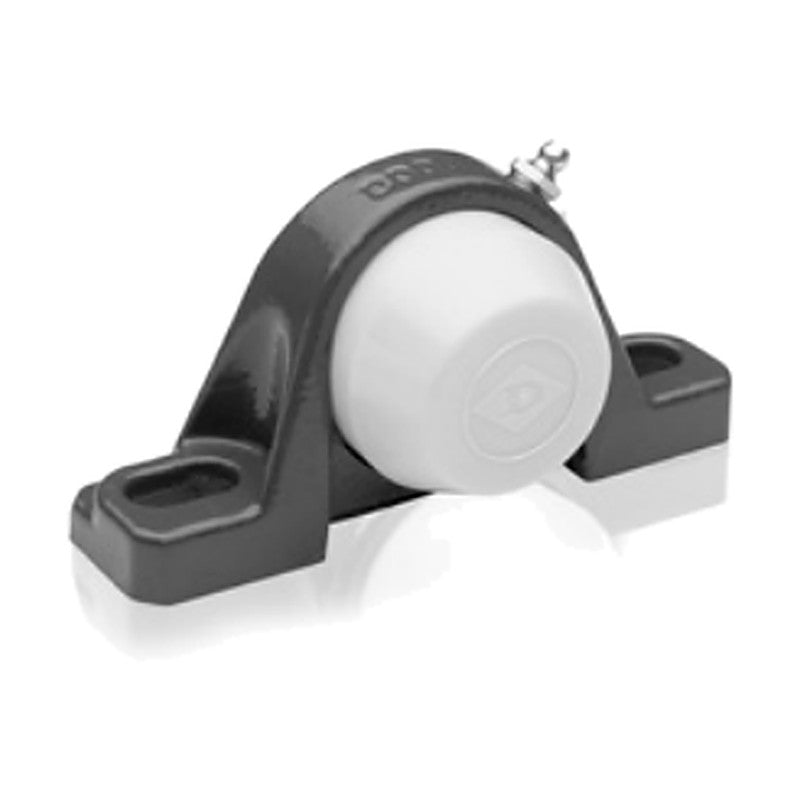

• DODGE Extreme Duty SCMED Medium Duty Pillow Block
1 1

DODGE Extreme Duty SCMED Medium Duty Pillow Block

DODGE Extreme Duty SCMED Medium Duty Pillow Block

DODGE Extreme Duty SCED/SCMED set screw mounted ball bearings are built for demanding industrial service where equipment uptime is critical.

Key features

  • 65° set screws give maximum locking force without weakening the inner ring
  • Anti-rotation pin prevents insert rotation in the housing
  • QuadGuard sealing system: triple-lip seal with rubberized flinger
  • Maxlife ball cage for extended grease life
  • Suited to agriculture, aggregate, cement, paper, wood products and metals

Specifications

Brand DODGE
Product line Extreme Duty
Housing style Pillow block
Housing material cast iron
Locking Set screw (65°)
Shaft range 25-85 mm, 1-3-1/2 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 3-17
P2B-SCMED-25M Series: 206 | Shaft: 25 mm | Part no.: 076296
P2B-SCMED-100 Series: 206 | Shaft: 1 in | Part no.: 076125
P2B-SCMU-25M Series: 206 SCMU | Shaft: 25 mm | Part no.: Assembled to order
P2B-SCMU-100 Series: 206 SCMU | Shaft: 1 in | Part no.: Assembled to order
P2B-SCMED-30M Series: 207 | Shaft: 30 mm | Part no.: 076297
P2B-SCMED-103 Series: 207 | Shaft: 1-3/16 in | Part no.: 076126
P2B-SCMED-35M Series: 208 | Shaft: 35 mm | Part no.: 076298
P2B-SCMED-107 Series: 208 | Shaft: 1-7/16 in | Part no.: 076127
P2B-SCMED-40M Series: 209 | Shaft: 40 mm | Part no.: 076299
P2B-SCMED-108 Series: 209 | Shaft: 1-1/2 in | Part no.: 076128
P2B-SC-110L Series: 209 | Shaft: 1-5/8 in | Part no.: Assembled to order
P2B-SCMED-45M Series: 210 | Shaft: 45 mm | Part no.: 076300
P2B-SCMED-111 Series: 210 | Shaft: 1-11/16 in | Part no.: 076129
P2B-SCMED-112 Series: 210 | Shaft: 1-3/4 in | Part no.: 076130
P2B-SCMED-50M Series: 211 | Shaft: 50 mm | Part no.: 076301
P2B-SCMED-115 Series: 211 | Shaft: 1-15/16 in | Part no.: 076131
P2B-SCMED-55M Series: 212 | Shaft: 55 mm | Part no.: 076302
P2B-SCMED-65M Series: 214 | Shaft: 65 mm | Part no.: 076303
P2B-SCMED-207 Series: 214 | Shaft: 2-7/16 in | Part no.: 076134
P2B-SCMED-70M Series: 215 | Shaft: 70 mm | Part no.: 076304
P2B-SCMED-211 Series: 215 | Shaft: 2-11/16 in | Part no.: 076136
P2B-SCMED-75M Series: 216 | Shaft: 75 mm | Part no.: 076305
P2B-SCMED-215 Series: 216 | Shaft: 2-15/16 in | Part no.: 076137
P2B-SCMED-300 Series: 216 | Shaft: 3 in | Part no.: 076138
P2B-SCMED-85M Series: 218 | Shaft: 85 mm | Part no.: 076306
P2B-SCMED-307 Series: 218 | Shaft: 3-7/16 in | Part no.: 076139
P2B-SCMED-308 Series: 218 | Shaft: 3-1/2 in | Part no.: 076140
Mounted Bearing UnitsDODGE
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE Extreme Duty SCMED Medium Duty Pillow Block

Brand DODGE·Mounted Bearing Units

Available part numbers (27)

P2B-SCMED-25M, P2B-SCMED-100, P2B-SCMU-25M, P2B-SCMU-100, P2B-SCMED-30M, P2B-SCMED-103, P2B-SCMED-35M, P2B-SCMED-107, P2B-SCMED-40M, P2B-SCMED-108 + 17 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
P2B-SCMED-25MSeries: 206 | Shaft: 25 mm | Part no.: 076296
P2B-SCMED-100Series: 206 | Shaft: 1 in | Part no.: 076125
P2B-SCMU-25MSeries: 206 SCMU | Shaft: 25 mm | Part no.: Assembled to order
P2B-SCMU-100Series: 206 SCMU | Shaft: 1 in | Part no.: Assembled to order
P2B-SCMED-30MSeries: 207 | Shaft: 30 mm | Part no.: 076297
P2B-SCMED-103Series: 207 | Shaft: 1-3/16 in | Part no.: 076126
P2B-SCMED-35MSeries: 208 | Shaft: 35 mm | Part no.: 076298
P2B-SCMED-107Series: 208 | Shaft: 1-7/16 in | Part no.: 076127
P2B-SCMED-40MSeries: 209 | Shaft: 40 mm | Part no.: 076299
P2B-SCMED-108Series: 209 | Shaft: 1-1/2 in | Part no.: 076128
P2B-SC-110LSeries: 209 | Shaft: 1-5/8 in | Part no.: Assembled to order
P2B-SCMED-45MSeries: 210 | Shaft: 45 mm | Part no.: 076300
P2B-SCMED-111Series: 210 | Shaft: 1-11/16 in | Part no.: 076129
P2B-SCMED-112Series: 210 | Shaft: 1-3/4 in | Part no.: 076130
P2B-SCMED-50MSeries: 211 | Shaft: 50 mm | Part no.: 076301
P2B-SCMED-115Series: 211 | Shaft: 1-15/16 in | Part no.: 076131
P2B-SCMED-55MSeries: 212 | Shaft: 55 mm | Part no.: 076302
P2B-SCMED-65MSeries: 214 | Shaft: 65 mm | Part no.: 076303
P2B-SCMED-207Series: 214 | Shaft: 2-7/16 in | Part no.: 076134
P2B-SCMED-70MSeries: 215 | Shaft: 70 mm | Part no.: 076304
P2B-SCMED-211Series: 215 | Shaft: 2-11/16 in | Part no.: 076136
P2B-SCMED-75MSeries: 216 | Shaft: 75 mm | Part no.: 076305
P2B-SCMED-215Series: 216 | Shaft: 2-15/16 in | Part no.: 076137
P2B-SCMED-300Series: 216 | Shaft: 3 in | Part no.: 076138
P2B-SCMED-85MSeries: 218 | Shaft: 85 mm | Part no.: 076306
P2B-SCMED-307Series: 218 | Shaft: 3-7/16 in | Part no.: 076139
P2B-SCMED-308Series: 218 | Shaft: 3-1/2 in | Part no.: 076140
