• DODGE Grip Tight GT Narrow Slot Take-Up (20-60 mm, 3/4-2-7/16 in)
1 1

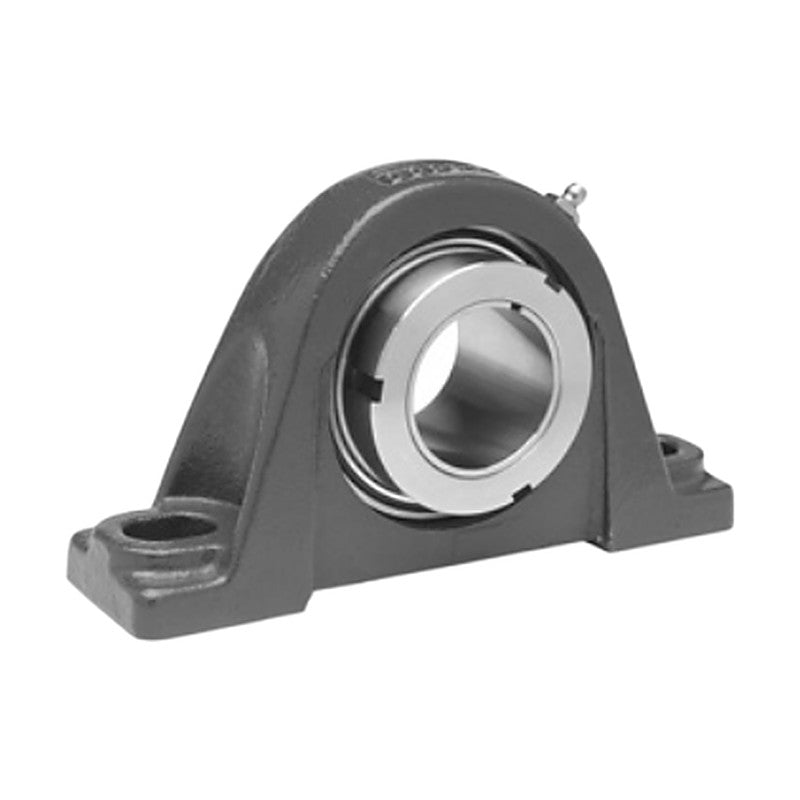

DODGE Grip Tight GT Narrow Slot Take-Up (20-60 mm, 3/4-2-7/16 in)

DODGE Grip Tight GT Narrow Slot Take-Up (20-60 mm, 3/4-2-7/16 in)

DODGE Grip Tight mounted ball bearings use a patented pull/push adapter for shaft-ready, damage-free mounting and dismounting.

Key features

  • Patented pull/push adapter with built-in bearing puller
  • Full 360° concentric shaft contact reduces vibration and fretting
  • Accommodates commercial grade and some undersize shafting
  • Case-carburized inner ring and grade 10 balls
  • Housing assembly and adapter can be purchased separately
  • Fits standard DODGE ball bearing housings

Specifications

Brand DODGE
Product line Grip Tight
Housing style Narrow slot take-up
Housing material cast iron
Locking Grip Tight adapter mount
Shaft range 20-60 mm, 3/4-2-7/16 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 5-39
NSTU-GT-20M Series: 204 | Shaft: 20 mm | Variant: Complete unit | Part no.: 136238
NSTU-GT-04 Series: 204 | Shaft: 20 mm, 3/4 in | Variant: Unit without adapter & nut | Part no.: 136210
NSTU-GT-012 Series: 204 | Shaft: 3/4 in | Variant: Complete unit | Part no.: 136110
NSTU-GT-25M Series: 205 | Shaft: 25 mm | Variant: Complete unit | Part no.: 136239
NSTU-GT-05 Series: 205 | Shaft: 25 mm, 7/8 in, 15/16 in, 1 in | Variant: Unit without adapter & nut | Part no.: 136211
NSTU-GT-014 Series: 205 | Shaft: 7/8 in | Variant: Complete unit | Part no.: 136111
NSTU-GT-015 Series: 205 | Shaft: 15/16 in | Variant: Complete unit | Part no.: 136112
NSTU-GT-100 Series: 205 | Shaft: 1 in | Variant: Complete unit | Part no.: 136113
NSTU-GT-30M Series: 206 | Shaft: 30 mm | Variant: Complete unit | Part no.: 136240
NSTU-GT-06 Series: 206 | Shaft: 30 mm (multi) | Variant: Unit without adapter & nut | Part no.: 136212
NSTU-GT-102 Series: 206 | Shaft: 1-1/8 in | Variant: Complete unit | Part no.: 136114
NSTU-GT-103 Series: 206 | Shaft: 1-3/16 in | Variant: Complete unit | Part no.: 136115
NSTU-GT-104S Series: 206 | Shaft: 1-1/4 in | Variant: Complete unit | Part no.: 136116
NSTU-GT-35M Series: 207 | Shaft: 35 mm | Variant: Complete unit | Part no.: 136241
NSTU-GT-07 Series: 207 | Shaft: 35 mm (multi) | Variant: Unit without adapter & nut | Part no.: 136213
NSTU-GT-104 Series: 207 | Shaft: 1-1/4 in | Variant: Complete unit | Part no.: 136117
NSTU-GT-106 Series: 207 | Shaft: 1-3/8 in | Variant: Complete unit | Part no.: 136118
NSTU-GT-107 Series: 207 | Shaft: 1-7/16 in | Variant: Complete unit | Part no.: 136119
NSTU-GT-40M Series: 208 | Shaft: 40 mm | Variant: Complete unit | Part no.: 136242
NSTU-GT-08 Series: 208 | Shaft: 40 mm, 1-1/2 in, 1-5/8 in | Variant: Unit without adapter & nut | Part no.: 136214
NSTU-GT-108 Series: 208 | Shaft: 1-1/2 in | Variant: Complete unit | Part no.: 136120
NSTU-GT-110 Series: 208 | Shaft: 1-5/8 in | Variant: Complete unit | Part no.: 126121
NSTU-GT-45M Series: 209 | Shaft: 45 mm | Variant: Complete unit | Part no.: 136243
NSTU-GT-09 Series: 209 | Shaft: 45 mm (multi) | Variant: Unit without adapter & nut | Part no.: 136215
NSTU-GT-110L Series: 209 | Shaft: 1-5/8 in | Variant: Complete unit | Part no.: 136122
NSTU-GT-111 Series: 209 | Shaft: 1-11/16 in | Variant: Complete unit | Part no.: 136123
NSTU-GT-112 Series: 209 | Shaft: 1-3/4 in | Variant: Complete unit | Part no.: 136124
NSTU-GT-50M Series: 210 | Shaft: 50 mm | Variant: Complete unit | Part no.: 136244
NSTU-GT-10 Series: 210 | Shaft: 50 mm, 1-15/16 in, 2 in | Variant: Unit without adapter & nut | Part no.: 136216
NSTU-GT-115 Series: 210 | Shaft: 1-15/16 in | Variant: Complete unit | Part no.: 136125
NSTU-GT-200 Series: 210 | Shaft: 2 in | Variant: Complete unit | Part no.: 136126
NSTU-GT-55M Series: 211 | Shaft: 55 mm | Variant: Complete unit | Part no.: 136245
NSTU-GT-11 Series: 211 | Shaft: 55 mm, 2 in, 2-3/16 in, 2-1/4 in | Variant: Unit without adapter & nut | Part no.: 136217
NSTU-GTM-200 Series: 211 | Shaft: 2 in | Variant: Complete unit | Part no.: 136167
NSTU-GT-203 Series: 211 | Shaft: 2-3/16 in | Variant: Complete unit | Part no.: 136127
NSTU-GT-204 Series: 211 | Shaft: 2-1/4 in | Variant: Complete unit | Part no.: 136128
NSTU-GT-60M Series: 212 | Shaft: 60 mm | Variant: Complete unit | Part no.: 136246
NSTU-GT-12 Series: 212 | Shaft: 60 mm, 2-1/4 in, 2-7/16 in | Variant: Unit without adapter & nut | Part no.: 136218
NSTU-GTM-204 Series: 212 | Shaft: 2-1/4 in | Variant: Complete unit | Part no.: 136169
NSTU-GT-207 Series: 212 | Shaft: 2-7/16 in | Variant: Complete unit | Part no.: 136129
