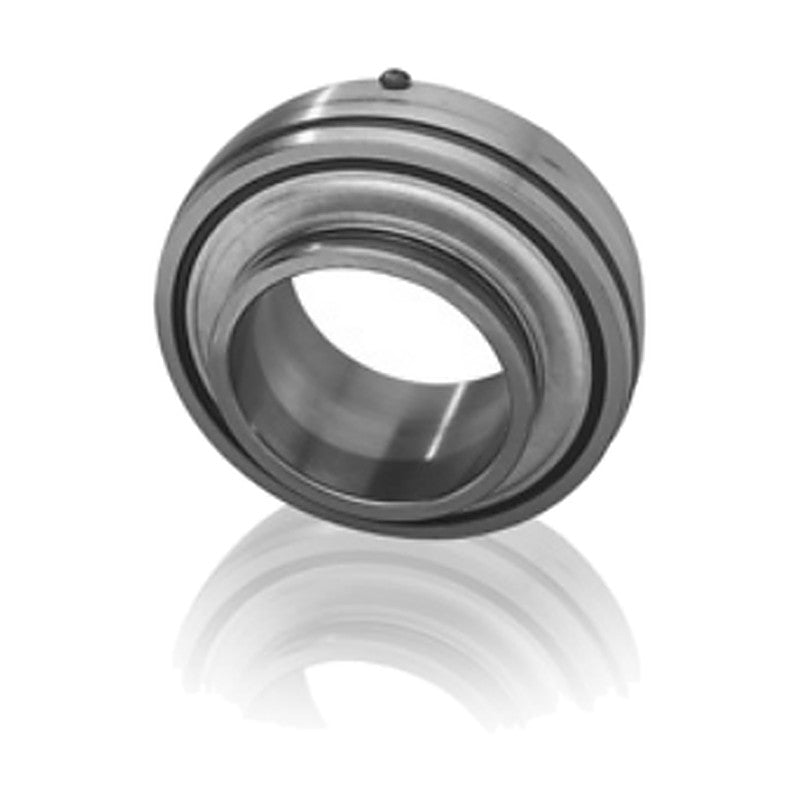

DODGE Grip Tight GTM Medium Duty Bearing Insert

DODGE Grip Tight GTM Medium Duty Bearing Insert

DODGE Grip Tight mounted ball bearings use a patented pull/push adapter for shaft-ready, damage-free mounting and dismounting.

Key features

  • Patented pull/push adapter with built-in bearing puller
  • Full 360° concentric shaft contact reduces vibration and fretting
  • Accommodates commercial grade and some undersize shafting
  • Case-carburized inner ring and grade 10 balls
  • Housing assembly and adapter can be purchased separately
  • Fits standard DODGE ball bearing housings

Specifications

Brand DODGE
Product line Grip Tight
Housing style Bearing insert
Locking Grip Tight adapter mount
Shaft range 25-85 mm, 3/4-3-1/2 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 5-55
INS-GTM-012 Series: 205 | Shaft: 3/4 in | Variant: Complete unit | Part no.: 129417
INS-GTM-25M Series: 206 | Shaft: 25 mm | Variant: Complete unit | Part no.: 129889
INS-GTM-100 Series: 206 | Shaft: 1 in | Variant: Complete unit | Part no.: 129808
INS-GTM-30M Series: 207 | Shaft: 30 mm | Variant: Complete unit | Part no.: 129890
INS-GTM-103 Series: 207 | Shaft: 1-3/16 in | Variant: Complete unit | Part no.: 129809
INS-GTM-35M Series: 208 | Shaft: 35 mm | Variant: Complete unit | Part no.: 129891
INS-GTM-107 Series: 208 | Shaft: 1-7/16 in | Variant: Complete unit | Part no.: 129810
INS-GTM-40M Series: 209 | Shaft: 40 mm | Variant: Complete unit | Part no.: 129892
INS-GTM-108 Series: 209 | Shaft: 1-1/2 in | Variant: Complete unit | Part no.: 129811
INS-GTM-45M Series: 210 | Shaft: 45 mm | Variant: Complete unit | Part no.: 129893
INS-GTM-111 Series: 210 | Shaft: 1-11/16 in | Variant: Complete unit | Part no.: 129812
INS-GTM-112 Series: 210 | Shaft: 1-3/4 in | Variant: Complete unit | Part no.: 129813
INS-GTM-50M Series: 211 | Shaft: 50 mm | Variant: Complete unit | Part no.: 129894
INS-GTM-115 Series: 211 | Shaft: 1-15/16 in | Variant: Complete unit | Part no.: 129814
INS-GTM-55M Series: 212 | Shaft: 55 mm | Variant: Complete unit | Part no.: 129895
INS-GTM-203 Series: 212 | Shaft: 2-3/16 in | Variant: Complete unit | Part no.: 129816
INS-GTM-65M Series: 214 | Shaft: 65 mm | Variant: Complete unit | Part no.: 129896
INS-GTM-207 Series: 214 | Shaft: 2-7/16 in | Variant: Complete unit | Part no.: 129818
INS-GTM-70M Series: 215 | Shaft: 70 mm | Variant: Complete unit | Part no.: 129897
INS-GTM-211 Series: 215 | Shaft: 2-11/16 in | Variant: Complete unit | Part no.: 129820
INS-GTM-75M Series: 216 | Shaft: 75 mm | Variant: Complete unit | Part no.: 129898
INS-GT-16 Series: 216 | Shaft: 75 mm, 2-15/16 in, 3 in | Variant: Unit without adapter & nut | Part no.: 129528
INS-GTM-215 Series: 216 | Shaft: 2-15/16 in | Variant: Complete unit | Part no.: 129821
INS-GTM-300 Series: 216 | Shaft: 3 in | Variant: Complete unit | Part no.: 129822
INS-GTM-85M Series: 218 | Shaft: 85 mm | Variant: Complete unit | Part no.: 129899
INS-GT-18 Series: 218 | Shaft: 85 mm, 3-7/16 in, 3-1/2 in | Variant: Unit without adapter & nut | Part no.: 129529
INS-GTM-307 Series: 218 | Shaft: 3-7/16 in | Variant: Complete unit | Part no.: 129823
INS-GTM-308 Series: 218 | Shaft: 3-1/2 in | Variant: Complete unit | Part no.: 129824
Insert BearingsDODGE
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE Grip Tight GTM Medium Duty Bearing Insert

Brand DODGE·Insert Bearings

Available part numbers (28)

INS-GTM-012, INS-GTM-25M, INS-GTM-100, INS-GTM-30M, INS-GTM-103, INS-GTM-35M, INS-GTM-107, INS-GTM-40M, INS-GTM-108, INS-GTM-45M + 18 more — see full table ↓
