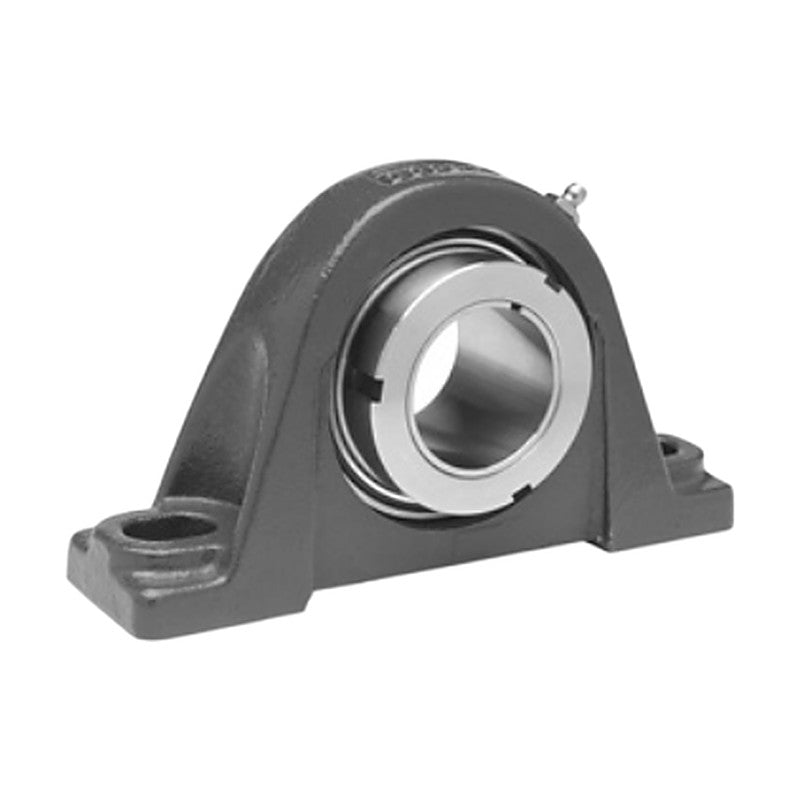

DODGE Grip Tight GTM Narrow Slot Take-Up (25-55 mm, 3/4-2-1/4 in)

DODGE Grip Tight mounted ball bearings use a patented pull/push adapter for shaft-ready, damage-free mounting and dismounting.

Key features

Patented pull/push adapter with built-in bearing puller
Full 360° concentric shaft contact reduces vibration and fretting
Accommodates commercial grade and some undersize shafting
Case-carburized inner ring and grade 10 balls
Housing assembly and adapter can be purchased separately
Fits standard DODGE ball bearing housings

Specifications

Brand	DODGE
Product line	Grip Tight
Housing style	Narrow slot take-up
Housing material	cast iron
Locking	Grip Tight adapter mount
Shaft range	25-55 mm, 3/4-2-1/4 in
Source	DODGE Mounted Bearings Catalog (Metric, June 2014), p. 5-41

NSTU-GTM-012		Series: 205 \| Shaft: 3/4 in \| Variant: Complete unit \| Part no.: 136159
NSTU-GTM-25M		Series: 206 \| Shaft: 25 mm \| Variant: Complete unit \| Part no.: 136296
NSTU-GTU-06		Series: 206 \| Shaft: 25 mm, 1 in \| Variant: Unit without adapter & nut \| Part no.: 136212
NSTU-GTM-100		Series: 206 \| Shaft: 1 in \| Variant: Complete unit \| Part no.: 136160
NSTU-GTM-30M		Series: 207 \| Shaft: 30 mm \| Variant: Complete unit \| Part no.: 136297
NSTU-GTM-103		Series: 207 \| Shaft: 1 in \| Variant: Complete unit \| Part no.: 136161
NSTU-GTM-35M		Series: 208 \| Shaft: 35 mm \| Variant: Complete unit \| Part no.: 136298
NSTU-GTM-107		Series: 208 \| Shaft: 1-7/16 in \| Variant: Complete unit \| Part no.: 136162
NSTU-GTM-40M		Series: 209 \| Shaft: 40 mm \| Variant: Complete unit \| Part no.: 136299
NSTU-GTM-108		Series: 209 \| Shaft: 1-1/2 in \| Variant: Complete unit \| Part no.: 136163
NSTU-GTM-45M		Series: 210 \| Shaft: 45 mm \| Variant: Complete unit \| Part no.: 136300
NSTU-GTM-111		Series: 210 \| Shaft: 1-11/16 in \| Variant: Complete unit \| Part no.: 136164
NSTU-GTM-112		Series: 210 \| Shaft: 1-3/4 in \| Variant: Complete unit \| Part no.: 136165
NSTU-GTM-50M		Series: 211 \| Shaft: 50 mm \| Variant: Complete unit \| Part no.: 136301
NSTU-GTM-115		Series: 211 \| Shaft: 1-15/16 in \| Variant: Complete unit \| Part no.: 136166
NSTU-GTM-55M		Series: 212 \| Shaft: 55 mm \| Variant: Complete unit \| Part no.: 136302
NSTU-GTM-203		Series: 212 \| Shaft: 2-3/16 in \| Variant: Complete unit \| Part no.: 136168

Mounted Bearing UnitsDODGE

17 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE Grip Tight GTM Narrow Slot Take-Up (25-55 mm, 3/4-2-1/4 in)

Brand DODGE·Mounted Bearing Units

Available part numbers (17)

NSTU-GTM-012, NSTU-GTM-25M, NSTU-GTU-06, NSTU-GTM-100, NSTU-GTM-30M, NSTU-GTM-103, NSTU-GTM-35M, NSTU-GTM-107, NSTU-GTM-40M, NSTU-GTM-108 + 7 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
