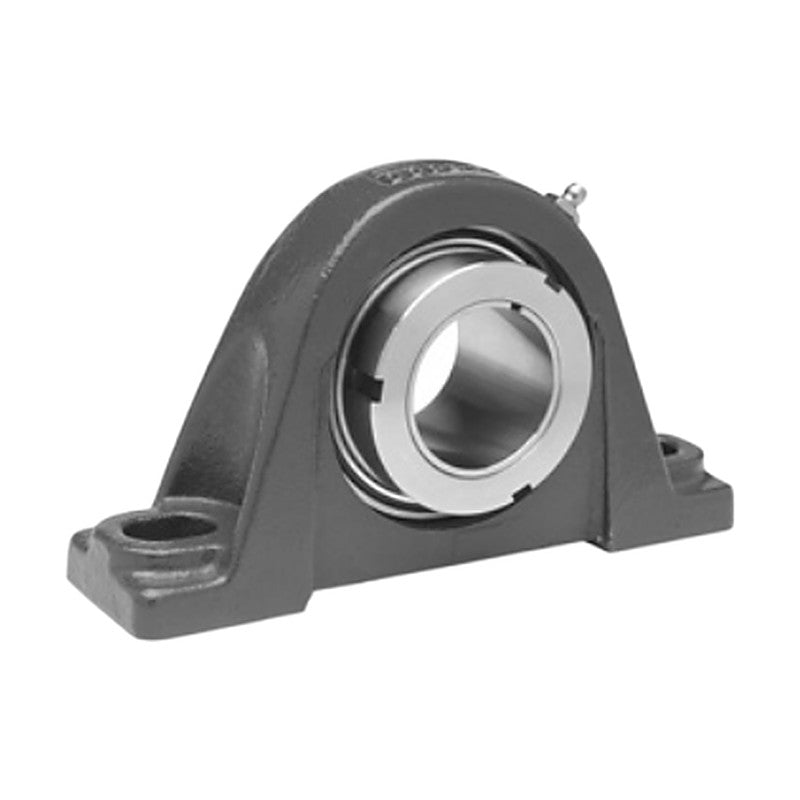

DODGE Grip Tight GTM Wide Slot Take-Up (25-75 mm, 3/4-3 in)

DODGE Grip Tight GTM Wide Slot Take-Up (25-75 mm, 3/4-3 in)

DODGE Grip Tight mounted ball bearings use a patented pull/push adapter for shaft-ready, damage-free mounting and dismounting.

Key features

  • Patented pull/push adapter with built-in bearing puller
  • Full 360° concentric shaft contact reduces vibration and fretting
  • Accommodates commercial grade and some undersize shafting
  • Case-carburized inner ring and grade 10 balls
  • Housing assembly and adapter can be purchased separately
  • Fits standard DODGE ball bearing housings

Specifications

Brand DODGE
Product line Grip Tight
Housing style Wide slot take-up
Housing material cast iron
Locking Grip Tight adapter mount
Shaft range 25-75 mm, 3/4-3 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 5-47
WSTU-GTM-012 Series: 205 | Shaft: 3/4 in | Variant: Complete unit | Part no.: 136170
WSTU-GTM-25M Series: 206 | Shaft: 25 mm | Variant: Complete unit | Part no.: 136303
WSTU-GTU-06 Series: 206 | Shaft: 25 mm, 1 in | Variant: Unit without adapter & nut | Part no.: 136221
WSTU-GTM-100 Series: 206 | Shaft: 1 in | Variant: Complete unit | Part no.: 136171
WSTU-GTM-30M Series: 207 | Shaft: 30 mm | Variant: Complete unit | Part no.: 136304
WSTU-GTM-103 Series: 207 | Shaft: 1-3/16 in | Variant: Complete unit | Part no.: 136172
WSTU-GTM-35M Series: 208 | Shaft: 35 mm | Variant: Complete unit | Part no.: 136305
WSTU-GTM-107 Series: 208 | Shaft: 1-7/16 in | Variant: Complete unit | Part no.: 136173
WSTU-GTM-40M Series: 209 | Shaft: 40 mm | Variant: Complete unit | Part no.: 136306
WSTU-GTM-108 Series: 209 | Shaft: 1-1/2 in | Variant: Complete unit | Part no.: 136174
WSTU-GTM-45M Series: 210 | Shaft: 45 mm | Variant: Complete unit | Part no.: 136307
WSTU-GTM-111 Series: 210 | Shaft: 1-11/16 in | Variant: Complete unit | Part no.: 136175
WSTU-GTM-112 Series: 210 | Shaft: 1-3/4 in | Variant: Complete unit | Part no.: 136176
WSTU-GTM-50M Series: 211 | Shaft: 50 mm | Variant: Complete unit | Part no.: 136308
WSTU-GTM-115 Series: 211 | Shaft: 1-15/16 in | Variant: Complete unit | Part no.: 136177
WSTU-GTM-55M Series: 212 | Shaft: 55 mm | Variant: Complete unit | Part no.: 136309
WSTU-GTM-203 Series: 212 | Shaft: 2-3/16 in | Variant: Complete unit | Part no.: 136179
WSTU-GTM-65M Series: 214 | Shaft: 65 mm | Variant: Complete unit | Part no.: 136310
WSTU-GTM-207 Series: 214 | Shaft: 2-7/16 in | Variant: Complete unit | Part no.: 136181
WSTU-GTM-70M Series: 215 | Shaft: 70 mm | Variant: Complete unit | Part no.: 136311
WSTU-GTM-211 Series: 215 | Shaft: 2-11/16 in | Variant: Complete unit | Part no.: 136183
WSTU-GTM-75M Series: 216 | Shaft: 75 mm | Variant: Complete unit | Part no.: 136312
WSTU-GT-16 Series: 216 | Shaft: 75 mm, 2-15/16 in, 3 in | Variant: Unit without adapter & nut | Part no.: 136230
WSTU-GTM-215 Series: 216 | Shaft: 2-15/16 in | Variant: Complete unit | Part no.: 136184
WSTU-GTM-300 Series: 216 | Shaft: 3 in | Variant: Complete unit | Part no.: 136185
Mounted Bearing UnitsDODGE
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE Grip Tight GTM Wide Slot Take-Up (25-75 mm, 3/4-3 in)

Brand DODGE·Mounted Bearing Units

Available part numbers (25)

WSTU-GTM-012, WSTU-GTM-25M, WSTU-GTU-06, WSTU-GTM-100, WSTU-GTM-30M, WSTU-GTM-103, WSTU-GTM-35M, WSTU-GTM-107, WSTU-GTM-40M, WSTU-GTM-108 + 15 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WSTU-GTM-012Series: 205 | Shaft: 3/4 in | Variant: Complete unit | Part no.: 136170
WSTU-GTM-25MSeries: 206 | Shaft: 25 mm | Variant: Complete unit | Part no.: 136303
WSTU-GTU-06Series: 206 | Shaft: 25 mm, 1 in | Variant: Unit without adapter & nut | Part no.: 136221
WSTU-GTM-100Series: 206 | Shaft: 1 in | Variant: Complete unit | Part no.: 136171
WSTU-GTM-30MSeries: 207 | Shaft: 30 mm | Variant: Complete unit | Part no.: 136304
WSTU-GTM-103Series: 207 | Shaft: 1-3/16 in | Variant: Complete unit | Part no.: 136172
WSTU-GTM-35MSeries: 208 | Shaft: 35 mm | Variant: Complete unit | Part no.: 136305
WSTU-GTM-107Series: 208 | Shaft: 1-7/16 in | Variant: Complete unit | Part no.: 136173
WSTU-GTM-40MSeries: 209 | Shaft: 40 mm | Variant: Complete unit | Part no.: 136306
WSTU-GTM-108Series: 209 | Shaft: 1-1/2 in | Variant: Complete unit | Part no.: 136174
WSTU-GTM-45MSeries: 210 | Shaft: 45 mm | Variant: Complete unit | Part no.: 136307
WSTU-GTM-111Series: 210 | Shaft: 1-11/16 in | Variant: Complete unit | Part no.: 136175
WSTU-GTM-112Series: 210 | Shaft: 1-3/4 in | Variant: Complete unit | Part no.: 136176
WSTU-GTM-50MSeries: 211 | Shaft: 50 mm | Variant: Complete unit | Part no.: 136308
WSTU-GTM-115Series: 211 | Shaft: 1-15/16 in | Variant: Complete unit | Part no.: 136177
WSTU-GTM-55MSeries: 212 | Shaft: 55 mm | Variant: Complete unit | Part no.: 136309
WSTU-GTM-203Series: 212 | Shaft: 2-3/16 in | Variant: Complete unit | Part no.: 136179
WSTU-GTM-65MSeries: 214 | Shaft: 65 mm | Variant: Complete unit | Part no.: 136310
WSTU-GTM-207Series: 214 | Shaft: 2-7/16 in | Variant: Complete unit | Part no.: 136181
WSTU-GTM-70MSeries: 215 | Shaft: 70 mm | Variant: Complete unit | Part no.: 136311
WSTU-GTM-211Series: 215 | Shaft: 2-11/16 in | Variant: Complete unit | Part no.: 136183
WSTU-GTM-75MSeries: 216 | Shaft: 75 mm | Variant: Complete unit | Part no.: 136312
WSTU-GT-16Series: 216 | Shaft: 75 mm, 2-15/16 in, 3 in | Variant: Unit without adapter & nut | Part no.: 136230
WSTU-GTM-215Series: 216 | Shaft: 2-15/16 in | Variant: Complete unit | Part no.: 136184
WSTU-GTM-300Series: 216 | Shaft: 3 in | Variant: Complete unit | Part no.: 136185
