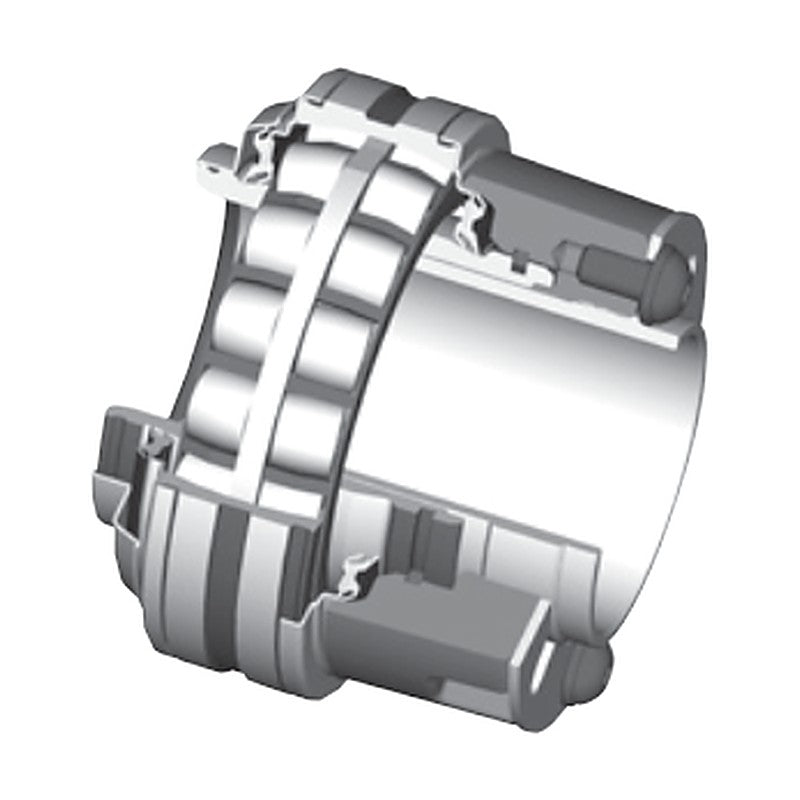

DODGE ISN Adapter Sleeves

DODGE ISN Adapter Sleeves

DODGE adapter sleeves for ISN plummer block inserts, matched to housing series and shaft size.

Key features

  • For DODGE ISN plummer blocks
  • Selected by housing series and shaft size
  • Part numbers listed in the ISN dimension tables
  • Supplied by DODGE as replacement / accessory items

Specifications

Brand DODGE
Product line ISN plummer blocks
Bearing type Spherical roller, adapter mounted
Housing 2-bolt cast iron / 4-bolt ductile iron
Units Shaft in mm or inch as listed
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 6-10
ADPTR-IP-22208-30M Series: 507 | Shaft: 30 mm | Type: Adapter sleeve | Part no.: 744975
ADPTR-IP-22208-102 Series: 507 | Shaft: 1-1/8 in | Type: Adapter sleeve | Part no.: 069286
ADPTR-IP-22208-103 Series: 507 | Shaft: 1-3/16 in | Type: Adapter sleeve | Part no.: 069287
ADPTR-IP-22208-35M Series: 508 | Shaft: 35 mm | Type: Adapter sleeve | Part no.: 744976
ADPTR-IP-22208-104 Series: 508 | Shaft: 1-1/4 in | Type: Adapter sleeve | Part no.: 069288
ADPTR-IP-22208-106 Series: 508 | Shaft: 1-3/8 in | Type: Adapter sleeve | Part no.: 069289
ADPTR-ISN-22209-40M Series: 509 | Shaft: 40 mm | Type: Adapter sleeve | Part no.: 744977
ADPTR-ISN-22209-107 Series: 509 | Shaft: 1-7/16 in | Type: Adapter sleeve | Part no.: 064153
ADPTR-ISN-22209-108 Series: 509 | Shaft: 1-1/2 in | Type: Adapter sleeve | Part no.: 064154
ADPTR-IP-22210-45M Series: 510 | Shaft: 45 mm | Type: Adapter sleeve | Part no.: 744978
ADPTR-ISN-22210-111 Series: 510 | Shaft: 1-11/16 in | Type: Adapter sleeve | Part no.: 064155
ADPTR-ISN-22210-112 Series: 510 | Shaft: 1-3/4 in | Type: Adapter sleeve | Part no.: 064156
ADPTR-IP-22210-50M Series: 511 | Shaft: 50 mm | Type: Adapter sleeve | Part no.: 744979
ADPTR-IP-22210-115 Series: 511 | Shaft: 1-15/16 in | Type: Adapter sleeve | Part no.: 069296
ADPTR-IP-22210-200 Series: 511 | Shaft: 2 in | Type: Adapter sleeve | Part no.: 069297
ADPTR-IP-22211-055M Series: 512 | Shaft: 55 mm | Type: Adapter sleeve | Part no.: 744980
ADPTR-ISN-22211-202 Series: 512 | Shaft: 2-1/8 in | Type: Adapter sleeve | Part no.: 064157
ADPTR-IP-22213-60M Series: 513 | Shaft: 60 mm | Type: Adapter sleeve | Part no.: 744981
ADPTR-ISN-22213-203 Series: 513 | Shaft: 2-3/16 in | Type: Adapter sleeve | Part no.: 064070
ADPTR-ISN-22213-204 Series: 513 | Shaft: 2-1/4 in | Type: Adapter sleeve | Part no.: 064071
ADPTR-IP-22215-65M Series: 515 | Shaft: 65 mm | Type: Adapter sleeve | Part no.: 744982
ADPTR-ISN-22215-207 Series: 515 | Shaft: 2-7/16 in | Type: Adapter sleeve | Part no.: 064072
ADPTR-ISN-22215-208 Series: 515 | Shaft: 2-1/2 in | Type: Adapter sleeve | Part no.: 064073
ADPTR-IP-22215-70M Series: 516 | Shaft: 70 mm | Type: Adapter sleeve | Part no.: 744983
ADPTR-IP-22215-211 Series: 516 | Shaft: 2-11/16 in | Type: Adapter sleeve | Part no.: 069303
ADPTR-IP-22215-212 Series: 516 | Shaft: 2-3/4 in | Type: Adapter sleeve | Part no.: 069304
ADPTR-IP-22215-75MM Series: 517 | Shaft: 75 mm | Type: Adapter sleeve | Part no.: 744984
ADPTR-IP-22215-215 Series: 517 | Shaft: 2-15/16 in | Type: Adapter sleeve | Part no.: 069305
ADPTR-IP-22215-300 Series: 517 | Shaft: 3 in | Type: Adapter sleeve | Part no.: 069306
ADPTR-IP-22218-80M Series: 518 | Shaft: 80 mm | Type: Adapter sleeve | Part no.: 744985
ADPTR-IP-22218-303 Series: 518 | Shaft: 3-3/16 in | Type: Adapter sleeve | Part no.: 069307
ADPTR-IP-304 Series: 518 | Shaft: 3-1/4 in | Type: Adapter sleeve | Part no.: 069308
ADPTR-IP-22218-85M Series: 519 | Shaft: 85 mm | Type: Adapter sleeve | Part no.: 744986
ADPTR-IP-22220-090MM Series: 520 | Shaft: 90 mm | Type: Adapter sleeve | Part no.: 744987
ADPTR-ISN-22220-307 Series: 520 | Shaft: 3-7/16 in | Type: Adapter sleeve | Part no.: 064074
ADPTR-ISN-22220-308 Series: 520 | Shaft: 3-1/2 in | Type: Adapter sleeve | Part no.: 064075
ADPTR-IP-22220-100MM Series: 522 | Shaft: 100 mm | Type: Adapter sleeve | Part no.: 744988
ADPTR-IP-22220-315 Series: 522 | Shaft: 3-15/16 in | Type: Adapter sleeve | Part no.: 069312
ADPTR-IP-22220-400 Series: 522 | Shaft: 4 in | Type: Adapter sleeve | Part no.: 069313
ADPTR-IP-22222-110MM Series: 524 | Shaft: 110 mm | Type: Adapter sleeve | Part no.: 744989
ADPTR-IP-22226-115MM Series: 526 | Shaft: 115 mm | Type: Adapter sleeve | Part no.: 744990
ADPTR-ISN-22226-407 Series: 526 | Shaft: 4-7/16 in | Type: Adapter sleeve | Part no.: 064076
ADPTR-ISN-22226-408 Series: 526 | Shaft: 4-1/2 in | Type: Adapter sleeve | Part no.: 064077
ADPTR-IP-22226-125MM Series: 528 | Shaft: 125 mm | Type: Adapter sleeve | Part no.: 744991
ADPTR-IP-22226-415 Series: 528 | Shaft: 4-15/16 in | Type: Adapter sleeve | Part no.: 069316
ADPTR-IP-22226-500 Series: 528 | Shaft: 5 in | Type: Adapter sleeve | Part no.: 069317
ADPTR-IP-22228-135M Series: 530 | Shaft: 135 mm | Type: Adapter sleeve | Part no.: 071114
ADPTR-IP-22230-140M Series: 532 | Shaft: 140 mm | Type: Adapter sleeve | Part no.: 071115
ADPTR-IP-22232-150M Series: 534 | Shaft: 150 mm | Type: Adapter sleeve | Part no.: 062255
ADPTR-IP-22236-160M Series: 536 | Shaft: 160 mm | Type: Adapter sleeve | Part no.: 074615
ADPTR-IP-22236-170M Series: 538 | Shaft: 170 mm | Type: Adapter sleeve | Part no.: 062271
