DODGE ISNX Hydraulic Mount Plummer Block

DODGE ISNX Hydraulic Mount Plummer Block

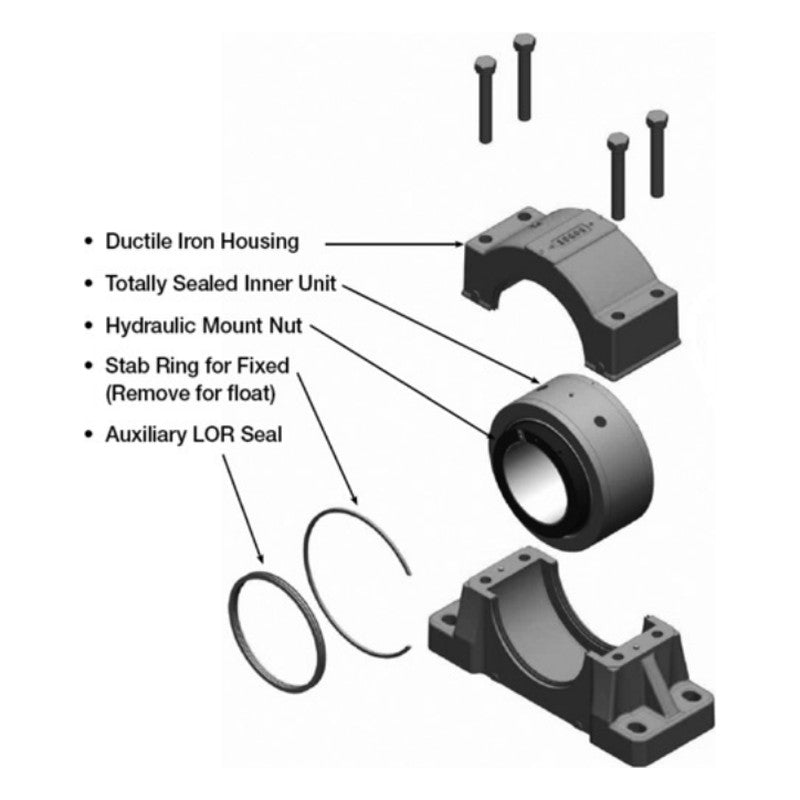

DODGE ISNX large bore plummer blocks with SD3100 dimensions and integral hydraulic mount/dismount nut, 150 to 360 mm.

Key features

  • Integral hydraulic mount and dismount nut on the inner unit
  • Totally sealed inner unit prevents contamination during installation
  • Harsh duty sealing equivalent to a standard Taconite seal
  • SD3100 dimensioned housing matching ISO 113
  • Fixing ring for expansion / non-expansion capability

Specifications

Brand DODGE
Product line ISN plummer blocks
Bearing type Spherical roller, adapter mounted
Housing 2-bolt cast iron / 4-bolt ductile iron
Units Shaft in mm or inch as listed
Bearing series 23100K
Housing Ductile iron, 4-bolt (P4B)
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 6-20
P4B134-ISNX-150MR HYD Series: 3134 | Shaft: 150 mm | Type: Bearing 23134K | Insert no.: 072895 | Part no.: 072919
P4B136-ISNX-160MR HYD Series: 3136 | Shaft: 160 mm | Type: Bearing 23136K | Insert no.: 072896 | Part no.: 072920
P4B138-ISNX-170MR HYD Series: 3138 | Shaft: 170 mm | Type: Bearing 23138K | Insert no.: 072897 | Part no.: 072921
P4B140-ISNX-180MR HYD Series: 3140 | Shaft: 180 mm | Type: Bearing 23140K | Insert no.: 072898 | Part no.: 072922
P4B144-ISNX-200MR HYD Series: 3144 | Shaft: 200 mm | Type: Bearing 23144K | Insert no.: 072899 | Part no.: 072923
P4B148-ISNX-220MR HYD Series: 3148 | Shaft: 220 mm | Type: Bearing 23148K | Insert no.: 072900 | Part no.: 072924
P4B152-ISNX-240MR HYD Series: 3152 | Shaft: 240 mm | Type: Bearing 23152K | Insert no.: 072901 | Part no.: 072912
P4B156-ISNX-260MR HYD Series: 3156 | Shaft: 260 mm | Type: Bearing 23156K | Insert no.: 072902 | Part no.: 072913
P4B160-ISNX-280MR HYD Series: 3160 | Shaft: 280 mm | Type: Bearing 23160K | Insert no.: 072903 | Part no.: 072914
P4B164-ISNX-300MR HYD Series: 3164 | Shaft: 300 mm | Type: Bearing 23164K | Insert no.: 072904 | Part no.: 072915
P4B168-ISNX-320MR HYD Series: 3168 | Shaft: 320 mm | Type: Bearing 23168K | Insert no.: 072905 | Part no.: 072916
P4B172-ISNX-340MR HYD Series: 3172 | Shaft: 340 mm | Type: Bearing 23172K | Insert no.: 072906 | Part no.: 072917
P4B176-ISNX-360MR HYD Series: 3176 | Shaft: 360 mm | Type: Bearing 23176K | Insert no.: 072907 | Part no.: 072918
Mounted Bearing UnitsDODGE
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE ISNX Hydraulic Mount Plummer Block

Brand DODGE·Mounted Bearing Units

Available part numbers (13)

P4B134-ISNX-150MR HYD, P4B136-ISNX-160MR HYD, P4B138-ISNX-170MR HYD, P4B140-ISNX-180MR HYD, P4B144-ISNX-200MR HYD, P4B148-ISNX-220MR HYD, P4B152-ISNX-240MR HYD, P4B156-ISNX-260MR HYD, P4B160-ISNX-280MR HYD, P4B164-ISNX-300MR HYD + 3 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
P4B134-ISNX-150MR HYDSeries: 3134 | Shaft: 150 mm | Type: Bearing 23134K | Insert no.: 072895 | Part no.: 072919
P4B136-ISNX-160MR HYDSeries: 3136 | Shaft: 160 mm | Type: Bearing 23136K | Insert no.: 072896 | Part no.: 072920
P4B138-ISNX-170MR HYDSeries: 3138 | Shaft: 170 mm | Type: Bearing 23138K | Insert no.: 072897 | Part no.: 072921
P4B140-ISNX-180MR HYDSeries: 3140 | Shaft: 180 mm | Type: Bearing 23140K | Insert no.: 072898 | Part no.: 072922
P4B144-ISNX-200MR HYDSeries: 3144 | Shaft: 200 mm | Type: Bearing 23144K | Insert no.: 072899 | Part no.: 072923
P4B148-ISNX-220MR HYDSeries: 3148 | Shaft: 220 mm | Type: Bearing 23148K | Insert no.: 072900 | Part no.: 072924
P4B152-ISNX-240MR HYDSeries: 3152 | Shaft: 240 mm | Type: Bearing 23152K | Insert no.: 072901 | Part no.: 072912
P4B156-ISNX-260MR HYDSeries: 3156 | Shaft: 260 mm | Type: Bearing 23156K | Insert no.: 072902 | Part no.: 072913
P4B160-ISNX-280MR HYDSeries: 3160 | Shaft: 280 mm | Type: Bearing 23160K | Insert no.: 072903 | Part no.: 072914
P4B164-ISNX-300MR HYDSeries: 3164 | Shaft: 300 mm | Type: Bearing 23164K | Insert no.: 072904 | Part no.: 072915
P4B168-ISNX-320MR HYDSeries: 3168 | Shaft: 320 mm | Type: Bearing 23168K | Insert no.: 072905 | Part no.: 072916
P4B172-ISNX-340MR HYDSeries: 3172 | Shaft: 340 mm | Type: Bearing 23172K | Insert no.: 072906 | Part no.: 072917
P4B176-ISNX-360MR HYDSeries: 3176 | Shaft: 360 mm | Type: Bearing 23176K | Insert no.: 072907 | Part no.: 072918
