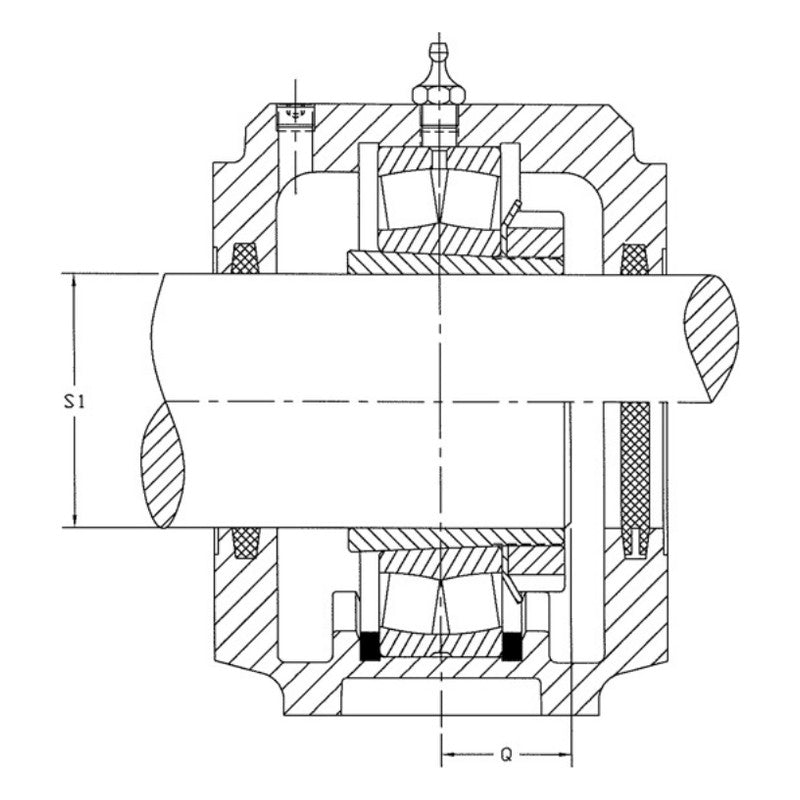

DODGE Adapter Sleeves, KM Lock Nuts & MB Washers for SNX/SDX

DODGE Adapter Sleeves, KM Lock Nuts & MB Washers for SNX/SDX

Adapter sleeves (H series), KM lock nuts and MB lock washers listed for mounting bearings in DODGE SNX and SDX plummer blocks.

Key features

  • H series adapter sleeves for tapered bore bearings
  • KM lock nuts and MB lock washers for cylindrical seat mounting
  • Selected by housing size per the SNX/SDX tables
  • Part numbers for direct ordering

Specifications

Brand DODGE
Product line SNX / SDX plummer blocks
Units mm
Housing material Cast iron (GG)
Selection By housing size per catalogue table
Ordering DODGE part number per code
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 6-29 to 6-43
KM 9 For housing: SNX 209 | Component: Lock nut | Part no.: 046285
MB 9 For housing: SNX 209 | Component: Lock washer | Part no.: 046304
KM 10 For housing: SNX 210 | Component: Lock nut | Part no.: 046286
MB 10 For housing: SNX 210 | Component: Lock washer | Part no.: 046305
KM 11 For housing: SNX 211 | Component: Lock nut | Part no.: 046287
MB 11 For housing: SNX 211 | Component: Lock washer | Part no.: 046306
KM 12 For housing: SNX 212 | Component: Lock nut | Part no.: 046487
MB 12 For housing: SNX 212 | Component: Lock washer | Part no.: 046489
KM 13 For housing: SNX 213 | Component: Lock nut | Part no.: 046288
MB 13 For housing: SNX 213 | Component: Lock washer | Part no.: 046307
KM 15 For housing: SNX 215 | Component: Lock nut | Part no.: 046289
MB 15 For housing: SNX 215 | Component: Lock washer | Part no.: 046308
KM 16 For housing: SNX 216 | Component: Lock nut | Part no.: 046290
MB 16 For housing: SNX 216 | Component: Lock washer | Part no.: 046309
KM 17 For housing: SNX 217 | Component: Lock nut | Part no.: 046291
MB 17 For housing: SNX 217 | Component: Lock washer | Part no.: 046310
KM 18 For housing: SNX 218 | Component: Lock nut | Part no.: 046292
MB 18 For housing: SNX 218 | Component: Lock washer | Part no.: 046311
KM 19 For housing: SNX 219 | Component: Lock nut | Part no.: 046488
MB 19 For housing: SNX 219 | Component: Lock washer | Part no.: 046490
KM 20 For housing: SNX 220 | Component: Lock nut | Part no.: 046293
MB 20 For housing: SNX 220 | Component: Lock washer | Part no.: 046312
KM 22 For housing: SNX 222 | Component: Lock nut | Part no.: 046294
MB 22 For housing: SNX 222 | Component: Lock washer | Part no.: 046313
KM 24 For housing: SNX 224 | Component: Lock nut | Part no.: 046295
MB 24 For housing: SNX 224 | Component: Lock washer | Part no.: 046314
KM 26 For housing: SNX 226 | Component: Lock nut | Part no.: 046296
MB 26 For housing: SNX 226 | Component: Lock washer | Part no.: 046315
KM 28 For housing: SNX 228 | Component: Lock nut | Part no.: 046297
MB 28 For housing: SNX 228 | Component: Lock washer | Part no.: 046316
KM 30 For housing: SNX 230 | Component: Lock nut | Part no.: 046298
MB 30 For housing: SNX 230 | Component: Lock washer | Part no.: 046317
KM 32 For housing: SNX 232 | Component: Lock nut | Part no.: 046299
MB 32 For housing: SNX 232 | Component: Lock washer | Part no.: 046318
H 309 For housing: SNX 509 | Component: Adapter sleeve | Part no.: 046331
H 310 For housing: SNX 510 | Component: Adapter sleeve | Part no.: 046332
H 311 For housing: SNX 511 | Component: Adapter sleeve | Part no.: 046219
H 312 For housing: SNX 512 | Component: Adapter sleeve | Part no.: 046333
H 313 For housing: SNX 513 | Component: Adapter sleeve | Part no.: 046221
H 315 For housing: SNX 515 | Component: Adapter sleeve | Part no.: 046222
H 316 For housing: SNX 516 | Component: Adapter sleeve | Part no.: 046223
H 317 For housing: SNX 517 | Component: Adapter sleeve | Part no.: 046224
H 318 For housing: SNX 518 | Component: Adapter sleeve | Part no.: 046225
H 319 For housing: SNX 519 | Component: Adapter sleeve | Part no.: 719499
H 320 For housing: SNX 520 | Component: Adapter sleeve | Part no.: 046226
H 322 For housing: SNX 522 | Component: Adapter sleeve | Part no.: 046227
H 3124 For housing: SNX 524 | Component: Adapter sleeve | Part no.: 046228
H 3126 For housing: SNX 526 | Component: Adapter sleeve | Part no.: 046229
H 3128 For housing: SNX 528 | Component: Adapter sleeve | Part no.: 046230
H 3130 For housing: SNX 530 | Component: Adapter sleeve | Part no.: 046231
H 3132 For housing: SNX 532 | Component: Adapter sleeve | Part no.: 046232
H 2318 For housing: SNX 518 | Component: Adapter sleeve | Part no.: 719400
H 2319 For housing: SNX 519 | Component: Adapter sleeve | Part no.: 046719
H 2320 For housing: SNX 520 | Component: Adapter sleeve | Part no.: 046720
H 2322 For housing: SNX 522 | Component: Adapter sleeve | Part no.: 046721
H 2324 For housing: SNX 524 | Component: Adapter sleeve | Part no.: 046722
H 2326 For housing: SNX 526 | Component: Adapter sleeve | Part no.: 046723
H 2328 For housing: SNX 528 | Component: Adapter sleeve | Part no.: 719406
H 2330 For housing: SNX 530 | Component: Adapter sleeve | Part no.: 053201
H 2332 For housing: SNX 532 | Component: Adapter sleeve | Part no.: 719408
H 209 For housing: SNX 509 | Component: Adapter sleeve | Part no.: 719372
H 210 For housing: SNX 510 | Component: Adapter sleeve | Part no.: 719373
H 211 For housing: SNX 511 | Component: Adapter sleeve | Part no.: 719374
H 212 For housing: SNX 512 | Component: Adapter sleeve | Part no.: 719375
H 213 For housing: SNX 513 | Component: Adapter sleeve | Part no.: 719376
H 215 For housing: SNX 515 | Component: Adapter sleeve | Part no.: 719378
H 216 For housing: SNX 516 | Component: Adapter sleeve | Part no.: 719379
H 217 For housing: SNX 517 | Component: Adapter sleeve | Part no.: 719380
H 218 For housing: SNX 518 | Component: Adapter sleeve | Part no.: 719381
H 219 For housing: SNX 519 | Component: Adapter sleeve | Part no.: 719382
H 220 For housing: SNX 520 | Component: Adapter sleeve | Part no.: 719383
H 222 For housing: SNX 522 | Component: Adapter sleeve | Part no.: 719385
KM 8 For housing: SNX 308 | Component: Lock nut | Part no.: 046492
MB 8 For housing: SNX 308 | Component: Lock washer | Part no.: 046496
KM 14 For housing: SNX 314 | Component: Lock nut | Part no.: 046238
MB 14 For housing: SNX 314 | Component: Lock washer | Part no.: 046239
H 2308 For housing: SNX 608 | Component: Adapter sleeve | Part no.: 046710
H 2309 For housing: SNX 609 | Component: Adapter sleeve | Part no.: 046711
H 2310 For housing: SNX 610 | Component: Adapter sleeve | Part no.: 046712
H 2311 For housing: SNX 611 | Component: Adapter sleeve | Part no.: 046713
H 2312 For housing: SNX 612 | Component: Adapter sleeve | Part no.: 046714
H 2313 For housing: SNX 613 | Component: Adapter sleeve | Part no.: 046715
H 2315 For housing: SNX 615 | Component: Adapter sleeve | Part no.: 719397
H 2316 For housing: SNX 616 | Component: Adapter sleeve | Part no.: 046717
H 2317 For housing: SNX 617 | Component: Adapter sleeve | Part no.: 046718
H 3024 For housing: SNX 3024 | Component: Adapter sleeve | Part no.: 719419
H 3026 For housing: SNX 3026 | Component: Adapter sleeve | Part no.: 719420
H 3028 For housing: SNX 3028 | Component: Adapter sleeve | Part no.: 719421
H 3030 For housing: SNX 3030 | Component: Adapter sleeve | Part no.: 719422
H 3032 For housing: SNX 3032 | Component: Adapter sleeve | Part no.: 719423
H 3034 For housing: SNX 3034 | Component: Adapter sleeve | Part no.: 719425
H 3036 For housing: SNX 3036 | Component: Adapter sleeve | Part no.: 053088
H 3038 For housing: SNX 3038 | Component: Adapter sleeve | Part no.: 719429
H 3040 For housing: SDX 3040 | Component: Adapter sleeve | Part no.: 719432
H 3044 For housing: SDX 3044 | Component: Adapter sleeve | Part no.: 719434
H 3048 For housing: SDX 3048 | Component: Adapter sleeve | Part no.: 719437
H 3052 For housing: SDX 3052 | Component: Adapter sleeve | Part no.: 719441
H 3056 For housing: SDX 3056 | Component: Adapter sleeve | Part no.: 719443
H 3060 For housing: SDX 3060 | Component: Adapter sleeve | Part no.: 719445
H 3064 For housing: SDX 3064 | Component: Adapter sleeve | Part no.: 719446
H 3068 For housing: SDX 3068 | Component: Adapter sleeve | Part no.: 719448
H 3134 For housing: SDX 3134 | Component: Adapter sleeve | Part no.: 046233
H 3136 For housing: SDX 3136 | Component: Adapter sleeve | Part no.: 046234
H 3138 For housing: SDX 3138 | Component: Adapter sleeve | Part no.: 046235
H 3140 For housing: SDX 3140 | Component: Adapter sleeve | Part no.: 046236
H 3144 For housing: SDX 3144 | Component: Adapter sleeve | Part no.: 046237
H 3148 For housing: SDX 3148 | Component: Adapter sleeve | Part no.: 719480
H 3152 For housing: SDX 3152 | Component: Adapter sleeve | Part no.: 719485
H 3156 For housing: SDX 3156 | Component: Adapter sleeve | Part no.: 719489
H 3160 For housing: SDX 3160 | Component: Adapter sleeve | Part no.: 719491
H 3164 For housing: SDX 3164 | Component: Adapter sleeve | Part no.: 719492
