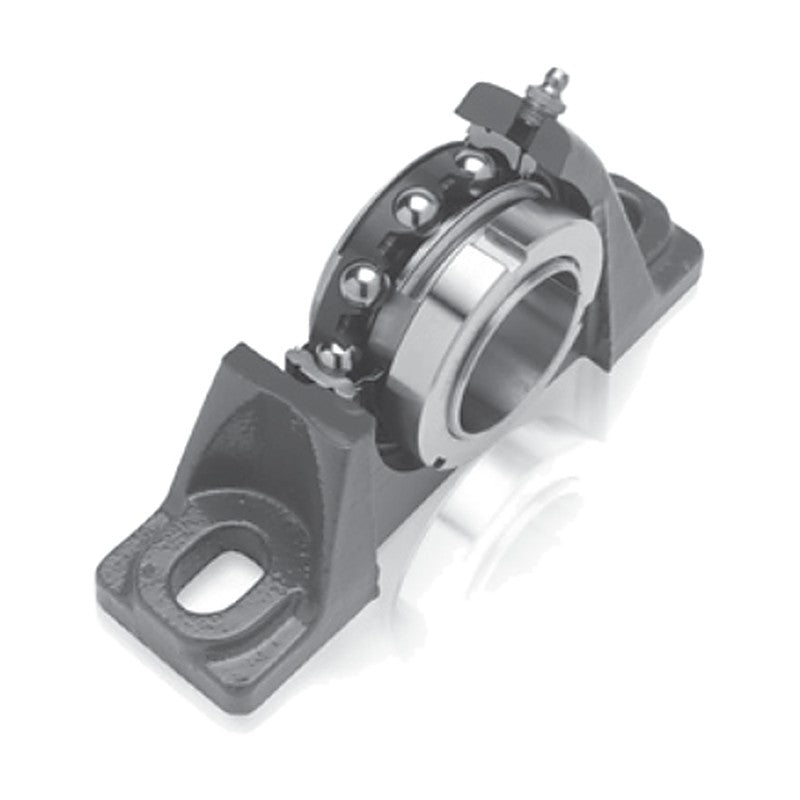

DODGE SC/SCM High Temperature Mounted Unit (20-75 mm, 1/2-3-1/2 in)

DODGE SC/SCM High Temperature Mounted Unit (20-75 mm, 1/2-3-1/2 in)

DODGE SC/SCM/SL set screw mounted ball bearings cover light, normal and medium duty applications in a wide range of housing styles.

Key features

  • 65° set screw design balances locking force and inner ring stress
  • Light duty (SL), normal duty (SC) and medium duty (SCM) inner rings
  • DualGuard seal with rubberized flinger standard on SC/SCM
  • Fiberglass-reinforced nylon ball cage
  • Anti-rotation pin (SC, SCM) simplifies insert replacement
  • Options: no-lube sealed for life (NL), high temperature (HT)

Specifications

Brand DODGE
Product line SC/SCM/SL set screw
Housing style Pillow block / 2-bolt / 4-bolt flange
Housing material cast iron
Locking Set screw (65°)
Shaft range 20-75 mm, 1/2-3-1/2 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 4-87 to 4-89
P2B-SC-20M-HT Series: 204 | Shaft: 20 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-20M-HT Series: 204 | Shaft: 20 mm | Variant: 2-bolt flange | Part no.: 074828
F4B-SC-20M-HT Series: 204 | Shaft: 20 mm | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SC-008L-HT Series: 204 | Shaft: 1/2 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-008L-HT Series: 204 | Shaft: 1/2 in | Variant: 2-bolt flange | Part no.: 054843
F4B-SC-008L-HT Series: 204 | Shaft: 1/2 in | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SC-010L-HT Series: 204 | Shaft: 5/8 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-010L-HT Series: 204 | Shaft: 5/8 in | Variant: 2-bolt flange | Part no.: 057474
F4B-SC-010L-HT Series: 204 | Shaft: 5/8 in | Variant: 4-bolt flange | Part no.: 067710
P2B-SC-012-HT Series: 204 | Shaft: 3/4 in | Variant: Pillow block | Part no.: 053670
F2B-SC-012-HT Series: 204 | Shaft: 3/4 in | Variant: 2-bolt flange | Part no.: 052618
F4B-SC-012-HT Series: 204 | Shaft: 3/4 in | Variant: 4-bolt flange | Part no.: 058263
P2B-SC-25M-HT Series: 205 | Shaft: 25 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-25M-HT Series: 205 | Shaft: 25 mm | Variant: 2-bolt flange | Part no.: 059821
F4B-SC-25M-HT Series: 205 | Shaft: 25 mm | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SC-014-HT Series: 205 | Shaft: 7/8 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-014-HT Series: 205 | Shaft: 7/8 in | Variant: 2-bolt flange | Part no.: 051906
F4B-SC-014-HT Series: 205 | Shaft: 7/8 in | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SC-015-HT Series: 205 | Shaft: 15/16 in | Variant: Pillow block | Part no.: 068088
F2B-SC-015-HT Series: 205 | Shaft: 15/16 in | Variant: 2-bolt flange | Part no.: 056864
F4B-SC-015-HT Series: 205 | Shaft: 15/16 in | Variant: 4-bolt flange | Part no.: 054190
P2B-SC-100-HT Series: 205 | Shaft: 1 in | Variant: Pillow block | Part no.: 051513
F2B-SC-100-HT Series: 205 | Shaft: 1 in | Variant: 2-bolt flange | Part no.: 052294
F4B-SC-100-HT Series: 205 | Shaft: 1 in | Variant: 4-bolt flange | Part no.: 052015
P2B-SC-30M-HT Series: 206 | Shaft: 30 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-30M-HT Series: 206 | Shaft: 30 mm | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-30M-HT Series: 206 | Shaft: 30 mm | Variant: 4-bolt flange | Part no.: 054534
P2B-SCM-100-HT Series: 206 | Shaft: 1 in | Variant: Pillow block | Part no.: 054782
F2B-SCM-100-HT Series: 206 | Shaft: 1 in | Variant: 2-bolt flange | Part no.: 064880
F4B-SCM-100-HT Series: 206 | Shaft: 1 in | Variant: 4-bolt flange | Part no.: 074530
P2B-SC-102-HT Series: 206 | Shaft: 1-1/8 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-102-HT Series: 206 | Shaft: 1-1/8 in | Variant: 2-bolt flange | Part no.: 062877
F4B-SC-102-HT Series: 206 | Shaft: 1-1/8 in | Variant: 4-bolt flange | Part no.: 068290
P2B-SC-103-HT Series: 206 | Shaft: 1-3/16 in | Variant: Pillow block | Part no.: 053169
F2B-SC-103-HT Series: 206 | Shaft: 1-3/16 in | Variant: 2-bolt flange | Part no.: 052604
F4B-SC-103-HT Series: 206 | Shaft: 1-3/16 in | Variant: 4-bolt flange | Part no.: 054419
P2B-SC-104S-HT Series: 206 | Shaft: 1-1/4 in | Variant: Pillow block | Part no.: 062829
F2B-SC-104S-HT Series: 206 | Shaft: 1-1/4 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-104S-HT Series: 206 | Shaft: 1-1/4 in | Variant: 4-bolt flange | Part no.: 049462
P2B-SCU-30M-HT Series: 206 SCU | Shaft: 30 mm | Variant: Pillow block | Part no.: Assembled to order
P2B-SCU-102-HT Series: 206 SCU | Shaft: 1-1/8 in | Variant: Pillow block | Part no.: Assembled to order
P2B-SCU-103-HT Series: 206 SCU | Shaft: 1-3/16 in | Variant: Pillow block | Part no.: 059737
P2B-SCU-104S-HT Series: 206 SCU | Shaft: 1-1/4 in | Variant: Pillow block | Part no.: 057847
P2B-SCM-30M-HT Series: 207 | Shaft: 30 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SCM-30M-HT Series: 207 | Shaft: 30 mm | Variant: 2-bolt flange | Part no.: 059673
F4B-SCM-30M-HT Series: 207 | Shaft: 30 mm | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SC-35M-HT Series: 207 | Shaft: 35 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-35M-HT Series: 207 | Shaft: 35 mm | Variant: 2-bolt flange | Part no.: Assembled to order
P2B-SCM-103-HT Series: 207 | Shaft: 1-3/16 in | Variant: Pillow block | Part no.: 054314
F2B-SCM-103-HT Series: 207 | Shaft: 1-3/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-103-HT Series: 207 | Shaft: 1-3/16 in | Variant: 4-bolt flange | Part no.: 074223
P2B-SC-104-HT Series: 207 | Shaft: 1-1/4 in | Variant: Pillow block | Part no.: 058262
F2B-SC-104-HT Series: 207 | Shaft: 1-1/4 in | Variant: 2-bolt flange | Part no.: 052311
F4B-SC-104-HT Series: 207 | Shaft: 1-1/4 in | Variant: 4-bolt flange | Part no.: 051826
P2B-SC-106-HT Series: 207 | Shaft: 1-3/8 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-106-HT Series: 207 | Shaft: 1-3/8 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-106-HT Series: 207 | Shaft: 1-3/8 in | Variant: 4-bolt flange | Part no.: 068185
P2B-SC-107-HT Series: 207 | Shaft: 1-7/16 in | Variant: Pillow block | Part no.: 050189
F2B-SC-107-HT Series: 207 | Shaft: 1-7/16 in | Variant: 2-bolt flange | Part no.: 054300
F4B-SC-107-HT Series: 207 | Shaft: 1-7/16 in | Variant: 4-bolt flange | Part no.: 052540
P2B-SCB-107-HT Series: 207 | Shaft: 1-7/16 in | Variant: Pillow block | Part no.: 052531
P2B-SC-40M-HT Series: 208 | Shaft: 40 mm | Variant: Pillow block | Part no.: 062572
F2B-SC-40M-HT Series: 208 | Shaft: 40 mm | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-40M-HT Series: 208 | Shaft: 40 mm | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SCM-107-HT Series: 208 | Shaft: 1-7/16 in | Variant: Pillow block | Part no.: 054276
F2B-SCM-107-HT Series: 208 | Shaft: 1-7/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-107-HT Series: 208 | Shaft: 1-7/16 in | Variant: 4-bolt flange | Part no.: 054342
P2B-SC-108-HT Series: 208 | Shaft: 1-1/2 in | Variant: Pillow block | Part no.: 057338
F2B-SC-108-HT Series: 208 | Shaft: 1-1/2 in | Variant: 2-bolt flange | Part no.: 054203
F4B-SC-108-HT Series: 208 | Shaft: 1-1/2 in | Variant: 4-bolt flange | Part no.: 051827
P2B-SC-110-HT Series: 208 | Shaft: 1-5/8 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-110-HT Series: 208 | Shaft: 1-5/8 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-110-HT Series: 208 | Shaft: 1-5/8 in | Variant: 4-bolt flange | Part no.: 058194
P2B-SC-45M-HT Series: 209 | Shaft: 45 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-45M-HT Series: 209 | Shaft: 45 mm | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-45M-HT Series: 209 | Shaft: 45 mm | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SCM-108-HT Series: 209 | Shaft: 1-1/2 in | Variant: Pillow block | Part no.: 058380
F2B-SCM-108-HT Series: 209 | Shaft: 1-1/2 in | Variant: 2-bolt flange | Part no.: 054203
F4B-SCM-108-HT Series: 209 | Shaft: 1-1/2 in | Variant: 4-bolt flange | Part no.: 064557
P2B-SC-110L-HT Series: 209 | Shaft: 1-5/8 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-110L-HT Series: 209 | Shaft: 1-5/8 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-110L-HT Series: 209 | Shaft: 1-5/8 in | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SC-111-HT Series: 209 | Shaft: 1-11/16 in | Variant: Pillow block | Part no.: 053563
F2B-SC-111-HT Series: 209 | Shaft: 1-11/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-111-HT Series: 209 | Shaft: 1-11/16 in | Variant: 4-bolt flange | Part no.: 057212
P2B-SCB-111-HT Series: 209 | Shaft: 1-11/16 in | Variant: Pillow block | Part no.: 058619
P2B-SC-112-HT Series: 209 | Shaft: 1-3/4 in | Variant: Pillow block | Part no.: 062676
F2B-SC-112-HT Series: 209 | Shaft: 1-3/4 in | Variant: 2-bolt flange | Part no.: 062157
F4B-SC-112-HT Series: 209 | Shaft: 1-3/4 in | Variant: 4-bolt flange | Part no.: 051825
P2B-SC-50M-HT Series: 210 | Shaft: 50 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-50M-HT Series: 210 | Shaft: 50 mm | Variant: 2-bolt flange | Part no.: 062779
F4B-SC-50M-HT Series: 210 | Shaft: 50 mm | Variant: 4-bolt flange | Part no.: 068066
P2B-SCM-111-HT Series: 210 | Shaft: 1-11/16 in | Variant: Pillow block | Part no.: 054315
F2B-SCM-111-HT Series: 210 | Shaft: 1-11/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-111-HT Series: 210 | Shaft: 1-11/16 in | Variant: 4-bolt flange | Part no.: 054593
P2B-SCM-112-HT Series: 210 | Shaft: 1-3/4 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SCM-112-HT Series: 210 | Shaft: 1-3/4 in | Variant: 2-bolt flange | Part no.: 057114
F4B-SCM-112-HT Series: 210 | Shaft: 1-3/4 in | Variant: 4-bolt flange | Part no.: 057368
P2B-SC-115-HT Series: 210 | Shaft: 1-15/16 in | Variant: Pillow block | Part no.: 052047
F2B-SC-115-HT Series: 210 | Shaft: 1-15/16 in | Variant: 2-bolt flange | Part no.: 073280
F4B-SC-115-HT Series: 210 | Shaft: 1-15/16 in | Variant: 4-bolt flange | Part no.: 052048
P2B-SCB-115-HT Series: 210 | Shaft: 1-15/16 in | Variant: Pillow block | Part no.: 052532
P2B-SC-200-HT Series: 210 | Shaft: 2 in | Variant: Pillow block | Part no.: 058183
F2B-SC-200-HT Series: 210 | Shaft: 2 in | Variant: 2-bolt flange | Part no.: 062309
F4B-SC-200-HT Series: 210 | Shaft: 2 in | Variant: 4-bolt flange | Part no.: 057132
P2B-SC-55M-HT Series: 211 | Shaft: 55 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-55M-HT Series: 211 | Shaft: 55 mm | Variant: 2-bolt flange | Part no.: 076558
F4B-SC-55M-HT Series: 211 | Shaft: 55 mm | Variant: 4-bolt flange | Part no.: 049894
P2B-SCM-115-HT Series: 211 | Shaft: 1-15/16 in | Variant: Pillow block | Part no.: 052276
F2B-SCM-115-HT Series: 211 | Shaft: 1-15/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-115-HT Series: 211 | Shaft: 1-15/16 in | Variant: 4-bolt flange | Part no.: 057363
P2B-SCM-200-HT Series: 211 | Shaft: 2 in | Variant: Pillow block | Part no.: 054934
F2B-SCM-200-HT Series: 211 | Shaft: 2 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-200-HT Series: 211 | Shaft: 2 in | Variant: 4-bolt flange | Part no.: 054065
P2B-SC-203-HT Series: 211 | Shaft: 2-3/16 in | Variant: Pillow block | Part no.: 053955
F2B-SC-203-HT Series: 211 | Shaft: 2-3/16 in | Variant: 2-bolt flange | Part no.: 059954
F4B-SC-203-HT Series: 211 | Shaft: 2-3/16 in | Variant: 4-bolt flange | Part no.: 058852
P2B-SC-204-HT Series: 211 | Shaft: 2-1/4 in | Variant: Pillow block | Part no.: 073065
F2B-SC-204-HT Series: 211 | Shaft: 2-1/4 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-204-HT Series: 211 | Shaft: 2-1/4 in | Variant: 4-bolt flange | Part no.: 054918
P2B-SC-60M-HT Series: 212 | Shaft: 60 mm | Variant: Pillow block | Part no.: 057800
F2B-SC-60M-HT Series: 212 | Shaft: 60 mm | Variant: 2-bolt flange | Part no.: 057800
F4B-SC-60M-HT Series: 212 | Shaft: 60 mm | Variant: 4-bolt flange | Part no.: 057801
P2B-SCM-203-HT Series: 212 | Shaft: 2-3/16 in | Variant: Pillow block | Part no.: 054412
F2B-SCM-203-HT Series: 212 | Shaft: 2-3/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-203-HT Series: 212 | Shaft: 2-3/16 in | Variant: 4-bolt flange | Part no.: 073772
P2B-SCM-204-HT Series: 212 | Shaft: 2-1/4 in | Variant: Pillow block | Part no.: 068266
F2B-SCM-204-HT Series: 212 | Shaft: 2-1/4 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-204-HT Series: 212 | Shaft: 2-1/4 in | Variant: 4-bolt flange | Part no.: 067830
P2B-SC-207-HT Series: 212 | Shaft: 2-7/16 in | Variant: Pillow block | Part no.: 059614
F2B-SC-207-HT Series: 212 | Shaft: 2-7/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-207-HT Series: 212 | Shaft: 2-7/16 in | Variant: 4-bolt flange | Part no.: 057487
P2B-SC-70M-HT Series: 214 | Shaft: 70 mm | Variant: Pillow block | Part no.: Assembled to order
F4B-SC-70M-HT Series: 214 | Shaft: 70 mm | Variant: 2-bolt flange | Part no.: Assembled to order
P2B-SCM-207-HT Series: 214 | Shaft: 2-7/16 in | Variant: Pillow block | Part no.: 054316
F4B-SCM-207-HT Series: 214 | Shaft: 2-7/16 in | Variant: 2-bolt flange | Part no.: 054917
P2B-SCM-208-HT Series: 214 | Shaft: 2-1/2 in | Variant: Pillow block | Part no.: 073006
F4B-SCM-208-HT Series: 214 | Shaft: 2-1/2 in | Variant: 2-bolt flange | Part no.: 056630
P2B-SC-211-HT Series: 214 | Shaft: 2-11/16 in | Variant: Pillow block | Part no.: 067774
F4B-SC-211-HT Series: 214 | Shaft: 2-11/16 in | Variant: 2-bolt flange | Part no.: 065700
P2B-SC-75M-HT Series: 215 | Shaft: 75 mm | Variant: Pillow block | Part no.: Assembled to order
F4B-SC-75M-HT Series: 215 | Shaft: 75 mm | Variant: 2-bolt flange | Part no.: 074237
P2B-SC-215-HT Series: 215 | Shaft: 2-15/16 in | Variant: Pillow block | Part no.: 056588
F4B-SC-215-HT Series: 215 | Shaft: 2-15/16 in | Variant: 2-bolt flange | Part no.: 052550
P2B-SCM-75M-HT Series: 216 | Shaft: 75 mm | Variant: Pillow block | Part no.: Assembled to order
F4B-SCM-75M-HT Series: 216 | Shaft: 75 mm | Variant: 2-bolt flange | Part no.: 062182
P2B-SCM-215-HT Series: 216 | Shaft: 2-15/16 in | Variant: Pillow block | Part no.: 054556
F4B-SCM-215-HT Series: 216 | Shaft: 2-15/16 in | Variant: 2-bolt flange | Part no.: 052478
P2B-SCM-300-HT Series: 216 | Shaft: 3 in | Variant: Pillow block | Part no.: Assembled to order
F4B-SCM-300-HT Series: 216 | Shaft: 3 in | Variant: 2-bolt flange | Part no.: 059696
P2B-SCM-307-HT Series: 218 | Shaft: 3-7/16 in | Variant: Pillow block | Part no.: 049991
F4B-SCM-307-HT Series: 218 | Shaft: 3-7/16 in | Variant: 2-bolt flange | Part no.: 057708
P2B-SCM-308-HT Series: 218 | Shaft: 3-1/2 in | Variant: Pillow block | Part no.: Assembled to order
F4B-SCM-308-HT Series: 218 | Shaft: 3-1/2 in | Variant: 2-bolt flange | Part no.: 058633
TB-SC-012-HT Series: 204 | Shaft: 3/4 in | Variant: Pillow block | Part no.: 059636
FB-SC-012-HT Series: 204 | Shaft: 3/4 in | Variant: 2-bolt flange | Part no.: Assembled to order
TB-SC-100-HT Series: 205 | Shaft: 1 in | Variant: Pillow block | Part no.: 057906
FB-SC-100-HT Series: 205 | Shaft: 1 in | Variant: 2-bolt flange | Part no.: Assembled to order
TB-SC-104-HT Series: 207 | Shaft: 1-1/4 in | Variant: Pillow block | Part no.: Assembled to order
FB-SC-104-HT Series: 207 | Shaft: 1-1/4 in | Variant: 2-bolt flange | Part no.: 056578
TB-SC-203-HT Series: 211 | Shaft: 2-3/16 in | Variant: Pillow block | Part no.: 050555
P2B-SCH-103-EHT Series: 206 | Shaft: 1-3/16 in | Variant: Pillow block | Part no.: 054063
P2B-SCH-107-HT Series: 207 | Shaft: 1-7/16 in | Variant: Pillow block | Part no.: 053894
P2B-SCH-107-EHT Series: 207 | Shaft: 1-7/16 in | Variant: 2-bolt flange | Part no.: 053895
FC-SCM-100-HT Series: 206 | Shaft: 1 in | Variant: Pillow block | Part no.: 058652
FC-SC-108-HT Series: 208 | Shaft: 1-1/2 in | Variant: Pillow block | Part no.: 053871
FC-SCM-108-HT Series: 208 | Shaft: 1-1/2 in | Variant: Pillow block | Part no.: 057683
FC-SCM-115-HT Series: 211 | Shaft: 1-15/16 in | Variant: Pillow block | Part no.: 058915
FC-SC-204-HT Series: 211 | Shaft: 2-1/4 in | Variant: Pillow block | Part no.: 058233
FC-SCM-55M-HT Series: 212 | Shaft: 55 mm | Variant: Pillow block | Part no.: 054837
FC-SC-207-HT Series: 212 | Shaft: 2-7/16 in | Variant: Pillow block | Part no.: 058738
FC-SCM-215-HT Series: 216 | Shaft: 2-15/16 in | Variant: Pillow block | Part no.: 054831
FC-SCM-300-HT Series: 216 | Shaft: 3 in | Variant: Pillow block | Part no.: 056911
FC-SCM-307-HT Series: 218 | Shaft: 3-7/16 in | Variant: Pillow block | Part no.: 068239
WSTU-SC-115-HT Series: 210 | Shaft: 1-15/16 in | Variant: Pillow block | Part no.: 057265
NSTU-SC-115-HT Series: 210 | Shaft: 1-15/16 in | Variant: 2-bolt flange | Part no.: 054580
WSTU-SC-55M-HT Series: 211 | Shaft: 55 mm | Variant: Pillow block | Part no.: 049893
NSTU-SC-55M-HT Series: 211 | Shaft: 55 mm | Variant: 2-bolt flange | Part no.: Assembled to order
WSTU-SCM-115-HT Series: 211 | Shaft: 1-15/16 in | Variant: Pillow block | Part no.: 049891
NSTU-SCM-115-HT Series: 211 | Shaft: 1-15/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
WSTU-SC-207-HT Series: 212 | Shaft: 2-7/16 in | Variant: Pillow block | Part no.: 057839
NSTU-SC-207-HT Series: 212 | Shaft: 2-7/16 in | Variant: 2-bolt flange | Part no.: 064237
WSTU-SCM-207-HT Series: 214 | Shaft: 2-7/16 in | Variant: Pillow block | Part no.: 049811
WSTU-SC-215-HT Series: 215 | Shaft: 2-15/16 in | Variant: Pillow block | Part no.: 059844
Mounted Bearing UnitsDODGE
184 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE SC/SCM High Temperature Mounted Unit (20-75 mm, 1/2-3-1/2 in)

Brand DODGE·Mounted Bearing Units

Available part numbers (184)

P2B-SC-20M-HT, F2B-SC-20M-HT, F4B-SC-20M-HT, P2B-SC-008L-HT, F2B-SC-008L-HT, F4B-SC-008L-HT, P2B-SC-010L-HT, F2B-SC-010L-HT, F4B-SC-010L-HT, P2B-SC-012-HT + 174 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
P2B-SC-20M-HTSeries: 204 | Shaft: 20 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-20M-HTSeries: 204 | Shaft: 20 mm | Variant: 2-bolt flange | Part no.: 074828
F4B-SC-20M-HTSeries: 204 | Shaft: 20 mm | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SC-008L-HTSeries: 204 | Shaft: 1/2 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-008L-HTSeries: 204 | Shaft: 1/2 in | Variant: 2-bolt flange | Part no.: 054843
F4B-SC-008L-HTSeries: 204 | Shaft: 1/2 in | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SC-010L-HTSeries: 204 | Shaft: 5/8 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-010L-HTSeries: 204 | Shaft: 5/8 in | Variant: 2-bolt flange | Part no.: 057474
F4B-SC-010L-HTSeries: 204 | Shaft: 5/8 in | Variant: 4-bolt flange | Part no.: 067710
P2B-SC-012-HTSeries: 204 | Shaft: 3/4 in | Variant: Pillow block | Part no.: 053670
F2B-SC-012-HTSeries: 204 | Shaft: 3/4 in | Variant: 2-bolt flange | Part no.: 052618
F4B-SC-012-HTSeries: 204 | Shaft: 3/4 in | Variant: 4-bolt flange | Part no.: 058263
P2B-SC-25M-HTSeries: 205 | Shaft: 25 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-25M-HTSeries: 205 | Shaft: 25 mm | Variant: 2-bolt flange | Part no.: 059821
F4B-SC-25M-HTSeries: 205 | Shaft: 25 mm | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SC-014-HTSeries: 205 | Shaft: 7/8 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-014-HTSeries: 205 | Shaft: 7/8 in | Variant: 2-bolt flange | Part no.: 051906
F4B-SC-014-HTSeries: 205 | Shaft: 7/8 in | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SC-015-HTSeries: 205 | Shaft: 15/16 in | Variant: Pillow block | Part no.: 068088
F2B-SC-015-HTSeries: 205 | Shaft: 15/16 in | Variant: 2-bolt flange | Part no.: 056864
F4B-SC-015-HTSeries: 205 | Shaft: 15/16 in | Variant: 4-bolt flange | Part no.: 054190
P2B-SC-100-HTSeries: 205 | Shaft: 1 in | Variant: Pillow block | Part no.: 051513
F2B-SC-100-HTSeries: 205 | Shaft: 1 in | Variant: 2-bolt flange | Part no.: 052294
F4B-SC-100-HTSeries: 205 | Shaft: 1 in | Variant: 4-bolt flange | Part no.: 052015
P2B-SC-30M-HTSeries: 206 | Shaft: 30 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-30M-HTSeries: 206 | Shaft: 30 mm | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-30M-HTSeries: 206 | Shaft: 30 mm | Variant: 4-bolt flange | Part no.: 054534
P2B-SCM-100-HTSeries: 206 | Shaft: 1 in | Variant: Pillow block | Part no.: 054782
F2B-SCM-100-HTSeries: 206 | Shaft: 1 in | Variant: 2-bolt flange | Part no.: 064880
F4B-SCM-100-HTSeries: 206 | Shaft: 1 in | Variant: 4-bolt flange | Part no.: 074530
P2B-SC-102-HTSeries: 206 | Shaft: 1-1/8 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-102-HTSeries: 206 | Shaft: 1-1/8 in | Variant: 2-bolt flange | Part no.: 062877
F4B-SC-102-HTSeries: 206 | Shaft: 1-1/8 in | Variant: 4-bolt flange | Part no.: 068290
P2B-SC-103-HTSeries: 206 | Shaft: 1-3/16 in | Variant: Pillow block | Part no.: 053169
F2B-SC-103-HTSeries: 206 | Shaft: 1-3/16 in | Variant: 2-bolt flange | Part no.: 052604
F4B-SC-103-HTSeries: 206 | Shaft: 1-3/16 in | Variant: 4-bolt flange | Part no.: 054419
P2B-SC-104S-HTSeries: 206 | Shaft: 1-1/4 in | Variant: Pillow block | Part no.: 062829
F2B-SC-104S-HTSeries: 206 | Shaft: 1-1/4 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-104S-HTSeries: 206 | Shaft: 1-1/4 in | Variant: 4-bolt flange | Part no.: 049462
P2B-SCU-30M-HTSeries: 206 SCU | Shaft: 30 mm | Variant: Pillow block | Part no.: Assembled to order
P2B-SCU-102-HTSeries: 206 SCU | Shaft: 1-1/8 in | Variant: Pillow block | Part no.: Assembled to order
P2B-SCU-103-HTSeries: 206 SCU | Shaft: 1-3/16 in | Variant: Pillow block | Part no.: 059737
P2B-SCU-104S-HTSeries: 206 SCU | Shaft: 1-1/4 in | Variant: Pillow block | Part no.: 057847
P2B-SCM-30M-HTSeries: 207 | Shaft: 30 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SCM-30M-HTSeries: 207 | Shaft: 30 mm | Variant: 2-bolt flange | Part no.: 059673
F4B-SCM-30M-HTSeries: 207 | Shaft: 30 mm | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SC-35M-HTSeries: 207 | Shaft: 35 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-35M-HTSeries: 207 | Shaft: 35 mm | Variant: 2-bolt flange | Part no.: Assembled to order
P2B-SCM-103-HTSeries: 207 | Shaft: 1-3/16 in | Variant: Pillow block | Part no.: 054314
F2B-SCM-103-HTSeries: 207 | Shaft: 1-3/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-103-HTSeries: 207 | Shaft: 1-3/16 in | Variant: 4-bolt flange | Part no.: 074223
P2B-SC-104-HTSeries: 207 | Shaft: 1-1/4 in | Variant: Pillow block | Part no.: 058262
F2B-SC-104-HTSeries: 207 | Shaft: 1-1/4 in | Variant: 2-bolt flange | Part no.: 052311
F4B-SC-104-HTSeries: 207 | Shaft: 1-1/4 in | Variant: 4-bolt flange | Part no.: 051826
P2B-SC-106-HTSeries: 207 | Shaft: 1-3/8 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-106-HTSeries: 207 | Shaft: 1-3/8 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-106-HTSeries: 207 | Shaft: 1-3/8 in | Variant: 4-bolt flange | Part no.: 068185
P2B-SC-107-HTSeries: 207 | Shaft: 1-7/16 in | Variant: Pillow block | Part no.: 050189
F2B-SC-107-HTSeries: 207 | Shaft: 1-7/16 in | Variant: 2-bolt flange | Part no.: 054300
F4B-SC-107-HTSeries: 207 | Shaft: 1-7/16 in | Variant: 4-bolt flange | Part no.: 052540
P2B-SCB-107-HTSeries: 207 | Shaft: 1-7/16 in | Variant: Pillow block | Part no.: 052531
P2B-SC-40M-HTSeries: 208 | Shaft: 40 mm | Variant: Pillow block | Part no.: 062572
F2B-SC-40M-HTSeries: 208 | Shaft: 40 mm | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-40M-HTSeries: 208 | Shaft: 40 mm | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SCM-107-HTSeries: 208 | Shaft: 1-7/16 in | Variant: Pillow block | Part no.: 054276
F2B-SCM-107-HTSeries: 208 | Shaft: 1-7/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-107-HTSeries: 208 | Shaft: 1-7/16 in | Variant: 4-bolt flange | Part no.: 054342
P2B-SC-108-HTSeries: 208 | Shaft: 1-1/2 in | Variant: Pillow block | Part no.: 057338
F2B-SC-108-HTSeries: 208 | Shaft: 1-1/2 in | Variant: 2-bolt flange | Part no.: 054203
F4B-SC-108-HTSeries: 208 | Shaft: 1-1/2 in | Variant: 4-bolt flange | Part no.: 051827
P2B-SC-110-HTSeries: 208 | Shaft: 1-5/8 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-110-HTSeries: 208 | Shaft: 1-5/8 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-110-HTSeries: 208 | Shaft: 1-5/8 in | Variant: 4-bolt flange | Part no.: 058194
P2B-SC-45M-HTSeries: 209 | Shaft: 45 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-45M-HTSeries: 209 | Shaft: 45 mm | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-45M-HTSeries: 209 | Shaft: 45 mm | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SCM-108-HTSeries: 209 | Shaft: 1-1/2 in | Variant: Pillow block | Part no.: 058380
F2B-SCM-108-HTSeries: 209 | Shaft: 1-1/2 in | Variant: 2-bolt flange | Part no.: 054203
F4B-SCM-108-HTSeries: 209 | Shaft: 1-1/2 in | Variant: 4-bolt flange | Part no.: 064557
P2B-SC-110L-HTSeries: 209 | Shaft: 1-5/8 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-110L-HTSeries: 209 | Shaft: 1-5/8 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-110L-HTSeries: 209 | Shaft: 1-5/8 in | Variant: 4-bolt flange | Part no.: Assembled to order
P2B-SC-111-HTSeries: 209 | Shaft: 1-11/16 in | Variant: Pillow block | Part no.: 053563
F2B-SC-111-HTSeries: 209 | Shaft: 1-11/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-111-HTSeries: 209 | Shaft: 1-11/16 in | Variant: 4-bolt flange | Part no.: 057212
P2B-SCB-111-HTSeries: 209 | Shaft: 1-11/16 in | Variant: Pillow block | Part no.: 058619
P2B-SC-112-HTSeries: 209 | Shaft: 1-3/4 in | Variant: Pillow block | Part no.: 062676
F2B-SC-112-HTSeries: 209 | Shaft: 1-3/4 in | Variant: 2-bolt flange | Part no.: 062157
F4B-SC-112-HTSeries: 209 | Shaft: 1-3/4 in | Variant: 4-bolt flange | Part no.: 051825
P2B-SC-50M-HTSeries: 210 | Shaft: 50 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-50M-HTSeries: 210 | Shaft: 50 mm | Variant: 2-bolt flange | Part no.: 062779
F4B-SC-50M-HTSeries: 210 | Shaft: 50 mm | Variant: 4-bolt flange | Part no.: 068066
P2B-SCM-111-HTSeries: 210 | Shaft: 1-11/16 in | Variant: Pillow block | Part no.: 054315
F2B-SCM-111-HTSeries: 210 | Shaft: 1-11/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-111-HTSeries: 210 | Shaft: 1-11/16 in | Variant: 4-bolt flange | Part no.: 054593
P2B-SCM-112-HTSeries: 210 | Shaft: 1-3/4 in | Variant: Pillow block | Part no.: Assembled to order
F2B-SCM-112-HTSeries: 210 | Shaft: 1-3/4 in | Variant: 2-bolt flange | Part no.: 057114
F4B-SCM-112-HTSeries: 210 | Shaft: 1-3/4 in | Variant: 4-bolt flange | Part no.: 057368
P2B-SC-115-HTSeries: 210 | Shaft: 1-15/16 in | Variant: Pillow block | Part no.: 052047
F2B-SC-115-HTSeries: 210 | Shaft: 1-15/16 in | Variant: 2-bolt flange | Part no.: 073280
F4B-SC-115-HTSeries: 210 | Shaft: 1-15/16 in | Variant: 4-bolt flange | Part no.: 052048
P2B-SCB-115-HTSeries: 210 | Shaft: 1-15/16 in | Variant: Pillow block | Part no.: 052532
P2B-SC-200-HTSeries: 210 | Shaft: 2 in | Variant: Pillow block | Part no.: 058183
F2B-SC-200-HTSeries: 210 | Shaft: 2 in | Variant: 2-bolt flange | Part no.: 062309
F4B-SC-200-HTSeries: 210 | Shaft: 2 in | Variant: 4-bolt flange | Part no.: 057132
P2B-SC-55M-HTSeries: 211 | Shaft: 55 mm | Variant: Pillow block | Part no.: Assembled to order
F2B-SC-55M-HTSeries: 211 | Shaft: 55 mm | Variant: 2-bolt flange | Part no.: 076558
F4B-SC-55M-HTSeries: 211 | Shaft: 55 mm | Variant: 4-bolt flange | Part no.: 049894
P2B-SCM-115-HTSeries: 211 | Shaft: 1-15/16 in | Variant: Pillow block | Part no.: 052276
F2B-SCM-115-HTSeries: 211 | Shaft: 1-15/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-115-HTSeries: 211 | Shaft: 1-15/16 in | Variant: 4-bolt flange | Part no.: 057363
P2B-SCM-200-HTSeries: 211 | Shaft: 2 in | Variant: Pillow block | Part no.: 054934
F2B-SCM-200-HTSeries: 211 | Shaft: 2 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-200-HTSeries: 211 | Shaft: 2 in | Variant: 4-bolt flange | Part no.: 054065
P2B-SC-203-HTSeries: 211 | Shaft: 2-3/16 in | Variant: Pillow block | Part no.: 053955
F2B-SC-203-HTSeries: 211 | Shaft: 2-3/16 in | Variant: 2-bolt flange | Part no.: 059954
F4B-SC-203-HTSeries: 211 | Shaft: 2-3/16 in | Variant: 4-bolt flange | Part no.: 058852
P2B-SC-204-HTSeries: 211 | Shaft: 2-1/4 in | Variant: Pillow block | Part no.: 073065
F2B-SC-204-HTSeries: 211 | Shaft: 2-1/4 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-204-HTSeries: 211 | Shaft: 2-1/4 in | Variant: 4-bolt flange | Part no.: 054918
P2B-SC-60M-HTSeries: 212 | Shaft: 60 mm | Variant: Pillow block | Part no.: 057800
F2B-SC-60M-HTSeries: 212 | Shaft: 60 mm | Variant: 2-bolt flange | Part no.: 057800
F4B-SC-60M-HTSeries: 212 | Shaft: 60 mm | Variant: 4-bolt flange | Part no.: 057801
P2B-SCM-203-HTSeries: 212 | Shaft: 2-3/16 in | Variant: Pillow block | Part no.: 054412
F2B-SCM-203-HTSeries: 212 | Shaft: 2-3/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-203-HTSeries: 212 | Shaft: 2-3/16 in | Variant: 4-bolt flange | Part no.: 073772
P2B-SCM-204-HTSeries: 212 | Shaft: 2-1/4 in | Variant: Pillow block | Part no.: 068266
F2B-SCM-204-HTSeries: 212 | Shaft: 2-1/4 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SCM-204-HTSeries: 212 | Shaft: 2-1/4 in | Variant: 4-bolt flange | Part no.: 067830
P2B-SC-207-HTSeries: 212 | Shaft: 2-7/16 in | Variant: Pillow block | Part no.: 059614
F2B-SC-207-HTSeries: 212 | Shaft: 2-7/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
F4B-SC-207-HTSeries: 212 | Shaft: 2-7/16 in | Variant: 4-bolt flange | Part no.: 057487
P2B-SC-70M-HTSeries: 214 | Shaft: 70 mm | Variant: Pillow block | Part no.: Assembled to order
F4B-SC-70M-HTSeries: 214 | Shaft: 70 mm | Variant: 2-bolt flange | Part no.: Assembled to order
P2B-SCM-207-HTSeries: 214 | Shaft: 2-7/16 in | Variant: Pillow block | Part no.: 054316
F4B-SCM-207-HTSeries: 214 | Shaft: 2-7/16 in | Variant: 2-bolt flange | Part no.: 054917
P2B-SCM-208-HTSeries: 214 | Shaft: 2-1/2 in | Variant: Pillow block | Part no.: 073006
F4B-SCM-208-HTSeries: 214 | Shaft: 2-1/2 in | Variant: 2-bolt flange | Part no.: 056630
P2B-SC-211-HTSeries: 214 | Shaft: 2-11/16 in | Variant: Pillow block | Part no.: 067774
F4B-SC-211-HTSeries: 214 | Shaft: 2-11/16 in | Variant: 2-bolt flange | Part no.: 065700
P2B-SC-75M-HTSeries: 215 | Shaft: 75 mm | Variant: Pillow block | Part no.: Assembled to order
F4B-SC-75M-HTSeries: 215 | Shaft: 75 mm | Variant: 2-bolt flange | Part no.: 074237
P2B-SC-215-HTSeries: 215 | Shaft: 2-15/16 in | Variant: Pillow block | Part no.: 056588
F4B-SC-215-HTSeries: 215 | Shaft: 2-15/16 in | Variant: 2-bolt flange | Part no.: 052550
P2B-SCM-75M-HTSeries: 216 | Shaft: 75 mm | Variant: Pillow block | Part no.: Assembled to order
F4B-SCM-75M-HTSeries: 216 | Shaft: 75 mm | Variant: 2-bolt flange | Part no.: 062182
P2B-SCM-215-HTSeries: 216 | Shaft: 2-15/16 in | Variant: Pillow block | Part no.: 054556
F4B-SCM-215-HTSeries: 216 | Shaft: 2-15/16 in | Variant: 2-bolt flange | Part no.: 052478
P2B-SCM-300-HTSeries: 216 | Shaft: 3 in | Variant: Pillow block | Part no.: Assembled to order
F4B-SCM-300-HTSeries: 216 | Shaft: 3 in | Variant: 2-bolt flange | Part no.: 059696
P2B-SCM-307-HTSeries: 218 | Shaft: 3-7/16 in | Variant: Pillow block | Part no.: 049991
F4B-SCM-307-HTSeries: 218 | Shaft: 3-7/16 in | Variant: 2-bolt flange | Part no.: 057708
P2B-SCM-308-HTSeries: 218 | Shaft: 3-1/2 in | Variant: Pillow block | Part no.: Assembled to order
F4B-SCM-308-HTSeries: 218 | Shaft: 3-1/2 in | Variant: 2-bolt flange | Part no.: 058633
TB-SC-012-HTSeries: 204 | Shaft: 3/4 in | Variant: Pillow block | Part no.: 059636
FB-SC-012-HTSeries: 204 | Shaft: 3/4 in | Variant: 2-bolt flange | Part no.: Assembled to order
TB-SC-100-HTSeries: 205 | Shaft: 1 in | Variant: Pillow block | Part no.: 057906
FB-SC-100-HTSeries: 205 | Shaft: 1 in | Variant: 2-bolt flange | Part no.: Assembled to order
TB-SC-104-HTSeries: 207 | Shaft: 1-1/4 in | Variant: Pillow block | Part no.: Assembled to order
FB-SC-104-HTSeries: 207 | Shaft: 1-1/4 in | Variant: 2-bolt flange | Part no.: 056578
TB-SC-203-HTSeries: 211 | Shaft: 2-3/16 in | Variant: Pillow block | Part no.: 050555
P2B-SCH-103-EHTSeries: 206 | Shaft: 1-3/16 in | Variant: Pillow block | Part no.: 054063
P2B-SCH-107-HTSeries: 207 | Shaft: 1-7/16 in | Variant: Pillow block | Part no.: 053894
P2B-SCH-107-EHTSeries: 207 | Shaft: 1-7/16 in | Variant: 2-bolt flange | Part no.: 053895
FC-SCM-100-HTSeries: 206 | Shaft: 1 in | Variant: Pillow block | Part no.: 058652
FC-SC-108-HTSeries: 208 | Shaft: 1-1/2 in | Variant: Pillow block | Part no.: 053871
FC-SCM-108-HTSeries: 208 | Shaft: 1-1/2 in | Variant: Pillow block | Part no.: 057683
FC-SCM-115-HTSeries: 211 | Shaft: 1-15/16 in | Variant: Pillow block | Part no.: 058915
FC-SC-204-HTSeries: 211 | Shaft: 2-1/4 in | Variant: Pillow block | Part no.: 058233
FC-SCM-55M-HTSeries: 212 | Shaft: 55 mm | Variant: Pillow block | Part no.: 054837
FC-SC-207-HTSeries: 212 | Shaft: 2-7/16 in | Variant: Pillow block | Part no.: 058738
FC-SCM-215-HTSeries: 216 | Shaft: 2-15/16 in | Variant: Pillow block | Part no.: 054831
FC-SCM-300-HTSeries: 216 | Shaft: 3 in | Variant: Pillow block | Part no.: 056911
FC-SCM-307-HTSeries: 218 | Shaft: 3-7/16 in | Variant: Pillow block | Part no.: 068239
WSTU-SC-115-HTSeries: 210 | Shaft: 1-15/16 in | Variant: Pillow block | Part no.: 057265
NSTU-SC-115-HTSeries: 210 | Shaft: 1-15/16 in | Variant: 2-bolt flange | Part no.: 054580
WSTU-SC-55M-HTSeries: 211 | Shaft: 55 mm | Variant: Pillow block | Part no.: 049893
NSTU-SC-55M-HTSeries: 211 | Shaft: 55 mm | Variant: 2-bolt flange | Part no.: Assembled to order
WSTU-SCM-115-HTSeries: 211 | Shaft: 1-15/16 in | Variant: Pillow block | Part no.: 049891
NSTU-SCM-115-HTSeries: 211 | Shaft: 1-15/16 in | Variant: 2-bolt flange | Part no.: Assembled to order
WSTU-SC-207-HTSeries: 212 | Shaft: 2-7/16 in | Variant: Pillow block | Part no.: 057839
NSTU-SC-207-HTSeries: 212 | Shaft: 2-7/16 in | Variant: 2-bolt flange | Part no.: 064237
WSTU-SCM-207-HTSeries: 214 | Shaft: 2-7/16 in | Variant: Pillow block | Part no.: 049811
WSTU-SC-215-HTSeries: 215 | Shaft: 2-15/16 in | Variant: Pillow block | Part no.: 059844

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
