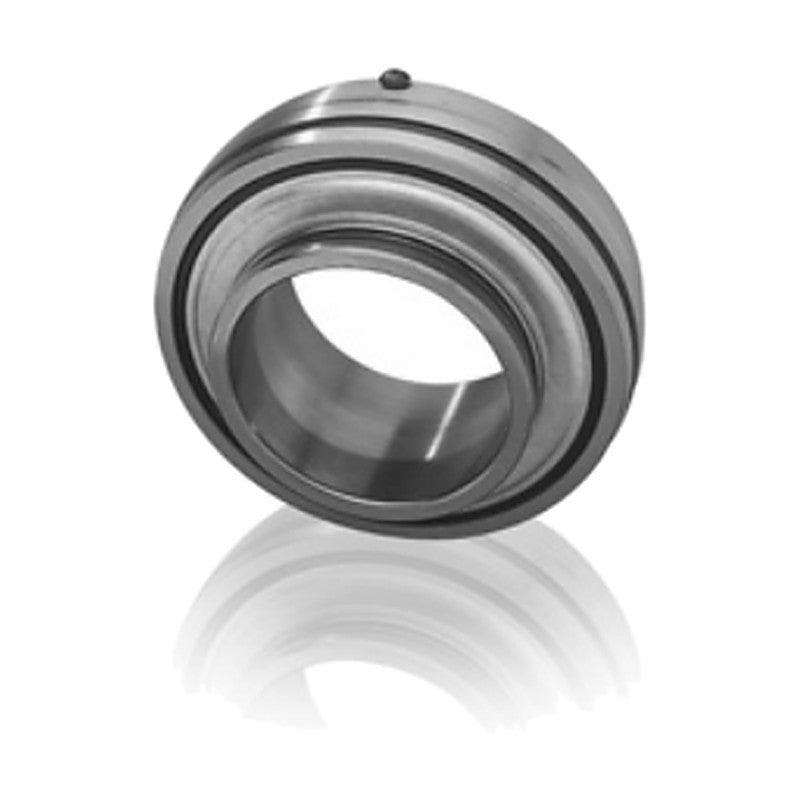

DODGE SC Set Screw Bearing Insert (17-90 mm, 1/2-2-15/16 in)

DODGE SC Set Screw Bearing Insert (17-90 mm, 1/2-2-15/16 in)

DODGE SC/SCM/SL set screw mounted ball bearings cover light, normal and medium duty applications in a wide range of housing styles.

Key features

  • 65° set screw design balances locking force and inner ring stress
  • Light duty (SL), normal duty (SC) and medium duty (SCM) inner rings
  • DualGuard seal with rubberized flinger standard on SC/SCM
  • Fiberglass-reinforced nylon ball cage
  • Anti-rotation pin (SC, SCM) simplifies insert replacement
  • Options: no-lube sealed for life (NL), high temperature (HT)

Specifications

Brand DODGE
Product line SC/SCM/SL set screw
Housing style Bearing insert
Locking Set screw (65°)
Shaft range 17-90 mm, 1/2-2-15/16 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 4-76 to 4-78
INS-SC-17M Series: 203 | Shaft: 17 mm | Variant: Standard | Part no.: 125800
INS-SC-17M-HT Series: 203 | Shaft: 17 mm | Variant: High temperature | Part no.: n/a
INS-SC-008 Series: 203 | Shaft: 1/2 in | Variant: Standard | Part no.: 123328
INS-SC-008-HT Series: 203 | Shaft: 1/2 in | Variant: High temperature | Part no.: n/a
INS-SC-010 Series: 203 | Shaft: 5/8 in | Variant: Standard | Part no.: 123329
INS-SC-010-HT Series: 203 | Shaft: 5/8 in | Variant: High temperature | Part no.: n/a
INS-SC-20M Series: 204 | Shaft: 20 mm | Variant: Standard | Part no.: 125802
INS-SC-20M-HT Series: 204 | Shaft: 20 mm | Variant: High temperature | Part no.: Assembled to order
INS-SC-008L Series: 204 | Shaft: 1/2 in | Variant: Standard | Part no.: 123330
INS-SC-008L-HT Series: 204 | Shaft: 1/2 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-010L Series: 204 | Shaft: 5/8 in | Variant: Standard | Part no.: 123331
INS-SC-010L-HT Series: 204 | Shaft: 5/8 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-012 Series: 204 | Shaft: 3/4 in | Variant: Standard | Part no.: 123332
INS-SC-012-HT Series: 204 | Shaft: 3/4 in | Variant: High temperature | Part no.: 052032
INS-SC-013 Series: 204 | Shaft: 13/16 in | Variant: Standard | Part no.: 074505
INS-SC-013-HT Series: 204 | Shaft: 13/16 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-25M Series: 205 | Shaft: 25 mm | Variant: Standard | Part no.: 125804
INS-SC-25M-HT Series: 205 | Shaft: 25 mm | Variant: High temperature | Part no.: Assembled to order
INS-SC-014 Series: 205 | Shaft: 7/8 in | Variant: Standard | Part no.: 123333
INS-SC-014-HT Series: 205 | Shaft: 7/8 in | Variant: High temperature | Part no.: 068013
INS-SC-015 Series: 205 | Shaft: 15/16 in | Variant: Standard | Part no.: 123334
INS-SC-015-HT Series: 205 | Shaft: 15/16 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-100 Series: 205 | Shaft: 1 in | Variant: Standard | Part no.: 123335
INS-SC-100-HT Series: 205 | Shaft: 1 in | Variant: High temperature | Part no.: 054949
INS-SC-30M Series: 206 | Shaft: 30 mm | Variant: Standard | Part no.: 125806
INS-SC-30M-HT Series: 206 | Shaft: 30 mm | Variant: High temperature | Part no.: Assembled to order
INS-SC-101 Series: 206 | Shaft: 1-1/16 in | Variant: Standard | Part no.: 123336
INS-SC-101-HT Series: 206 | Shaft: 1-1/16 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-102 Series: 206 | Shaft: 1-1/8 in | Variant: Standard | Part no.: 123337
INS-SC-102-HT Series: 206 | Shaft: 1-1/8 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-103 Series: 206 | Shaft: 1-3/16 in | Variant: Standard | Part no.: 123338
INS-SC-103-HT Series: 206 | Shaft: 1-3/16 in | Variant: High temperature | Part no.: 067902
INS-SC-104S Series: 206 | Shaft: 1-1/4 in | Variant: Standard | Part no.: 123469
INS-SC-104S-HT Series: 206 | Shaft: 1-1/4 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-35M Series: 207 | Shaft: 35 mm | Variant: Standard | Part no.: 125808
INS-SC-35M-HT Series: 207 | Shaft: 35 mm | Variant: High temperature | Part no.: Assembled to order
INS-SC-104 Series: 207 | Shaft: 1-1/4 in | Variant: Standard | Part no.: 123339
INS-SC-104-HT Series: 207 | Shaft: 1-1/4 in | Variant: High temperature | Part no.: 053776
INS-SC-105 Series: 207 | Shaft: 1-5/16 in | Variant: Standard | Part no.: 123340
INS-SC-105-HT Series: 207 | Shaft: 1-5/16 in | Variant: High temperature | Part no.: 057201
INS-SC-106 Series: 207 | Shaft: 1-3/8 in | Variant: Standard | Part no.: 123341
INS-SC-106-HT Series: 207 | Shaft: 1-3/8 in | Variant: High temperature | Part no.: 057354
INS-SC-107 Series: 207 | Shaft: 1-7/16 in | Variant: Standard | Part no.: 123368
INS-SC-107-HT Series: 207 | Shaft: 1-7/16 in | Variant: High temperature | Part no.: 052645
INS-SC-40M Series: 208 | Shaft: 40 mm | Variant: Standard | Part no.: 125810
INS-SC-40M-HT Series: 208 | Shaft: 40 mm | Variant: High temperature | Part no.: 064865
INS-SC-108 Series: 208 | Shaft: 1-1/2 in | Variant: Standard | Part no.: 123342
INS-SC-108-HT Series: 208 | Shaft: 1-1/2 in | Variant: High temperature | Part no.: 064149
INS-SC-110 Series: 208 | Shaft: 1-5/8 in | Variant: Standard | Part no.: 123343
INS-SC-110-HT Series: 208 | Shaft: 1-5/8 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-45M Series: 209 | Shaft: 45 mm | Variant: Standard | Part no.: 125812
INS-SC-45M-HT Series: 209 | Shaft: 45 mm | Variant: High temperature | Part no.: 075014
INS-SC-110L Series: 209 | Shaft: 1-5/8 in | Variant: Standard | Part no.: 045874
INS-SC-110L-HT Series: 209 | Shaft: 1-5/8 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-111 Series: 209 | Shaft: 1-11/16 in | Variant: Standard | Part no.: 123344
INS-SC-111-HT Series: 209 | Shaft: 1-11/16 in | Variant: High temperature | Part no.: 053565
INS-SC-112 Series: 209 | Shaft: 1-3/4 in | Variant: Standard | Part no.: 123345
INS-SC-112-HT Series: 209 | Shaft: 1-3/4 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-113 Series: 209 | Shaft: 1-13/16 in | Variant: Standard | Part no.: 054225
INS-SC-113-HT Series: 209 | Shaft: 1-13/16 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-50M Series: 210 | Shaft: 50 mm | Variant: Standard | Part no.: 125814
INS-SC-50M-HT Series: 210 | Shaft: 50 mm | Variant: High temperature | Part no.: Assembled to order
INS-SC-115 Series: 210 | Shaft: 1-15/16 in | Variant: Standard | Part no.: 123346
INS-SC-115-HT Series: 210 | Shaft: 1-15/16 in | Variant: High temperature | Part no.: 054019
INS-SC-200 Series: 210 | Shaft: 2 in | Variant: Standard | Part no.: 123347
INS-SC-200-HT Series: 210 | Shaft: 2 in | Variant: High temperature | Part no.: 054431
INS-SC-55M Series: 211 | Shaft: 55 mm | Variant: Standard | Part no.: 125816
INS-SC-55M-HT Series: 211 | Shaft: 55 mm | Variant: High temperature | Part no.: Assembled to order
INS-SCM-200 Series: 211 | Shaft: 2 in | Variant: Standard | Part no.: 123358
INS-SCM-200-HT Series: 211 | Shaft: 2 in | Variant: High temperature | Part no.: 058157
INS-SC-203 Series: 211 | Shaft: 2-3/16 in | Variant: Standard | Part no.: 123348
INS-SC-203-HT Series: 211 | Shaft: 2-3/16 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-204 Series: 211 | Shaft: 2-1/4 in | Variant: Standard | Part no.: 123349
INS-SC-204-HT Series: 211 | Shaft: 2-1/4 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-60M Series: 212 | Shaft: 60 mm | Variant: Standard | Part no.: 125818
INS-SC-60M-HT Series: 212 | Shaft: 60 mm | Variant: High temperature | Part no.: 057802
INS-SCM-204 Series: 212 | Shaft: 2-1/4 in | Variant: Standard | Part no.: 123360
INS-SCM-204-HT Series: 212 | Shaft: 2-1/4 in | Variant: High temperature | Part no.: 073634
INS-SC-207 Series: 212 | Shaft: 2-7/16 in | Variant: Standard | Part no.: 123350
INS-SC-207-HT Series: 212 | Shaft: 2-7/16 in | Variant: High temperature | Part no.: 054196
INS-SC-70M Series: 214 | Shaft: 70 mm | Variant: Standard | Part no.: 125820
INS-SC-70M-HT Series: 214 | Shaft: 70 mm | Variant: High temperature | Part no.: Assembled to order
INS-SCM-208 Series: 214 | Shaft: 2-1/2 in | Variant: Standard | Part no.: 123362
INS-SCM-208-HT Series: 214 | Shaft: 2-1/2 in | Variant: High temperature | Part no.: 075714
INS-SC-211 Series: 214 | Shaft: 2-11/16 in | Variant: Standard | Part no.: 123326
INS-SC-211-HT Series: 214 | Shaft: 2-11/16 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-75M Series: 215 | Shaft: 75 mm | Variant: Standard | Part no.: 125822
INS-SC-75M-HT Series: 215 | Shaft: 75 mm | Variant: High temperature | Part no.: Assembled to order
INS-SC-215 Series: 215 | Shaft: 2-15/16 in | Variant: Standard | Part no.: 123352
INS-SC-215-HT Series: 215 | Shaft: 2-15/16 in | Variant: High temperature | Part no.: Assembled to order
INS-SC-90M Series: 218 | Shaft: 90 mm | Variant: Standard | Part no.: Assembled to order
INS-SC-90M-HT Series: 218 | Shaft: 90 mm | Variant: High temperature | Part no.: Assembled to order
Insert BearingsDODGE
92 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE SC Set Screw Bearing Insert (17-90 mm, 1/2-2-15/16 in)

Brand DODGE·Insert Bearings

Available part numbers (92)

INS-SC-17M, INS-SC-17M-HT, INS-SC-008, INS-SC-008-HT, INS-SC-010, INS-SC-010-HT, INS-SC-20M, INS-SC-20M-HT, INS-SC-008L, INS-SC-008L-HT + 82 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
