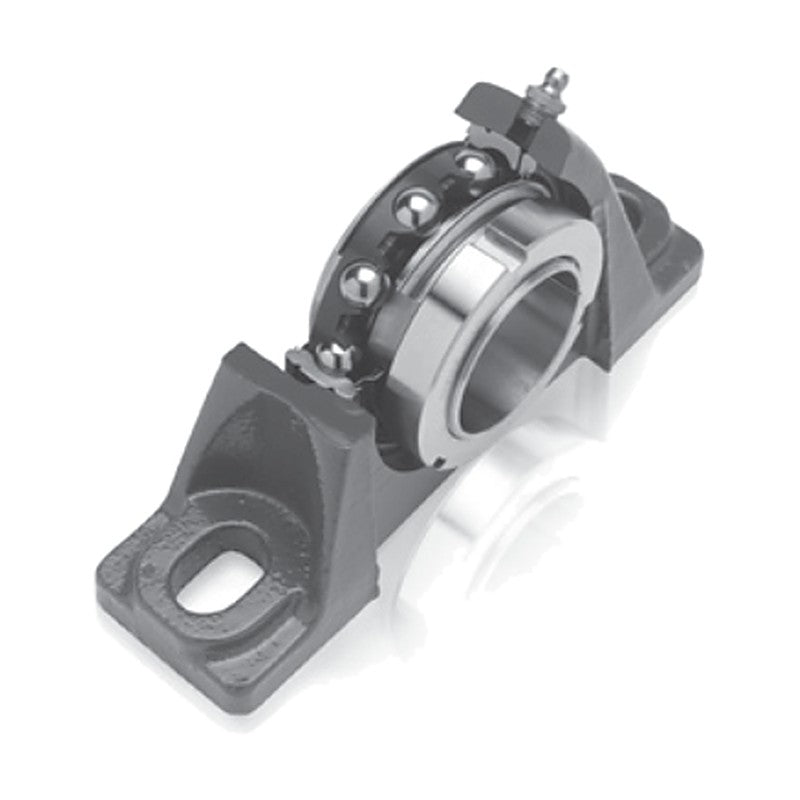

DODGE SC Set Screw Cylindrical Unit (7/8-1-7/16 in)

DODGE SC Set Screw Cylindrical Unit (7/8-1-7/16 in)

DODGE SC/SCM/SL set screw mounted ball bearings cover light, normal and medium duty applications in a wide range of housing styles.

Key features

  • 65° set screw design balances locking force and inner ring stress
  • Light duty (SL), normal duty (SC) and medium duty (SCM) inner rings
  • DualGuard seal with rubberized flinger standard on SC/SCM
  • Fiberglass-reinforced nylon ball cage
  • Anti-rotation pin (SC, SCM) simplifies insert replacement
  • Options: no-lube sealed for life (NL), high temperature (HT)

Specifications

Brand DODGE
Product line SC/SCM/SL set screw
Housing style Cylindrical cartridge unit
Housing material cast iron
Locking Set screw (65°)
Shaft range 7/8-1-7/16 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 4-75
CYL-SC-014 Series: 205 | Shaft: 7/8 in | Part no.: 124394
CYL-SC-015 Series: 205 | Shaft: 15/16 in | Part no.: 124148
CYL-SC-100 Series: 205 | Shaft: 1 in | Part no.: 124149
CYL-SC-101 Series: 206 | Shaft: 1-1/16 in | Part no.: 124427
CYL-SC-102 Series: 206 | Shaft: 1-1/8 in | Part no.: 124428
CYL-SC-103 Series: 206 | Shaft: 1-3/16 in | Part no.: 124250
CYL-SC-104S Series: 206 | Shaft: 1-1/4 in | Part no.: 123177
CYL-SC-104 Series: 207 | Shaft: 1-1/4 in | Part no.: 124251
CYL-SC-105 Series: 207 | Shaft: 1-5/16 in | Part no.: 124429
CYL-SC-106 Series: 207 | Shaft: 1-3/8 in | Part no.: 124430
CYL-SC-107 Series: 207 | Shaft: 1-7/16 in | Part no.: 124253
Mounted Bearing UnitsDODGE
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE SC Set Screw Cylindrical Unit (7/8-1-7/16 in)

Brand DODGE·Mounted Bearing Units

Available part numbers (11)

CYL-SC-014, CYL-SC-015, CYL-SC-100, CYL-SC-101, CYL-SC-102, CYL-SC-103, CYL-SC-104S, CYL-SC-104, CYL-SC-105, CYL-SC-106 + 1 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CYL-SC-014Series: 205 | Shaft: 7/8 in | Part no.: 124394
CYL-SC-015Series: 205 | Shaft: 15/16 in | Part no.: 124148
CYL-SC-100Series: 205 | Shaft: 1 in | Part no.: 124149
CYL-SC-101Series: 206 | Shaft: 1-1/16 in | Part no.: 124427
CYL-SC-102Series: 206 | Shaft: 1-1/8 in | Part no.: 124428
CYL-SC-103Series: 206 | Shaft: 1-3/16 in | Part no.: 124250
CYL-SC-104SSeries: 206 | Shaft: 1-1/4 in | Part no.: 123177
CYL-SC-104Series: 207 | Shaft: 1-1/4 in | Part no.: 124251
CYL-SC-105Series: 207 | Shaft: 1-5/16 in | Part no.: 124429
CYL-SC-106Series: 207 | Shaft: 1-3/8 in | Part no.: 124430
CYL-SC-107Series: 207 | Shaft: 1-7/16 in | Part no.: 124253
