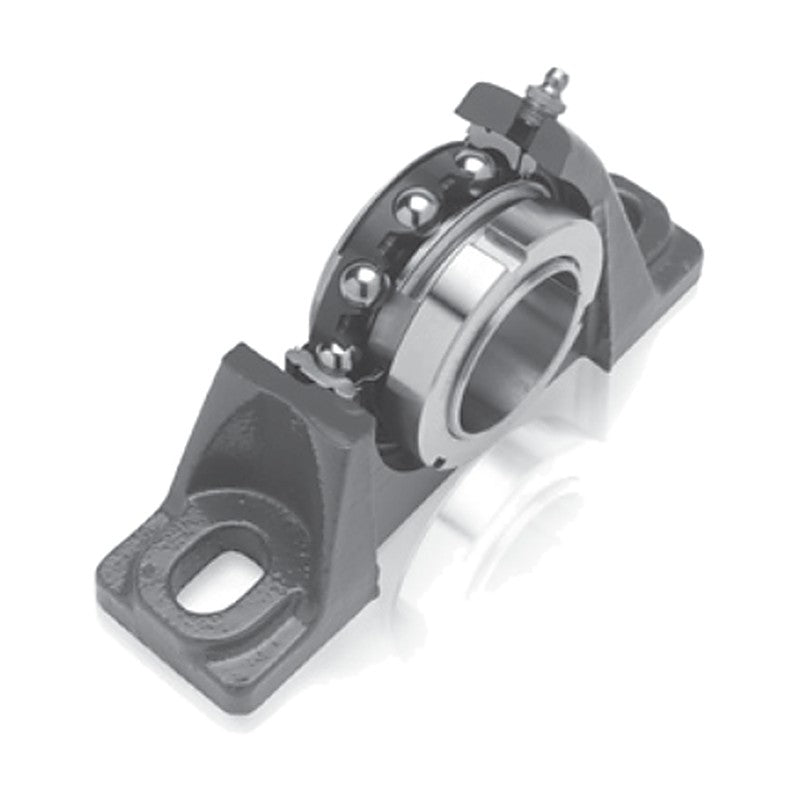

DODGE SC Set Screw Tapped Base Pillow Block (20-55 mm, 1/2-2-1/4 in)

DODGE SC Set Screw Tapped Base Pillow Block (20-55 mm, 1/2-2-1/4 in)

DODGE SC/SCM/SL set screw mounted ball bearings cover light, normal and medium duty applications in a wide range of housing styles.

Key features

  • 65° set screw design balances locking force and inner ring stress
  • Light duty (SL), normal duty (SC) and medium duty (SCM) inner rings
  • DualGuard seal with rubberized flinger standard on SC/SCM
  • Fiberglass-reinforced nylon ball cage
  • Anti-rotation pin (SC, SCM) simplifies insert replacement
  • Options: no-lube sealed for life (NL), high temperature (HT)

Specifications

Brand DODGE
Product line SC/SCM/SL set screw
Housing style Tapped base pillow block
Housing material cast iron
Locking Set screw (65°)
Shaft range 20-55 mm, 1/2-2-1/4 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 4-28
TB-SC-20M Series: 204 | Shaft: 20 mm | Part no.: 130354
TB-SC-008 Series: 204 | Shaft: 1/2 in | Part no.: 124460
TB-SC-010 Series: 204 | Shaft: 5/8 in | Part no.: 124461
TB-SC-012 Series: 204 | Shaft: 3/4 in | Part no.: 124462
TB-SC-25M Series: 205 | Shaft: 25 mm | Part no.: 130355
TB-SC-014 Series: 205 | Shaft: 7/8 in | Part no.: 124463
TB-SC-015 Series: 205 | Shaft: 15/16 in | Part no.: 124464
TB-SC-100 Series: 205 | Shaft: 1 in | Part no.: 124465
TB-SC-30M Series: 206 | Shaft: 30 mm | Part no.: 130356
TB-SC-101 Series: 206 | Shaft: 1-1/16 in | Part no.: 124466
TB-SC-102 Series: 206 | Shaft: 1-1/8 in | Part no.: 124467
TB-SC-103 Series: 206 | Shaft: 1-3/16 in | Part no.: 124468
TB-SC-104S Series: 206 | Shaft: 1-1/4 in | Part no.: 124469
TB-SC-35M Series: 207 | Shaft: 35 mm | Part no.: 130357
TB-SC-104 Series: 207 | Shaft: 1-1/4 in | Part no.: 124470
TB-SC-105 Series: 207 | Shaft: 1-5/16 in | Part no.: 124471
TB-SC-106 Series: 207 | Shaft: 1-3/8 in | Part no.: 124472
TB-SC-107 Series: 207 | Shaft: 1-7/16 in | Part no.: 124473
TB-SC-40M Series: 208 | Shaft: 40 mm | Part no.: 130358
TB-SC-108 Series: 208 | Shaft: 1-1/2 in | Part no.: 124479
TB-SC-110 Series: 208 | Shaft: 1-5/8 in | Part no.: 128998
TB-SC-45M Series: 209 | Shaft: 45 mm | Part no.: 130359
TB-SC-110L Series: 209 | Shaft: 1-5/8 in | Part no.: 049859
TB-SC-111 Series: 209 | Shaft: 1-11/16 in | Part no.: 054548
TB-SC-112 Series: 209 | Shaft: 1-3/4 in | Part no.: 054781
TB-SC-50M Series: 210 | Shaft: 50 mm | Part no.: 130360
TB-SC-115 Series: 210 | Shaft: 1-15/16 in | Part no.: 124478
TB-SC-200 Series: 210 | Shaft: 2 in | Part no.: 052472
TB-SC-55M Series: 211 | Shaft: 55 mm | Part no.: 130361
TB-SC-200L Series: 211 | Shaft: 2 in | Part no.: 124480
TB-SC-203 Series: 211 | Shaft: 2-3/16 in | Part no.: 050386
TB-SC-204 Series: 211 | Shaft: 2-1/4 in | Part no.: 054436
Mounted Bearing UnitsDODGE
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE SC Set Screw Tapped Base Pillow Block (20-55 mm, 1/2-2-1/4 in)

Brand DODGE·Mounted Bearing Units

Available part numbers (32)

TB-SC-20M, TB-SC-008, TB-SC-010, TB-SC-012, TB-SC-25M, TB-SC-014, TB-SC-015, TB-SC-100, TB-SC-30M, TB-SC-101 + 22 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
