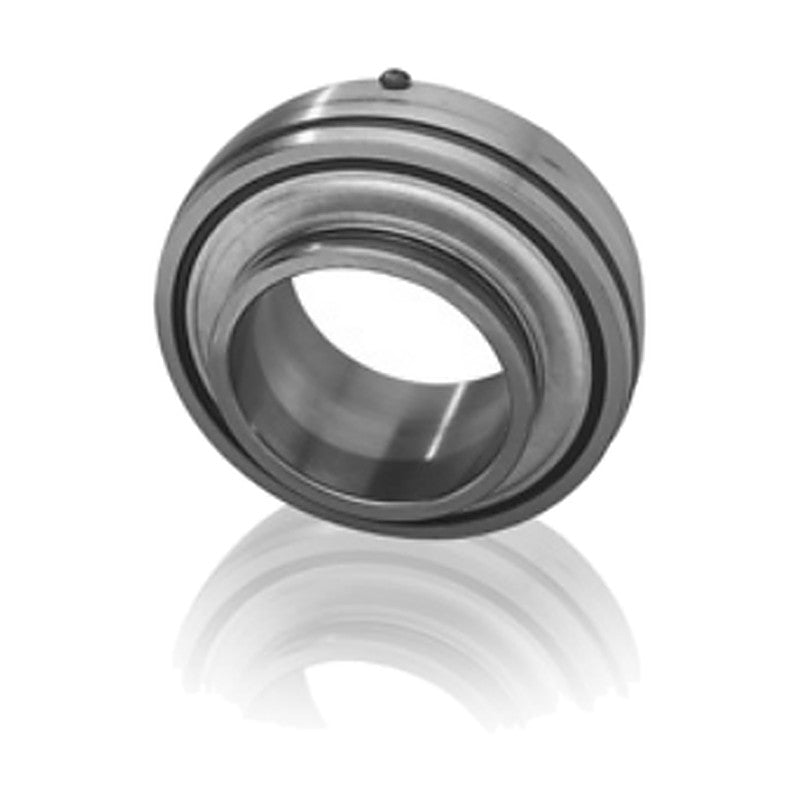

• DODGE SCM Medium Duty Bearing Insert (25-85 mm, 1-3-1/2 in)
1 1

DODGE SCM Medium Duty Bearing Insert (25-85 mm, 1-3-1/2 in)

DODGE SCM Medium Duty Bearing Insert (25-85 mm, 1-3-1/2 in)

DODGE SC/SCM/SL set screw mounted ball bearings cover light, normal and medium duty applications in a wide range of housing styles.

Key features

  • 65° set screw design balances locking force and inner ring stress
  • Light duty (SL), normal duty (SC) and medium duty (SCM) inner rings
  • DualGuard seal with rubberized flinger standard on SC/SCM
  • Fiberglass-reinforced nylon ball cage
  • Anti-rotation pin (SC, SCM) simplifies insert replacement
  • Options: no-lube sealed for life (NL), high temperature (HT)

Specifications

Brand DODGE
Product line SC/SCM/SL set screw
Housing style Bearing insert
Locking Set screw (65°)
Shaft range 25-85 mm, 1-3-1/2 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 4-82
INS-SCM-25M Series: 206 | Shaft: 25 mm | Variant: Standard | Part no.: 125825
INS-SCM-25M-HT Series: 206 | Shaft: 25 mm | Variant: High temperature | Part no.: Assembled to order
INS-SCM-100 Series: 206 | Shaft: 1 in | Variant: Standard | Part no.: 123419
INS-SCM-100-HT Series: 206 | Shaft: 1 in | Variant: High temperature | Part no.: Assembled to order
INS-SCM-30M Series: 207 | Shaft: 30 mm | Variant: Standard | Part no.: 125826
INS-SCM-30M-HT Series: 207 | Shaft: 30 mm | Variant: High temperature | Part no.: Assembled to order
INS-SCM-103 Series: 207 | Shaft: 1-3/16 in | Variant: Standard | Part no.: 123420
INS-SCM-103-HT Series: 207 | Shaft: 1-3/16 in | Variant: High temperature | Part no.: Assembled to order
INS-SCM-35M Series: 208 | Shaft: 35 mm | Variant: Standard | Part no.: 125828
INS-SCM-35M-HT Series: 208 | Shaft: 35 mm | Variant: High temperature | Part no.: Assembled to order
INS-SCM-107 Series: 208 | Shaft: 1-7/16 in | Variant: Standard | Part no.: 123353
INS-SCM-107-HT Series: 208 | Shaft: 1-7/16 in | Variant: High temperature | Part no.: 049945
INS-SCM-40M Series: 209 | Shaft: 40 mm | Variant: Standard | Part no.: 125830
INS-SCM-40M-HT Series: 209 | Shaft: 40 mm | Variant: High temperature | Part no.: Assembled to order
INS-SCM-108 Series: 209 | Shaft: 1-1/2 in | Variant: Standard | Part no.: 123354
INS-SCM-108-HT Series: 209 | Shaft: 1-1/2 in | Variant: High temperature | Part no.: 068889
INS-SCM-45M Series: 210 | Shaft: 45 mm | Variant: Standard | Part no.: 125832
INS-SCM-45M-HT Series: 210 | Shaft: 45 mm | Variant: High temperature | Part no.: Assembled to order
INS-SCM-111 Series: 210 | Shaft: 1-11/16 in | Variant: Standard | Part no.: 123355
INS-SCM-111-HT Series: 210 | Shaft: 1-11/16 in | Variant: High temperature | Part no.: Assembled to order
INS-SCM-112 Series: 210 | Shaft: 1-3/4 in | Variant: Standard | Part no.: 123356
INS-SCM-112-HT Series: 210 | Shaft: 1-3/4 in | Variant: High temperature | Part no.: Assembled to order
INS-SCM-50M Series: 211 | Shaft: 50 mm | Variant: Standard | Part no.: 125834
INS-SCM-50M-HT Series: 211 | Shaft: 50 mm | Variant: High temperature | Part no.: Assembled to order
INS-SCM-115 Series: 211 | Shaft: 1-15/16 in | Variant: Standard | Part no.: 123357
INS-SCM-115-HT Series: 211 | Shaft: 1-15/16 in | Variant: High temperature | Part no.: 068404
INS-SCM-55M Series: 212 | Shaft: 55 mm | Variant: Standard | Part no.: 125836
INS-SCM-55M-HT Series: 212 | Shaft: 55 mm | Variant: High temperature | Part no.: Assembled to order
INS-SCM-203 Series: 212 | Shaft: 2-3/16 in | Variant: Standard | Part no.: 123359
INS-SCM-203-HT Series: 212 | Shaft: 2-3/16 in | Variant: High temperature | Part no.: Assembled to order
INS-SCM-65M Series: 214 | Shaft: 60 mm | Variant: Standard | Part no.: 125838
INS-SCM-65M-HT Series: 214 | Shaft: 60 mm | Variant: High temperature | Part no.: Assembled to order
INS-SCM-207 Series: 214 | Shaft: 2-7/16 in | Variant: Standard | Part no.: 123361
INS-SCM-207-HT Series: 214 | Shaft: 2-7/16 in | Variant: High temperature | Part no.: 056912
INS-SCM-70M Series: 215 | Shaft: 70 mm | Variant: Standard | Part no.: 125840
INS-SCM-70M-HT Series: 215 | Shaft: 70 mm | Variant: High temperature | Part no.: Assembled to order
INS-SCM-211 Series: 215 | Shaft: 2-11/16 in | Variant: Standard | Part no.: 123363
INS-SCM-211-HT Series: 215 | Shaft: 2-11/16 in | Variant: High temperature | Part no.: Assembled to order
INS-SCM-75M Series: 216 | Shaft: 75 mm | Variant: Standard | Part no.: 125842
INS-SCM-75M-HT Series: 216 | Shaft: 75 mm | Variant: High temperature | Part no.: Assembled to order
INS-SCM-215 Series: 216 | Shaft: 2-15/16 in | Variant: Standard | Part no.: 123364
INS-SCM-215-HT Series: 216 | Shaft: 2-15/16 in | Variant: High temperature | Part no.: 049918
INS-SCM-300 Series: 216 | Shaft: 3 in | Variant: Standard | Part no.: 123365
INS-SCM-300-HT Series: 216 | Shaft: 3 in | Variant: High temperature | Part no.: Assembled to order
INS-SCM-85M Series: 218 | Shaft: 85 mm | Variant: Standard | Part no.: 125844
INS-SCM-85M-HT Series: 218 | Shaft: 85 mm | Variant: High temperature | Part no.: 062570
INS-SCM-307 Series: 218 | Shaft: 3-7/16 in | Variant: Standard | Part no.: 123366
INS-SCM-307-HT Series: 218 | Shaft: 3-7/16 in | Variant: High temperature | Part no.: Assembled to order
INS-SCM-308 Series: 218 | Shaft: 3-1/2 in | Variant: Standard | Part no.: 123367
INS-SCM-308-HT Series: 218 | Shaft: 3-1/2 in | Variant: High temperature | Part no.: Assembled to order
