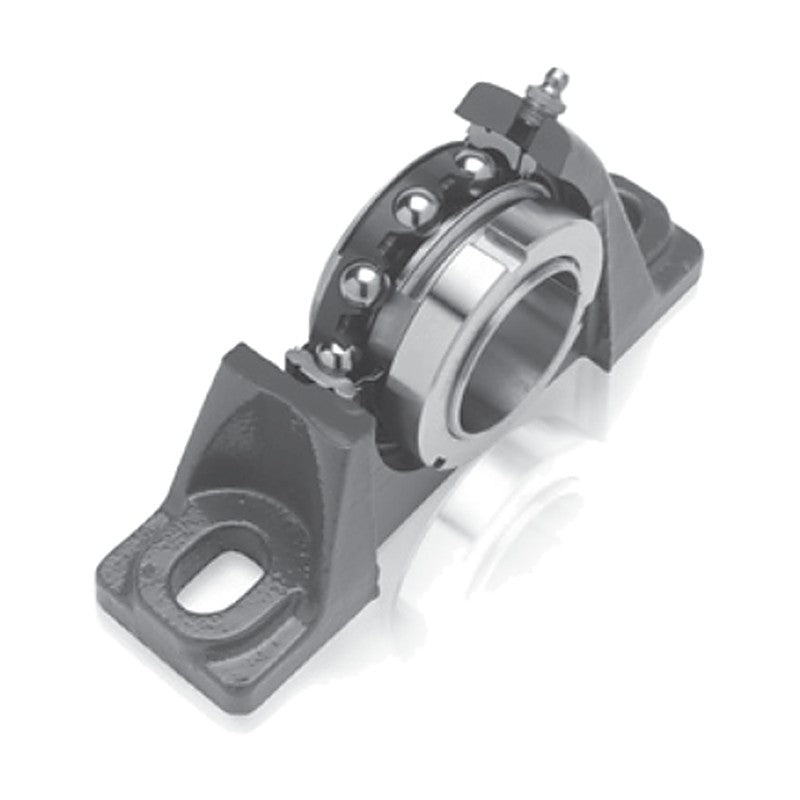

DODGE SCM Set Screw Wide Slot Take-Up (25-75 mm, 1-3 in)

DODGE SCM Set Screw Wide Slot Take-Up (25-75 mm, 1-3 in)

DODGE SC/SCM/SL set screw mounted ball bearings cover light, normal and medium duty applications in a wide range of housing styles.

Key features

  • 65° set screw design balances locking force and inner ring stress
  • Light duty (SL), normal duty (SC) and medium duty (SCM) inner rings
  • DualGuard seal with rubberized flinger standard on SC/SCM
  • Fiberglass-reinforced nylon ball cage
  • Anti-rotation pin (SC, SCM) simplifies insert replacement
  • Options: no-lube sealed for life (NL), high temperature (HT)

Specifications

Brand DODGE
Product line SC/SCM/SL set screw
Housing style Wide slot take-up
Housing material cast iron
Locking Set screw (65°)
Shaft range 25-75 mm, 1-3 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 4-66 to 4-68
WSTU-SCM-25M Series: 206 | Shaft: 25 mm | Part no.: 125989
WSTU-SCM-100 Series: 206 | Shaft: 1 in | Part no.: 135117
WSTU-SCM-30M Series: 207 | Shaft: 30 mm | Part no.: 125990
WSTU-SCM-103 Series: 207 | Shaft: 1-3/16 in | Part no.: 135118
WSTU-SCM-35M Series: 208 | Shaft: 35 mm | Part no.: 125991
WSTU-SCM-107 Series: 208 | Shaft: 1-7/16 in | Part no.: 135116
WSTU-SCM-40M Series: 209 | Shaft: 40 mm | Part no.: 125992
WSTU-SCM-108 Series: 209 | Shaft: 1-1/2 in | Part no.: 135120
WSTU-SCM-45M Series: 210 | Shaft: 45 mm | Part no.: 125993
WSTU-SCM-111 Series: 210 | Shaft: 1-11/16 in | Part no.: 135121
WSTU-SCM-112 Series: 210 | Shaft: 1-3/4 in | Part no.: 135182
WSTU-SCM-50M Series: 211 | Shaft: 50 mm | Part no.: 125994
WSTU-SCM-115 Series: 211 | Shaft: 1-15/16 in | Part no.: 135123
WSTU-SCM-55M Series: 212 | Shaft: 55 mm | Part no.: 125995
WSTU-SCM-203 Series: 212 | Shaft: 2-3/16 in | Part no.: 135125
WSTU-SCM-65M Series: 214 | Shaft: 65 mm | Part no.: 125996
WSTU-SCM-207 Series: 214 | Shaft: 2-7/16 in | Part no.: 135127
WSTU-SCM-70M Series: 215 | Shaft: 70 mm | Part no.: 125997
WSTU-SCM-211 Series: 215 | Shaft: 2-11/16 in | Part no.: 135129
WSTU-SCM-75M Series: 216 | Shaft: 75 mm | Part no.: 125998
WSTU-SCM-215 Series: 216 | Shaft: 2-15/16 in | Part no.: 135130
WSTU-SCM-300 Series: 216 | Shaft: 3 in | Part no.: 135181
Mounted Bearing UnitsDODGE
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE SCM Set Screw Wide Slot Take-Up (25-75 mm, 1-3 in)

Brand DODGE·Mounted Bearing Units

Available part numbers (22)

WSTU-SCM-25M, WSTU-SCM-100, WSTU-SCM-30M, WSTU-SCM-103, WSTU-SCM-35M, WSTU-SCM-107, WSTU-SCM-40M, WSTU-SCM-108, WSTU-SCM-45M, WSTU-SCM-111 + 12 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WSTU-SCM-25MSeries: 206 | Shaft: 25 mm | Part no.: 125989
WSTU-SCM-100Series: 206 | Shaft: 1 in | Part no.: 135117
WSTU-SCM-30MSeries: 207 | Shaft: 30 mm | Part no.: 125990
WSTU-SCM-103Series: 207 | Shaft: 1-3/16 in | Part no.: 135118
WSTU-SCM-35MSeries: 208 | Shaft: 35 mm | Part no.: 125991
WSTU-SCM-107Series: 208 | Shaft: 1-7/16 in | Part no.: 135116
WSTU-SCM-40MSeries: 209 | Shaft: 40 mm | Part no.: 125992
WSTU-SCM-108Series: 209 | Shaft: 1-1/2 in | Part no.: 135120
WSTU-SCM-45MSeries: 210 | Shaft: 45 mm | Part no.: 125993
WSTU-SCM-111Series: 210 | Shaft: 1-11/16 in | Part no.: 135121
WSTU-SCM-112Series: 210 | Shaft: 1-3/4 in | Part no.: 135182
WSTU-SCM-50MSeries: 211 | Shaft: 50 mm | Part no.: 125994
WSTU-SCM-115Series: 211 | Shaft: 1-15/16 in | Part no.: 135123
WSTU-SCM-55MSeries: 212 | Shaft: 55 mm | Part no.: 125995
WSTU-SCM-203Series: 212 | Shaft: 2-3/16 in | Part no.: 135125
WSTU-SCM-65MSeries: 214 | Shaft: 65 mm | Part no.: 125996
WSTU-SCM-207Series: 214 | Shaft: 2-7/16 in | Part no.: 135127
WSTU-SCM-70MSeries: 215 | Shaft: 70 mm | Part no.: 125997
WSTU-SCM-211Series: 215 | Shaft: 2-11/16 in | Part no.: 135129
WSTU-SCM-75MSeries: 216 | Shaft: 75 mm | Part no.: 125998
WSTU-SCM-215Series: 216 | Shaft: 2-15/16 in | Part no.: 135130
WSTU-SCM-300Series: 216 | Shaft: 3 in | Part no.: 135181
