• DODGE Snap-On End Covers for Cast Iron Ball Bearing Housings
1 1

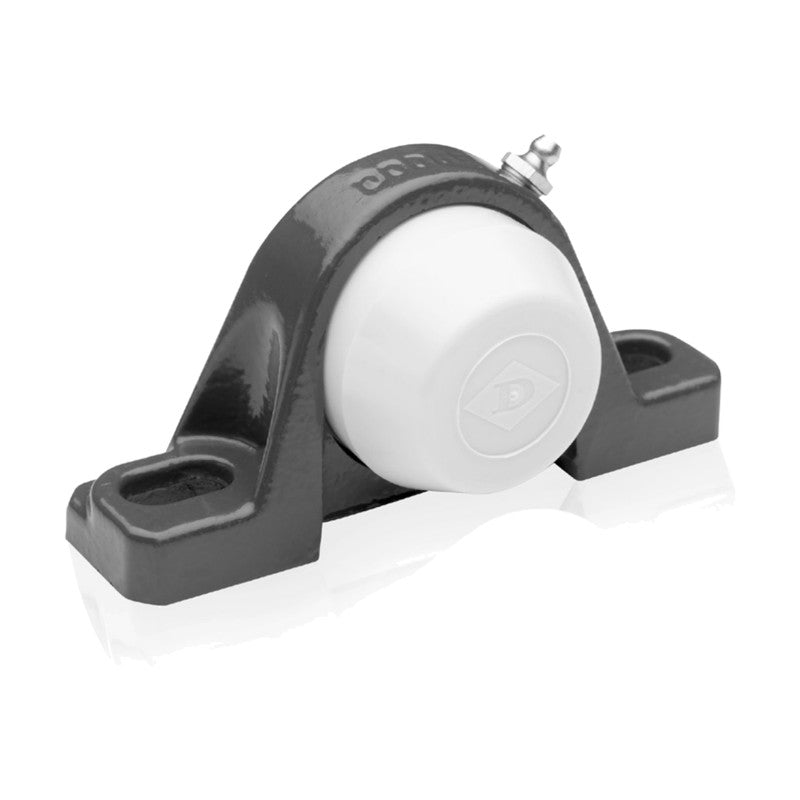

DODGE Snap-On End Covers for Cast Iron Ball Bearing Housings

DODGE Snap-On End Covers for Cast Iron Ball Bearing Housings

DODGE snap-on end covers for cast iron housed mounted ball bearings, in closed and open (shaft-through) versions by housing series.

Key features

  • Closed covers fully enclose the shaft end; open covers allow a through shaft
  • Snap-on design with mounting lip for a rigid fit in the housing groove
  • Drain hole prevents moisture collecting inside the cover
  • Improve sealing in wet environments and enclose rotating shafts for safety

Specifications

Brand DODGE
Product Snap-on end cover
Versions Closed and open
Series range 204-218
Color OSHA yellow
Fits DODGE cast iron ball bearing housings
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 3-44
EC-204-Y Series: 204 | Shaft: n/a (closed) | Type: Closed cover | Part no.: 128280
ECO-20M-Y Series: 204 | Shaft: 20 mm | Type: Open cover | Part no.: 128363
ECO-012-Y Series: 204 | Shaft: 3/4 in | Type: Open cover | Part no.: 128350
EC-205-Y Series: 205 | Shaft: n/a (closed) | Type: Closed cover | Part no.: 128281
ECO-25M-Y Series: 205 | Shaft: 25 mm | Type: Open cover | Part no.: 128364
ECO-100-Y Series: 205 | Shaft: 1 in | Type: Open cover | Part no.: 128351
EC-206-Y Series: 206 | Shaft: n/a (closed) | Type: Closed cover | Part no.: 128282
ECO-30M-Y Series: 206 | Shaft: 30 mm | Type: Open cover | Part no.: 128365
ECO-103-Y Series: 206 | Shaft: 1-3/16 in | Type: Open cover | Part no.: 128352
ECO-104S-Y Series: 206 | Shaft: 1-1/4 in | Type: Open cover | Part no.: 128353
EC-207-Y Series: 207 | Shaft: n/a (closed) | Type: Closed cover | Part no.: 128283
ECO-35M-Y Series: 207 | Shaft: 35 mm | Type: Open cover | Part no.: 128366
ECO-104-Y Series: 207 | Shaft: 1-1/4 in | Type: Open cover | Part no.: 128355
ECO-107-Y Series: 207 | Shaft: 1-7/16 in | Type: Open cover | Part no.: 128354
EC-208-Y Series: 208 | Shaft: n/a (closed) | Type: Closed cover | Part no.: 128284
ECO-40M-Y Series: 208 | Shaft: 40 mm | Type: Open cover | Part no.: 128367
ECO-108-Y Series: 208 | Shaft: 1-1/2 in | Type: Open cover | Part no.: 128356
EC-209-Y Series: 209 | Shaft: n/a (closed) | Type: Closed cover | Part no.: 128285
ECO-45M-Y Series: 209 | Shaft: 45 mm | Type: Open cover | Part no.: 128368
ECO-111-Y Series: 209 | Shaft: 1-11/16 in | Type: Open cover | Part no.: 128357
EC-210-Y Series: 210 | Shaft: n/a (closed) | Type: Closed cover | Part no.: 128286
ECO-50M-Y Series: 210 | Shaft: 50 mm | Type: Open cover | Part no.: 128369
ECO-115-Y Series: 210 | Shaft: 1-15/16 in | Type: Open cover | Part no.: 128358
EC-211-Y Series: 211 | Shaft: n/a (closed) | Type: Closed cover | Part no.: 128277
ECO-50M (211) Series: 211 | Shaft: 50 mm | Type: Open cover | Part no.: 079698
ECO-55M (211) Series: 211 | Shaft: 55 mm | Type: Open cover | Part no.: 079697
ECO-115 (211) Series: 211 | Shaft: 1-15/16 in | Type: Open cover | Part no.: 079702
ECO-200 (211) Series: 211 | Shaft: 2 in | Type: Open cover | Part no.: 079701
ECO-203 (211) Series: 211 | Shaft: 2-3/16 in | Type: Open cover | Part no.: 079700
ECO-204 (211) Series: 211 | Shaft: 2-1/4 in | Type: Open cover | Part no.: 079699
EC-212-Y Series: 212 | Shaft: n/a (closed) | Type: Closed cover | Part no.: 128278
ECO-55M (212) Series: 212 | Shaft: 55 mm | Type: Open cover | Part no.: 079693
ECO-60M (212) Series: 212 | Shaft: 60 mm | Type: Open cover | Part no.: 079692
ECO-203 (212) Series: 212 | Shaft: 2-3/16 in | Type: Open cover | Part no.: 079696
ECO-204 (212) Series: 212 | Shaft: 2-1/4 in | Type: Open cover | Part no.: 079695
ECO-207 (212) Series: 212 | Shaft: 2-7/16 in | Type: Open cover | Part no.: 079694
EC-214 Series: 214 | Shaft: n/a (closed) | Type: Closed cover | Part no.: 128220
ECO-65M (214) Series: 214 | Shaft: 65 mm | Type: Open cover | Part no.: 127337
ECO-70M (214) Series: 214 | Shaft: 70 mm | Type: Open cover | Part no.: 127338
ECO-207 (214) Series: 214 | Shaft: 2-7/16 in | Type: Open cover | Part no.: 127328
ECO-208 (214) Series: 214 | Shaft: 2-1/2 in | Type: Open cover | Part no.: 127329
ECO-211 (214) Series: 214 | Shaft: 2-11/16 in | Type: Open cover | Part no.: 127330
EC-215 Series: 215 | Shaft: n/a (closed) | Type: Closed cover | Part no.: 128221
ECO-70M (215) Series: 215 | Shaft: 70 mm | Type: Open cover | Part no.: 127339
ECO-75M (215) Series: 215 | Shaft: 75 mm | Type: Open cover | Part no.: 127340
ECO-211 (215) Series: 215 | Shaft: 2-11/16 in | Type: Open cover | Part no.: 127331
ECO-215 (215) Series: 215 | Shaft: 2-15/16 in | Type: Open cover | Part no.: 127332
EC-216 Series: 216 | Shaft: n/a (closed) | Type: Closed cover | Part no.: 128222
ECO-75M (216) Series: 216 | Shaft: 75 mm | Type: Open cover | Part no.: 127340
ECO-215 (216) Series: 216 | Shaft: 2-15/16 in | Type: Open cover | Part no.: 127333
ECO-300 (216) Series: 216 | Shaft: 3 in | Type: Open cover | Part no.: 127334
EC-218 Series: 218 | Shaft: n/a (closed) | Type: Closed cover | Part no.: 128223
ECO-85M (218) Series: 218 | Shaft: 85 mm | Type: Open cover | Part no.: 127342
ECO-90M (218) Series: 218 | Shaft: 90 mm | Type: Open cover | Part no.: 127343
ECO-307 (218) Series: 218 | Shaft: 3-7/16 in | Type: Open cover | Part no.: 127335
ECO-308 (218) Series: 218 | Shaft: 3-1/2 in | Type: Open cover | Part no.: 127336
