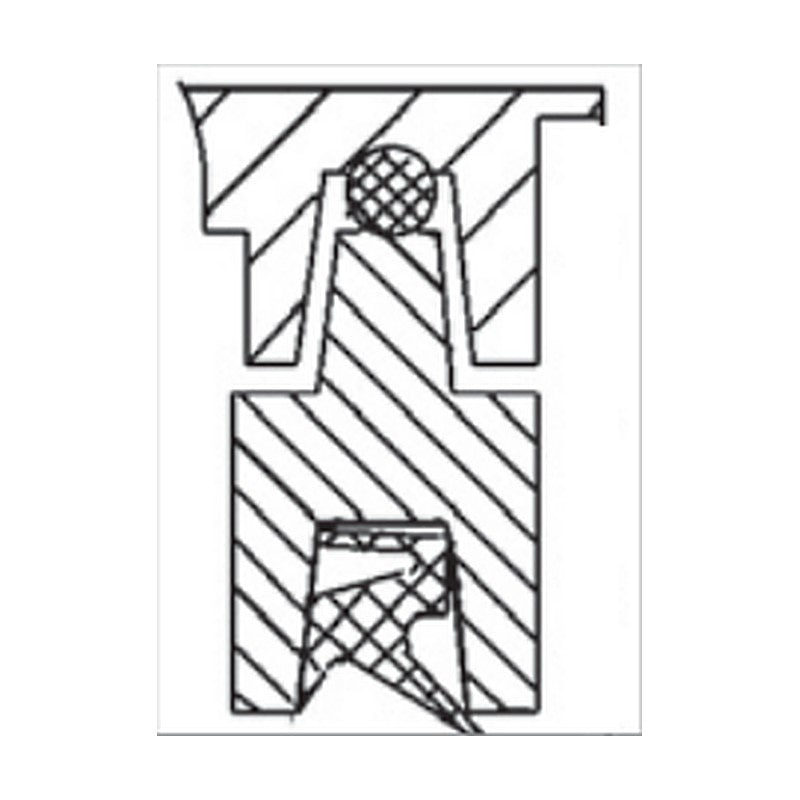

DODGE SNX/SDX Plummer Block Seals & End Covers

DODGE SNX/SDX Plummer Block Seals & End Covers

Seals, seal kits and end covers for DODGE SNX and SDX plummer block housings: LD two-lip, felt, V-ring, TS labyrinth, TT Triple-tect and DK/EC end covers.

Key features

  • LD split two-lip radial seals
  • Felt strips and V-ring seals (FS, VR)
  • TS labyrinth and TT Triple-tect / Taconite seals
  • DK and EC end covers to close the housing
  • Selected by housing size per the SNX/SDX tables

Specifications

Brand DODGE
Product line SNX / SDX plummer blocks
Units mm
Housing material Cast iron (GG)
Selection By housing size per catalogue table
Ordering DODGE part number per code
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 6-24 to 6-43
TS 209 For housing: SNX 209 | Component: Labyrinth seal (TS) | Part no.: 747234
TT 209 For housing: SNX 209 | Component: Triple-tect seal (TT) | Part no.: 747217
TS 210 For housing: SNX 210 | Component: Labyrinth seal (TS) | Part no.: 747235
TT 210 For housing: SNX 210 | Component: Triple-tect seal (TT) | Part no.: 747218
TS 211 For housing: SNX 211 | Component: Labyrinth seal (TS) | Part no.: 747236
TT 211 For housing: SNX 211 | Component: Triple-tect seal (TT) | Part no.: 747219
TS 212 For housing: SNX 212 | Component: Labyrinth seal (TS) | Part no.: 747237
TT 212 For housing: SNX 212 | Component: Triple-tect seal (TT) | Part no.: 747220
TS 213 For housing: SNX 213 | Component: Labyrinth seal (TS) | Part no.: 747238
TT 213 For housing: SNX 213 | Component: Triple-tect seal (TT) | Part no.: 747221
TS 215 For housing: SNX 215 | Component: Labyrinth seal (TS) | Part no.: 747239
TT 215 For housing: SNX 215 | Component: Triple-tect seal (TT) | Part no.: 747222
TS 216 For housing: SNX 216 | Component: Labyrinth seal (TS) | Part no.: 747240
TT 216 For housing: SNX 216 | Component: Triple-tect seal (TT) | Part no.: 747223
TS 217 For housing: SNX 217 | Component: Labyrinth seal (TS) | Part no.: 747241
TT 217 For housing: SNX 217 | Component: Triple-tect seal (TT) | Part no.: 747224
TS 218 For housing: SNX 218 | Component: Labyrinth seal (TS) | Part no.: 747242
TT 218 For housing: SNX 218 | Component: Triple-tect seal (TT) | Part no.: 747225
TS 219 For housing: SNX 219 | Component: Labyrinth seal (TS) | Part no.: 747243
TT 219 For housing: SNX 219 | Component: Triple-tect seal (TT) | Part no.: 747226
TS 220 For housing: SNX 220 | Component: Labyrinth seal (TS) | Part no.: 747244
TT 220 For housing: SNX 220 | Component: Triple-tect seal (TT) | Part no.: 747227
TS 222 For housing: SNX 222 | Component: Labyrinth seal (TS) | Part no.: 747245
TT 222 For housing: SNX 222 | Component: Triple-tect seal (TT) | Part no.: 747228
TS 224 For housing: SNX 224 | Component: Labyrinth seal (TS) | Part no.: 747246
TT 224 For housing: SNX 224 | Component: Triple-tect seal (TT) | Part no.: 747229
TS 226 For housing: SNX 226 | Component: Labyrinth seal (TS) | Part no.: 747247
TT 226 For housing: SNX 226 | Component: Triple-tect seal (TT) | Part no.: 747230
TS 228 For housing: SNX 228 | Component: Labyrinth seal (TS) | Part no.: 747248
TT 228 For housing: SNX 228 | Component: Triple-tect seal (TT) | Part no.: 747231
TS 230 For housing: SNX 230 | Component: Labyrinth seal (TS) | Part no.: 747249
TT 230 For housing: SNX 230 | Component: Triple-tect seal (TT) | Part no.: 747232
TS 232 For housing: SNX 232 | Component: Labyrinth seal (TS) | Part no.: 747250
TT 232 For housing: SNX 232 | Component: Triple-tect seal (TT) | Part no.: 747233
6.5X8X200 For housing: SNX 209 | Component: Felt strip | Part no.: 713600
VS0055 For housing: SNX 209 | Component: V-ring seal | Part no.: 738145
DK 55 For housing: SNX 209 | Component: DK end cover | Part no.: 709137
LD 60 For housing: SNX 210 | Component: LD two-lip seal | Part no.: 725358
6.5X8X230 For housing: SNX 210 | Component: Felt strip | Part no.: 713616
VS0060 For housing: SNX 210 | Component: V-ring seal | Part no.: 738146
DK 60 For housing: SNX 210 | Component: DK end cover | Part no.: 709140
LD 65 For housing: SNX 211 | Component: LD two-lip seal | Part no.: 725359
VS0065 For housing: SNX 211 | Component: V-ring seal | Part no.: 738147
DK 65 For housing: SNX 211 | Component: DK end cover | Part no.: 709143
LD 70 For housing: SNX 212 | Component: LD two-lip seal | Part no.: 725360
7.5X9X260 For housing: SNX 212 | Component: Felt strip | Part no.: 713633
VS0070 For housing: SNX 212 | Component: V-ring seal | Part no.: 738148
DK 70 For housing: SNX 212 | Component: DK end cover | Part no.: 709146
LD 75 For housing: SNX 213 | Component: LD two-lip seal | Part no.: 725361
VS0075 For housing: SNX 213 | Component: V-ring seal | Part no.: 738149
DK 75 For housing: SNX 213 | Component: DK end cover | Part no.: 709152
LD 85 For housing: SNX 215 | Component: LD two-lip seal | Part no.: 725363
7.5X9X155 For housing: SNX 215 | Component: Felt strip | Part no.: 713571
VS0085 For housing: SNX 215 | Component: V-ring seal | Part no.: 738151
DK 85 For housing: SNX 215 | Component: DK end cover | Part no.: 709162
LD 90 For housing: SNX 216 | Component: LD two-lip seal | Part no.: 725364
8.5X10X165 For housing: SNX 216 | Component: Felt strip | Part no.: 713579
VS0090 For housing: SNX 216 | Component: V-ring seal | Part no.: 738152
DK 90 For housing: SNX 216 | Component: DK end cover | Part no.: 709166
LD 95 For housing: SNX 217 | Component: LD two-lip seal | Part no.: 725366
8.5X10X175 For housing: SNX 217 | Component: Felt strip | Part no.: 713586
VS0095 For housing: SNX 217 | Component: V-ring seal | Part no.: 738154
LD 100 For housing: SNX 218 | Component: LD two-lip seal | Part no.: 725341
10X12X185 For housing: SNX 218 | Component: Felt strip | Part no.: 713588
VS0100 For housing: SNX 218 | Component: V-ring seal | Part no.: 738155
DK 100 For housing: SNX 218 | Component: DK end cover | Part no.: 708959
LD 110 For housing: SNX 219 | Component: LD two-lip seal | Part no.: 725342
10X12X200 For housing: SNX 219 | Component: Felt strip | Part no.: 713596
VS0110 For housing: SNX 219 | Component: V-ring seal | Part no.: 738157
DK 110 For housing: SNX 219 | Component: DK end cover | Part no.: 708966
LD 115 For housing: SNX 220 | Component: LD two-lip seal | Part no.: 725343
10X12X210 For housing: SNX 220 | Component: Felt strip | Part no.: 713603
VS0115 For housing: SNX 220 | Component: V-ring seal | Part no.: 738158
DK 115 For housing: SNX 220 | Component: DK end cover | Part no.: 708970
LD 125 For housing: SNX 222 | Component: LD two-lip seal | Part no.: 725344
10X12X230 For housing: SNX 222 | Component: Felt strip | Part no.: 713613
VS0125 For housing: SNX 222 | Component: V-ring seal | Part no.: 738161
DK 125 For housing: SNX 222 | Component: DK end cover | Part no.: 708976
LD 135 For housing: SNX 224 | Component: LD two-lip seal | Part no.: 725345
10X12X245 For housing: SNX 224 | Component: Felt strip | Part no.: 713622
VS0135 For housing: SNX 224 | Component: V-ring seal | Part no.: 738162
DK 135 For housing: SNX 224 | Component: DK end cover | Part no.: 708983
10X12X265 For housing: SNX 226 | Component: Felt strip | Part no.: 713634
VS0145 For housing: SNX 226 | Component: V-ring seal | Part no.: 738164
DK 145 For housing: SNX 226 | Component: DK end cover | Part no.: 740381
10X12X280 For housing: SNX 228 | Component: Felt strip | Part no.: 713641
VS0155 For housing: SNX 228 | Component: V-ring seal | Part no.: 738166
DK 155 For housing: SNX 228 | Component: DK end cover | Part no.: 740382
10X12X300 For housing: SNX 230 | Component: Felt strip | Part no.: 713647
VS0165 For housing: SNX 230 | Component: V-ring seal | Part no.: 738168
DK 165 For housing: SNX 230 | Component: DK end cover | Part no.: 740383
VS0175 For housing: SNX 232 | Component: V-ring seal | Part no.: 738170
DK 175 For housing: SNX 232 | Component: DK end cover | Part no.: 740384
SK 509 LD 40 For housing: SNX 509 | Component: LD seal kit | Part no.: 496446
SK 509 FS 40 For housing: SNX 509 | Component: Felt seal kit | Part no.: 496464
SK 510 LD 45 For housing: SNX 510 | Component: LD seal kit | Part no.: 496447
SK 510 FS 45 For housing: SNX 510 | Component: Felt seal kit | Part no.: 496465
SK 511 LD 50 For housing: SNX 511 | Component: LD seal kit | Part no.: 496448
SK 511 FS 50 For housing: SNX 511 | Component: Felt seal kit | Part no.: 496466
SK 512 LD 55 For housing: SNX 512 | Component: LD seal kit | Part no.: 496449
SK 512 FS 55 For housing: SNX 512 | Component: Felt seal kit | Part no.: 496467
SK 513 LD 60 For housing: SNX 513 | Component: LD seal kit | Part no.: 496450
SK 513 FS 60 For housing: SNX 513 | Component: Felt seal kit | Part no.: 496468
SK 515 LD 65 For housing: SNX 515 | Component: LD seal kit | Part no.: 496451
SK 515 FS 65 For housing: SNX 515 | Component: Felt seal kit | Part no.: 496469
SK 516 LD 70 For housing: SNX 516 | Component: LD seal kit | Part no.: 496452
SK 516 FS 70 For housing: SNX 516 | Component: Felt seal kit | Part no.: 496470
SK 517 LD 75 For housing: SNX 517 | Component: LD seal kit | Part no.: 496453
SK 517 FS 75 For housing: SNX 517 | Component: Felt seal kit | Part no.: 496471
SK 518 LD 80 For housing: SNX 518 | Component: LD seal kit | Part no.: 496454
SK 518 FS 80 For housing: SNX 518 | Component: Felt seal kit | Part no.: 496472
SK 519 LD 85 For housing: SNX 519 | Component: LD seal kit | Part no.: 496455
SK 519 FS 85 For housing: SNX 519 | Component: Felt seal kit | Part no.: 496473
SK 520 LD 90 For housing: SNX 520 | Component: LD seal kit | Part no.: 496456
SK 520 FS 90 For housing: SNX 520 | Component: Felt seal kit | Part no.: 496474
SK 522 LD 100 For housing: SNX 522 | Component: LD seal kit | Part no.: 496457
SK 522 FS 100 For housing: SNX 522 | Component: Felt seal kit | Part no.: 496475
SK 524 LD 110 For housing: SNX 524 | Component: LD seal kit | Part no.: 496458
SK 524 FS 110 For housing: SNX 524 | Component: Felt seal kit | Part no.: 496476
SK 526 LD 115 For housing: SNX 526 | Component: LD seal kit | Part no.: 496459
SK 526 FS 115 For housing: SNX 526 | Component: Felt seal kit | Part no.: 496477
SK 528 LD 125 For housing: SNX 528 | Component: LD seal kit | Part no.: 496460
SK 528 FS 125 For housing: SNX 528 | Component: Felt seal kit | Part no.: 496478
SK 530 LD 135 For housing: SNX 530 | Component: LD seal kit | Part no.: 496461
SK 530 FS 135 For housing: SNX 530 | Component: Felt seal kit | Part no.: 496479
SK 532 LD 140 For housing: SNX 532 | Component: LD seal kit | Part no.: 496462
SK 532 FS 140 For housing: SNX 532 | Component: Felt seal kit | Part no.: 496480
SK 509 VR 40 For housing: SNX 509 | Component: V-ring seal kit | Part no.: 496482
TS 509 For housing: SNX 509 | Component: Labyrinth seal (TS) | Part no.: 747328
TT 509 For housing: SNX 509 | Component: Triple-tect seal (TT) | Part no.: 747384
SK 510 VR 45 For housing: SNX 510 | Component: V-ring seal kit | Part no.: 496483
TS 510 For housing: SNX 510 | Component: Labyrinth seal (TS) | Part no.: 747329
TT 510 For housing: SNX 510 | Component: Triple-tect seal (TT) | Part no.: 747385
SK 511 VR 50 For housing: SNX 511 | Component: V-ring seal kit | Part no.: 496484
TS 511 For housing: SNX 511 | Component: Labyrinth seal (TS) | Part no.: 747330
TT 511 For housing: SNX 511 | Component: Triple-tect seal (TT) | Part no.: 747386
SK 512 VR 55 For housing: SNX 512 | Component: V-ring seal kit | Part no.: 496485
TS 512 For housing: SNX 512 | Component: Labyrinth seal (TS) | Part no.: 747331
TT 512 For housing: SNX 512 | Component: Triple-tect seal (TT) | Part no.: 747387
SK 513 VR 60 For housing: SNX 513 | Component: V-ring seal kit | Part no.: 496486
TS 513 For housing: SNX 513 | Component: Labyrinth seal (TS) | Part no.: 747332
TT 513 For housing: SNX 513 | Component: Triple-tect seal (TT) | Part no.: 747388
SK 515 VR 65 For housing: SNX 515 | Component: V-ring seal kit | Part no.: 496487
TS 515 For housing: SNX 515 | Component: Labyrinth seal (TS) | Part no.: 747333
TT 515 For housing: SNX 515 | Component: Triple-tect seal (TT) | Part no.: 747389
SK 516 VR 70 For housing: SNX 516 | Component: V-ring seal kit | Part no.: 496488
TS 516 For housing: SNX 516 | Component: Labyrinth seal (TS) | Part no.: 747334
TT 516 For housing: SNX 516 | Component: Triple-tect seal (TT) | Part no.: 747390
SK 517 VR 75 For housing: SNX 517 | Component: V-ring seal kit | Part no.: 496489
TS 517 For housing: SNX 517 | Component: Labyrinth seal (TS) | Part no.: 747335
TT 517 For housing: SNX 517 | Component: Triple-tect seal (TT) | Part no.: 747391
SK 518 VR 80 For housing: SNX 518 | Component: V-ring seal kit | Part no.: 496490
TS 518 For housing: SNX 518 | Component: Labyrinth seal (TS) | Part no.: 747336
TT 518 For housing: SNX 518 | Component: Triple-tect seal (TT) | Part no.: 747392
SK 519 VR 85 For housing: SNX 519 | Component: V-ring seal kit | Part no.: 496491
TS 519 For housing: SNX 519 | Component: Labyrinth seal (TS) | Part no.: 747337
TT 519 For housing: SNX 519 | Component: Triple-tect seal (TT) | Part no.: 747393
SK 520 VR 90 For housing: SNX 520 | Component: V-ring seal kit | Part no.: 496492
TS 520 For housing: SNX 520 | Component: Labyrinth seal (TS) | Part no.: 747338
TT 520 For housing: SNX 520 | Component: Triple-tect seal (TT) | Part no.: 747394
SK 522 VR 100 For housing: SNX 522 | Component: V-ring seal kit | Part no.: 496493
TS 522 For housing: SNX 522 | Component: Labyrinth seal (TS) | Part no.: 747339
TT 522 For housing: SNX 522 | Component: Triple-tect seal (TT) | Part no.: 747395
SK 524 VR 110 For housing: SNX 524 | Component: V-ring seal kit | Part no.: 496494
TS 524 For housing: SNX 524 | Component: Labyrinth seal (TS) | Part no.: 747340
TT 524 For housing: SNX 524 | Component: Triple-tect seal (TT) | Part no.: 747396
SK 526 VR 115 For housing: SNX 526 | Component: V-ring seal kit | Part no.: 496495
TS 526 For housing: SNX 526 | Component: Labyrinth seal (TS) | Part no.: 747341
TT 526 For housing: SNX 526 | Component: Triple-tect seal (TT) | Part no.: 747397
SK 528 VR 125 For housing: SNX 528 | Component: V-ring seal kit | Part no.: 496496
TS 528 For housing: SNX 528 | Component: Labyrinth seal (TS) | Part no.: 747342
TT 528 For housing: SNX 528 | Component: Triple-tect seal (TT) | Part no.: 747398
SK 530 VR 135 For housing: SNX 530 | Component: V-ring seal kit | Part no.: 496497
TS 530 For housing: SNX 530 | Component: Labyrinth seal (TS) | Part no.: 747343
TT 530 For housing: SNX 530 | Component: Triple-tect seal (TT) | Part no.: 747399
SK 532 VR 140 For housing: SNX 532 | Component: V-ring seal kit | Part no.: 496498
TS 532 For housing: SNX 532 | Component: Labyrinth seal (TS) | Part no.: 747344
TT 532 For housing: SNX 532 | Component: Triple-tect seal (TT) | Part no.: 747400
SK 308 FS 50 For housing: SNX 308 | Component: Felt seal kit | Part no.: 496400
SK 309 FS 55 For housing: SNX 309 | Component: Felt seal kit | Part no.: 496401
SK 310 FS 60 For housing: SNX 310 | Component: Felt seal kit | Part no.: 496402
SK 311 FS 65 For housing: SNX 311 | Component: Felt seal kit | Part no.: 496403
SK 312 FS 70 For housing: SNX 312 | Component: Felt seal kit | Part no.: 496404
SK 313 FS 75 For housing: SNX 313 | Component: Felt seal kit | Part no.: 496405
SK 314 FS 80 For housing: SNX 314 | Component: Felt seal kit | Part no.: 496406
SK 315 FS 85 For housing: SNX 315 | Component: Felt seal kit | Part no.: 496407
SK 316 FS 90 For housing: SNX 316 | Component: Felt seal kit | Part no.: 496408
SK 317 FS 95 For housing: SNX 317 | Component: Felt seal kit | Part no.: 496409
SK 319 FS 110 For housing: SNX 319 | Component: Felt seal kit | Part no.: 496410
SK 320 FS 115 For housing: SNX 320 | Component: Felt seal kit | Part no.: 496411
SK 608 LD 35 For housing: SNX 608 | Component: LD seal kit | Part no.: 496412
SK 608 FS 35 For housing: SNX 608 | Component: Felt seal kit | Part no.: 496423
SK 608 VR 35 For housing: SNX 608 | Component: V-ring seal kit | Part no.: 496434
SK 609 LD 40 For housing: SNX 609 | Component: LD seal kit | Part no.: 496413
SK 609 FS 40 For housing: SNX 609 | Component: Felt seal kit | Part no.: 496424
SK 609 VR 40 For housing: SNX 609 | Component: V-ring seal kit | Part no.: 496435
SK 610 LD 45 For housing: SNX 610 | Component: LD seal kit | Part no.: 496414
SK 610 FS 45 For housing: SNX 610 | Component: Felt seal kit | Part no.: 496425
SK 610 VR 45 For housing: SNX 610 | Component: V-ring seal kit | Part no.: 496436
SK 611 LD 50 For housing: SNX 611 | Component: LD seal kit | Part no.: 496415
SK 611 FS 50 For housing: SNX 611 | Component: Felt seal kit | Part no.: 496426
SK 611 VR 50 For housing: SNX 611 | Component: V-ring seal kit | Part no.: 496437
SK 612 LD 55 For housing: SNX 612 | Component: LD seal kit | Part no.: 496416
SK 612 FS 55 For housing: SNX 612 | Component: Felt seal kit | Part no.: 496427
SK 612 VR 55 For housing: SNX 612 | Component: V-ring seal kit | Part no.: 496438
SK 613 LD 60 For housing: SNX 613 | Component: LD seal kit | Part no.: 496417
SK 613 FS 60 For housing: SNX 613 | Component: Felt seal kit | Part no.: 496428
SK 613 VR 60 For housing: SNX 613 | Component: V-ring seal kit | Part no.: 496439
SK 615 LD 65 For housing: SNX 615 | Component: LD seal kit | Part no.: 496418
SK 615 FS 65 For housing: SNX 615 | Component: Felt seal kit | Part no.: 496429
SK 615 VR 65 For housing: SNX 615 | Component: V-ring seal kit | Part no.: 496440
SK 616 LD 70 For housing: SNX 616 | Component: LD seal kit | Part no.: 496419
SK 616 FS 70 For housing: SNX 616 | Component: Felt seal kit | Part no.: 496430
SK 616 VR 70 For housing: SNX 616 | Component: V-ring seal kit | Part no.: 496421
SK 617 LD 75 For housing: SNX 617 | Component: LD seal kit | Part no.: 496420
SK 617 FS 75 For housing: SNX 617 | Component: Felt seal kit | Part no.: 496431
SK 617 VR 75 For housing: SNX 617 | Component: V-ring seal kit | Part no.: 496442
SK 619 LD 85 For housing: SNX 619 | Component: LD seal kit | Part no.: 496421
SK 619 FS 85 For housing: SNX 619 | Component: Felt seal kit | Part no.: 496432
SK 619 VR 85 For housing: SNX 619 | Component: V-ring seal kit | Part no.: 496443
SK 620 LD 90 For housing: SNX 620 | Component: LD seal kit | Part no.: 496422
SK 620 FS 90 For housing: SNX 620 | Component: Felt seal kit | Part no.: 496433
SK 620 VR 90 For housing: SNX 620 | Component: V-ring seal kit | Part no.: 496444
LD 140 For housing: SNX 3032 | Component: LD two-lip seal | Part no.: 725346
VS0140 For housing: SNX 3032 | Component: V-ring seal | Part no.: 738163
DK 140 For housing: SNX 3032 | Component: DK end cover | Part no.: 708989
VS0150 For housing: SNX 3034 | Component: V-ring seal | Part no.: 738165
VS0160 For housing: SNX 3036 | Component: V-ring seal | Part no.: 738167
VS0170 For housing: SNX 3038 | Component: V-ring seal | Part no.: 738169
TS-23040 For housing: SDX 3040 | Component: Labyrinth seal (TS) | Part no.: 747666
TT-23040 For housing: SDX 3040 | Component: Triple-tect seal (TT) | Part no.: 747706
EC-SDX3040 For housing: SDX 3040 | Component: End cover | Part no.: 747748
TS-23044 For housing: SDX 3044 | Component: Labyrinth seal (TS) | Part no.: 747667
TT-23044 For housing: SDX 3044 | Component: Triple-tect seal (TT) | Part no.: 747707
EC-SDX3140/3144/3044 For housing: SDX 3044 | Component: End cover | Part no.: 747750
TS-23048 For housing: SDX 3048 | Component: Labyrinth seal (TS) | Part no.: 747668
TT-23048 For housing: SDX 3048 | Component: Triple-tect seal (TT) | Part no.: 747708
EC-SDX3048 For housing: SDX 3048 | Component: End cover | Part no.: 747751
TS-23052 For housing: SDX 3052 | Component: Labyrinth seal (TS) | Part no.: 747669
TT-23052 For housing: SDX 3052 | Component: Triple-tect seal (TT) | Part no.: 747709
EC-SDX3148/3152/3052 For housing: SDX 3052 | Component: End cover | Part no.: 747753
TS-23056 For housing: SDX 3056 | Component: Labyrinth seal (TS) | Part no.: 747670
TT-23056 For housing: SDX 3056 | Component: Triple-tect seal (TT) | Part no.: 747710
EC-SDX3056 For housing: SDX 3056 | Component: End cover | Part no.: 747754
TS-23060 For housing: SDX 3060 | Component: Labyrinth seal (TS) | Part no.: 747671
TT-23060 For housing: SDX 3060 | Component: Triple-tect seal (TT) | Part no.: 747711
EC-SDX3156/3160/3060 For housing: SDX 3060 | Component: End cover | Part no.: 747756
TS-23064 For housing: SDX 3064 | Component: Labyrinth seal (TS) | Part no.: 747672
TT-23064 For housing: SDX 3064 | Component: Triple-tect seal (TT) | Part no.: 747712
EC-SDX3064 For housing: SDX 3064 | Component: End cover | Part no.: 747757
TS-23068 For housing: SDX 3068 | Component: Labyrinth seal (TS) | Part no.: 747673
TT-23068 For housing: SDX 3068 | Component: Triple-tect seal (TT) | Part no.: 747713
EC-SDX3068 For housing: SDX 3068 | Component: End cover | Part no.: 747759
TS-23134 For housing: SDX 3134 | Component: Labyrinth seal (TS) | Part no.: 747681
TT-23134 For housing: SDX 3134 | Component: Triple-tect seal (TT) | Part no.: 747721
EC-SDX3134 For housing: SDX 3134 | Component: End cover | Part no.: 747746
TS-23136 For housing: SDX 3136 | Component: Labyrinth seal (TS) | Part no.: 747682
TT-23136 For housing: SDX 3136 | Component: Triple-tect seal (TT) | Part no.: 747722
EC-SDX3136 For housing: SDX 3136 | Component: End cover | Part no.: 747747
TS-23138 For housing: SDX 3138 | Component: Labyrinth seal (TS) | Part no.: 747683
TT-23138 For housing: SDX 3138 | Component: Triple-tect seal (TT) | Part no.: 747723
EC-SDX3138 For housing: SDX 3138 | Component: End cover | Part no.: 747749
TS-23140 For housing: SDX 3140 | Component: Labyrinth seal (TS) | Part no.: 747684
TT-23140 For housing: SDX 3140 | Component: Triple-tect seal (TT) | Part no.: 747724
TS-23148 For housing: SDX 3148 | Component: Labyrinth seal (TS) | Part no.: 747686
TT-23148 For housing: SDX 3148 | Component: Triple-tect seal (TT) | Part no.: 747726
TS-23156 For housing: SDX 3156 | Component: Labyrinth seal (TS) | Part no.: 747688
TT-23156 For housing: SDX 3156 | Component: Triple-tect seal (TT) | Part no.: 747728
TS-23164 For housing: SDX 3164 | Component: Labyrinth seal (TS) | Part no.: 747690
TT-23164 For housing: SDX 3164 | Component: Triple-tect seal (TT) | Part no.: 747730
EC-SDX3164 For housing: SDX 3164 | Component: End cover | Part no.: 747760
Bearing AccessoriesDODGE
271 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE SNX/SDX Plummer Block Seals & End Covers

Brand DODGE·Bearing Accessories

Available part numbers (271)

TS 209, TT 209, TS 210, TT 210, TS 211, TT 211, TS 212, TT 212, TS 213, TT 213 + 261 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TS 209For housing: SNX 209 | Component: Labyrinth seal (TS) | Part no.: 747234
TT 209For housing: SNX 209 | Component: Triple-tect seal (TT) | Part no.: 747217
TS 210For housing: SNX 210 | Component: Labyrinth seal (TS) | Part no.: 747235
TT 210For housing: SNX 210 | Component: Triple-tect seal (TT) | Part no.: 747218
TS 211For housing: SNX 211 | Component: Labyrinth seal (TS) | Part no.: 747236
TT 211For housing: SNX 211 | Component: Triple-tect seal (TT) | Part no.: 747219
TS 212For housing: SNX 212 | Component: Labyrinth seal (TS) | Part no.: 747237
TT 212For housing: SNX 212 | Component: Triple-tect seal (TT) | Part no.: 747220
TS 213For housing: SNX 213 | Component: Labyrinth seal (TS) | Part no.: 747238
TT 213For housing: SNX 213 | Component: Triple-tect seal (TT) | Part no.: 747221
TS 215For housing: SNX 215 | Component: Labyrinth seal (TS) | Part no.: 747239
TT 215For housing: SNX 215 | Component: Triple-tect seal (TT) | Part no.: 747222
TS 216For housing: SNX 216 | Component: Labyrinth seal (TS) | Part no.: 747240
TT 216For housing: SNX 216 | Component: Triple-tect seal (TT) | Part no.: 747223
TS 217For housing: SNX 217 | Component: Labyrinth seal (TS) | Part no.: 747241
TT 217For housing: SNX 217 | Component: Triple-tect seal (TT) | Part no.: 747224
TS 218For housing: SNX 218 | Component: Labyrinth seal (TS) | Part no.: 747242
TT 218For housing: SNX 218 | Component: Triple-tect seal (TT) | Part no.: 747225
TS 219For housing: SNX 219 | Component: Labyrinth seal (TS) | Part no.: 747243
TT 219For housing: SNX 219 | Component: Triple-tect seal (TT) | Part no.: 747226
TS 220For housing: SNX 220 | Component: Labyrinth seal (TS) | Part no.: 747244
TT 220For housing: SNX 220 | Component: Triple-tect seal (TT) | Part no.: 747227
TS 222For housing: SNX 222 | Component: Labyrinth seal (TS) | Part no.: 747245
TT 222For housing: SNX 222 | Component: Triple-tect seal (TT) | Part no.: 747228
TS 224For housing: SNX 224 | Component: Labyrinth seal (TS) | Part no.: 747246
TT 224For housing: SNX 224 | Component: Triple-tect seal (TT) | Part no.: 747229
TS 226For housing: SNX 226 | Component: Labyrinth seal (TS) | Part no.: 747247
TT 226For housing: SNX 226 | Component: Triple-tect seal (TT) | Part no.: 747230
TS 228For housing: SNX 228 | Component: Labyrinth seal (TS) | Part no.: 747248
TT 228For housing: SNX 228 | Component: Triple-tect seal (TT) | Part no.: 747231
TS 230For housing: SNX 230 | Component: Labyrinth seal (TS) | Part no.: 747249
TT 230For housing: SNX 230 | Component: Triple-tect seal (TT) | Part no.: 747232
TS 232For housing: SNX 232 | Component: Labyrinth seal (TS) | Part no.: 747250
TT 232For housing: SNX 232 | Component: Triple-tect seal (TT) | Part no.: 747233
6.5X8X200For housing: SNX 209 | Component: Felt strip | Part no.: 713600
VS0055For housing: SNX 209 | Component: V-ring seal | Part no.: 738145
DK 55For housing: SNX 209 | Component: DK end cover | Part no.: 709137
LD 60For housing: SNX 210 | Component: LD two-lip seal | Part no.: 725358
6.5X8X230For housing: SNX 210 | Component: Felt strip | Part no.: 713616
VS0060For housing: SNX 210 | Component: V-ring seal | Part no.: 738146
DK 60For housing: SNX 210 | Component: DK end cover | Part no.: 709140
LD 65For housing: SNX 211 | Component: LD two-lip seal | Part no.: 725359
VS0065For housing: SNX 211 | Component: V-ring seal | Part no.: 738147
DK 65For housing: SNX 211 | Component: DK end cover | Part no.: 709143
LD 70For housing: SNX 212 | Component: LD two-lip seal | Part no.: 725360
7.5X9X260For housing: SNX 212 | Component: Felt strip | Part no.: 713633
VS0070For housing: SNX 212 | Component: V-ring seal | Part no.: 738148
DK 70For housing: SNX 212 | Component: DK end cover | Part no.: 709146
LD 75For housing: SNX 213 | Component: LD two-lip seal | Part no.: 725361
VS0075For housing: SNX 213 | Component: V-ring seal | Part no.: 738149
DK 75For housing: SNX 213 | Component: DK end cover | Part no.: 709152
LD 85For housing: SNX 215 | Component: LD two-lip seal | Part no.: 725363
7.5X9X155For housing: SNX 215 | Component: Felt strip | Part no.: 713571
VS0085For housing: SNX 215 | Component: V-ring seal | Part no.: 738151
DK 85For housing: SNX 215 | Component: DK end cover | Part no.: 709162
LD 90For housing: SNX 216 | Component: LD two-lip seal | Part no.: 725364
8.5X10X165For housing: SNX 216 | Component: Felt strip | Part no.: 713579
VS0090For housing: SNX 216 | Component: V-ring seal | Part no.: 738152
DK 90For housing: SNX 216 | Component: DK end cover | Part no.: 709166
LD 95For housing: SNX 217 | Component: LD two-lip seal | Part no.: 725366
8.5X10X175For housing: SNX 217 | Component: Felt strip | Part no.: 713586
VS0095For housing: SNX 217 | Component: V-ring seal | Part no.: 738154
LD 100For housing: SNX 218 | Component: LD two-lip seal | Part no.: 725341
10X12X185For housing: SNX 218 | Component: Felt strip | Part no.: 713588
VS0100For housing: SNX 218 | Component: V-ring seal | Part no.: 738155
DK 100For housing: SNX 218 | Component: DK end cover | Part no.: 708959
LD 110For housing: SNX 219 | Component: LD two-lip seal | Part no.: 725342
10X12X200For housing: SNX 219 | Component: Felt strip | Part no.: 713596
VS0110For housing: SNX 219 | Component: V-ring seal | Part no.: 738157
DK 110For housing: SNX 219 | Component: DK end cover | Part no.: 708966
LD 115For housing: SNX 220 | Component: LD two-lip seal | Part no.: 725343
10X12X210For housing: SNX 220 | Component: Felt strip | Part no.: 713603
VS0115For housing: SNX 220 | Component: V-ring seal | Part no.: 738158
DK 115For housing: SNX 220 | Component: DK end cover | Part no.: 708970
LD 125For housing: SNX 222 | Component: LD two-lip seal | Part no.: 725344
10X12X230For housing: SNX 222 | Component: Felt strip | Part no.: 713613
VS0125For housing: SNX 222 | Component: V-ring seal | Part no.: 738161
DK 125For housing: SNX 222 | Component: DK end cover | Part no.: 708976
LD 135For housing: SNX 224 | Component: LD two-lip seal | Part no.: 725345
10X12X245For housing: SNX 224 | Component: Felt strip | Part no.: 713622
VS0135For housing: SNX 224 | Component: V-ring seal | Part no.: 738162
DK 135For housing: SNX 224 | Component: DK end cover | Part no.: 708983
10X12X265For housing: SNX 226 | Component: Felt strip | Part no.: 713634
VS0145For housing: SNX 226 | Component: V-ring seal | Part no.: 738164
DK 145For housing: SNX 226 | Component: DK end cover | Part no.: 740381
10X12X280For housing: SNX 228 | Component: Felt strip | Part no.: 713641
VS0155For housing: SNX 228 | Component: V-ring seal | Part no.: 738166
DK 155For housing: SNX 228 | Component: DK end cover | Part no.: 740382
10X12X300For housing: SNX 230 | Component: Felt strip | Part no.: 713647
VS0165For housing: SNX 230 | Component: V-ring seal | Part no.: 738168
DK 165For housing: SNX 230 | Component: DK end cover | Part no.: 740383
VS0175For housing: SNX 232 | Component: V-ring seal | Part no.: 738170
DK 175For housing: SNX 232 | Component: DK end cover | Part no.: 740384
SK 509 LD 40For housing: SNX 509 | Component: LD seal kit | Part no.: 496446
SK 509 FS 40For housing: SNX 509 | Component: Felt seal kit | Part no.: 496464
SK 510 LD 45For housing: SNX 510 | Component: LD seal kit | Part no.: 496447
SK 510 FS 45For housing: SNX 510 | Component: Felt seal kit | Part no.: 496465
SK 511 LD 50For housing: SNX 511 | Component: LD seal kit | Part no.: 496448
SK 511 FS 50For housing: SNX 511 | Component: Felt seal kit | Part no.: 496466
SK 512 LD 55For housing: SNX 512 | Component: LD seal kit | Part no.: 496449
SK 512 FS 55For housing: SNX 512 | Component: Felt seal kit | Part no.: 496467
SK 513 LD 60For housing: SNX 513 | Component: LD seal kit | Part no.: 496450
SK 513 FS 60For housing: SNX 513 | Component: Felt seal kit | Part no.: 496468
SK 515 LD 65For housing: SNX 515 | Component: LD seal kit | Part no.: 496451
SK 515 FS 65For housing: SNX 515 | Component: Felt seal kit | Part no.: 496469
SK 516 LD 70For housing: SNX 516 | Component: LD seal kit | Part no.: 496452
SK 516 FS 70For housing: SNX 516 | Component: Felt seal kit | Part no.: 496470
SK 517 LD 75For housing: SNX 517 | Component: LD seal kit | Part no.: 496453
SK 517 FS 75For housing: SNX 517 | Component: Felt seal kit | Part no.: 496471
SK 518 LD 80For housing: SNX 518 | Component: LD seal kit | Part no.: 496454
SK 518 FS 80For housing: SNX 518 | Component: Felt seal kit | Part no.: 496472
SK 519 LD 85For housing: SNX 519 | Component: LD seal kit | Part no.: 496455
SK 519 FS 85For housing: SNX 519 | Component: Felt seal kit | Part no.: 496473
SK 520 LD 90For housing: SNX 520 | Component: LD seal kit | Part no.: 496456
SK 520 FS 90For housing: SNX 520 | Component: Felt seal kit | Part no.: 496474
SK 522 LD 100For housing: SNX 522 | Component: LD seal kit | Part no.: 496457
SK 522 FS 100For housing: SNX 522 | Component: Felt seal kit | Part no.: 496475
SK 524 LD 110For housing: SNX 524 | Component: LD seal kit | Part no.: 496458
SK 524 FS 110For housing: SNX 524 | Component: Felt seal kit | Part no.: 496476
SK 526 LD 115For housing: SNX 526 | Component: LD seal kit | Part no.: 496459
SK 526 FS 115For housing: SNX 526 | Component: Felt seal kit | Part no.: 496477
SK 528 LD 125For housing: SNX 528 | Component: LD seal kit | Part no.: 496460
SK 528 FS 125For housing: SNX 528 | Component: Felt seal kit | Part no.: 496478
SK 530 LD 135For housing: SNX 530 | Component: LD seal kit | Part no.: 496461
SK 530 FS 135For housing: SNX 530 | Component: Felt seal kit | Part no.: 496479
SK 532 LD 140For housing: SNX 532 | Component: LD seal kit | Part no.: 496462
SK 532 FS 140For housing: SNX 532 | Component: Felt seal kit | Part no.: 496480
SK 509 VR 40For housing: SNX 509 | Component: V-ring seal kit | Part no.: 496482
TS 509For housing: SNX 509 | Component: Labyrinth seal (TS) | Part no.: 747328
TT 509For housing: SNX 509 | Component: Triple-tect seal (TT) | Part no.: 747384
SK 510 VR 45For housing: SNX 510 | Component: V-ring seal kit | Part no.: 496483
TS 510For housing: SNX 510 | Component: Labyrinth seal (TS) | Part no.: 747329
TT 510For housing: SNX 510 | Component: Triple-tect seal (TT) | Part no.: 747385
SK 511 VR 50For housing: SNX 511 | Component: V-ring seal kit | Part no.: 496484
TS 511For housing: SNX 511 | Component: Labyrinth seal (TS) | Part no.: 747330
TT 511For housing: SNX 511 | Component: Triple-tect seal (TT) | Part no.: 747386
SK 512 VR 55For housing: SNX 512 | Component: V-ring seal kit | Part no.: 496485
TS 512For housing: SNX 512 | Component: Labyrinth seal (TS) | Part no.: 747331
TT 512For housing: SNX 512 | Component: Triple-tect seal (TT) | Part no.: 747387
SK 513 VR 60For housing: SNX 513 | Component: V-ring seal kit | Part no.: 496486
TS 513For housing: SNX 513 | Component: Labyrinth seal (TS) | Part no.: 747332
TT 513For housing: SNX 513 | Component: Triple-tect seal (TT) | Part no.: 747388
SK 515 VR 65For housing: SNX 515 | Component: V-ring seal kit | Part no.: 496487
TS 515For housing: SNX 515 | Component: Labyrinth seal (TS) | Part no.: 747333
TT 515For housing: SNX 515 | Component: Triple-tect seal (TT) | Part no.: 747389
SK 516 VR 70For housing: SNX 516 | Component: V-ring seal kit | Part no.: 496488
TS 516For housing: SNX 516 | Component: Labyrinth seal (TS) | Part no.: 747334
TT 516For housing: SNX 516 | Component: Triple-tect seal (TT) | Part no.: 747390
SK 517 VR 75For housing: SNX 517 | Component: V-ring seal kit | Part no.: 496489
TS 517For housing: SNX 517 | Component: Labyrinth seal (TS) | Part no.: 747335
TT 517For housing: SNX 517 | Component: Triple-tect seal (TT) | Part no.: 747391
SK 518 VR 80For housing: SNX 518 | Component: V-ring seal kit | Part no.: 496490
TS 518For housing: SNX 518 | Component: Labyrinth seal (TS) | Part no.: 747336
TT 518For housing: SNX 518 | Component: Triple-tect seal (TT) | Part no.: 747392
SK 519 VR 85For housing: SNX 519 | Component: V-ring seal kit | Part no.: 496491
TS 519For housing: SNX 519 | Component: Labyrinth seal (TS) | Part no.: 747337
TT 519For housing: SNX 519 | Component: Triple-tect seal (TT) | Part no.: 747393
SK 520 VR 90For housing: SNX 520 | Component: V-ring seal kit | Part no.: 496492
TS 520For housing: SNX 520 | Component: Labyrinth seal (TS) | Part no.: 747338
TT 520For housing: SNX 520 | Component: Triple-tect seal (TT) | Part no.: 747394
SK 522 VR 100For housing: SNX 522 | Component: V-ring seal kit | Part no.: 496493
TS 522For housing: SNX 522 | Component: Labyrinth seal (TS) | Part no.: 747339
TT 522For housing: SNX 522 | Component: Triple-tect seal (TT) | Part no.: 747395
SK 524 VR 110For housing: SNX 524 | Component: V-ring seal kit | Part no.: 496494
TS 524For housing: SNX 524 | Component: Labyrinth seal (TS) | Part no.: 747340
TT 524For housing: SNX 524 | Component: Triple-tect seal (TT) | Part no.: 747396
SK 526 VR 115For housing: SNX 526 | Component: V-ring seal kit | Part no.: 496495
TS 526For housing: SNX 526 | Component: Labyrinth seal (TS) | Part no.: 747341
TT 526For housing: SNX 526 | Component: Triple-tect seal (TT) | Part no.: 747397
SK 528 VR 125For housing: SNX 528 | Component: V-ring seal kit | Part no.: 496496
TS 528For housing: SNX 528 | Component: Labyrinth seal (TS) | Part no.: 747342
TT 528For housing: SNX 528 | Component: Triple-tect seal (TT) | Part no.: 747398
SK 530 VR 135For housing: SNX 530 | Component: V-ring seal kit | Part no.: 496497
TS 530For housing: SNX 530 | Component: Labyrinth seal (TS) | Part no.: 747343
TT 530For housing: SNX 530 | Component: Triple-tect seal (TT) | Part no.: 747399
SK 532 VR 140For housing: SNX 532 | Component: V-ring seal kit | Part no.: 496498
TS 532For housing: SNX 532 | Component: Labyrinth seal (TS) | Part no.: 747344
TT 532For housing: SNX 532 | Component: Triple-tect seal (TT) | Part no.: 747400
SK 308 FS 50For housing: SNX 308 | Component: Felt seal kit | Part no.: 496400
SK 309 FS 55For housing: SNX 309 | Component: Felt seal kit | Part no.: 496401
SK 310 FS 60For housing: SNX 310 | Component: Felt seal kit | Part no.: 496402
SK 311 FS 65For housing: SNX 311 | Component: Felt seal kit | Part no.: 496403
SK 312 FS 70For housing: SNX 312 | Component: Felt seal kit | Part no.: 496404
SK 313 FS 75For housing: SNX 313 | Component: Felt seal kit | Part no.: 496405
SK 314 FS 80For housing: SNX 314 | Component: Felt seal kit | Part no.: 496406
SK 315 FS 85For housing: SNX 315 | Component: Felt seal kit | Part no.: 496407
SK 316 FS 90For housing: SNX 316 | Component: Felt seal kit | Part no.: 496408
SK 317 FS 95For housing: SNX 317 | Component: Felt seal kit | Part no.: 496409
SK 319 FS 110For housing: SNX 319 | Component: Felt seal kit | Part no.: 496410
SK 320 FS 115For housing: SNX 320 | Component: Felt seal kit | Part no.: 496411
SK 608 LD 35For housing: SNX 608 | Component: LD seal kit | Part no.: 496412
SK 608 FS 35For housing: SNX 608 | Component: Felt seal kit | Part no.: 496423
SK 608 VR 35For housing: SNX 608 | Component: V-ring seal kit | Part no.: 496434
SK 609 LD 40For housing: SNX 609 | Component: LD seal kit | Part no.: 496413
SK 609 FS 40For housing: SNX 609 | Component: Felt seal kit | Part no.: 496424
SK 609 VR 40For housing: SNX 609 | Component: V-ring seal kit | Part no.: 496435
SK 610 LD 45For housing: SNX 610 | Component: LD seal kit | Part no.: 496414
SK 610 FS 45For housing: SNX 610 | Component: Felt seal kit | Part no.: 496425
SK 610 VR 45For housing: SNX 610 | Component: V-ring seal kit | Part no.: 496436
SK 611 LD 50For housing: SNX 611 | Component: LD seal kit | Part no.: 496415
SK 611 FS 50For housing: SNX 611 | Component: Felt seal kit | Part no.: 496426
SK 611 VR 50For housing: SNX 611 | Component: V-ring seal kit | Part no.: 496437
SK 612 LD 55For housing: SNX 612 | Component: LD seal kit | Part no.: 496416
SK 612 FS 55For housing: SNX 612 | Component: Felt seal kit | Part no.: 496427
SK 612 VR 55For housing: SNX 612 | Component: V-ring seal kit | Part no.: 496438
SK 613 LD 60For housing: SNX 613 | Component: LD seal kit | Part no.: 496417
SK 613 FS 60For housing: SNX 613 | Component: Felt seal kit | Part no.: 496428
SK 613 VR 60For housing: SNX 613 | Component: V-ring seal kit | Part no.: 496439
SK 615 LD 65For housing: SNX 615 | Component: LD seal kit | Part no.: 496418
SK 615 FS 65For housing: SNX 615 | Component: Felt seal kit | Part no.: 496429
SK 615 VR 65For housing: SNX 615 | Component: V-ring seal kit | Part no.: 496440
SK 616 LD 70For housing: SNX 616 | Component: LD seal kit | Part no.: 496419
SK 616 FS 70For housing: SNX 616 | Component: Felt seal kit | Part no.: 496430
SK 616 VR 70For housing: SNX 616 | Component: V-ring seal kit | Part no.: 496421
SK 617 LD 75For housing: SNX 617 | Component: LD seal kit | Part no.: 496420
SK 617 FS 75For housing: SNX 617 | Component: Felt seal kit | Part no.: 496431
SK 617 VR 75For housing: SNX 617 | Component: V-ring seal kit | Part no.: 496442
SK 619 LD 85For housing: SNX 619 | Component: LD seal kit | Part no.: 496421
SK 619 FS 85For housing: SNX 619 | Component: Felt seal kit | Part no.: 496432
SK 619 VR 85For housing: SNX 619 | Component: V-ring seal kit | Part no.: 496443
SK 620 LD 90For housing: SNX 620 | Component: LD seal kit | Part no.: 496422
SK 620 FS 90For housing: SNX 620 | Component: Felt seal kit | Part no.: 496433
SK 620 VR 90For housing: SNX 620 | Component: V-ring seal kit | Part no.: 496444
LD 140For housing: SNX 3032 | Component: LD two-lip seal | Part no.: 725346
VS0140For housing: SNX 3032 | Component: V-ring seal | Part no.: 738163
DK 140For housing: SNX 3032 | Component: DK end cover | Part no.: 708989
VS0150For housing: SNX 3034 | Component: V-ring seal | Part no.: 738165
VS0160For housing: SNX 3036 | Component: V-ring seal | Part no.: 738167
VS0170For housing: SNX 3038 | Component: V-ring seal | Part no.: 738169
TS-23040For housing: SDX 3040 | Component: Labyrinth seal (TS) | Part no.: 747666
TT-23040For housing: SDX 3040 | Component: Triple-tect seal (TT) | Part no.: 747706
EC-SDX3040For housing: SDX 3040 | Component: End cover | Part no.: 747748
TS-23044For housing: SDX 3044 | Component: Labyrinth seal (TS) | Part no.: 747667
TT-23044For housing: SDX 3044 | Component: Triple-tect seal (TT) | Part no.: 747707
EC-SDX3140/3144/3044For housing: SDX 3044 | Component: End cover | Part no.: 747750
TS-23048For housing: SDX 3048 | Component: Labyrinth seal (TS) | Part no.: 747668
TT-23048For housing: SDX 3048 | Component: Triple-tect seal (TT) | Part no.: 747708
EC-SDX3048For housing: SDX 3048 | Component: End cover | Part no.: 747751
TS-23052For housing: SDX 3052 | Component: Labyrinth seal (TS) | Part no.: 747669
TT-23052For housing: SDX 3052 | Component: Triple-tect seal (TT) | Part no.: 747709
EC-SDX3148/3152/3052For housing: SDX 3052 | Component: End cover | Part no.: 747753
TS-23056For housing: SDX 3056 | Component: Labyrinth seal (TS) | Part no.: 747670
TT-23056For housing: SDX 3056 | Component: Triple-tect seal (TT) | Part no.: 747710
EC-SDX3056For housing: SDX 3056 | Component: End cover | Part no.: 747754
TS-23060For housing: SDX 3060 | Component: Labyrinth seal (TS) | Part no.: 747671
TT-23060For housing: SDX 3060 | Component: Triple-tect seal (TT) | Part no.: 747711
EC-SDX3156/3160/3060For housing: SDX 3060 | Component: End cover | Part no.: 747756
TS-23064For housing: SDX 3064 | Component: Labyrinth seal (TS) | Part no.: 747672
TT-23064For housing: SDX 3064 | Component: Triple-tect seal (TT) | Part no.: 747712
EC-SDX3064For housing: SDX 3064 | Component: End cover | Part no.: 747757
TS-23068For housing: SDX 3068 | Component: Labyrinth seal (TS) | Part no.: 747673
TT-23068For housing: SDX 3068 | Component: Triple-tect seal (TT) | Part no.: 747713
EC-SDX3068For housing: SDX 3068 | Component: End cover | Part no.: 747759
TS-23134For housing: SDX 3134 | Component: Labyrinth seal (TS) | Part no.: 747681
TT-23134For housing: SDX 3134 | Component: Triple-tect seal (TT) | Part no.: 747721
EC-SDX3134For housing: SDX 3134 | Component: End cover | Part no.: 747746
TS-23136For housing: SDX 3136 | Component: Labyrinth seal (TS) | Part no.: 747682
TT-23136For housing: SDX 3136 | Component: Triple-tect seal (TT) | Part no.: 747722
EC-SDX3136For housing: SDX 3136 | Component: End cover | Part no.: 747747
TS-23138For housing: SDX 3138 | Component: Labyrinth seal (TS) | Part no.: 747683
TT-23138For housing: SDX 3138 | Component: Triple-tect seal (TT) | Part no.: 747723
EC-SDX3138For housing: SDX 3138 | Component: End cover | Part no.: 747749
TS-23140For housing: SDX 3140 | Component: Labyrinth seal (TS) | Part no.: 747684
TT-23140For housing: SDX 3140 | Component: Triple-tect seal (TT) | Part no.: 747724
TS-23148For housing: SDX 3148 | Component: Labyrinth seal (TS) | Part no.: 747686
TT-23148For housing: SDX 3148 | Component: Triple-tect seal (TT) | Part no.: 747726
TS-23156For housing: SDX 3156 | Component: Labyrinth seal (TS) | Part no.: 747688
TT-23156For housing: SDX 3156 | Component: Triple-tect seal (TT) | Part no.: 747728
TS-23164For housing: SDX 3164 | Component: Labyrinth seal (TS) | Part no.: 747690
TT-23164For housing: SDX 3164 | Component: Triple-tect seal (TT) | Part no.: 747730
EC-SDX3164For housing: SDX 3164 | Component: End cover | Part no.: 747760

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
