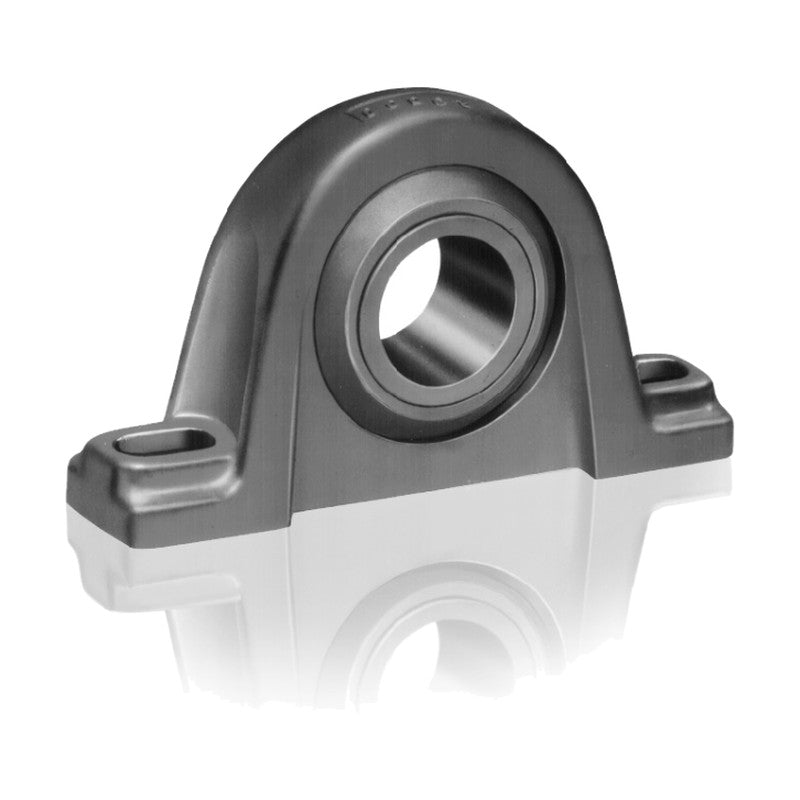

DODGE Solidlube LTB Sleeve Bearing Pillow Block (20-60 mm, 3/4-6 in)

DODGE Solidlube LTB Sleeve Bearing Pillow Block (20-60 mm, 3/4-6 in)

DODGE Solidlube sleeve bearings are self-lubricating, statically self-aligning bearings for extreme industrial applications.

Key features

  • Self-lubricating; no relubrication system required
  • Good in temperature extremes and inaccessible locations
  • Functions in vacuum and through dry cycles
  • Usable in many corrosive (chemical) media
  • Recommended for slow speeds and limited shaft movement

Specifications

Brand DODGE
Product line Solidlube
Housing style Pillow block
Housing material cast iron
Locking Set screw
Shaft range 20-60 mm, 3/4-6 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 7-12
P2B-LTB7-20M Series: 204 | Shaft: 20 mm | Variant: Solidlube 700 | Part no.: 034244
P2B-LTB10-20M Series: 204 | Shaft: 20 mm | Variant: Solidlube 1000 | Part no.: 034252
P2B-LTB7-012 Series: 204 | Shaft: 3/4 in | Variant: Solidlube 700 | Part no.: 032940
P2B-LTB10-012 Series: 204 | Shaft: 3/4 in | Variant: Solidlube 1000 | Part no.: 032970
P2B-LTB7-25M Series: 205 | Shaft: 25 mm | Variant: Solidlube 700 | Part no.: 034245
P2B-LTB10-25M Series: 205 | Shaft: 25 mm | Variant: Solidlube 1000 | Part no.: 034253
P2B-LTB7-014 Series: 205 | Shaft: 7/8 in | Variant: Solidlube 700 | Part no.: 032941
P2B-LTB10-014 Series: 205 | Shaft: 7/8 in | Variant: Solidlube 1000 | Part no.: 032971
P2B-LTB7-015 Series: 205 | Shaft: 15/16 in | Variant: Solidlube 700 | Part no.: 032942
P2B-LTB10-015 Series: 205 | Shaft: 15/16 in | Variant: Solidlube 1000 | Part no.: 032972
P2B-LTB7-100 Series: 205 | Shaft: 1 in | Variant: Solidlube 700 | Part no.: 032943
P2B-LTB10-100 Series: 205 | Shaft: 1 in | Variant: Solidlube 1000 | Part no.: 032973
P2B-LTB7-30M Series: 206 | Shaft: 30 mm | Variant: Solidlube 700 | Part no.: 034246
P2B-LTB10-30M Series: 206 | Shaft: 30 mm | Variant: Solidlube 1000 | Part no.: 034254
P2B-LTB7-102 Series: 206 | Shaft: 1-1/8 in | Variant: Solidlube 700 | Part no.: 032945
P2B-LTB10-102 Series: 206 | Shaft: 1-1/8 in | Variant: Solidlube 1000 | Part no.: 032975
P2B-LTB7-103 Series: 206 | Shaft: 1-3/16 in | Variant: Solidlube 700 | Part no.: 032946
P2B-LTB10-103 Series: 206 | Shaft: 1-3/16 in | Variant: Solidlube 1000 | Part no.: 032976
P2B-LTB7-35M Series: 207 | Shaft: 35 mm | Variant: Solidlube 700 | Part no.: 034247
P2B-LTB10-35M Series: 207 | Shaft: 35 mm | Variant: Solidlube 1000 | Part no.: 034255
P2B-LTB7-104 Series: 207 | Shaft: 1-1/4 in | Variant: Solidlube 700 | Part no.: 032947
P2B-LTB10-104 Series: 207 | Shaft: 4 in | Variant: Solidlube 1000 | Part no.: 032977
P2B-LTB7-106 Series: 207 | Shaft: 1-3/8 in | Variant: Solidlube 700 | Part no.: 032949
P2B-LTB10-106 Series: 207 | Shaft: 1-3/8 in | Variant: Solidlube 1000 | Part no.: 032979
P2B-LTB7-107 Series: 207 | Shaft: 1-7/16 in | Variant: Solidlube 700 | Part no.: 032950
P2B-LTB10-107 Series: 207 | Shaft: 1-7/16 in | Variant: Solidlube 1000 | Part no.: 032980
P2B-LTB7-108 Series: 207 | Shaft: 1-1/2 in | Variant: Solidlube 700 | Part no.: 032951
P2B-LTB10-108 Series: 207 | Shaft: 1-1/2 in | Variant: Solidlube 1000 | Part no.: 032981
P2B-LTB7-40M Series: 209 | Shaft: 40 mm | Variant: Solidlube 700 | Part no.: 034248
P2B-LTB10-40M Series: 209 | Shaft: 40 mm | Variant: Solidlube 1000 | Part no.: 034256
P2B-LTB7-45M Series: 209 | Shaft: 45 mm | Variant: Solidlube 700 | Part no.: 034249
P2B-LTB10-45M Series: 209 | Shaft: 45 mm | Variant: Solidlube 1000 | Part no.: 034257
P2B-LTB7-111 Series: 209 | Shaft: 1-11/16 in | Variant: Solidlube 700 | Part no.: 032953
P2B-LTB10-111 Series: 209 | Shaft: 5 in | Variant: Solidlube 1000 | Part no.: 032983
P2B-LTB7-112 Series: 209 | Shaft: 1-3/4 in | Variant: Solidlube 700 | Part no.: 032954
P2B-LTB10-112 Series: 209 | Shaft: 1-3/4 in | Variant: Solidlube 1000 | Part no.: 032984
P2B-LTB7-50M Series: 210 | Shaft: 50 mm | Variant: Solidlube 700 | Part no.: 034250
P2B-LTB10-50M Series: 210 | Shaft: 50 mm | Variant: Solidlube 1000 | Part no.: 034258
P2B-LTB10-115 Series: 210 | Shaft: 6 in | Variant: Solidlube 1000 | Part no.: 032985
P2B-LTB7-200 Series: 210 | Shaft: 2 in | Variant: Solidlube 700 | Part no.: 032956
P2B-LTB10-200 Series: 210 | Shaft: 2 in | Variant: Solidlube 1000 | Part no.: 032986
P2B-LTB7-203 Series: 211 | Shaft: 2-3/16 in | Variant: Solidlube 700 | Part no.: 032957
P2B-LTB10-203 Series: 211 | Shaft: 2-3/16 in | Variant: Solidlube 1000 | Part no.: 032987
P2B-LTB7-60M Series: 212 | Shaft: 60 mm | Variant: Solidlube 700 | Part no.: 034251
P2B-LTB10-60M Series: 212 | Shaft: 60 mm | Variant: Solidlube 1000 | Part no.: 034259
P2B-LTB7-207 Series: 212 | Shaft: 2-7/16 in | Variant: Solidlube 700 | Part no.: 032959
P2B-LTB10-207 Series: 212 | Shaft: 2-7/16 in | Variant: Solidlube 1000 | Part no.: 032989
P2B-LTB7-208 Series: 212 | Shaft: 2-1/2 in | Variant: Solidlube 700 | Part no.: 032960
P2B-LTB10-208 Series: 212 | Shaft: 2-1/2 in | Variant: Solidlube 1000 | Part no.: 032990
P2B-LTB7-215 Series: 215 | Shaft: 2-15/16 in | Variant: Solidlube 700 | Part no.: 034596
P2B-LTB10-215 Series: 215 | Shaft: 2-15/16 in | Variant: Solidlube 1000 | Part no.: 034598
P2B-LTB7-300 Series: 215 | Shaft: 3 in | Variant: Solidlube 700 | Part no.: 034597
P2B-LTB10-300 Series: 215 | Shaft: 3 in | Variant: Solidlube 1000 | Part no.: 034599
