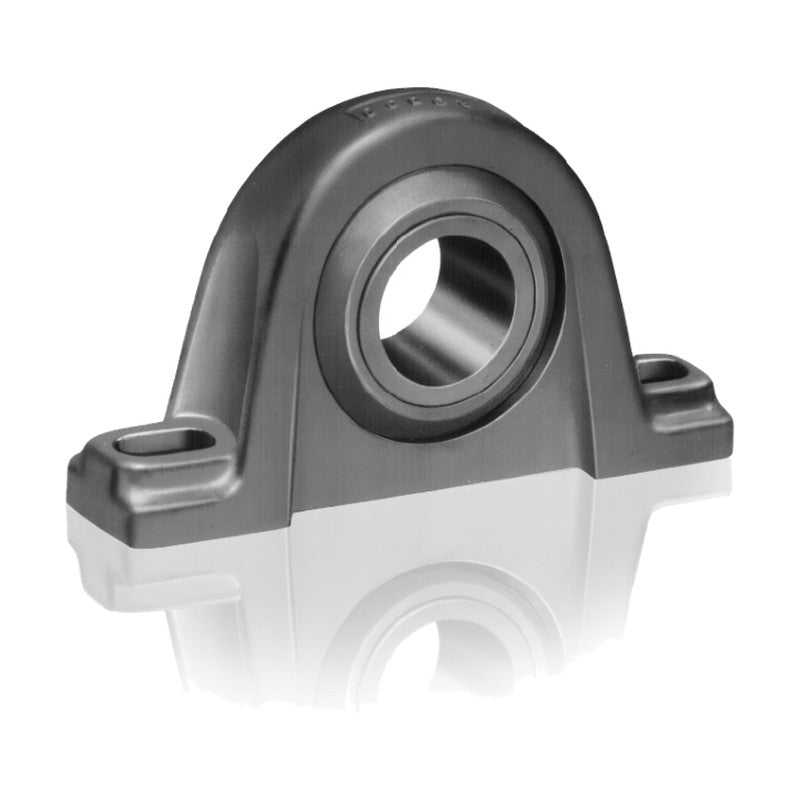

DODGE Solidlube MM Sleeve Bearing Pillow Block (3-7/16-5 in)

DODGE Solidlube MM Sleeve Bearing Pillow Block (3-7/16-5 in)

DODGE Solidlube sleeve bearings are self-lubricating, statically self-aligning bearings for extreme industrial applications.

Key features

  • Self-lubricating; no relubrication system required
  • Good in temperature extremes and inaccessible locations
  • Functions in vacuum and through dry cycles
  • Usable in many corrosive (chemical) media
  • Recommended for slow speeds and limited shaft movement

Specifications

Brand DODGE
Product line Solidlube
Housing style Pillow block
Housing material cast iron
Locking Set screw
Shaft range 3-7/16-5 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 7-14
P2B-MM7-307 Shaft: 3-7/16 in | Variant: Solidlube 700 | Part no.: 033247
P2B-MM10-307 Shaft: 3-7/16 in | Variant: Solidlube 1000 | Part no.: 033347
P2B-MM7-308 Shaft: 3-1/2 in | Variant: Solidlube 700 | Part no.: 033251
P2B-MM10-308 Shaft: 3-1/2 in | Variant: Solidlube 1000 | Part no.: 033351
P2B-MM7-315 Shaft: 3-15/16 in | Variant: Solidlube 700 | Part no.: 033475
P2B-MM10-315 Shaft: 3-15/16 in | Variant: Solidlube 1000 | Part no.: 033480
P2B-MM7-400 Shaft: 4 in | Variant: Solidlube 700 | Part no.: 033485
P2B-MM10-400 Shaft: 4 in | Variant: Solidlube 1000 | Part no.: 033490
P2B-MM7-407 Shaft: 4-7/16 in | Variant: Solidlube 700 | Part no.: 033500
P2B-MM10-407 Shaft: 4-7/16 in | Variant: Solidlube 1000 | Part no.: 033505
P2B-MM7-408 Shaft: 4-1/2 in | Variant: Solidlube 700 | Part no.: 033510
P2B-MM10-408 Shaft: 4-1/2 in | Variant: Solidlube 1000 | Part no.: 033515
P4B-MM7-415 Shaft: 4-15/16 in | Variant: Solidlube 700 | Part no.: 033525
P4B-MM10-415 Shaft: 4-15/16 in | Variant: Solidlube 1000 | Part no.: 033530
P4B-MM7-500 Shaft: 5 in | Variant: Solidlube 700 | Part no.: 033535
P4B-MM10-500 Shaft: 5 in | Variant: Solidlube 1000 | Part no.: 033540
Mounted Bearing UnitsDODGE
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE Solidlube MM Sleeve Bearing Pillow Block (3-7/16-5 in)

Brand DODGE·Mounted Bearing Units

Available part numbers (16)

P2B-MM7-307, P2B-MM10-307, P2B-MM7-308, P2B-MM10-308, P2B-MM7-315, P2B-MM10-315, P2B-MM7-400, P2B-MM10-400, P2B-MM7-407, P2B-MM10-407 + 6 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
P2B-MM7-307Shaft: 3-7/16 in | Variant: Solidlube 700 | Part no.: 033247
P2B-MM10-307Shaft: 3-7/16 in | Variant: Solidlube 1000 | Part no.: 033347
P2B-MM7-308Shaft: 3-1/2 in | Variant: Solidlube 700 | Part no.: 033251
P2B-MM10-308Shaft: 3-1/2 in | Variant: Solidlube 1000 | Part no.: 033351
P2B-MM7-315Shaft: 3-15/16 in | Variant: Solidlube 700 | Part no.: 033475
P2B-MM10-315Shaft: 3-15/16 in | Variant: Solidlube 1000 | Part no.: 033480
P2B-MM7-400Shaft: 4 in | Variant: Solidlube 700 | Part no.: 033485
P2B-MM10-400Shaft: 4 in | Variant: Solidlube 1000 | Part no.: 033490
P2B-MM7-407Shaft: 4-7/16 in | Variant: Solidlube 700 | Part no.: 033500
P2B-MM10-407Shaft: 4-7/16 in | Variant: Solidlube 1000 | Part no.: 033505
P2B-MM7-408Shaft: 4-1/2 in | Variant: Solidlube 700 | Part no.: 033510
P2B-MM10-408Shaft: 4-1/2 in | Variant: Solidlube 1000 | Part no.: 033515
P4B-MM7-415Shaft: 4-15/16 in | Variant: Solidlube 700 | Part no.: 033525
P4B-MM10-415Shaft: 4-15/16 in | Variant: Solidlube 1000 | Part no.: 033530
P4B-MM7-500Shaft: 5 in | Variant: Solidlube 700 | Part no.: 033535
P4B-MM10-500Shaft: 5 in | Variant: Solidlube 1000 | Part no.: 033540
