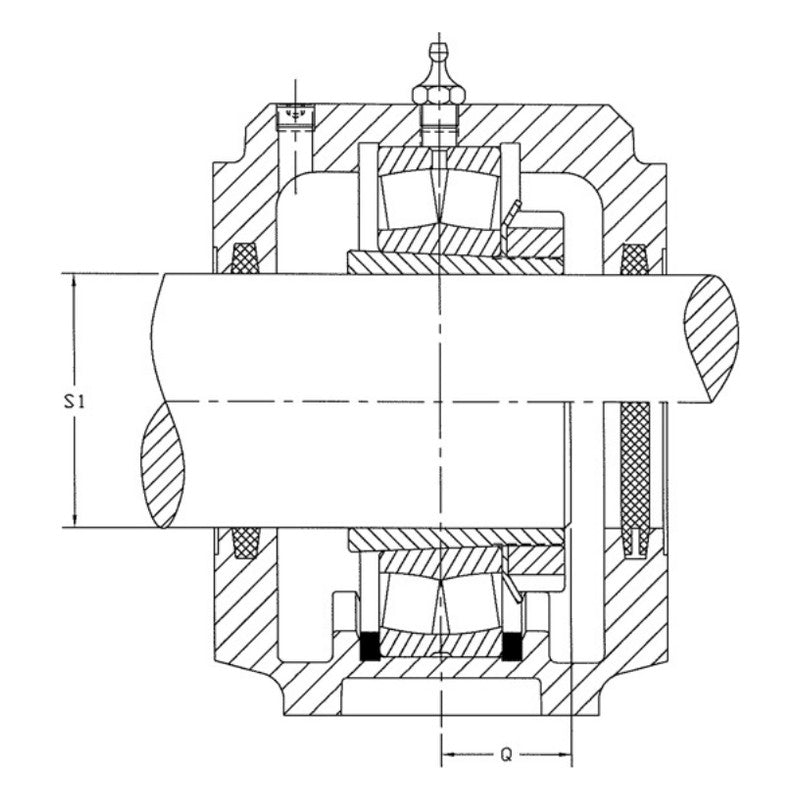

DODGE Spherical Roller & Self-Aligning Bearings for SNX/SDX

DODGE Spherical Roller & Self-Aligning Bearings for SNX/SDX

Spherical roller bearings (222, 223, 230, 231, 232 series) and self-aligning ball bearings listed for DODGE SNX and SDX plummer block housings.

Key features

  • Cylindrical and tapered (K) bore versions
  • C3 radial internal clearance as listed
  • Selected by housing size per the SNX/SDX tables
  • Part numbers for direct ordering

Specifications

Brand DODGE
Product line SNX / SDX plummer blocks
Units mm
Housing material Cast iron (GG)
Selection By housing size per catalogue table
Ordering DODGE part number per code
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 6-29 to 6-43
22209E1.C3 For housing: SNX 209 | Table: SNX 200 | Part no.: 421260
22210E1.C3 For housing: SNX 210 | Table: SNX 200 | Part no.: 421261
22211E1.C3 For housing: SNX 211 | Table: SNX 200 | Part no.: 421262
22212E1.C3 For housing: SNX 212 | Table: SNX 200 | Part no.: 421263
22213E1.C3 For housing: SNX 213 | Table: SNX 200 | Part no.: 421264
22215E1.C3 For housing: SNX 215 | Table: SNX 200 | Part no.: 421265
22216E1.C3 For housing: SNX 216 | Table: SNX 200 | Part no.: 421266
22217E1.C3 For housing: SNX 217 | Table: SNX 200 | Part no.: 421267
22218E1.C3 For housing: SNX 218 | Table: SNX 200 | Part no.: 421268
23218E1.C3 For housing: SNX 218 | Table: SNX 200 | Part no.: 421396
22219E1.C3 For housing: SNX 219 | Table: SNX 200 | Part no.: 422996
22220E1.C3 For housing: SNX 220 | Table: SNX 200 | Part no.: 421269
23220E.C3 For housing: SNX 220 | Table: SNX 200 | Part no.: 703943
22222E1.C3 For housing: SNX 222 | Table: SNX 200 | Part no.: 421270
23222.C3 For housing: SNX 222 | Table: SNX 200 | Part no.: 740623
22224E1.C3 For housing: SNX 224 | Table: SNX 200 | Part no.: 421271
23224.C3 For housing: SNX 224 | Table: SNX 200 | Part no.: 703967
22226E1.C3 For housing: SNX 226 | Table: SNX 200 | Part no.: 421272
23226.C3 For housing: SNX 226 | Table: SNX 200 | Part no.: 703976
22228E1.C3 For housing: SNX 228 | Table: SNX 200 | Part no.: 421273
23228.C3 For housing: SNX 228 | Table: SNX 200 | Part no.: 741031
22230E1.C3 For housing: SNX 230 | Table: SNX 200 | Part no.: 421274
23230.C3 For housing: SNX 230 | Table: SNX 200 | Part no.: 703990
22232E1.C3 For housing: SNX 232 | Table: SNX 200 | Part no.: 421275
23232.C3 For housing: SNX 232 | Table: SNX 200 | Part no.: 741550
22209EK1.C3 For housing: SNX 509 | Table: SNX 500 | Part no.: 422134
22210EK1.C3 For housing: SNX 510 | Table: SNX 500 | Part no.: 422137
22211EK1.C3 For housing: SNX 511 | Table: SNX 500 | Part no.: 422123
22212EK1.C3 For housing: SNX 512 | Table: SNX 500 | Part no.: 422978
22213EK1.C3 For housing: SNX 513 | Table: SNX 500 | Part no.: 422124
22215EK1.C3 For housing: SNX 515 | Table: SNX 500 | Part no.: 422001
22216EK1.C3 For housing: SNX 516 | Table: SNX 500 | Part no.: 422003
22217EK1.C3 For housing: SNX 517 | Table: SNX 500 | Part no.: 422005
22218EK1.C3 For housing: SNX 518 | Table: SNX 500 | Part no.: 422007
23218K.C3 For housing: SNX 518 | Table: SNX 500 | Part no.: 739329
22219EK1.C3 For housing: SNX 519 | Table: SNX 500 | Part no.: 422979
22220EK1.C3 For housing: SNX 520 | Table: SNX 500 | Part no.: 422009
23220K.C3 For housing: SNX 520 | Table: SNX 500 | Part no.: 703941
22222EK1.C3 For housing: SNX 522 | Table: SNX 500 | Part no.: 422011
23222K.C3 For housing: SNX 522 | Table: SNX 500 | Part no.: 703951
22224EK1.C3 For housing: SNX 524 | Table: SNX 500 | Part no.: 422013
23224EASK.M.C3 For housing: SNX 524 | Table: SNX 500 | Part no.: 703967
22226EK1.C3 For housing: SNX 526 | Table: SNX 500 | Part no.: 422015
23226K.C3 For housing: SNX 526 | Table: SNX 500 | Part no.: 703971
22228EK1.C3 For housing: SNX 528 | Table: SNX 500 | Part no.: 422017
23228K.C3 For housing: SNX 528 | Table: SNX 500 | Part no.: 703982
22230EK1.C3 For housing: SNX 530 | Table: SNX 500 | Part no.: 422019
23230K.C3 For housing: SNX 530 | Table: SNX 500 | Part no.: 703989
22232EK1.C3 For housing: SNX 532 | Table: SNX 500 | Part no.: 422021
23232K.C3 For housing: SNX 532 | Table: SNX 500 | Part no.: 703996
1209K.C3 For housing: SNX 509 | Table: SNX 500 | Part no.: 052637
1210K.C3 For housing: SNX 510 | Table: SNX 500 | Part no.: 052638
1211K.C3 For housing: SNX 511 | Table: SNX 500 | Part no.: 052639
1212K.C3 For housing: SNX 512 | Table: SNX 500 | Part no.: 739145
1213K.C3 For housing: SNX 513 | Table: SNX 500 | Part no.: 052640
1215K.C3 For housing: SNX 515 | Table: SNX 500 | Part no.: 052641
1216K.C3 For housing: SNX 516 | Table: SNX 500 | Part no.: 052642
1217K.C3 For housing: SNX 517 | Table: SNX 500 | Part no.: 052643
1218K.C3 For housing: SNX 518 | Table: SNX 500 | Part no.: 052570
1219K.C3 For housing: SNX 519 | Table: SNX 500 | Part no.: 701659
1220K.C3 For housing: SNX 520 | Table: SNX 500 | Part no.: 052644
1222K.C3 For housing: SNX 522 | Table: SNX 500 | Part no.: 051841
2209K.C3 For housing: SNX 509 | Table: SNX 500 | Part no.: 739150
2210K.C3 For housing: SNX 510 | Table: SNX 500 | Part no.: 702830
2211K.C3 For housing: SNX 511 | Table: SNX 500 | Part no.: 702844
2212K.C3 For housing: SNX 512 | Table: SNX 500 | Part no.: 702857
2213K.C3 For housing: SNX 513 | Table: SNX 500 | Part no.: 702867
2215K.C3 For housing: SNX 515 | Table: SNX 500 | Part no.: 739153
2216K.C3 For housing: SNX 516 | Table: SNX 500 | Part no.: 702883
2217K.C3 For housing: SNX 517 | Table: SNX 500 | Part no.: 702893
2218K.C3 For housing: SNX 518 | Table: SNX 500 | Part no.: 739154
2219K.M.C3 For housing: SNX 519 | Table: SNX 500 | Part no.: 702904
2220K.M.C3 For housing: SNX 520 | Table: SNX 500 | Part no.: 702907
2222K.C3 For housing: SNX 522 | Table: SNX 500 | Part no.: 421399
22308E1.C3 For housing: SNX 308 | Table: SNX 300 | Part no.: 423124
22309E1.C3 For housing: SNX 309 | Table: SNX 300 | Part no.: 423125
22310E1.C3 For housing: SNX 310 | Table: SNX 300 | Part no.: 423143
22311E1.C3 For housing: SNX 311 | Table: SNX 300 | Part no.: 423126
22312E1.C3 For housing: SNX 312 | Table: SNX 300 | Part no.: 423127
22313E1.C3 For housing: SNX 313 | Table: SNX 300 | Part no.: 423128
22314E1.C3 For housing: SNX 314 | Table: SNX 300 | Part no.: 423129
22315E1.C3 For housing: SNX 315 | Table: SNX 300 | Part no.: 423130
22316E1.C3 For housing: SNX 316 | Table: SNX 300 | Part no.: 423144
22317E1.C3 For housing: SNX 317 | Table: SNX 300 | Part no.: 423131
22319E1.C3 For housing: SNX 319 | Table: SNX 300 | Part no.: 423145
22320E1.C3 For housing: SNX 320 | Table: SNX 300 | Part no.: 423132
22308E1K.C3 For housing: SNX 608 | Table: SNX 600 | Part no.: 423375
22309E1K.C3 For housing: SNX 609 | Table: SNX 600 | Part no.: 423100
22310E1K.C3 For housing: SNX 610 | Table: SNX 600 | Part no.: 423372
22311E1K.C3 For housing: SNX 611 | Table: SNX 600 | Part no.: 423102
22312E1K.C3 For housing: SNX 612 | Table: SNX 600 | Part no.: 423376
22313E1K.C3 For housing: SNX 613 | Table: SNX 600 | Part no.: 423104
22315E1K.C3 For housing: SNX 615 | Table: SNX 600 | Part no.: 423106
22316E1K.C3 For housing: SNX 616 | Table: SNX 600 | Part no.: 423373
22317E1K.C3 For housing: SNX 617 | Table: SNX 600 | Part no.: 423108
22319E1K.C3 For housing: SNX 619 | Table: SNX 600 | Part no.: 423374
22320E1K.C3 For housing: SNX 620 | Table: SNX 600 | Part no.: 423110
23024EASK.M.C3 For housing: SNX 3024 | Table: SNX 30 | Part no.: 703619
23026K.C3 For housing: SNX 3026 | Table: SNX 30 | Part no.: 703628
23028EASK.M For housing: SNX 3028 | Table: SNX 30 | Part no.: 703644
23030EASK.M.C3 For housing: SNX 3030 | Table: SNX 30 | Part no.: 703656
23032K.C3 For housing: SNX 3032 | Table: SNX 30 | Part no.: 703661
23034K.C3 For housing: SNX 3034 | Table: SNX 30 | Part no.: 703670
23036K.C3 For housing: SNX 3036 | Table: SNX 30 | Part no.: 703679
23038EASK.M.C3 For housing: SNX 3038 | Table: SNX 30 | Part no.: 703689
23040EASK.M.C3 For housing: SDX 3040 | Table: SDX 3000 | Part no.: 703694
23044K.MB.C3 For housing: SDX 3044 | Table: SDX 3000 | Part no.: 703711
23048K.MB.C3 For housing: SDX 3048 | Table: SDX 3000 | Part no.: 422031
23052K.C3 For housing: SDX 3052 | Table: SDX 3000 | Part no.: 703725
23056K.M.C3 For housing: SDX 3056 | Table: SDX 3000 | Part no.: 422030
23060K.C3 For housing: SDX 3060 | Table: SDX 3000 | Part no.: 703738
23064K.C3 For housing: SDX 3064 | Table: SDX 3000 | Part no.: 703739
23068K.C3 For housing: SDX 3068 | Table: SDX 3000 | Part no.: 421282
23134K.M.C3 For housing: SDX 3134 | Table: SDX 3100 | Part no.: 703831
23136ESKTVPB.C3 For housing: SDX 3136 | Table: SDX 3100 | Part no.: 703840
23138K.C3 For housing: SDX 3138 | Table: SDX 3100 | Part no.: 703850
23140BK.MB.C3 For housing: SDX 3140 | Table: SDX 3100 | Part no.: 421403
23144BK.MB.C3 For housing: SDX 3144 | Table: SDX 3100 | Part no.: 703866
23148BK.MB.C3 For housing: SDX 3148 | Table: SDX 3100 | Part no.: 703873
23152K.MB.C3 For housing: SDX 3152 | Table: SDX 3100 | Part no.: 703890
23156BK.MB.C3 For housing: SDX 3156 | Table: SDX 3100 | Part no.: 703892
23160K.C3 For housing: SDX 3160 | Table: SDX 3100 | Part no.: 703903
23164K.MB.C3 For housing: SDX 3164 | Table: SDX 3100 | Part no.: 421287
