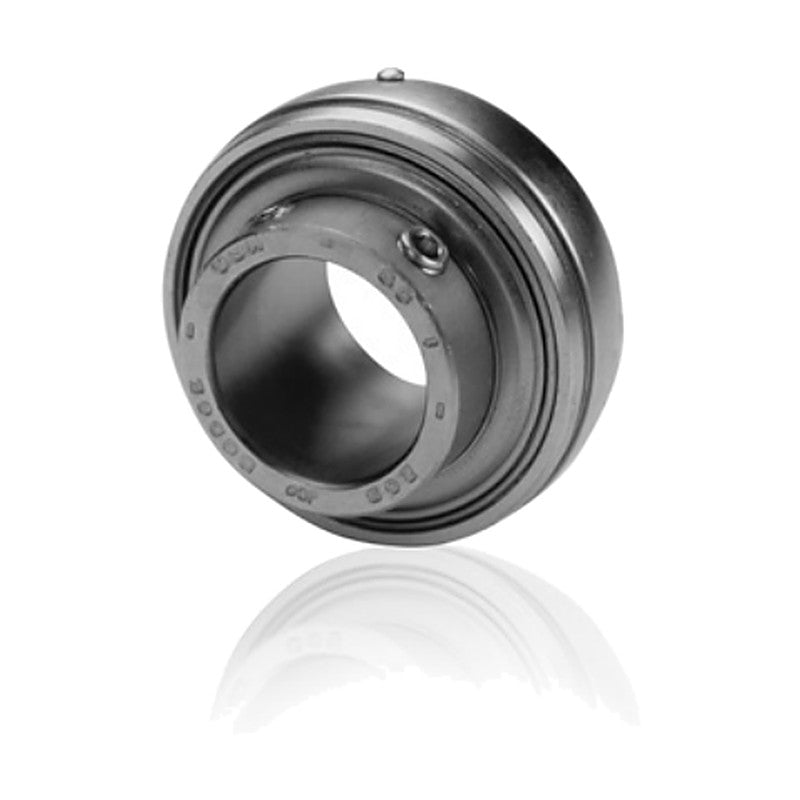

DODGE Ultra Kleen SC Stainless Steel Bearing Insert

DODGE Ultra Kleen SC Stainless Steel Bearing Insert

DODGE Ultra Kleen mounted ball bearings combine stainless steel housings with 100% stainless steel set screw inserts for food and beverage washdown service.

Key features

  • 100% stainless steel insert with 65° set screws and stainless anti-rotation pin
  • QuadGuard sealing system: patented triple-lip seal with rubberized flinger
  • Maxlife cage creates grease compartments that resist washout
  • Factory filled 100% with H1 food-grade grease
  • 300 series stainless steel housing casting
  • Housing groove accepts snap-on polymer end covers

Specifications

Brand DODGE
Product line Ultra Kleen
Housing style Bearing insert
Locking Set screw (65°), stainless steel
Shaft range 20-50 mm, 3/4-2 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 1-34
INS-SC-20M-SS Series: 204 | Shaft: 20 mm | Part no.: 127861
INS-SC-012-SS Series: 204 | Shaft: 3/4 in | Part no.: 127818
INS-SC-25M-SS Series: 205 | Shaft: 25 mm | Part no.: 127862
INS-SC-100-SS Series: 205 | Shaft: 1 in | Part no.: 127819
INS-SC-30M-SS Series: 206 | Shaft: 30 mm | Part no.: 127863
INS-SC-103-SS Series: 206 | Shaft: 1-3/16 in | Part no.: 127820
INS-SC-104S-SS Series: 206 | Shaft: 1-1/4 in | Part no.: 127821
INS-SC-35M-SS Series: 207 | Shaft: 35 mm | Part no.: 127864
INS-SC-104-SS Series: 207 | Shaft: 1-1/4 in | Part no.: 127822
INS-SC-107-SS Series: 207 | Shaft: 1-7/16 in | Part no.: 127823
INS-SC-40M-SS Series: 208 | Shaft: 40 mm | Part no.: 127865
INS-SC-108-SS Series: 208 | Shaft: 1-1/2 in | Part no.: 127824
INS-SC-45M-SS Series: 209 | Shaft: 45 mm | Part no.: 127866
INS-SC-111-SS Series: 209 | Shaft: 1-11/16 in | Part no.: 127825
INS-SC-112-SS Series: 209 | Shaft: 1-3/4 in | Part no.: 127804
INS-SC-50M-SS Series: 210 | Shaft: 50 mm | Part no.: 127867
INS-SC-115-SS Series: 210 | Shaft: 1-15/16 in | Part no.: 127826
INS-SC-200-SS Series: 210 | Shaft: 2 in | Part no.: 127808
Insert BearingsDODGE
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE Ultra Kleen SC Stainless Steel Bearing Insert

Brand DODGE·Insert Bearings

Available part numbers (18)

INS-SC-20M-SS, INS-SC-012-SS, INS-SC-25M-SS, INS-SC-100-SS, INS-SC-30M-SS, INS-SC-103-SS, INS-SC-104S-SS, INS-SC-35M-SS, INS-SC-104-SS, INS-SC-107-SS + 8 more — see full table ↓
