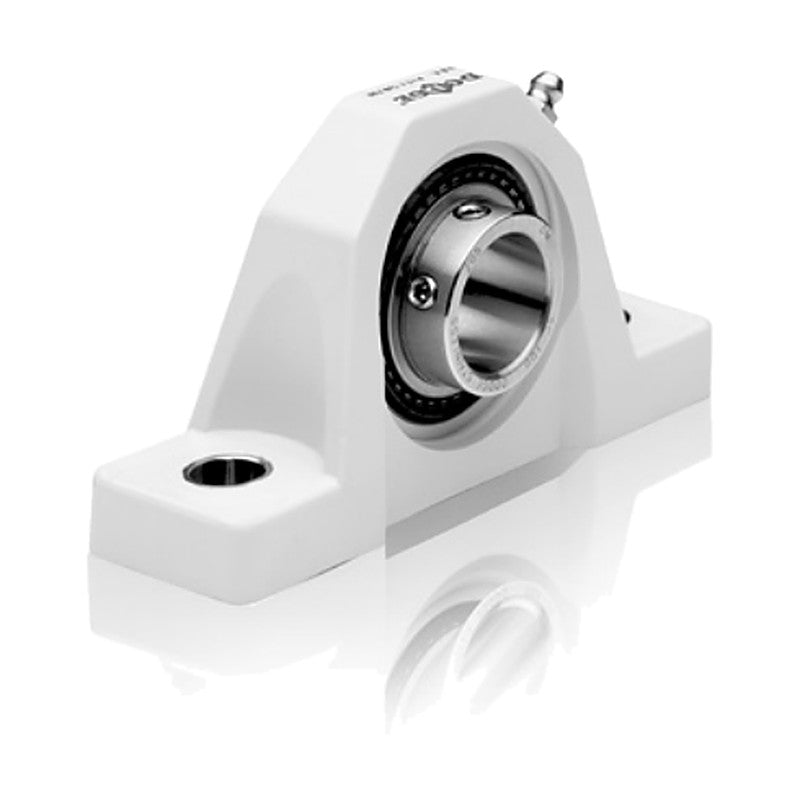

DODGE Ultra Kleen SCEZ PSS Polymer Pillow Block (20-50 mm, 3/4-2 in)

DODGE Ultra Kleen SCEZ PSS Polymer Pillow Block (20-50 mm, 3/4-2 in)

DODGE Ultra Kleen mounted ball bearings combine polymer housings with 100% stainless steel set screw inserts for food and beverage washdown service.

Key features

  • 100% stainless steel insert with 65° set screws and stainless anti-rotation pin
  • QuadGuard sealing system: patented triple-lip seal with rubberized flinger
  • Maxlife cage creates grease compartments that resist washout
  • Factory filled 100% with H1 food-grade grease
  • Solid cross-section polymer housing with anti-microbial agent
  • Housing groove accepts snap-on polymer end covers

Specifications

Brand DODGE
Product line Ultra Kleen
Housing style Pillow block
Housing material polymer
Locking Set screw (65°), stainless steel
Shaft range 20-50 mm, 3/4-2 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 1-15
P2B-SCEZ-20M-PSS Series: 204 | Shaft: 20 mm | Part no.: 136740
P2B-SCEZ-012-PSS Series: 204 | Shaft: 3/4 in | Part no.: 136695
P2B-SCEZ-25M-PSS Series: 205 | Shaft: 25 mm | Part no.: 136741
P2B-SCEZ-100-PSS Series: 205 | Shaft: 1 in | Part no.: 136696
P2B-SCUEZ-30M-PSS Series: 206 | Shaft: 30 mm | Part no.: 136742
P2B-SCUEZ-103-PSS Series: 206 | Shaft: 1-3/16 in | Part no.: 136697
P2B-SCUEZ-104S-PSS Series: 206 | Shaft: 1-1/4 in | Part no.: 136698
P2B-SCEZ-35M-PSS Series: 207 | Shaft: 35 mm | Part no.: 136743
P2B-SCEZ-104-PSS Series: 207 | Shaft: 1-1/4 in | Part no.: 136699
P2B-SCEZ-107-PSS Series: 207 | Shaft: 1-7/16 in | Part no.: 136700
P2B-SCBEZ-40M-PSS Series: 208 | Shaft: 40 mm | Part no.: 136744
P2B-SCBEZ-108-PSS Series: 208 | Shaft: 1-1/2 in | Part no.: 136701
P2B-SCEZ-45M-PSS Series: 209 | Shaft: 45 mm | Part no.: 136745
P2B-SCEZ-111-PSS Series: 209 | Shaft: 1-11/16 in | Part no.: 136702
P2B-SCEZ-50M-PSS Series: 210 | Shaft: 50 mm | Part no.: 136746
P2B-SCEZ-115-PSS Series: 210 | Shaft: 1-15/16 in | Part no.: 136703
P2B-SCEZ-200-PSS Series: 210 | Shaft: 2 in | Part no.: 136986
Mounted Bearing UnitsDODGE
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE Ultra Kleen SCEZ PSS Polymer Pillow Block (20-50 mm, 3/4-2 in)

Brand DODGE·Mounted Bearing Units

Available part numbers (17)

P2B-SCEZ-20M-PSS, P2B-SCEZ-012-PSS, P2B-SCEZ-25M-PSS, P2B-SCEZ-100-PSS, P2B-SCUEZ-30M-PSS, P2B-SCUEZ-103-PSS, P2B-SCUEZ-104S-PSS, P2B-SCEZ-35M-PSS, P2B-SCEZ-104-PSS, P2B-SCEZ-107-PSS + 7 more — see full table ↓

How to order

Send the DODGE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
P2B-SCEZ-20M-PSSSeries: 204 | Shaft: 20 mm | Part no.: 136740
P2B-SCEZ-012-PSSSeries: 204 | Shaft: 3/4 in | Part no.: 136695
P2B-SCEZ-25M-PSSSeries: 205 | Shaft: 25 mm | Part no.: 136741
P2B-SCEZ-100-PSSSeries: 205 | Shaft: 1 in | Part no.: 136696
P2B-SCUEZ-30M-PSSSeries: 206 | Shaft: 30 mm | Part no.: 136742
P2B-SCUEZ-103-PSSSeries: 206 | Shaft: 1-3/16 in | Part no.: 136697
P2B-SCUEZ-104S-PSSSeries: 206 | Shaft: 1-1/4 in | Part no.: 136698
P2B-SCEZ-35M-PSSSeries: 207 | Shaft: 35 mm | Part no.: 136743
P2B-SCEZ-104-PSSSeries: 207 | Shaft: 1-1/4 in | Part no.: 136699
P2B-SCEZ-107-PSSSeries: 207 | Shaft: 1-7/16 in | Part no.: 136700
P2B-SCBEZ-40M-PSSSeries: 208 | Shaft: 40 mm | Part no.: 136744
P2B-SCBEZ-108-PSSSeries: 208 | Shaft: 1-1/2 in | Part no.: 136701
P2B-SCEZ-45M-PSSSeries: 209 | Shaft: 45 mm | Part no.: 136745
P2B-SCEZ-111-PSSSeries: 209 | Shaft: 1-11/16 in | Part no.: 136702
P2B-SCEZ-50M-PSSSeries: 210 | Shaft: 50 mm | Part no.: 136746
P2B-SCEZ-115-PSSSeries: 210 | Shaft: 1-15/16 in | Part no.: 136703
P2B-SCEZ-200-PSSSeries: 210 | Shaft: 2 in | Part no.: 136986
