• DODGE Ultra Kleen SCEZ PSS Polymer Tapped Base Pillow Block
1 1

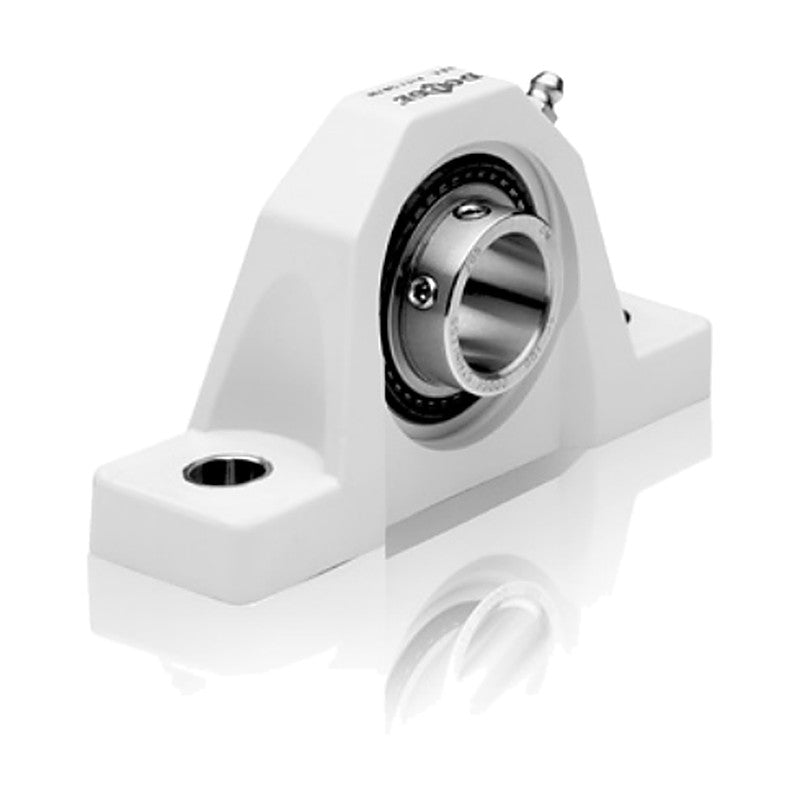

DODGE Ultra Kleen SCEZ PSS Polymer Tapped Base Pillow Block

DODGE Ultra Kleen SCEZ PSS Polymer Tapped Base Pillow Block

DODGE Ultra Kleen mounted ball bearings combine polymer housings with 100% stainless steel set screw inserts for food and beverage washdown service.

Key features

  • 100% stainless steel insert with 65° set screws and stainless anti-rotation pin
  • QuadGuard sealing system: patented triple-lip seal with rubberized flinger
  • Maxlife cage creates grease compartments that resist washout
  • Factory filled 100% with H1 food-grade grease
  • Solid cross-section polymer housing with anti-microbial agent
  • Housing groove accepts snap-on polymer end covers

Specifications

Brand DODGE
Product line Ultra Kleen
Housing style Tapped base pillow block
Housing material polymer
Locking Set screw (65°), stainless steel
Shaft range 20-35 mm, 3/4-1-7/16 in
Source DODGE Mounted Bearings Catalog (Metric, June 2014), p. 1-17
TB-SCEZ-20M-PSS Series: 204 | Shaft: 20 mm | Part no.: 136747
TB-SCEZ-012-PSS Series: 204 | Shaft: 3/4 in | Part no.: 136704
TB-SCEZ-25M-PSS Series: 205 | Shaft: 25 mm | Part no.: 136748
TB-SCEZ-100-PSS Series: 205 | Shaft: 1 in | Part no.: 136705
TB-SCEZ-30M-PSS Series: 206 | Shaft: 30 mm | Part no.: 136749
TB-SCEZ-103-PSS Series: 206 | Shaft: 1-3/16 in | Part no.: 136706
TB-SCEZ-104S-PSS Series: 206 | Shaft: 1-1/4 in | Part no.: 136707
TB-SCEZ-35M-PSS Series: 207 | Shaft: 35 mm | Part no.: 136750
TB-SCEZ-104-PSS Series: 207 | Shaft: 1-1/4 in | Part no.: 136708
TB-SCEZ-107-PSS Series: 207 | Shaft: 1-7/16 in | Part no.: 136709
Mounted Bearing UnitsDODGE
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DODGE Ultra Kleen SCEZ PSS Polymer Tapped Base Pillow Block

Brand DODGE·Mounted Bearing Units

Available part numbers (10)

TB-SCEZ-20M-PSS, TB-SCEZ-012-PSS, TB-SCEZ-25M-PSS, TB-SCEZ-100-PSS, TB-SCEZ-30M-PSS, TB-SCEZ-103-PSS, TB-SCEZ-104S-PSS, TB-SCEZ-35M-PSS, TB-SCEZ-104-PSS, TB-SCEZ-107-PSS
